Why don't we make a thread specifically for dyno charts? It could be used as a quick reference for questions regarding how much power certain mods make.


People should post the following:
Model:
Year:
Transmission:
Gear Used:
Dyno:
Modifications:
Atmospheric conditions (aka Temperature, humidity, etc.):
SAE Correction or Actual WHP:

I'll start this off.

Model: Cooper S
Year: 2003
Transmission: Manual
Gear Used:
Dyno: Mustang MD-250
Modifications: A comparison between a JCW car and a stock MCS with our TurboKompressor kit.
Atmospheric Conditions: Unknown




I will post up a few more charts, but I want a lot of people to contribute to this. Lets see those dyno charts everyone!!

I wonder if you should include atmosphereic conditions as well?

sure, I'll edit my posts

here's a dyno of my wife's stock JCW Mini Cooper S, fresh out of break in (only 1250 miles on it at this point):

I would recomend Temp, humidity and type of dyno being used...for example Dynojet 248 (48" drum) SAE Correction or Actual WHP

with all these suggestions, I will update the first post. I made the thread after a long day so I might have left a few things out.



comeo on everyone, lets see some more charts

Model: MCS
Year: 2002
Transmission: 6 Speed
Gear Used: 3rd
Dyno: Clayton Chassis Dynamometer
Modifications: GIAC, 15% Pulley, ABD Intake, TSW BPV
Atmospheric conditions (aka Temperature, humidity, etc.): 90 Degrees, close to sea level, humidity is unknown
SAE Correction or Actual WHP: Standard

I had just driven 93 mi. to get there and the car was driven right in and dyno'd:

Model:MCS/JCW
Year:05
Transmission:6 SPEED
Gear Used: 4th
Dyno:DYNOJET
Modifications: NONE
Atmospheric conditions (aka Temperature, humidity, etc.):
SAE Correction or Actual WHP:187.8



BIG PHOTO

05 mcs, 6speed , the first and second pull in 4th third pull in 3rd.
see sig for mods

Model: MCS
Year: 2005
Transmission: 6 Speed
Gear Used: 3rd
Dyno: DynoJet 248
Modifications: Alta Intake w/Hose, Alta 15% Pulley, GIAC, Invidia Exhaust, Minimania Header w/OEM Cat, Denso IK-22, and Unocal 76's 100 Octane (50%) / 91 Octane (50%)
Atmospheric conditions (aka Temperature, humidity, etc.): 76.34 F, 28.09 in-Hg, 23% Humidity, SAE: 1.06
SAE Correction or Actual WHP: SAE 1.06

Model: MCS
Year: 2005
Transmission: 6 Speed
Gear Used: 3rd
Dyno: DynoDynamics
Modifications: 15% Pulley, Ultrik CAI, One-Ball Exhaust......91 Octane
Atmospheric conditions (aka Temperature, humidity, etc.): Not exact, but January in Phoenix (READ: Cool (High 60s, low humidity, 1000ft asl)
SAE Correction or Actual WHP: 192.5 WHP

Will get another one in a few weeks to reflect additions from OBX Header+MTH+Cooler Weather...stay tuned.

is there a way we can get this stickied for quick reference?

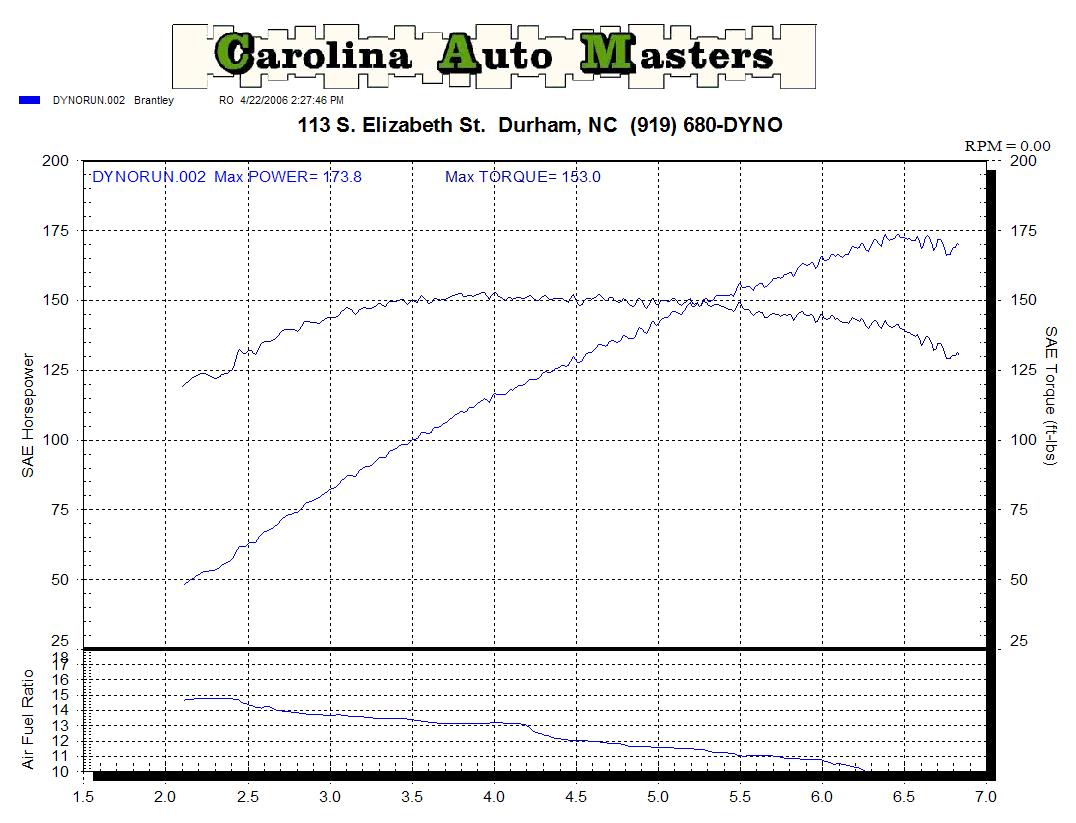

Model: Mini S
Year: 2005
Transmission: Man.
Gear Used: 4th
Dyno: DynoJet Model 248 single drum
Modifications: 19%, 0%, 62MM TB, Intake, header, exhaust, plugs, wires, coil, injectors, custum Head, cam, ECU, STOCK Inter-Cooler
Octane: 93
Atmospheric conditions (aka Temperature, humidity, etc.):72*f 37% humidity
SAE Correction or Actual WHP: Actual HP
Comments: MTH is working on a new tune to fix the A/F issue, BUT MMMM TQ!!! (Thanks to Head/Cam)

WTF man? You need to work on that tune.

This is all very interesting. I dont have my Dyno run scanned into the computer but i can give you the number!

2004 JCW
Added- 2% oversized crank pulley, alta intercooler, alta CAI, Ultrick Cam, Nology wires. and screamon demon pack, JCW ecu upgrade and jcw injectors.
Dyno- - Dyno Pak
Whp- 171.1
This sure seems low to me. it was very cold outside and a snow storm had just moved oout that afternoon. so i dont know the temp or the pressures!
This was in Salt Lake City, Utah, elevation about 3,800 feet.

Sorry I didnt really state, But to my knowledge there was no sae correction, the 171 was coming from the wheel.

By SAE you mean bhp and not whp. correct?

I personally don't put much stock in SAE correted numbers. The biggest problem I have with it is that different people will use different numbers to correct the whp numbers into SAE corrected bhp numbers.

If MINI fanatic #1 takes a stock MCS and dynos it to show 150whp, they believe the drivetrain loss to be X amount. Now MINI fanatic #2 runs another stock MCS on another dyno and gets 145whp and believes the drivetrain loss to be X amount. While not much of a difference now, if these two MINI fanatics were to do some mods, and calculate their new believed bhp numbers, thee numbers would begin to differ more and more.

This is why I personally like to see a dyno sheet with uncorrected numbers, it allows people to see a specific measurable growth with each mod or group of mods. I know most people do not have the ability, time or money to be constantly dynoing their cars, I just personally take horsepower claims, without a dynosheet, with a grain of salt.

but SAE does make it easier for the lamen to compare the charts.

no, SAE corrections are just corrections for differences in barometric pressure, humidity, and temperature, they still report whp numbers. My dyno chart was SAE corrected, as the dyno operator has his dyno hooked up to an RSS feed for weather data for his zip code. My guess is that schooner2's dyno was uncorrected, and the lower barometric pressure was the reason he was seeing such low numbers for a JCW car with mods. . .

BHP number are numbers that are recorded on an engine dyno, not a chassis dyno.

Chassis dyno= what you and I and everybody else dynos on

Engine dyno=dyno where they only hook the engine up to it, no tranny, no nothing else, so drivetrain loss, accessories, everything else isn't connected.

Do these charts show WHP?

yes, all of these charts show whp, as that is what a chassis dyno measures. I doubt anyone here took their motor out of their car to dyno it just to give us bhp numbers. . .
