Navigation & Audio Audio upgrades, bluetooth, and navigation discussions surrounding the Clubman (R55), Cooper and Cooper S (R56), and Cabrio (R57) MINIs.

Aftermarket infotainment Options

  #101
Old 12-06-2018, 08:04 PM
jiggersplat's Avatar
jiggersplat
jiggersplat is offline
1st Gear
Join Date: Apr 2018
Posts: 40
Thanks: 0
Thanked 2 Times in 2 Posts
I will also answer my other questions... the pink RF connector is for satellite, the black one is the FM antenna, which works great, at least on this model, even in my garage. Still not sure what the 4-pin RF connector is for.

  #102
Old 12-06-2018, 08:17 PM
GeneralSpecific
GeneralSpecific is offline
3rd Gear
Join Date: Jul 2013
Location: Wisconsin
Posts: 281
Thanked 6 Times in 6 Posts
This is good info. Thanks for posting it for posterity's sake!

  #103
Old 12-12-2018, 08:10 PM
jiggersplat's Avatar
jiggersplat
jiggersplat is offline
1st Gear
Join Date: Apr 2018
Posts: 40
Thanks: 0
Thanked 2 Times in 2 Posts
Anyone installed a backup camera with one of these? The reverse lead from my head unit goes into the harness and up to the display on mine, there is no loose end.

And vaguely related, it seems as though the cigarette lighter in the hatch is only hot when the engine is running? Is there a 12v source back there anywhere that is live in accessory mode?

  #104
Old 12-12-2018, 10:00 PM
GeneralSpecific
GeneralSpecific is offline
3rd Gear
Join Date: Jul 2013
Location: Wisconsin
Posts: 281
Thanked 6 Times in 6 Posts
As far as accessory power goes, you’re basically out of luck. You’ll have to run power all the way from the head unit to your backup camera. Somewhere in that mess of a bundle of wires at the back of your head unit should be a loose composite video connection. It is intended for a back up camera and when you shift into reverse the head unit will automatically display that input unless you have nothing connected, in which case it will show a yellow exclamation point triangle thing. Most back up cameras will have a cable that is a combination composite and power cable that should make your life a little easier to get all the way back to your back up camera location.

  #105
Old 12-13-2018, 10:53 AM
jiggersplat's Avatar
jiggersplat
jiggersplat is offline
1st Gear
Join Date: Apr 2018
Posts: 40
Thanks: 0
Thanked 2 Times in 2 Posts
My understanding is that most head units have a reverse trigger wire that is +12v when the car is in reverse which tells it to switch to the rear camera. It would not be an issue if that were the case, I could easily sort that out. My unit DOES have a reverse trigger wire, but for some reason it is bundled into the harness and goes to one of the connectors on the back of the display. The reverse lead is pin-11 (orange/black) in the pluggable harness, which you can see runs up through the harness and to the screen. It is not one of the four un-terminated wires (amp, sw-1, sw-2, gnd). So, is this thing smart enough to detect a video signal and kick over automatically, or is the "screen" somehow figuring out the car is in reverse from CANbus or none of the above and it's all just jacked up and I need to cut that wire?


https://www.erisin.com/images/htmlar...ng-Diagram.jpg

  #106
Old 12-18-2018, 04:30 PM
jiggersplat's Avatar
jiggersplat
jiggersplat is offline
1st Gear
Join Date: Apr 2018
Posts: 40
Thanks: 0
Thanked 2 Times in 2 Posts
After several utterly useless email exchanges, Erisin support is suggesting that yes in fact the reverse camera is activated via canbus. Of course at this point I had already cut the wire and tapped into pin 9(?) on the FRM to get a reverse signal.

  #107
Old 01-01-2019, 12:29 AM
Claviger
Claviger is offline
2nd Gear
Join Date: Jul 2017
Posts: 69
Thanked 6 Times in 5 Posts
So I am very thankful to all of you who've posted info on these units!

I am looking a buying the Hui Fei octocore Android 8 version.

What is required to get the HK audio to work with this unit? Is it as simple as providing a service 12v remote to turn the amplifier on as mentioned above?

The MIC mod and rooting + new ROM seem pretty easy, there's been continued and significant development on the XDA boards for the units, in particular, the KGL series seem to be the most advanced, currently.


Last edited by Claviger; 01-01-2019 at 01:13 AM.
  #108
Old 01-01-2019, 07:36 AM
jiggersplat's Avatar
jiggersplat
jiggersplat is offline
1st Gear
Join Date: Apr 2018
Posts: 40
Thanks: 0
Thanked 2 Times in 2 Posts
1) Yes, you need to wire the remote lead of the head unit to the harness to turn the amp on.
2) You'll need to either hook up the RCA outputs of the head unit to the inputs of the amp, in which case max volume won't be all that loud, or you'll need a 4-channel line output converter between the speaker-outs and the amp inputs, which is the route I have gone. (If you want some RCA->4mm bullet connector wires let me know, I'll send them to you)
3) I was able to get the factory to confirm that the reverse camera trigger wire is enabled via CAN, so if installing a backup camera, the only think you need to worry about is power for the camera and the video signal.
4) There is a mic+ and mic- in the factory harness. It may be possible to add two more pins to the head unit harness and splice those into a 3.5mm audio plug and use the factory microphone but I have't bothered.

Here is a link to all the wiring info I have used (the second sheet has links to the relevant TIS info pages, at least for my 2013 w/ HK and no Nav)

https://docs.google.com/spreadsheets...it?usp=sharing

I am also splitting out power, ground and CAN to some extra long wiring that I will use to hook up an LC-BMRC-01 chime module under normal use and I should be able to disconnect that and hook up the factory stereo temporarily if the car needs a software update. Be careful, the instructions for the chime module are poor and there are two connectors on the harness that will plug into the unit, but one of them is the wrong one and will short power and ground. Ask me how I know.


Last edited by jiggersplat; 01-01-2019 at 07:42 AM.
The Following User Says Thank You to jiggersplat For This Useful Post:
ECSTuning (01-02-2019)
  #109
Old 01-01-2019, 12:18 PM
Claviger
Claviger is offline
2nd Gear
Join Date: Jul 2017
Posts: 69
Thanked 6 Times in 5 Posts
Awesome thanks for the info!

  #110
Old 01-01-2019, 12:20 PM
mrbubba
mrbubba is offline
1st Gear
Join Date: Jun 2013
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
What's the link for the XDA forum for this unit? Haven't been able to find it

  #111
Old 01-01-2019, 12:31 PM
Claviger
Claviger is offline
2nd Gear
Join Date: Jul 2017
Posts: 69
Thanked 6 Times in 5 Posts
This thread has a nice consolidation of info. There's not a mini specific thread I've found, but, it'll all the same. You Lind of have to buy the unit first and then figure out which version you have, unless someone's linked the version type picture from the software and a purchase link (as one poster did in this thread).

​​
https://forum.xda-developers.com/showthread.php?t=2660662

  #112
Old 01-21-2019, 09:14 PM
bartivs
bartivs is offline
Neutral
Join Date: Jan 2019
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
I want to buy this model type:




this is my dash:


hello, i want to upgrade my 2014 countryman. But almost all of the aliexpress and ebay say that fits 2006-2013. Somebody know how is the compatibility between mini's nav's? Sorry if my English is crap :(

  #113
Old 01-22-2019, 03:32 AM
Scudder44
Scudder44 is offline
3rd Gear
Join Date: Nov 2015
Posts: 216
Thanked 23 Times in 23 Posts
Bartivs, you should open an order enquiry with a couple of the sellers and ask them, also send a pic of your dash as above and they will let you know. Physically yours looks like it would fit. It is the connections you have to be sure about.

  #114
Old 01-22-2019, 11:30 AM
bartivs
bartivs is offline
Neutral
Join Date: Jan 2019
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Scudder44 View Post
Bartivs, you should open an order enquiry with a couple of the sellers and ask them, also send a pic of your dash as above and they will let you know. Physically yours looks like it would fit. It is the connections you have to be sure about.
Ok, then i will ask. Thanks a lot

  #115
Old 02-09-2019, 02:39 AM
bluescreen
bluescreen is offline
Neutral
Join Date: Feb 2019
Posts: 4
Thanked 0 Times in 0 Posts
Hello!!
I have a 2009 mcs ac schnitzer. I have the dash with the gray digital hvac, gray cd etc. with the separate volume ****. I want to buy the android unit WITHOUT the speedometer. Will the black cd unit fit, and what will happen to the volume hole, or it does not fit? Must i change the dash with the lci one and is it easy?

Thank you in advance

  #116
Old 02-09-2019, 07:08 AM
GeneralSpecific
GeneralSpecific is offline
3rd Gear
Join Date: Jul 2013
Location: Wisconsin
Posts: 281
Thanked 6 Times in 6 Posts
Originally Posted by bluescreen View Post
Hello!!
I have a 2009 mcs ac schnitzer. I have the dash with the gray digital hvac, gray cd etc. with the separate volume ****. I want to buy the android unit WITHOUT the speedometer. Will the black cd unit fit, and what will happen to the volume hole, or it does not fit? Must i change the dash with the lci one and is it easy?

Thank you in advance
Seems very unlikely. You may have to get a double-DIN kit and install it like any other aftermarket stereo.

The Following User Says Thank You to GeneralSpecific For This Useful Post:
bluescreen (02-09-2019)
  #117
Old 02-09-2019, 08:08 AM
howiestt
howiestt is offline
1st Gear
Join Date: May 2015
Posts: 21
Thanks: 0
Thanked 3 Times in 3 Posts
Originally Posted by bluescreen View Post
Hello!!
I have a 2009 mcs ac schnitzer. I have the dash with the gray digital hvac, gray cd etc. with the separate volume ****. I want to buy the android unit WITHOUT the speedometer. Will the black cd unit fit, and what will happen to the volume hole, or it does not fit? Must i change the dash with the lci one and is it easy?

Thank you in advance
from what i read over the year, it seems you may need to buy a LCI faceplate/radio trim to accommodate the newer style shape of the radio unit. Not entirely sure because you have the digital HVAC

The Following User Says Thank You to howiestt For This Useful Post:
bluescreen (02-09-2019)
  #118
Old 02-09-2019, 10:51 PM
bluescreen
bluescreen is offline
Neutral
Join Date: Feb 2019
Posts: 4
Thanked 0 Times in 0 Posts
Originally Posted by howiestt View Post
from what i read over the year, it seems you may need to buy a LCI faceplate/radio trim to accommodate the newer style shape of the radio unit. Not entirely sure because you have the digital HVAC
Hi!

I think that too.

In other words i want to take this

android WITHOUT ugly bezel

NOT this

android WITH ugly bezel

and put it in my 2009 mini with that interior


mini cooper s 2009

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

My question is, can i replace my fascia

silver instruments fascia

with the fascia for the black instruments

fascia for black instruments

and use my silver digital hvac controls and switches?
Also will the black ones retrofit my mini in worst case scenario?


From the photos it seems the same below the cd unit, but, even the smallest differences matter.

  #119
Old 02-09-2019, 11:18 PM
howiestt
howiestt is offline
1st Gear
Join Date: May 2015
Posts: 21
Thanks: 0
Thanked 3 Times in 3 Posts


I have both units. I actually removed the plastic cover and taped up the leds and plastidipped the KM speedo solid. Looked great! Don’t let it stop you from getting a compatible one for your car.

  #120
Old 02-09-2019, 11:43 PM
howiestt
howiestt is offline
1st Gear
Join Date: May 2015
Posts: 21
Thanks: 0
Thanked 3 Times in 3 Posts

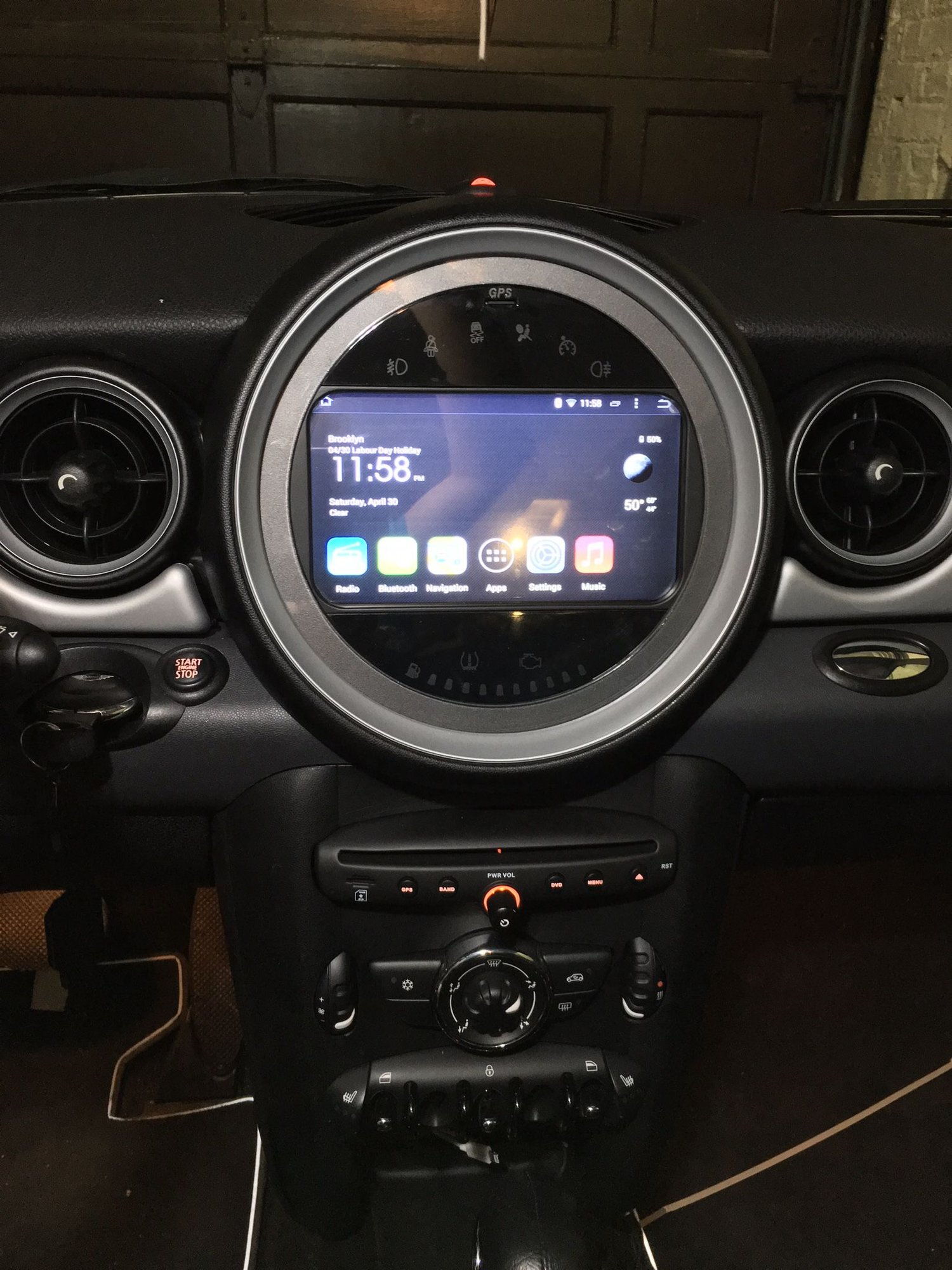

This is what I have now.

The Following User Says Thank You to howiestt For This Useful Post:
bluescreen (02-09-2019)
  #121
Old 02-09-2019, 11:48 PM
bluescreen
bluescreen is offline
Neutral
Join Date: Feb 2019
Posts: 4
Thanked 0 Times in 0 Posts
I talk about the second one. can you send me info about it? eshop, price etc. I see that it supports lte and i found only with 3g

Thank you!

( i ordered from ebay the black fascia to try if it fits, i have found black hvac control too, im gonna order it too propably)

  #122
Old 02-11-2019, 09:04 PM
Justin Miller
Justin Miller is offline
Neutral
Join Date: Feb 2019
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
howiestt , I'm thinking of picking up one of these android units. Which have you liked the most and where did you find these units. I am currently looking into the Seicane android 8.0 unit but I'd love to hear your thoughts.
