What is the part number & model number on the Champ2 radios for NAV and Visual Boost? I am not looking for the Mini fiche part number, but the number assigned to the model by the manufacturor that is decaled onto the radio.

PN Model Year Type
9286641 KO-GR:6512 2013 Visual Boost
9255067 KO-GR:6512 2011 NAV
9244419 KO-GR:6512 2010 NAV
Can anyone update, verify these numbers, or tell me where to look?

Thanks
T



Did you look in the parts catalog?

http://realoem.com/bmw/showparts.do?...37&hg=65&fg=05



Thanks, but these are the ordering part number. I was asking for the part number on the radio itself. I edited above to clarify my intent.

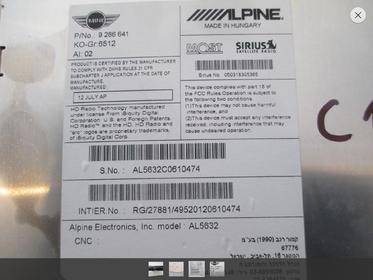

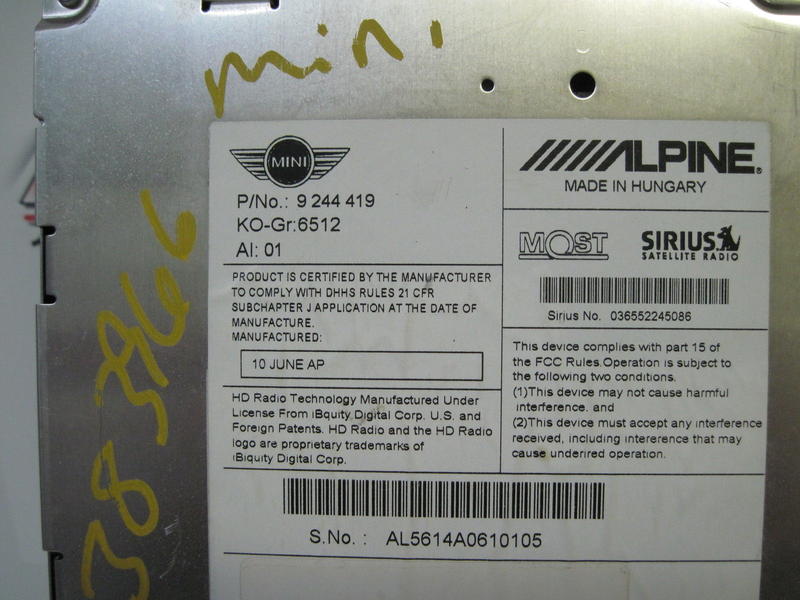

First is the CD Boost Radio Cover, Second the Visual Boost radio cover and Third the Nav Radio Cover



trying to attach the pics



hopefully attached



9255067 was given to me for a Nav system. It doesn't work on a PN lookup on real OEM.



That type of number wouldn't be on RealOEM. Only 10 or 11 digit numbers for dealers to use when ordering parts.

Google "9286641" returns this: http://www.ebay.com/itm/2013-Mini-Cooper-S-R55-R61-CD-Player-Deck-Radio-Stereo-w-Visual-Boost-9286641-/261407607996?pt=Car_Audio_Video&hash=item3cdd1b8cbc&vxp=mtr



I have found that one already for Visual Boost. I am trying to verify PN 9255067 as a NAV Radio. Smooths pics show a different model for NAV.
