R56 Potential N18 HPFP problem

Thread Tools

Search this Thread

Old Nov 9, 2025 | 08:47 PM
  #101
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Can you also post a picture of the X13795 brown wire grounding point?

Reply
Old Nov 9, 2025 | 08:58 PM
  #102
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
Measure resistance between the fuel pump connector ground pin (brown wire) and the X13795 brown wire grounding point.

Multimeter said open loop, however it also spiked to a pretty high value occasionally, but otherwise consistently said open loop.

Originally Posted by Maybe, maybe not
Also measure the fuel pump connector power pin voltage using X13795 as the ground.
With the ignition on (no brake pedal), it read 7V.

Reply
Old Nov 9, 2025 | 09:00 PM
  #103
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not

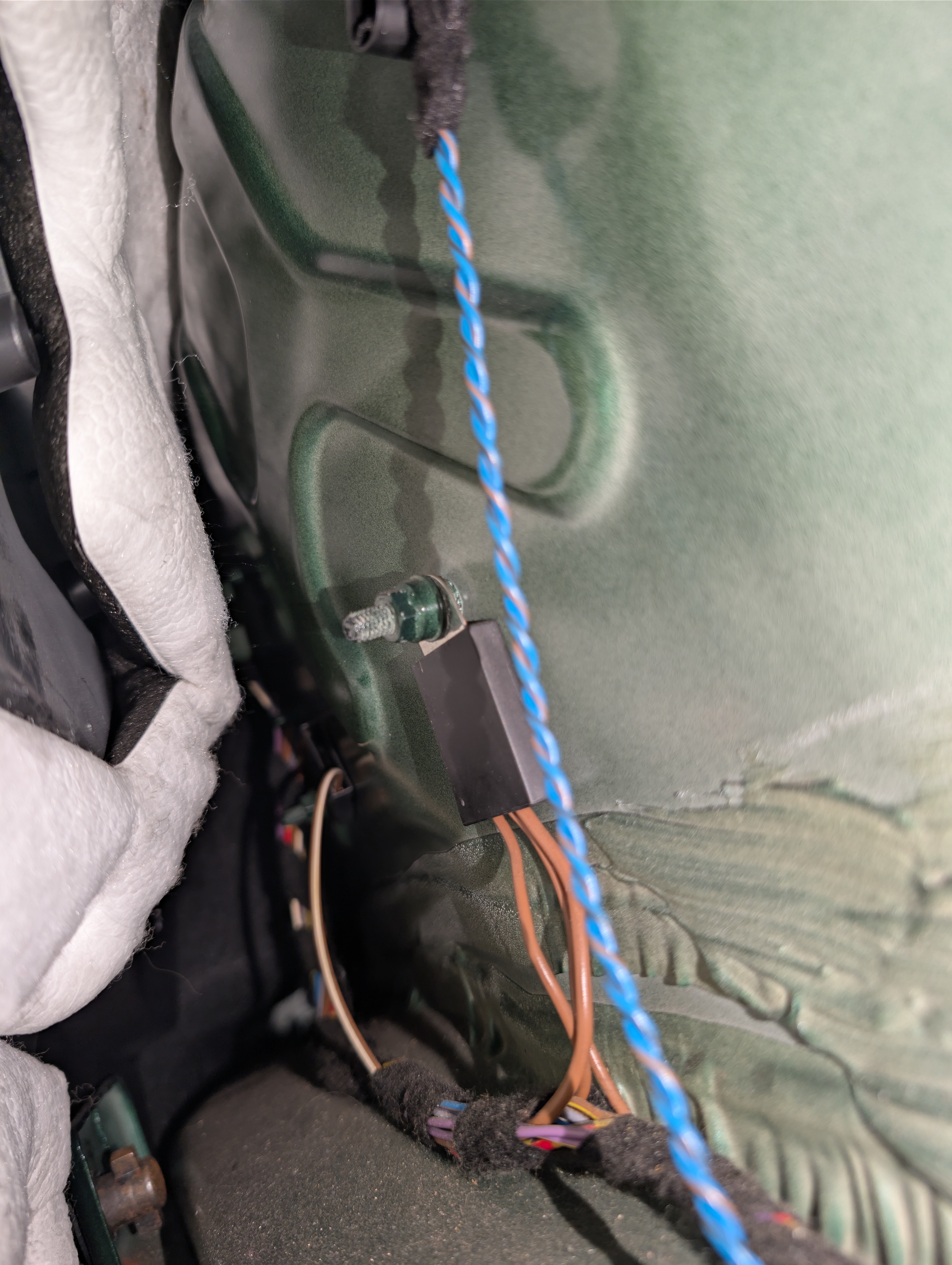

Can you also post a picture of the X13795 brown wire grounding point?
I'm going to pack it in for tonight. If you want, you can post the next step and I'll get to it tomorrow morning

Attached Thumbnails Potential N18 HPFP problem-pxl_20251110_044953424.jpg
Reply
Old Nov 9, 2025 | 09:04 PM
  #104
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Does a nut or bolt secure the ground wire to the body? If so, remove the nut/bolt and inspect the wire terminal and bolt. If you see any corrosion or tarnishing, clean with wire brush or sand paper. Reinstall the connection and redo voltage test to see if voltage reading rises above 7V or comes close to 12V.

If the voltage reading does not change, then the wire between the grounding point and the fuel pump connector may be damaged.

Good luck. I'll recheck your thread tomorrow.


Last edited by Maybe, maybe not; Nov 9, 2025 at 09:11 PM.
Reply
Old Nov 10, 2025 | 05:12 AM
  #105
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
The X13795 ground connection serves as a grounding point for all of these functions:
  • Center brake light
  • Fuel pump
  • Outside fold-in mirror
  • Rear window defogger, left
  • Taillight, left
  • Tire pressure controle module
  • Utility socket, rear
  • Boot lid push button/license plate light
If the fuel pump is the only listed function that doesn't work, then removing and cleaning the X13795 ground connection (see my post above) may not be worthwhile, and the problem most likely is the brown ground wire or its connection at the fuel pump connector.

Afterthought: I'm perplexed by the fact that the seat belt bolt ground allowed you to detect ~12V on the fuel pump power pin while the X13795 ground point did not. Might be worth repeating both voltage measurements.


Last edited by Maybe, maybe not; Nov 10, 2025 at 08:48 AM.
Reply
Old Nov 10, 2025 | 10:27 AM
  #106
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
Does a nut or bolt secure the ground wire to the body? If so, remove the nut/bolt and inspect the wire terminal and bolt. If you see any corrosion or tarnishing, clean with wire brush or sand paper. Reinstall the connection and redo voltage test to see if voltage reading rises above 7V or comes close to 12V.
I cleaned all points of contact with that grounding point with sandpaper, though nothing appeared corroded. I also checked the wire terminals on the ground post side and they looked fine as far as I could see. I measured voltage again and still got only 7V. This tells me that it might be the wire itself, which I'm dreading because I have no idea how I'm supposed to get to that...

Reply
Old Nov 10, 2025 | 10:28 AM
  #107
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
I'm perplexed by the fact that the seat belt bolt ground allowed you to detect ~12V on the fuel pump power pin while the X13795 ground point did not. Might be worth repeating both voltage measurements.
I redid it on the seat belt bolt and got 7V this time. Not sure why I got something higher earlier. Maybe I moved the connector into the exact right spot for it to read a healthy voltage haha

Reply
Old Nov 10, 2025 | 10:42 AM
  #108
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
I redid it on the seat belt bolt and got 7V this time. Not sure why I got something higher earlier. Maybe I moved the connector into the exact right spot for it to read a healthy voltage haha
The brown wire problem may be inside the fuel pump connector. Do you see any access for de-pinning the brown wire from the connector? Any visible damage to or corrosion on the connector ground pin?

Reply
Old Nov 10, 2025 | 10:58 AM
  #109
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
This tells me that it might be the wire itself, which I'm dreading because I have no idea how I'm supposed to get to that...
For diagnostic purposes, consider cutting the brown ground wire several inches away from the fuel pump connector. To locate which segment of the wire has the high resistance, use your multimeter to compare resistance readings between (1) the cut point and the fuel pump connector ground pin and (2) the cut point and the X13795 ground point.

Reply
Old Nov 10, 2025 | 11:14 AM
  #110
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
I also just tested the OBDII and the pins are all receiving power as they should be. I tried a different generic scan tool and it also couldn't find my VIN. The only reason I hesitate about the new PCB being the problem is that my old PCB was getting the exact same errors and "unfindable" VIN after I fixed it
OBDII port pins 6 & 14 communicate with the JBE via the D-CAN network. After you have fixed the fuel pump issue, you may want to check for abnormal voltage readings on the yellow/black and yellow/brown D-CAN wires.

Reply
Old Nov 10, 2025 | 11:32 AM
  #111
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
The brown wire problem may be inside the fuel pump connector. Do you see any access for de-pinning the brown wire from the connector? Any visible damage to or corrosion on the connector ground pin?
I don't see any way to de-pin that wire. I've stripped back some of the tape and removed the rubber seal, but that's as far as I've been able to get. Hard to tell if it looks corroded if I can't pull it out

Reply
Old Nov 10, 2025 | 11:52 AM
  #112
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
I don't see any way to de-pin that wire.
Is there any chance that this AI response provides helpful guidance for de-pinning the fuel connector?

Reply
Old Nov 10, 2025 | 11:52 AM
  #113
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
For diagnostic purposes, consider cutting the brown ground wire several inches away from the fuel pump connector. To locate which segment of the wire has the high resistance, use your multimeter to compare resistance readings between (1) the cut point and the fuel pump connector ground pin and (2) the cut point and the X13795 ground point.
I did this and actually got a result! The ground on the connector side reads open loop like before, however the ground on the chassis side was reading an actual resistance (it was all over the place because it's a stranded wire and I'm not that steady)

Reply
Old Nov 10, 2025 | 11:58 AM
  #114
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
I did this and actually got a result! The ground on the connector side reads open loop like before, however the ground on the chassis side was reading an actual resistance (it was all over the place because it's a stranded wire and I'm not that steady)
Nice work! Makes sense together with your other test results. Now you can focus on figuring out how to depin the brown wire from connector. Proceed slowly and carefully.

Reply
Old Nov 10, 2025 | 12:04 PM
  #115
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID

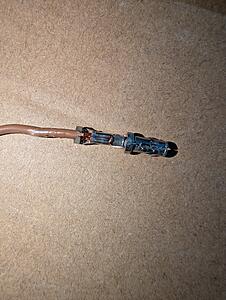

This honestly looks fine to me. I don't see anything wrong with the connection

Attached Thumbnails Potential N18 HPFP problem-pxl_20251110_200236918.jpg
Reply
Old Nov 10, 2025 | 12:07 PM
  #116
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Again, you are amazingly fast! What information do resistance measurements provide about where the fault lies in the removed wire?

Reply
Old Nov 10, 2025 | 12:12 PM
  #117
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
Again, you are amazingly fast! What information do resistance measurements provide about where the fault lies in the removed wire?
When I measure resistance connected to two sides of the exposed wire I get a fairly high value. However when I measure one side on the exposed wire and the other side on the pin I get a much lower value

Reply
Old Nov 10, 2025 | 12:18 PM
  #118
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
When I measure resistance connected to two sides of the exposed wire I get a fairly high value. However when I measure one side on the exposed wire and the other side on the pin I get a much lower value
Odd result. Do I see significant wire insulation damage and potential bulging of the wire due to corrosion adjacent to the connector pin?

Reply
Old Nov 10, 2025 | 12:20 PM
  #119
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
Originally Posted by Maybe, maybe not
Odd result. Do I see significant wire insulation damage and potential bulging of the wire due to corrosion adjacent to the connector pin?
That might've actually been my fault when I used too aggressive of a tool to pull the wire out (before I saw the AI response). I have more stranded copper wire I can put in place of that if need be

Edit: Though I just used a pair of pliers lightly, so I don't feel like the damage you see there entirely lines up with what I did

Reply
Old Nov 10, 2025 | 12:22 PM
  #120
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Side note: You should soon repeat your voltage measurement of the fuel pump power pin using the segment of wire with the X13795 ground point to see if you now get a 12V reading.

Reply
Old Nov 10, 2025 | 12:28 PM
  #121
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
That might've actually been my fault when I used too aggressive of a tool to pull the wire out (before I saw the AI response). I have more stranded copper wire I can put in place of that if need be

Edit: Though I just used a pair of pliers lightly, so I don't feel like the damage you see there entirely lines up with what I did
You should now consider carefully de-crimping the connector pin and recrimping it to a good segment of wire. Then, repeat the resistance measurements to verify low end to end wire resistance.

Reply
Old Nov 10, 2025 | 01:24 PM
  #122
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
I de-crimped the connector, which took a bit, and then got it onto a new piece of wire with similar resistance readings to the ground wire hooked up to the chassis. Then I spliced those two wires together and heat-shrunk them, but I'm still getting the same low voltage reading, even after all that. Is it possible it's the connector itself?

Reply
Old Nov 10, 2025 | 01:26 PM
  #123
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Did you voltage test the segment of wire with the X13795 ground point before splicing?

Reply
Old Nov 10, 2025 | 01:28 PM
  #124
WillCucco's Avatar
WillCucco
Thread Starter
|
2nd Gear
Joined: Aug 2024
Posts: 105
Likes: 3
From: Boise, ID
No, I forgot to do that honestly. Did you want me to put the positive side into the power connector and the negative side on the X13795 ground wire?

Reply
Old Nov 10, 2025 | 01:32 PM
  #125
Maybe, maybe not's Avatar
Maybe, maybe not
6th Gear
Community Builder
Community Influencer
Joined: Jul 2023
Posts: 1,504
Likes: 209
Originally Posted by WillCucco
No, I forgot to do that honestly. Did you want me to put the positive side into the power connector and the negative side on the X13795 ground wire?
You learn much more by voltage testing the fuel pump power pin using the entire segment of wire with the X13795 ground point to see if you get a 12V reading.

Strip away some brown wire insulation to allow good contact with the black meter probe.

Reply
