Looked into Retrofitting Rear Fogs
In my previous car (BMW E90), to retrofit rear fog lights was just a matter of replacing the switch for a european spec one or "enabling" the button with an exacto knife, a spring from an old pen, and a straw. Hoping for something similar on the Mini, I took the lower panel off to see what's what.
My Mini did not have the rear fogs option ticked, something that comes with buying off the lot and me being a little impatient to order. Anywho, with the panel off, I first looked at the wiring. The connector has 3 pins, a ground, a signal wire, and a wire for illumination (guessing here). There is a 4th hole in the connector for another wire that's absent. Can factory rear fog owners check and see if this is occupied? This is a generic connector 4 pin connector BMW has used since the 90's so I may just be paranoid.

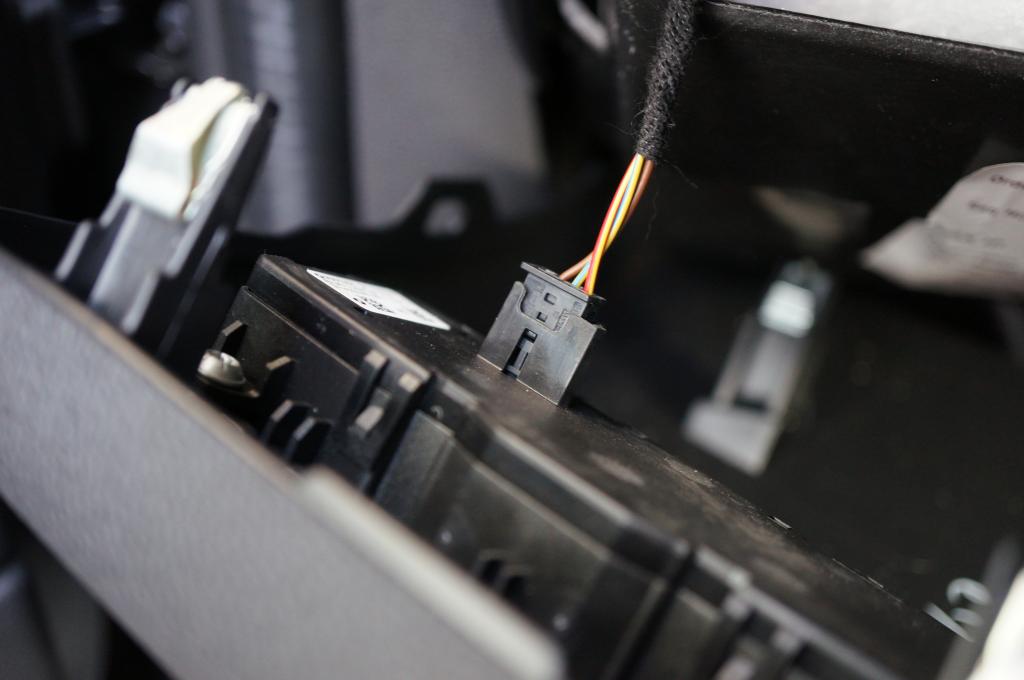

Here's the backside of the switch.
I took apart the switch that's held together with a series of clips for a peek inside.
Front:
Back:
As you can see bits are actually missing from the circuit board, so looks like it's a no go for the spring and straw method. I'm just curious how many fractions of pennies did they save by doing this. They did splurge on bulbs in the rear foglights however.
So it looks like I'll be ordering a new switch and see where that gets me.
My Mini did not have the rear fogs option ticked, something that comes with buying off the lot and me being a little impatient to order. Anywho, with the panel off, I first looked at the wiring. The connector has 3 pins, a ground, a signal wire, and a wire for illumination (guessing here). There is a 4th hole in the connector for another wire that's absent. Can factory rear fog owners check and see if this is occupied? This is a generic connector 4 pin connector BMW has used since the 90's so I may just be paranoid.
Here's the backside of the switch.
I took apart the switch that's held together with a series of clips for a peek inside.
Front:
Back:
As you can see bits are actually missing from the circuit board, so looks like it's a no go for the spring and straw method. I'm just curious how many fractions of pennies did they save by doing this. They did splurge on bulbs in the rear foglights however.
So it looks like I'll be ordering a new switch and see where that gets me.
#2
subscribed.
i was considered not even bothering to use it as a fog as i don't see that being an issue in NY but moreso splicing into my backup lights so they turn on when i go into reverse. seems easier and more realistic to some of us that dont' live in high fog areas.
also would help for those with dark tints.
i was considered not even bothering to use it as a fog as i don't see that being an issue in NY but moreso splicing into my backup lights so they turn on when i go into reverse. seems easier and more realistic to some of us that dont' live in high fog areas.
also would help for those with dark tints.
#3
#4
Marcopolo, I like the idea of converting them into additional back up lights. I havnt looked at it all to see if there are bulbs in there. but since the lens is there it probably wouldn't be too hard to add a switch and lights. but of course you'd be doing all the wiring and everything.
- verify the fuse can handle the load
- splice the wiring...
i'll take a stab at it over the weekend.
#6
that was all. i get your solution, i was looking at alternatives.
#7
Trending Topics
#8
In my previous car (BMW E90), to retrofit rear fog lights was just a matter of replacing the switch for a european spec one or "enabling" the button with an exacto knife, a spring from an old pen, and a straw. Hoping for something similar on the Mini, I took the lower panel off to see what's what.
My Mini did not have the rear fogs option ticked, something that comes with buying off the lot and me being a little impatient to order. Anywho, with the panel off, I first looked at the wiring. The connector has 3 pins, a ground, a signal wire, and a wire for illumination (guessing here). There is a 4th hole in the connector for another wire that's absent. Can factory rear fog owners check and see if this is occupied? This is a generic connector 4 pin connector BMW has used since the 90's so I may just be paranoid.
Here's the backside of the switch.
I took apart the switch that's held together with a series of clips for a peek inside.
Front:
Back:
As you can see bits are actually missing from the circuit board, so looks like it's a no go for the spring and straw method. I'm just curious how many fractions of pennies did they save by doing this. They did splurge on bulbs in the rear foglights however.
So it looks like I'll be ordering a new switch and see where that gets me.
My Mini did not have the rear fogs option ticked, something that comes with buying off the lot and me being a little impatient to order. Anywho, with the panel off, I first looked at the wiring. The connector has 3 pins, a ground, a signal wire, and a wire for illumination (guessing here). There is a 4th hole in the connector for another wire that's absent. Can factory rear fog owners check and see if this is occupied? This is a generic connector 4 pin connector BMW has used since the 90's so I may just be paranoid.
Here's the backside of the switch.
I took apart the switch that's held together with a series of clips for a peek inside.
Front:
Back:
As you can see bits are actually missing from the circuit board, so looks like it's a no go for the spring and straw method. I'm just curious how many fractions of pennies did they save by doing this. They did splurge on bulbs in the rear foglights however.
So it looks like I'll be ordering a new switch and see where that gets me.
Maybe the rear fogs are actually some software enabling thing??? The connector on the back of that switch is some digital control signal. So it is sending a command to some computer. $100 to make a software change sounds more reasonable and explains why there are already bulbs back there.
Did you ask the dealer if they can enable them?
#9
In past generations of MINI, retrofitting the rear fog involved both adding the switch and programming. Depending on the model, the rear fog lamp was often already there, wired and complete with bulb even if it wasn't functioning.
#10
The rear fogs are not just for fog. They're beneficial, as well, in heavy rain. Or any other condition where visibility to the car behind you is limited. I just tested my rear fogs last night with my wife driving behind me. She was surprised at how bright they were. I will most definitely use them in the future in heavy rain. I like the idea that a vehicle behind me can see me when I need them to. So I would not recommend converting the rear fogs to an additional backup light system. Instead, replace your backup lights with a brighter bulb.
RKW, in another thread someone confirmed that if you didn't order rear fog lights then the existing setup on your MINI is sans the bulb, switch and programming. And maybe without the wiring, too.
RKW, in another thread someone confirmed that if you didn't order rear fog lights then the existing setup on your MINI is sans the bulb, switch and programming. And maybe without the wiring, too.
#12
It doesn't make sense that they replace this circuit card if a car is ordered with rear fogs. I think it is a $100 charge. That doesn't add up. I'm not sure there is a separate switch for the rear fogs. I suspect they come on with the front fogs, so there may only be one fog light switch. Those missing bits might be for some future functionality.
Maybe the rear fogs are actually some software enabling thing??? The connector on the back of that switch is some digital control signal. So it is sending a command to some computer. $100 to make a software change sounds more reasonable and explains why there are already bulbs back there.
Did you ask the dealer if they can enable them?
Maybe the rear fogs are actually some software enabling thing??? The connector on the back of that switch is some digital control signal. So it is sending a command to some computer. $100 to make a software change sounds more reasonable and explains why there are already bulbs back there.
Did you ask the dealer if they can enable them?
#13
I think we have determined that all the wiring is already there and the bulbs too. Costs them pennies but they charge many dollars for the switch swap and programming!
#14
It doesn't make sense that they replace this circuit card if a car is ordered with rear fogs. I think it is a $100 charge. That doesn't add up. I'm not sure there is a separate switch for the rear fogs. I suspect they come on with the front fogs, so there may only be one fog light switch. Those missing bits might be for some future functionality.
Maybe the rear fogs are actually some software enabling thing??? The connector on the back of that switch is some digital control signal. So it is sending a command to some computer. $100 to make a software change sounds more reasonable and explains why there are already bulbs back there.
Did you ask the dealer if they can enable them?
Maybe the rear fogs are actually some software enabling thing??? The connector on the back of that switch is some digital control signal. So it is sending a command to some computer. $100 to make a software change sounds more reasonable and explains why there are already bulbs back there.
Did you ask the dealer if they can enable them?
#15
Any update on this anyone? I didn't get the fog lights, but I was hoping this can be retrofitted with an LED to stay on while the rear lights are on.
I'm thinking a low power draw LED shouldn't trip anything, so maybe just keep it lit all the time? It might be okay if it's just bright enough.
I'm thinking a low power draw LED shouldn't trip anything, so maybe just keep it lit all the time? It might be okay if it's just bright enough.
#16
FWIW, the option is available in the programming.
https://www.northamericanmotoring.co...ogramming.html
https://www.northamericanmotoring.co...ogramming.html
#17
Any update on this anyone? I didn't get the fog lights, but I was hoping this can be retrofitted with an LED to stay on while the rear lights are on.
I'm thinking a low power draw LED shouldn't trip anything, so maybe just keep it lit all the time? It might be okay if it's just bright enough.
I'm thinking a low power draw LED shouldn't trip anything, so maybe just keep it lit all the time? It might be okay if it's just bright enough.
That would be a stand-alone circuit that the ECU wouldn't see, so you can any type of bulb you like.
#18
There's quite a bit of info in a previous thread about this, including pics of the replacement switch variations, which are around $100. I did the same surgery, pulling out the switch only to determine that unlike the BMW you can't do a quick activation. And this was after coding the rear fogs, but coding by itself doesn't do a thing.
#19
To make the rear fogs work
As I just posted in the coding thread, you need to do the following - not just buying the switch, but also using e-sys to enable the feature in the body domain controller (BDC)
First, purchase the version of the light switch for your car that includes the rear fog switch and fit it.
Then, the following coding is required to make them work,
1) add option 5AA rear fogs to the VO (vehicle order)
then in the BDC, code the following :-
2) 3068, NSL_Verbaut = Verbaut
(This enables the BDC to sense the switch, if you just code this and try the lights, it just activates the symbol on the instrument cluster but does nothing else)
3)
3064 Mapping_Nebelschlussl_L_output = nsl_l
3064 Mapping_Nebelschlussl_L_Function = nebelschlusslicht
3064 Mapping_Nebelschlussl_R_output = nsl_l
3064 Mapping_Nebelschlussl_R_Function = nebelschlusslicht
These options enable the correct outputs on the BDC to activate the lights. You could choose to have only one light on if you wished
After doing all the above, you will have fully working rear fogs, confirming that both the wiring is already in place, and BMW rape your wallet for a $100 option that only needs probably an extra $1 in components in the switch module. They obviously have a very savvy marketing department who have figured out perceived value of such options like this that cost them next to nothing
BTW, the OP was asking about the light switch connector. It is three wires no matter what version/options you have. Power, ground, CANBUS. This is typical of multiplexed wiring used by BMW.
First, purchase the version of the light switch for your car that includes the rear fog switch and fit it.
Then, the following coding is required to make them work,
1) add option 5AA rear fogs to the VO (vehicle order)
then in the BDC, code the following :-
2) 3068, NSL_Verbaut = Verbaut
(This enables the BDC to sense the switch, if you just code this and try the lights, it just activates the symbol on the instrument cluster but does nothing else)
3)
3064 Mapping_Nebelschlussl_L_output = nsl_l
3064 Mapping_Nebelschlussl_L_Function = nebelschlusslicht
3064 Mapping_Nebelschlussl_R_output = nsl_l
3064 Mapping_Nebelschlussl_R_Function = nebelschlusslicht
These options enable the correct outputs on the BDC to activate the lights. You could choose to have only one light on if you wished
After doing all the above, you will have fully working rear fogs, confirming that both the wiring is already in place, and BMW rape your wallet for a $100 option that only needs probably an extra $1 in components in the switch module. They obviously have a very savvy marketing department who have figured out perceived value of such options like this that cost them next to nothing
BTW, the OP was asking about the light switch connector. It is three wires no matter what version/options you have. Power, ground, CANBUS. This is typical of multiplexed wiring used by BMW.
The following users liked this post:
Chamberlin1 (05-29-2021)
#21
I don't think you want to buy the switch module. The front headlight switch cluster that's in your front dash alone costs a lot to replace. Sewell parts and other places has them. Then you also need to add the hardware information in to your VO and then do the coding. If I knew when I was ordering, I would have just ordered the rear fog light for extra $100.
#23
Looking here, http://realoem.com/bmw/showparts.do?...83&hg=61&fg=35 seems like there is no specific switch available
-Mike '14 MCSa
-Mike '14 MCSa
items #5, #6, #7, #8 all have the rear fog switch added
#5 = No front fog and regular halogen lights
#6 = No front fog and LED lights
#7 = front and rear fog and regular halogen lights
#8 = front and rear fog and LED lights
#25
Let us know if you do anything to the rear fog light. I'd like to see what other people have done to it other than retro fitting the fog light switch cluster for $$$. Because these are canbus, it's not just simple as connecting them to some power source. Have to carefully look at the circuit to decide where to tap in to.
