Drivetrain Aquamist HFS Methanol Injection Systems
#53
I believe a good starting point for flow rate is 20% of total injector flow. So if stock injectors are 400cc (I couldn't find a good number for this), multiply by 4 to get 1600. 20% of 1600 is 320cc. I measured 275cc, so I'm a little low but I'm fine with that for now.
I think it's best to start out low and work up.
#54
#55
#56
There is. It comes with the kit. It is for the R56 so my install was slightly different since I have a Countryman. Overall 95% accurate. Only difference was the tank.
#58
#59

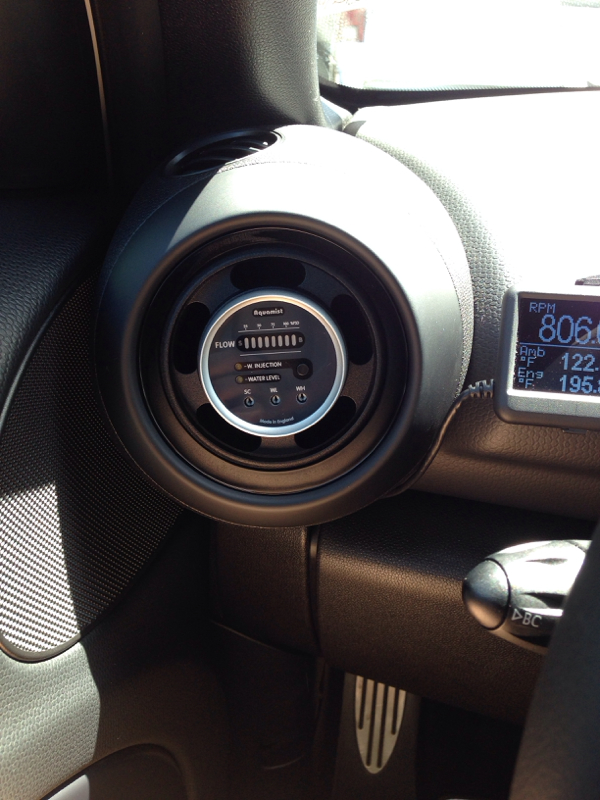

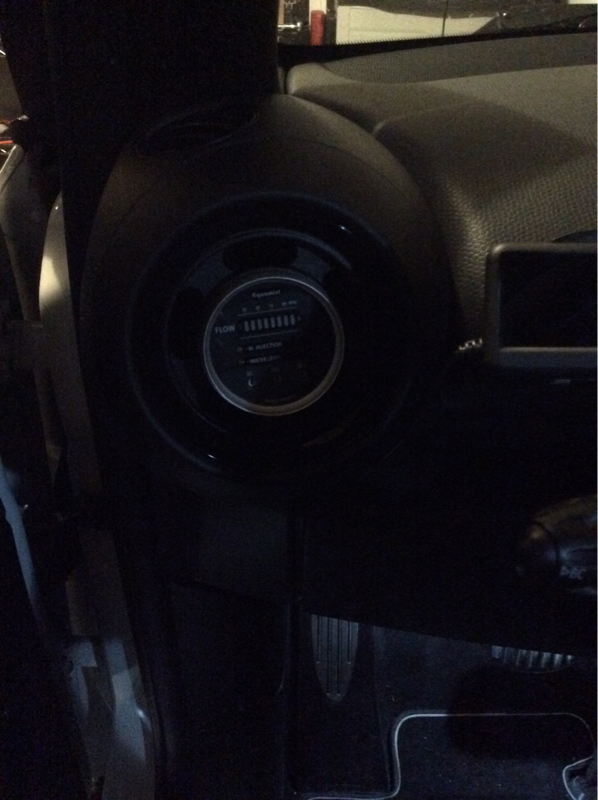

Today I got all the wires to the ECU ( did not make any connections yet) all the wires into the cabin, installed the FAV, installed the jet adapter and installed the gauge. All I have left is to make the connections at the ECU and make the positive battery connection.
#64
#66
Recent logging shows that the intake cooling effects are drastically reduced when the humidity is high. The other morning it was misty with a relative humidity around +95% and the IAT was only about 5 F degrees below ambient. Where normally it would be closer to 20 F degrees below ambient.
I had never really thought about it before but it does make sense. Maybe I'm just stating the obvious.
Currently I'm using 100% methanol and I'm waiting for a 80 F, low humidity day to log a run to compare to my 80% and 95% methanol runs. Then I get data for 50/50 mix.
I had never really thought about it before but it does make sense. Maybe I'm just stating the obvious.
Currently I'm using 100% methanol and I'm waiting for a 80 F, low humidity day to log a run to compare to my 80% and 95% methanol runs. Then I get data for 50/50 mix.
#68
A standard set of metric wrenches and screw drivers. Nothing special required.
Gauge pod is not included.
#69
For tools you will need a drill, drill bit and tap. Howerton sell the tap and drill bit, buy it from him. A basic drill bit set would be nice. This is to install the jet in the charge pipe. A standard set of metric wrenches and screw drivers. Nothing special required. Gauge pod is not included.
#70
1/8"-27 NPT Tap
11/32" Drill Bit
7/8" Drill Bit
I got my parts from Amazon as I am a Prime Member and get free shipping, I did not need the 7/8" Bit.
If you are going to Drill and Tap in place, I would also get some heavy grease. You will fill the Drill Bit and the Tap with grease to catch the metal shavings.
Document from Howerton Eng - Installation DOC for MINI Cooper
11/32" Drill Bit
7/8" Drill Bit
I got my parts from Amazon as I am a Prime Member and get free shipping, I did not need the 7/8" Bit.
If you are going to Drill and Tap in place, I would also get some heavy grease. You will fill the Drill Bit and the Tap with grease to catch the metal shavings.
Document from Howerton Eng - Installation DOC for MINI Cooper
#71
#72
#74
Has anyone done the install on an R60/Countryman? Finally got around to the final step of making the ECU connections and the instructions from the R56 seemed different.

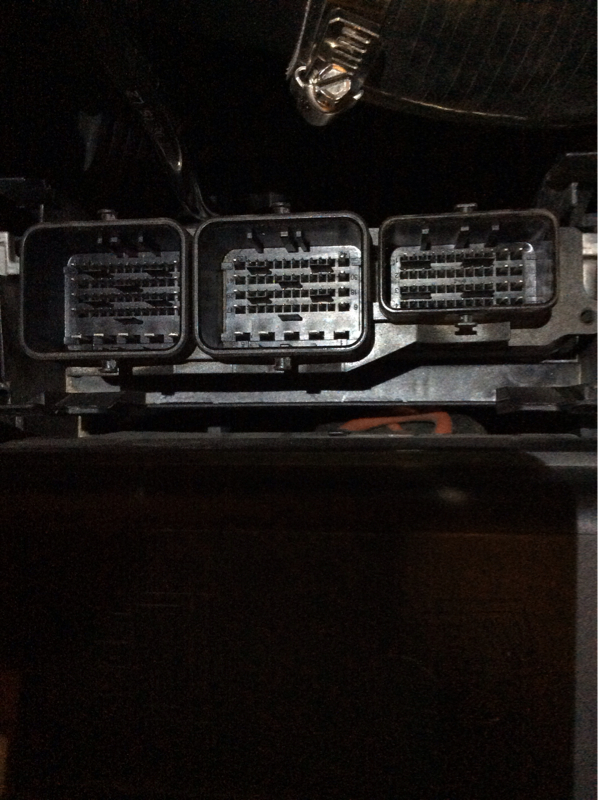

Step 3 is the MAP sensor. On the top connector, the instructions on page 23 stated the middle connector? But the diagram shows the connection on the X60232 connector. Also, why does it look like pin 31 has a plug/blank in it and not a wire?
Any help would be appreciated. I stopped once I saw this to make sure I was making the correct connections.
Step 3 is the MAP sensor. On the top connector, the instructions on page 23 stated the middle connector? But the diagram shows the connection on the X60232 connector. Also, why does it look like pin 31 has a plug/blank in it and not a wire?
Any help would be appreciated. I stopped once I saw this to make sure I was making the correct connections.
#75
My install was on a R56 but I think they are the same connectors as the R60. I followed the diagram in the back of the manual exactly and only used the photos as "guidance". There are no connections to be made in the middle connector. Only the first and third connectors.

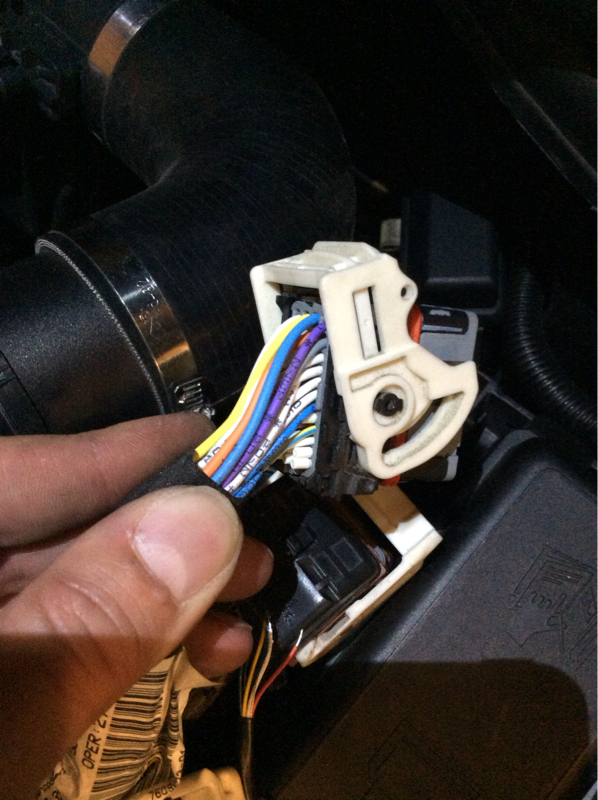

Here's a photo of my connector:
Note that the connector has more rows on it then shown in the diagram. I just counted from the end where #1 starts and all the colors matched up perfectly with what is shown in the diagram. Make sure that you are counting and identifying #31 correctly (use the colors as reference - they should match up exactly as shown in the diagram).
Triple check everything.
Here's a photo of my connector:
Note that the connector has more rows on it then shown in the diagram. I just counted from the end where #1 starts and all the colors matched up perfectly with what is shown in the diagram. Make sure that you are counting and identifying #31 correctly (use the colors as reference - they should match up exactly as shown in the diagram).
Triple check everything.
