Drivetrain (Cooper S) MINI Cooper S (R56) intakes, exhausts, pulleys, headers, throttle bodies, and any other modifications to the Cooper S drivetrain.

Post your 2nd gen dynos!

  #26
Old 10-04-2011, 01:12 PM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
Originally Posted by ThumperMCS View Post
That's on a Hybrid K04
Makes sense. Do you know the owner? Or are you the owner?

I want the same numbers, and am looking at sending my turbo out once I get moved. I have all the other bolt ons for my current turbo, all I would need to do is have my turbo altered and then re-tuned?

  #27
Old 10-04-2011, 01:25 PM
ThumperMCS
ThumperMCS is offline
6th Gear
iTrader: (2)
Join Date: Feb 2006
Location: OC, CA
Posts: 3,573
Received 5 Likes on 5 Posts
Originally Posted by Boosted_Mini View Post
Makes sense. Do you know the owner? Or are you the owner?

I want the same numbers, and am looking at sending my turbo out once I get moved. I have all the other bolt ons for my current turbo, all I would need to do is have my turbo altered and then re-tuned?
Not the owner, I have a JCW turbo on mine.

And yes, in theory that's all you need to do. And then just hope the motor stays together, cuz it most likely won't for long, if history proves true.

Anything bigger than the JCW turbo, and I would not run it without pistons at the very least.

  #28
Old 10-04-2011, 01:36 PM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
Originally Posted by ThumperMCS View Post
Not the owner, I have a JCW turbo on mine.

And yes, in theory that's all you need to do. And then just hope the motor stays together, cuz it most likely won't for long, if history proves true.

Anything bigger than the JCW turbo, and I would not run it without pistons at the very least.
So I have read in your posts. I have been in contact with [email protected] since I am moving back to Southern Cal and will be local to his shop in Fountain Valley about getting some JE piston and Carrillo Rods installed in my MCS in the near future.

  #29
Old 10-08-2011, 06:32 PM
killerfox
killerfox is offline
4th Gear
Join Date: Oct 2008
Location: mount laurel, NJ
Posts: 398
Likes: 0
Received 0 Likes on 0 Posts
Updated dyno results after Meth kit and DP install. The car is not tuned for Meth so it is just the ecu self adjusting. you can look a few posts back to see my results from a year ago.


  #30
Old 10-15-2011, 08:42 AM
m54b25
m54b25 is offline
2nd Gear
Join Date: Oct 2007
Location: Miami, Florida Sunshine
Posts: 66
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Boosted_Mini View Post
I am going to guess its not stock turbo, I say that because it makes more HP than TQ which K series turbos DO NOT do.

Please more information on this.

Yes, it's a Euro RS4 K series turbo chra in the Mini R56 housings =) Daily driven on 93octane fuel with emissions!

  #31
Old 10-25-2011, 10:52 AM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
Visited Jan yesterday at his shop:

Gained 45wtq 35whp with the tune.

Stock: 174/188
Tuned: 210/235

Tracking down a small boost leak today.

Name:  2011-10-25_10-30-21_10.jpg
Views: 1493
Size:  89.0 KB

http://youtu.be/qlRa7L7geJE

http://youtu.be/LGxMSeWtKTU

  #32
Old 10-25-2011, 03:29 PM
roushraven
roushraven is offline
2nd Gear
Join Date: Sep 2011
Location: Omaha
Posts: 88
Likes: 0
Received 0 Likes on 0 Posts
Nice!

  #33
Old 10-25-2011, 07:56 PM
onefish2
onefish2 is offline
6th Gear
iTrader: (3)
Join Date: Nov 2008
Location: Nanuet, NY
Posts: 1,906
Likes: 0
Received 0 Likes on 0 Posts
This was from Swift in April of 2011 when Jan was out there. It was a cool overcast day. Mods in Signature.


  #34
Old 10-25-2011, 09:10 PM
turtle343
turtle343 is offline
4th Gear
Join Date: Aug 2009
Posts: 468
Likes: 0
Received 0 Likes on 0 Posts
awesome gains, can you let us know if you find out what the leak was?

  #35
Old 10-28-2011, 10:06 AM
SpyVsSpy
SpyVsSpy is offline
2nd Gear
Join Date: Mar 2009
Location: Washington
Posts: 98
Likes: 0
Received 0 Likes on 0 Posts

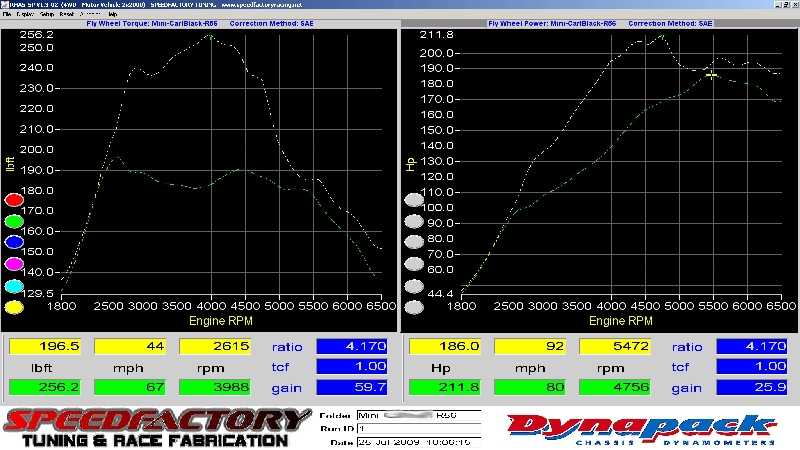

July 25, 2009
Time (PDT) Temp. Dew Point Humidity Pressure Visibility Conditions
9:53 AM 69.1 °F 57.9 °F 68% 30.04 in 10.0 mi Clear
10:53 AM 71.1 °F 57.9 °F 63% 30.04 in 10.0 mi Clear

Attached Thumbnails Post your 2nd gen dynos!-mini-r56.jpg

Last edited by SpyVsSpy; 10-28-2011 at 10:11 AM.
  #36
Old 10-28-2011, 10:09 AM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
^ why does HP drop off so sharply around 5000rpm?

  #37
Old 10-28-2011, 10:27 AM
Porthos's Avatar
Porthos
Porthos is offline
6th Gear
iTrader: (8)
Join Date: Feb 2009
Location: None yours!
Posts: 6,452
Received 3 Likes on 2 Posts
Dood this isn't a discussion thread. Please start up a thread with a link to here so that it won't get clutter up. Thank you that is all.

  #38
Old 10-31-2011, 08:51 PM
[email protected] Division
Mike@Tech Division is offline
Former Vendor
Join Date: Feb 2011
Location: Garden Grove, CA
Posts: 436
Likes: 0
Received 1 Like on 1 Post
Cobb SoCal protuned 2010 MCS

Mods - listed on the graph.
Boost - 19 psi tapered to 17.
Elevation - roughly sea level
Temp - around 75 deg.
Dyno used - Mustang Dyno



Last edited by [email protected] Division; 11-01-2011 at 08:47 AM.
  #39
Old 10-31-2011, 10:55 PM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
^ no dyno?

  #40
Old 11-01-2011, 08:44 AM
[email protected] Division
Mike@Tech Division is offline
Former Vendor
Join Date: Feb 2011
Location: Garden Grove, CA
Posts: 436
Likes: 0
Received 1 Like on 1 Post
Originally Posted by Boosted_Mini View Post
^ no dyno?
I'll edit the info to be more clear, but it says it was done on a Mustang Dyno

  #41
Old 11-01-2011, 10:10 AM
Mindspin311
Mindspin311 is offline
5th Gear
iTrader: (1)
Join Date: Feb 2011
Location: Sandy Springs, GA
Posts: 715
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by [email protected] Division View Post
Cobb SoCal protuned 2010 MCS

Mods - listed on the graph.
Boost - 19 psi tapered to 17.
Elevation - roughly sea level
Temp - around 75 deg.
Dyno used - Mustang Dyno

i want that

  #42
Old 02-02-2012, 11:53 PM
LASRGUY's Avatar
LASRGUY
LASRGUY is offline
2nd Gear
Join Date: Mar 2010
Location: Thousand Oaks, CA
Posts: 87
Likes: 0
Received 0 Likes on 0 Posts
LASRGUY's 2007 MCS

Had a RMW tune back in November. Here are the results. At the time I was running 10/90 water/methanol. I was getting some boost fluctuations that I later traced to a loose retaining ring on my Forge diverter valve. Best hp run was 235hp. Best tq was 261. We settled on a map with 226hp and 258tq for now. I hope to get onto RMW's new dyno some time in the future to see how the car does when it's holding boost properly. I may have to get a new clutch first. Damn torque...
The car is a hoot to drive.


Last edited by LASRGUY; 02-03-2012 at 12:00 AM.
  #43
Old 03-19-2012, 03:41 PM
thinkinmini
thinkinmini is offline
2nd Gear
Join Date: Mar 2011
Location: Maryland, USA
Posts: 131
Likes: 0
Received 0 Likes on 0 Posts
For you guys running above 210 whp (on stock turbo and pistons), how's the gas mileage on your mini?

  #44
Old 03-19-2012, 03:57 PM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
Originally Posted by thinkinmini View Post
For you guys running above 210 whp (on stock turbo and pistons), how's the gas mileage on your mini?
Last tank averaged 38MPG done by hand calculation. Generally average around 36MPG combined.

Best was SLC UT to SO Cal averaged 44.1MPG

  #45
Old 03-19-2012, 04:43 PM
LASRGUY's Avatar
LASRGUY
LASRGUY is offline
2nd Gear
Join Date: Mar 2010
Location: Thousand Oaks, CA
Posts: 87
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by thinkinmini View Post
For you guys running above 210 whp (on stock turbo and pistons), how's the gas mileage on your mini?
I usually get 27-28mpg combined. Maybe 32 on a road trip. I'm not easy on the gas pedal.

  #46
Old 03-19-2012, 06:49 PM
thinkinmini
thinkinmini is offline
2nd Gear
Join Date: Mar 2011
Location: Maryland, USA
Posts: 131
Likes: 0
Received 0 Likes on 0 Posts
that's still better than what I would have thought. I was expecting low 20's with such high stages of tunes and all. i only average 31 right now so these custom tunes/fmic/full exhaust combos seem all the more appealing.

  #47
Old 03-19-2012, 10:07 PM
SpyVsSpy
SpyVsSpy is offline
2nd Gear
Join Date: Mar 2009
Location: Washington
Posts: 98
Likes: 0
Received 0 Likes on 0 Posts
I get anywhere from 31-35mpg, combined highway city, normally drive 210 hwy miles combined with 140 city miles ... all in one work week.

  #48
Old 04-10-2012, 04:14 PM
phantasms's Avatar
phantasms
phantasms is offline
5th Gear
Join Date: Oct 2007
Location: Bedford, NY
Posts: 719
Received 13 Likes on 11 Posts
Dyno details:

Dynojet

Weather/Atmospheric conditions:

Hot and Humid



Max HP: 207.13 whp
Max Tq: 250.40 wtq

Modifications:

2011 JCW with Alta AP Tune (review coming soon on Motoringfile)


Last edited by phantasms; 04-10-2012 at 05:23 PM.
  #49
Old 04-10-2012, 05:11 PM
Boosted_Mini's Avatar
Boosted_Mini
Boosted_Mini is offline
5th Gear
Join Date: Feb 2011
Location: Long Beach, CA
Posts: 712
Likes: 0
Received 3 Likes on 2 Posts
Originally Posted by phantasms View Post
Dyno details:

Dynojet

Weather/Atmospheric conditions:

Hot and Humid



Max HP: 207.13 whp
Max Tq: 250.40 whp

Modifications:

2011 JCW with Alta AP Tune (review coming soon on Motoringfile)
250WTQ***

Seems weak for a JCW with a tune being MCS's are making that power without a DP.

  #50
Old 04-10-2012, 05:24 PM
phantasms's Avatar
phantasms
phantasms is offline
5th Gear
Join Date: Oct 2007
Location: Bedford, NY
Posts: 719
Received 13 Likes on 11 Posts
Originally Posted by Boosted_Mini View Post
250WTQ***

Seems weak for a JCW with a tune being MCS's are making that power without a DP.
DP? I was a little underwhelmed by the numbers myself however the car pulls like a freight train. We'll see what's up when I hit the track in the coming weeks.
