Rear fog/brake light and Pulsar
Yesterday I installed rear fog lights from OUTMOTORING.com with the tail/brake light wiring kit from GOMINIGO.com. I also installed the gominigo pulsar to flash the high mounted brake light.
With the instructions it was simple. I did call gominigo since they had (in a previous call) told me I could wire the pulsar in the left light housing area and I did not know which wires to tap into. About an hour later gominigo called back to see if all went well, which it did. I am impressed with the quality and customer service of gomingo and would highly recommend them. Also Outmotoring who gave me a 10% discount for being a new customer.
And I love the new lights which function as tail lights AND brake lights. I have no idea how they work as there are only 2 wires, but they do work.
With the instructions it was simple. I did call gominigo since they had (in a previous call) told me I could wire the pulsar in the left light housing area and I did not know which wires to tap into. About an hour later gominigo called back to see if all went well, which it did. I am impressed with the quality and customer service of gomingo and would highly recommend them. Also Outmotoring who gave me a 10% discount for being a new customer.
And I love the new lights which function as tail lights AND brake lights. I have no idea how they work as there are only 2 wires, but they do work.
#3
Yes, please. I have been wanting to retrofit lights into the fog light areas and was not thinking about taping into the rear lights. I like the idea that they are always on and that they would brighten up when braking. Do I understand the function correctly?
So send pictures and if you can, take shots at dusk or night time so we can see the difference. Thanks for the good intel.
So send pictures and if you can, take shots at dusk or night time so we can see the difference. Thanks for the good intel.
#4
Join Date: Mar 2009
Location: Hamilton, Ohio
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
Running lights on
Brake lights
Pulsar on 3rd brake light
http://www.youtube.com/watch?v=G1vNhEr5IoM
The entire job took about an hour. The wires for the 3rd brakelight can be accessed in the left taillight housing area.
The lights from outmotoring.com were $58.95
The wiring kit from gominigo.com was $35.00 and worth every penny
The Pulsar kit was $29.99
Brake lights
Pulsar on 3rd brake light
http://www.youtube.com/watch?v=G1vNhEr5IoM
The entire job took about an hour. The wires for the 3rd brakelight can be accessed in the left taillight housing area.
The lights from outmotoring.com were $58.95
The wiring kit from gominigo.com was $35.00 and worth every penny
The Pulsar kit was $29.99
Last edited by AustinS; 08-29-2010 at 11:29 AM.
#7
New wire color "purple" for Pulsar Third Brake light
Looking to see if anyone else noticed this before I cut the wrong wire.
It looks like the wires that go to the third brake light change color after the harness conection. I finally found an "all cabrio all years" instruction set from gominigo that led me to the right harness connector in the driver side, left light housing. I think MINI took the black with yellow thin wire and connected it to a purple one.
If anyone has done the pulsar mod on their 09 cabrio...which wire did you cut?
It looks like the wires that go to the third brake light change color after the harness conection. I finally found an "all cabrio all years" instruction set from gominigo that led me to the right harness connector in the driver side, left light housing. I think MINI took the black with yellow thin wire and connected it to a purple one.
If anyone has done the pulsar mod on their 09 cabrio...which wire did you cut?
Last edited by Derepente; 10-18-2010 at 03:05 AM.
Trending Topics
#8
09 Cabrio Photos for Rear Fog/Brake light and Pulsar
I did this mod and am very pleased with the results. I chose to use the Long setting for the Pulsar and kept the smart pulse enabled.
One set back for doing this on the same weekend as the rear fog lights was a change in wire color. I attached the first three photos to orient you, especially if you decide you want to do this mod.

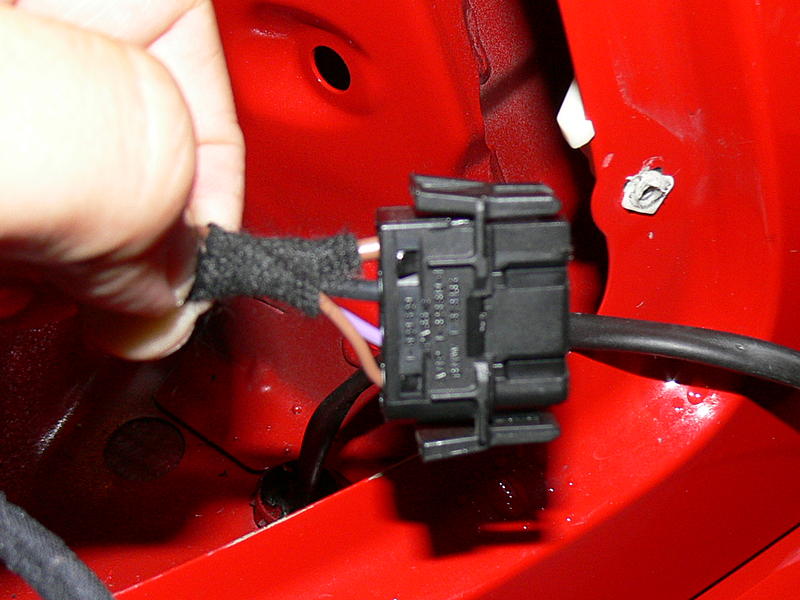

The first photo shows the netted covering around the wires that come from the soft top which houses the thick black and brown wires for the defroster and the thin black/yellow and thin brown wire for the 3rd brake light.
That black/yellow wire stops at the harness. It continues after the harness in a new color...purple. As you read the pulsar light directions about "towards the light" and "towards the harness," this gets reversed as the harness is now between the light and the pulsar's would be location. So you need to think towards the light and to the car. The instructions do say something about towards the front of the vehicle and to the rear, but that can get confusing too.
Second picture is of the light harness deep inside the rear left (USA driver's side) tail light area.
Unplugging the harness is necessary. Just slide your hand in, easier from above by gently folding in the fabric shelf, and pinch the locking tabs and pull out. On my MINI, the thin wires were the bottom two. The lowest wire was the brown ground wire and next to it was the black/yellow going to purple wires.

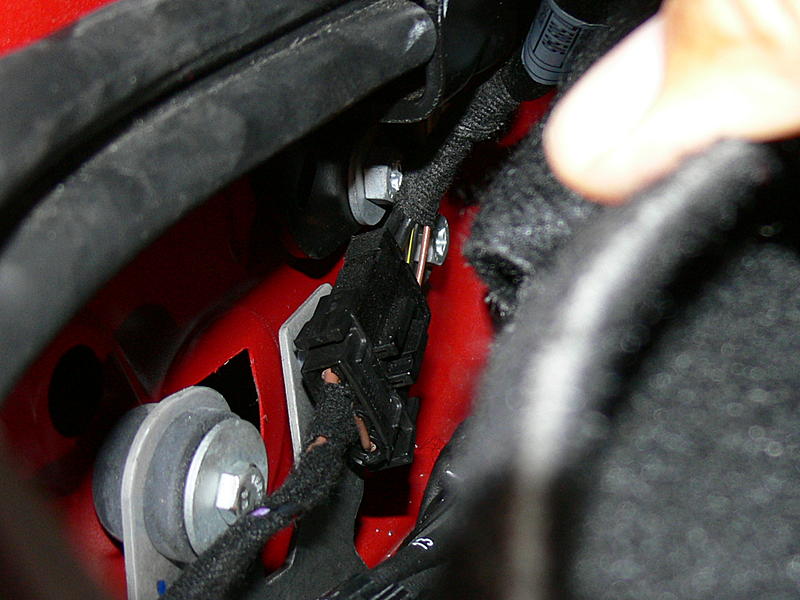

As you look at the third picture you can see that the wires coming from the harness are Thick brown, thick black, purple, thin brown. Next post I'll submit pictures of the install and pulsar in place.
One set back for doing this on the same weekend as the rear fog lights was a change in wire color. I attached the first three photos to orient you, especially if you decide you want to do this mod.
The first photo shows the netted covering around the wires that come from the soft top which houses the thick black and brown wires for the defroster and the thin black/yellow and thin brown wire for the 3rd brake light.
That black/yellow wire stops at the harness. It continues after the harness in a new color...purple. As you read the pulsar light directions about "towards the light" and "towards the harness," this gets reversed as the harness is now between the light and the pulsar's would be location. So you need to think towards the light and to the car. The instructions do say something about towards the front of the vehicle and to the rear, but that can get confusing too.
Second picture is of the light harness deep inside the rear left (USA driver's side) tail light area.
Unplugging the harness is necessary. Just slide your hand in, easier from above by gently folding in the fabric shelf, and pinch the locking tabs and pull out. On my MINI, the thin wires were the bottom two. The lowest wire was the brown ground wire and next to it was the black/yellow going to purple wires.
As you look at the third picture you can see that the wires coming from the harness are Thick brown, thick black, purple, thin brown. Next post I'll submit pictures of the install and pulsar in place.
Last edited by Derepente; 10-21-2010 at 06:16 PM.
#9
Part 2, 09 Cabrio Pulsar install

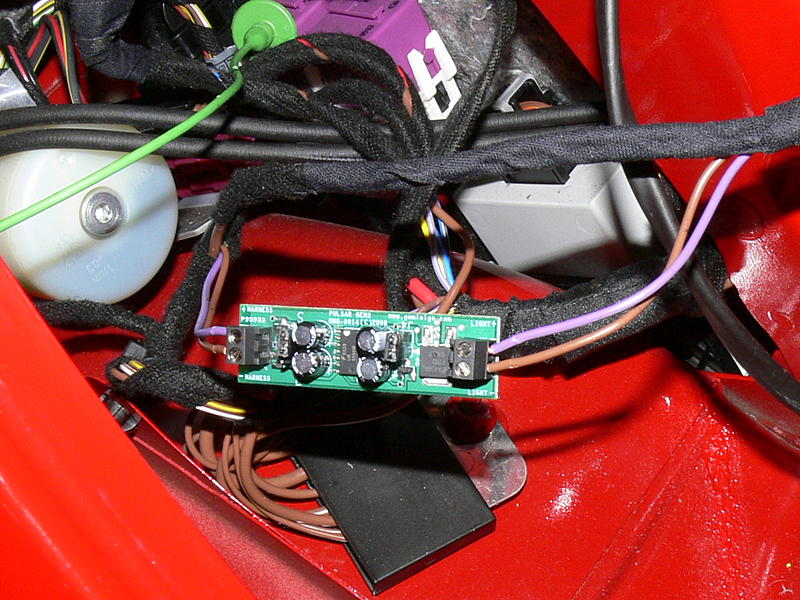

The 4th photo shows how much wire I uncovered and where the pulsar was installed. (Shot taken from tail light opening) To get to the wires and be able to install the pulsar, I highly recommend removing the OEM black tape from the harness back to the gromet/wire holder. I bought "Friction Tape" at Home Depot and used that immediately to retape the larger black and brown wires.
