Flip or Flop...Well, it is a flip ---> N18 Edition
I went another rout on this. I'm usually hunting for N14s but this one was the first for this kind of work. So I picked this nice 2011 MCS from the auction as Inoperable (no start no run).
I got the car delivered and started hooking it up to read errors. two codes appeared for intake and exhaust cams sensors. So, I swapped them and the codes came back. The car cranks but does not start. So, I figured, let's move to the next step and take the valve cover off

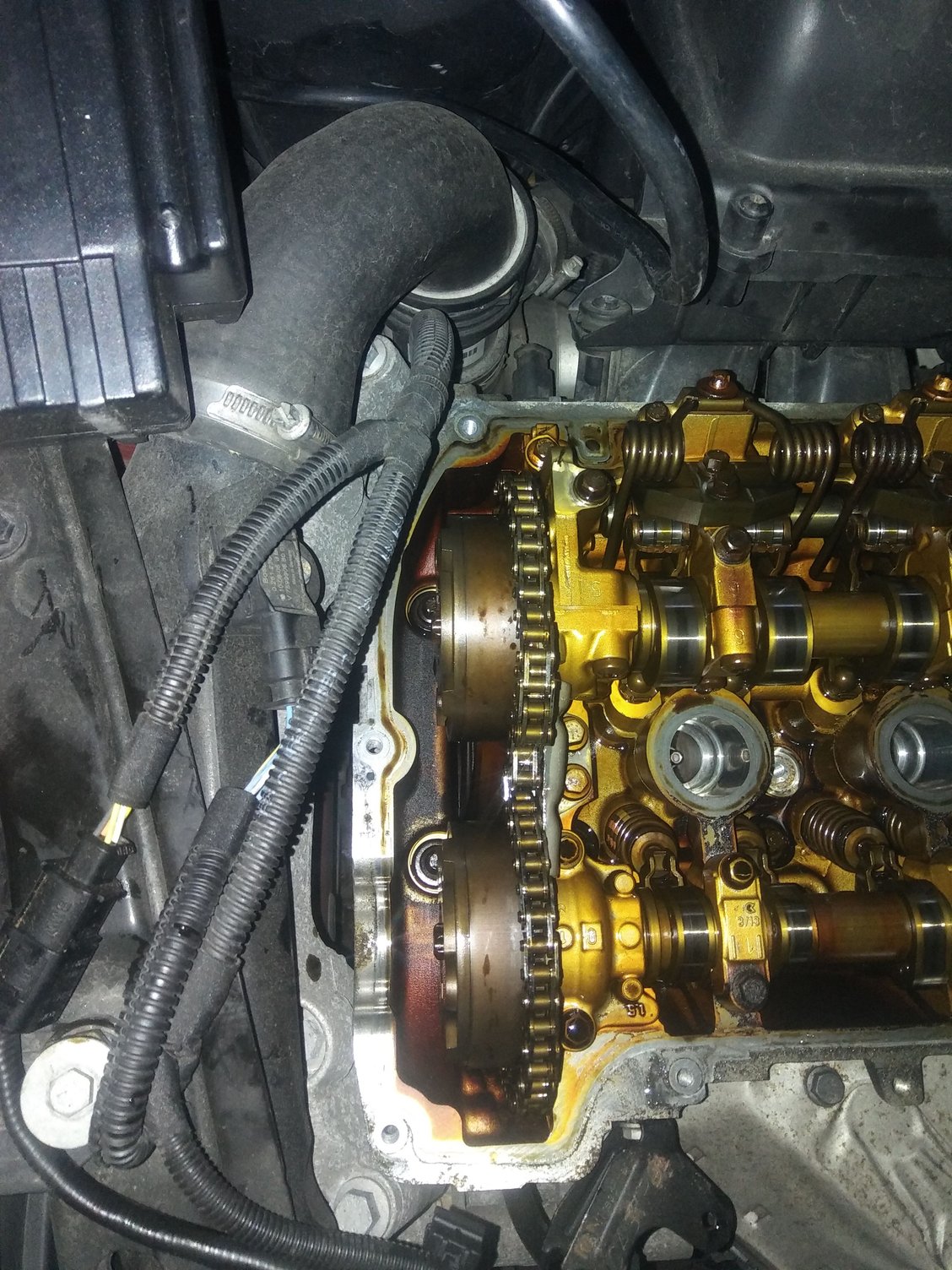

well, this speaks volume....lol...I'm surprised that N18's can potentially have a timing chain failure! The next couple of days well be checking compression and installing a new kit.
I got the car delivered and started hooking it up to read errors. two codes appeared for intake and exhaust cams sensors. So, I swapped them and the codes came back. The car cranks but does not start. So, I figured, let's move to the next step and take the valve cover off
well, this speaks volume....lol...I'm surprised that N18's can potentially have a timing chain failure! The next couple of days well be checking compression and installing a new kit.
Last edited by MiniToBe; 05-11-2018 at 06:58 AM.
#2
Wow, yup, there's your problem!
Just an FYI, a super easy way to check hall sensors without running the engine is to apply power as usual to the sensor, put a piece of steel (stainless might or might not work, not sure) near the sensor's face, and see if the signal changes. Depending on the sensor, it will be 0v with or without metal and 5v the other way.
Just an FYI, a super easy way to check hall sensors without running the engine is to apply power as usual to the sensor, put a piece of steel (stainless might or might not work, not sure) near the sensor's face, and see if the signal changes. Depending on the sensor, it will be 0v with or without metal and 5v the other way.
The following users liked this post:
MiniToBe (05-11-2018)
#6
Yep, it can happen on the n18 but not as frequent as the n14. The upper T guide part can wear and break off that causes the chain to have some issues. Thats my guess. Lets hope it did not bend anything.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#7
When you say bend i assume your referencing valves correct? I am under the impression that if the timing chain snaps becomes broken then the valves in the head would bend and have to be replaced upon the repair of the timing chain.
