I have a 2006 R53 mini. Blower motor just quit. I check for power from plug on Driverside. Changed resistor. Also checked for power to resistor. No power. Where is the Blower fuse or relay?
Last edited by JOHN21BLACK; Nov 11, 2020 at 02:54 PM.
Thumbing through my Bentley manual, it makes a big difference in how you troubleshoot it.
The most common trouble is that the blower motor brushes have worn out. If you check the resistance across the motor, it should be a value of somewhere around 1 ohm.

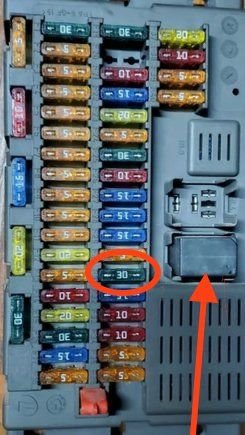

Ok, the 30 amp fuse I circled is the blower motor fuse, but it looks like the relay is for the headlights.
Is the fuse ok? You should find voltage at both ends of the fuse, between the ends and a good ground point. (Key On)
Edit: apparently the blower motor relay has been relocated on the 2006 model and the Bentley manual doesn’t show that. I’ll dig around and see what I can find.
Last edited by Dan_in_WA; Nov 13, 2020 at 09:40 PM.
Yes, there should be about 12 volts across the plug.
While you’re there, make sure the motor doesn’t read an open circuit.
If you remove the plug from the motor and put the voltmeter probes into the front of it, you will read the same 12 volts or so, no matter where the fan speed switch is set.
If you leave it plugged in to the motor and put the probes into the back of the connector (if possible), you will read different voltages as you move the fan speed switch from Low to High provided that the blower motor isn’t open.
Do you have 12 volts to ground on both sides of the 30 amp fuse (key on)?
Looking at the schematic again, I noticed that the blower motor relay is controlled by a signal from the General module control unit, also called out in the book as BC1, body control module.
Here’s one more tiny piece to this puzzle; referring to the schematic I posted earlier, there is a connector on the fuse holder called out as X10205. I’ll try to find a picture.
Pin 4 on that connector has a Brown wire with a Red tracer. The tracer could be a stripe or a series of dots. That wire goes back to BC1, the General Module Control unit. X253 is the connector on the BC1 unit, the wire goes to pin 23 of that connector.
That’s as far as we need to trace it for now.
The coil of the blower relay is switched on by the BC1 module. If the BC1 doesn’t ground that side of the relay coil, the coil never switches it’s contacts and no voltage gets out to the blower switch or anything else.
I’d locate that wire on one end or the other, whatever you can get at. Then check for 12 VDC. You should see 12V with the blower turned off, and then no voltage once you try to turn the blower on.
You may be able to hear a small “click” as the relay switches on.
