Here's the instructions on the best way I've found to install the Alta intake as requested from some of my customers. Please feel free to ask any clarifying questions.


Time required

About 30 minutes

Tools required

1/4" drive ratchet
1/4" long extension
8mm socket
10mm socket
15mm wrench
T25 torx
small standard screwdriver
phillips head screwdriver (it helps to have a long one)
small claw type pliers
tin snips

1. Remove the rubber boot from the stock airbox top by releasing the factory clamp. Use a small standard screwdriver to do this.

Insert the screwdriver as shown, then twist the screwdriver. You may need to insert the screwdriver on both sides to get it disengaged from the lower portion all together.


Remove the boot from the airbox.

Remove the battery positive terminal from the airbox top by first popping it up out of the notches, then pulling it laterally toward the passenger side. This is what it looks like on the airbox mount side:

Here is a shot of the notches:



Remove the stock airbox top and filter by removing the two T25 torx bolts at the front of the airbox.





Note that the airbox has already been removed in these pictures and is used for illustration purposes - yours will still be attached!

Once you have the T25 bolts out, push the box toward the back of the car slightly, then up and out. There are tabs at the back of the airbox that prevent the top from just lifting straight up, so make sure you push it back first.

2. Remove the clamp at the front of the "ram air pipe" that directs fresh air to the lower (dirty) side of the airbox. Use the same method with the small screwdriver that was used on the rubber boot at the airbox.



Once you have the clamp off, the whole piece will be tugged at and twisted to be removed from the lower portion of the airbox. This just takes some trying to get, but it takes a total of 2 seconds when you have the right twisting action down. The first time I did it, it took 10 minutes and some swearing to figure it out (I exaggerate, but you get the point).



3. Now disconnect the ECU plugs - there is a forward and rear. This is a little tricky, so here's the secret: do not ever try to remove these by puling straight up. They have tabs on each end that you will pull away from the center of the ECU. These tabs force the plugs up and off. Here are some pics:



See the tab and how it pulled out?

Here is a really crappy picture of the way the tab works to force the plug off:


4. Remove the 10mm bolt that secures the lower portion of the airbox and the ECU in place.



This shot is from the side of the car.



And this is the bolt from the front of the car. The box in front of the bolt in this pic is the engine fuse box.

5. Remove the battery cable from the airbox.



6. Now remove the lower portion of the airbox by pulling straight back - it is anchored using rubber mounts at the rear.

Here is a shot of how that system works:



This is a shot of the underside of the airbox.
And here is how those rubber doodads fit into the bottom:




7. Now we need to remove the rear partition. Start at the left and remove the two bolts (upper and lower) that hold it - they will either be 8mm or T25 torx, the latter being used on late '03 cars.





Now remove the rubber booty doodads that hold the lower portion of the airbox in place. Once popped off, remove the mounts using a 15mm wrench.



Don't lose the washer that is underneath the mount:


Remove the right (driver) side push tab with a phillips head screwdriver:





Pop the ECU lead out of the partition with its rubber grommet.

Now the partition will pull out.

Here's what it looks like out:


While it's out, take a look at all the cool stuff down there. See the shift cables?

8. Now that the partition is removed, we'll reinstall the lower airbox mounts using the 15mm wrench. Do NOT overtighten - just snug.



There are two holes that the mount will fit in on the passenger side. In case you didn't take note of which one it came out of, this is the correct one:


Pop the rubber booty dealymabobs back on.

If you are not doing the silicone hose, skip these next steps.

9. Remove the lower clamp from the intake boot on the throttle body side.



10. Remove the vent hose from the rubber boot using either a small plier or a clamp removal tool.

11. Install the vent hose into the new silicone piece.

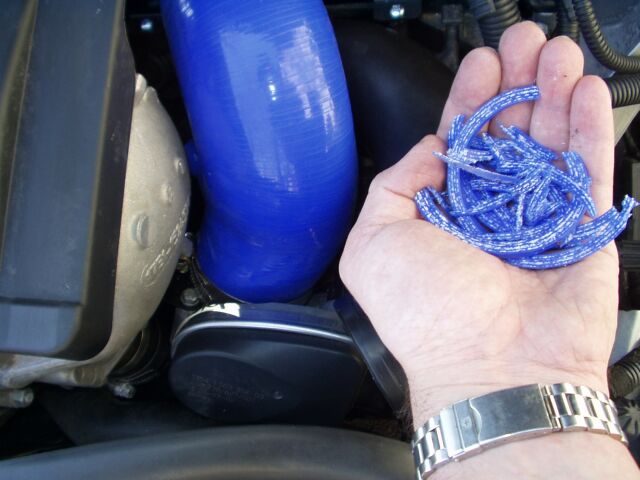

12. Place the new silicone hose over the throttle body and clamp it down - firmly. Use the new clamp supplied.

If not using the silicone hose - rejoin the how-to here.

13. Reinstall the lower portion of the stock airbox by tilting it slightly upward on the side closest to you, sliding it to the rear of the car on the rubber mounts, leveling it, and sliding it the rest of the way onto the rubber mounts. If you do this right, you can feel it push on just perfectly. Reach behind the airbox to be certain the mounts are in place.



Now that it is in place, make sure you have the wiring harness bracket in place, and reattach the 10mm mount bolt.



Replace the battery cable in its holder.

14. Reattach the ram air hard plastic pipe in much the same way you removed it, only reversed (as far as the twisting goes). Once it is in, reattach the hose clamp using a small plier or clamp tool.

15. Now we will put the Alta heat shield into place. Start by setting it between the ECU and fuse box, then lower it into place.



Once it is lowered, and it will snap around the ECU box, line up the two passenger side mounting holes.


Replace the two 8mm or T25 torx bolts - but just get them started. Make sure they have started a good five turns.

Place the supplied stainless bolt through the old hole on the driver side and get it started using a phillips head screwdriver. There is a nut on the backside as well that must be held in place to prevent it from turning. Be very careful, as this is a stainless nut and bolt, so magnets don't work all that well on them, and there are some small areas they could fall into if dropped.



Start the two supplied phillips head bolts for the front of the heat shield.



Once you have all of the mounting bolts in place, snug them all up.

16. Replace the ECU plugs. Make sure the tabs are pulled out all the way, place the plug on the ECU, then push the tabs back down. The tab will pull the plug down onto the ECU - don't try to push it down.





Place the cover back on the ECU.





Place the rubber seal on the heat shield.

17. Use Brake Clean to make sure there is no residue on the heat shield intake mounting tube.



This is only for reusing the stock boot.

Using your hand from the intake filter side, work the rubber boot onto the outside of the intake tube.



Be sure that the intake boot is flush all the way around the inside of the intake tube:


For both the rubber boot and silicone replacement - use the supplied clamp to tighten the hose onto the tube. Make sure the hose is secure on both ends.

18. Using the Brake Clean or a very good degreaser, make certain the filter is free of any oil at all on the inside or outside of the mounting area. Also make sure the clamp used on the filter is clean. Place the filter on the intake tube and snug the clamp. If overtightened, the filter will be pushed off. The filter will be secure as long as it and the tube are cleaned per directions.





19. Using good tin snips, mark and cut the factory seal to end at both sides of the Alta heat shield. Fit the seal to the remaining partitions on both sides.




Enjoy your new Alta Intake!



Here is some info for the intake:

Intake without silicone hose $199
Intake with silicone hose $259
Horsepower gains 7-9
Available with red, blue or black silicone

There is definitely an increase in lovely supercharger whine. I have had several questions on whether that is normal - absolutely. It is non-intrusive while cruising, but when you step on it, there is no doubt the car is supercharged.

Feel free to contact me with any other questions.

Randy
