Just thought everyone should post there DYNO sheets/numbers and what mods were on the car etc...


Jack



I don't want to put up so many that it takes up the whole first page, so check these links out. Lots of stuff here.

R56 Dyno Time........Where Does the SC pulley go???

This is our first experience with dynoing the new R56 and testing our new parts we designed.

ALTA 2007 R56 Dragon Build

This is the adventure we had on our Minis on the Dragon trip. Also the un-vailing of a few new parts.

MINI R53 WATER INJECTION TEST #1

This was a test we did on a R53 with our PWI-1 water injection system.

ALTA R56 TEST and Tune #2

More fun with the R56 on the dyno!

ALTA PLUG-N-PLAY R56 TEST & TUNE

First test and tune session using the Unichip!

Testing of the JCW Exhaust and Intake on ALTA's GP!

Be aware, the results may make you sell your JCW exhaust and intake.

ALTA R56 GT2560R TEST AND TUNE RESULTS

Time to make some big power!

R56 Water Injection test!

This time we did a water injection test with our turbo kit on our R56.

ALTA TEST AND TUNE R56 AUTO

Simpson GR's Auto R56 gets tuned on the dyno.



I think he's looking for independent dyno's



Anyone?



Most forums have specific stickys related to Dyno plots. If we get enough people here, i think that we could get this started. I know there are tons of people with dyno plots.... Hello, anyone home?



mods in sig. measurements at the wheels. no correction factor for altitude (I'm at sea level) 3 runs. one didn't have overboost kick in.



I'd post mine but I dont want to give away all my secrets



Secrets! Tell us.

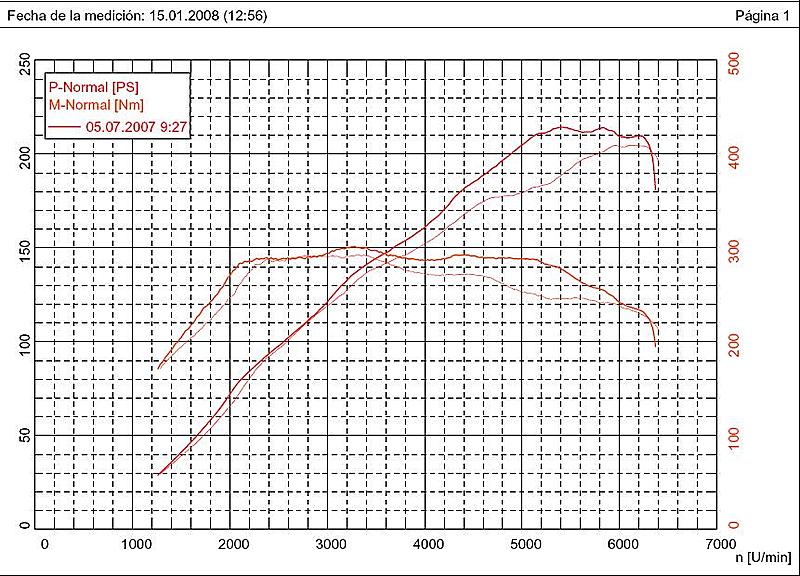

MCS R56´07 stock & JCW, MAHA Dyno inertial (power at engine) DIN factor correction used, both curves.

Now, i´m waiting to install Alta IC in the next week, and i´ll be back to visit the dyno, i´ll post then the results.

regards from Madrid



Stock
1st run w/o sport button
2nd run w/ sport button



I don't have the sheets but I have video that shows the numbers

The car had 7000 miles and was bone stock.

http://www.youtube.com/watch?v=YvNuvExgLEE&feature=user



Bone stock R56S... or bone stock R56S+JCW Engine Kit? Your numbers (if at the wheels) look to be the latter.

Here's mine (with the JCW kit, too).

180.21 whp and 204.25 lb/ft of torque.



100% Stock 08 MINI Cooper S Manual - Colorado 6200 ft Elevation - 3300 miles
177hp 210tq

<Click for larger pics>



Is that corrected for drivetrain loss or at the wheels? If at the wheels then you have a really strong one.



That's at the wheels with a Correction Factor of 1.17. It was about 80ºF yesterday and we're at 6200 feet. We used a 1/2 Correction Factor. Standard Correction for my elevation/temp would have been around 1.3x.... so yeah, it's pretty strong. And I did not... nor will not follow the recommended break in procedure! Drive it hard, seat the rings quickly!



I



First, I didn't think our cars were losing 15% from flywheel to wheels.

Second, I thought all dynos measure WHP. They're not taking out the engine and putting it on a dyno.

Third, I take any tuner/manufacturer's dynos with a grain of salt.



Here's mine, after it was tuned by Jan Brueggeman from Revolution MINI Works. (sorry for the bad scan)...



201.5 HP at the wheels, (gained 12.9 HP with the RWM ECU tune)
187.7 ft.-lbs. (gained 8.9 ft.-lbs. with the ECU tune)

Would have been even more gain, if I had larger fuel injectors installed. Stepping up to the JCW 380's would have been ideal, but I'm still pretty happy to break 200 whp with the stock injectors. You can see the power trail off at the upper RPM range, which is a clear indicator that I'm running out of fuel...

Oh well, still happy!



I believe this is for the R56's

Still nice numbers, though!



slightly off topic but not really... lets say I want to get my car dyno'd...

what am I looking for in terms of a dyno facility, type of dyno, test conditions, correction settings etc?

It seems numbers here are regularly put into question because of the many variables...



LOL... stay with me here. Variables are Constant

The Variables from Sea Level to Altitude, from a 60ºF day to a 90ºF day, from dyno to different dyno will always be there and numbers will always be a little different. The only way to combat the Variables is to compare dyno numbers back to back at the same dyno at the same day. AKA - a Dyno Day.

There is a SAE Standard Correction factor that takes air temperature, humidity and barometric pressure in to account... but IMO it doesn't always provide 100% accurate results (especially at 6000 feet and on Turbo Cars). My car made 177hp/210tq with only HALF the SAE Correction Factor. If we added in the full CF the numbers would be way inflated.



Anyone who has the ALTA-UniChip that has dynoed...do you have any air/fuel charts as well? I would love to see them....
