Drivetrain RMW tune results!!!!
#1
Join Date: Aug 2006
Location: McALLEN TX
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
#4
Stock 05 JCW (dealer Install)
Base run: 185.3whp @ +/-6800 rpm /165.4 tq @ 5000 rpm
Between 3200-5500 rpm over 160f/lb of torque
After : 206.7whp @ 7316 rpm / 172.7 tq @ 3600 rpm
Between 3000-6550 rpm over 160f/lb of torque
DynaPac
Base run: 185.3whp @ +/-6800 rpm /165.4 tq @ 5000 rpm
Between 3200-5500 rpm over 160f/lb of torque
After : 206.7whp @ 7316 rpm / 172.7 tq @ 3600 rpm
Between 3000-6550 rpm over 160f/lb of torque
DynaPac
Last edited by TheWrks; 01-24-2008 at 08:38 AM. Reason: More Info.....
#7
Trending Topics
#8
#11
Here are my results from Jan's Magic Wand:
Car: '02 MCS with 46k miles
Mods: 15% pulley, ALTA CAI, OBX header, Ryephile cat-back, Helix 380cc injectors, old moldy slipping clutch
Baseline: 177wHP @ 6800 RPM and 162wLb/Ft @ 4300 RPM
After Jan's ECU Tune: 198wHP @ 7200 RPM and 173wLb/Ft @ 4400 RPM
Peak deltas: 20wHP @ 6300 RPM and 13wLb/Ft @ 5400 RPM
Much more linear throttle application, DSC threshold improved [less intrusive], Rev-limiter raised to 7300 RPM [nice-n-soft without being too fluffy].
Car: '02 MCS with 46k miles
Mods: 15% pulley, ALTA CAI, OBX header, Ryephile cat-back, Helix 380cc injectors, old moldy slipping clutch
Baseline: 177wHP @ 6800 RPM and 162wLb/Ft @ 4300 RPM
After Jan's ECU Tune: 198wHP @ 7200 RPM and 173wLb/Ft @ 4400 RPM
Peak deltas: 20wHP @ 6300 RPM and 13wLb/Ft @ 5400 RPM
Much more linear throttle application, DSC threshold improved [less intrusive], Rev-limiter raised to 7300 RPM [nice-n-soft without being too fluffy].
#17
Join Date: Aug 2006
Location: McALLEN TX
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
#18
final numbers during the Helix tunes this week and last.....238hp and 208tq. We didn't get to do a baseline as the head went on before Jan arrived. The first pull was 223hp, with the rest coming through tuning over two days. The final curve is actually smoother than this plot, which has a dip up top.
I still have a front O2 issue to work out, so we'll be doing some more tweaking once I get it fixed (it's throwing codes, probably due to how another shop extended it - I sent Jan the new one and he's doing the work for me and sending it to me to swap in).
I still have a front O2 issue to work out, so we'll be doing some more tweaking once I get it fixed (it's throwing codes, probably due to how another shop extended it - I sent Jan the new one and he's doing the work for me and sending it to me to swap in).
#21
RMW Tuned on 1/16 @ Helix.
Base on stock '06 MINI Cooper S
Engine modification:
JCW intake, JCW exhaust, JCW injectors, GP Intercooler, Helix 15% Pulley, IK22 Spark Plugs, Schrick Camshaft (1st Version).
Base Run (JCW Software) Peak @ 202 whp, 183 ft/lb
Last Run (RMW tuned) Peak @ 217 whp, 191 ft/lb
I really like the gained all across the power band though.
Thanks to Jan to help me achieve the goal of making a "Fun Street Car".
Base on stock '06 MINI Cooper S
Engine modification:
JCW intake, JCW exhaust, JCW injectors, GP Intercooler, Helix 15% Pulley, IK22 Spark Plugs, Schrick Camshaft (1st Version).
Base Run (JCW Software) Peak @ 202 whp, 183 ft/lb
Last Run (RMW tuned) Peak @ 217 whp, 191 ft/lb
I really like the gained all across the power band though.
Thanks to Jan to help me achieve the goal of making a "Fun Street Car".
#22
#23
#24

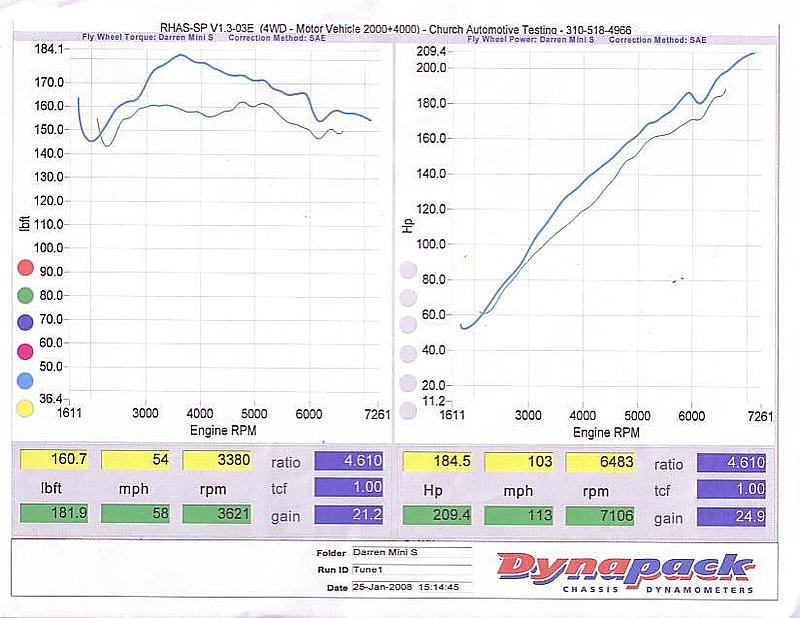

RMW Tune Results
Where: Church Automotive, Wilmington CA 1-25-08
Temperature: Approximately 55F
Dyno: Dynapack
Car: 2006 MINI Cooper S with Factory JCW
Engine Mods: Madness JCW Air Filter (nothing else)
Before:
160.7 ft/lbs. torque
184.5 hp
1 x
After:
181.9 ft/lbs. torque
209.4 hp
1,000,000 x
Notes:
1. Jan is god!
2. It's amazing what can be done with a keyboard.
3. I can't believe how smooth the car runs now and how much more power it has. Wow!!!
4. Don't screw around with a million mods. Get a tune. It'll be the best money you've ever spent.
Where: Church Automotive, Wilmington CA 1-25-08
Temperature: Approximately 55F
Dyno: Dynapack
Car: 2006 MINI Cooper S with Factory JCW
Engine Mods: Madness JCW Air Filter (nothing else)
Before:
160.7 ft/lbs. torque
184.5 hp
1 x
After:
181.9 ft/lbs. torque
209.4 hp
1,000,000 x
Notes:
1. Jan is god!
2. It's amazing what can be done with a keyboard.
3. I can't believe how smooth the car runs now and how much more power it has. Wow!!!
4. Don't screw around with a million mods. Get a tune. It'll be the best money you've ever spent.
