Convertible side windows 2006
hi guys I’m tackling my next task which is why the convertible it does not work, since the side windows needs to go down before the rest continues to open, I’m troubleshooting that first then all the relays and sensor, I just took the left panel apart and as you can see we can’t even get to that window, I don’t see a mechanism that brings it down, this is all metal as you can see. I don’t see an actuator or motor to make the windows up or down, what am missing here?
when depressed the panel to open up it opens up the sunroof but I don’t see the led blinking like I’ve been reading it doesn’t lid at all. I remove the speaker to see if I could see it but nada!
Last edited by gum; 07-20-2018 at 06:45 PM.
#2
07-20-2018, 06:00 PM
OVERDRIVE
The ECS guy knows allot about verts has he has one. As there are wires going down into the window glass area is the motor down in there? Would think that www.realoem.com may have some drawings on what the thing looks like.
The following users liked this post:
gum (07-20-2018)
#5
07-20-2018, 06:36 PM
Let me see, I ordered a relay tester!
it seems that I need to manually open it the convertible in order to look or access that side window, What I’m looking for is to check for power getting there, so I could trace it from the main switch by the mirrow.
thanks guys
it seems that I need to manually open it the convertible in order to look or access that side window, What I’m looking for is to check for power getting there, so I could trace it from the main switch by the mirrow.
thanks guys
Last edited by gum; 07-20-2018 at 07:33 PM.
#6
07-23-2018, 08:05 AM
Platinum Sponsor
Just saw this. rkw posted up what you need. That window sets in the pocket and here is what the unit looks like:
https://www.northamericanmotoring.co...ob-to-fix.html
You will need to test the wires going to the window. The windows go down after you slide the sunroof all the way back. Otherwise, you can put them down with the button beforehand up by the convertible top button.
https://www.northamericanmotoring.co...ob-to-fix.html
You will need to test the wires going to the window. The windows go down after you slide the sunroof all the way back. Otherwise, you can put them down with the button beforehand up by the convertible top button.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#7
07-23-2018, 12:30 PM
Yes Sir, thank you, I m looking the Bentley manual it seems that from S40 switch rear power window goes to general control unit, I heard something clicking on that unit after pressing the switch.
Now I need to trace it to a wire that would connect to the relay then the relay would send a signal no M98-M99 window regulator rear both sides.
Can the convertible be manually opened or as the manual says Is not a big NO NO!?
i already check the 40 amps fuse by the engine that powers the convertible I believe is L3 fuse 40 amps.
so my next task is followed the pins 12 and 16 from general module control to the power windows, but since idk the wires I would need to access the rear window motor to find the wires harness that connect them.
Now I need to trace it to a wire that would connect to the relay then the relay would send a signal no M98-M99 window regulator rear both sides.
Can the convertible be manually opened or as the manual says Is not a big NO NO!?
i already check the 40 amps fuse by the engine that powers the convertible I believe is L3 fuse 40 amps.
so my next task is followed the pins 12 and 16 from general module control to the power windows, but since idk the wires I would need to access the rear window motor to find the wires harness that connect them.
Trending Topics
#8
07-23-2018, 12:59 PM
Platinum Sponsor
https://www.newtis.info/tisv2/a/en/r...le-top/EPd9jjs
https://www.newtis.info/tisv2/a/en/r...le-top/ERs5PhB
https://www.manualslib.com/manual/73...r.html?page=37
Here some other great info on the top.
http://wtxmc.org/MiniCooperDocs/CONV...ICE%20INFO.pdf
https://www.newtis.info/tisv2/a/en/r...le-top/ERs5PhB
https://www.manualslib.com/manual/73...r.html?page=37
Here some other great info on the top.
http://wtxmc.org/MiniCooperDocs/CONV...ICE%20INFO.pdf
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#10
07-24-2018, 05:01 AM
Platinum Sponsor
All of the links work for me, just tested them.
Which one is not working for you?
Which one is not working for you?
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#12
07-24-2018, 05:17 PM
yes you can manually open it...u have to trip 2 locks and release the valve by 1.5 turns...watch the series and it will explain it all how to manually open it
https://www.google.com/url?sa=t&rct=...bXGMxHld8-ktqr
https://www.google.com/url?sa=t&rct=...bXGMxHld8-ktqr
#13
07-24-2018, 06:57 PM
yes you can manually open it...u have to trip 2 locks and release the valve by 1.5 turns...watch the series and it will explain it all how to manually open it
https://www.google.com/url?sa=t&rct=...bXGMxHld8-ktqr
https://www.google.com/url?sa=t&rct=...bXGMxHld8-ktqr
#14
07-25-2018, 11:43 AM
Platinum Sponsor
^^ thats another good diy.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#16
07-25-2018, 07:09 PM
#17
07-26-2018, 04:59 AM
Platinum Sponsor
Top down motoring is the best. I can understand.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#18
07-26-2018, 05:02 PM
I haven’t try as yet,’i’ve being busy working. I would try this weekend at Least manually bringing the top down.

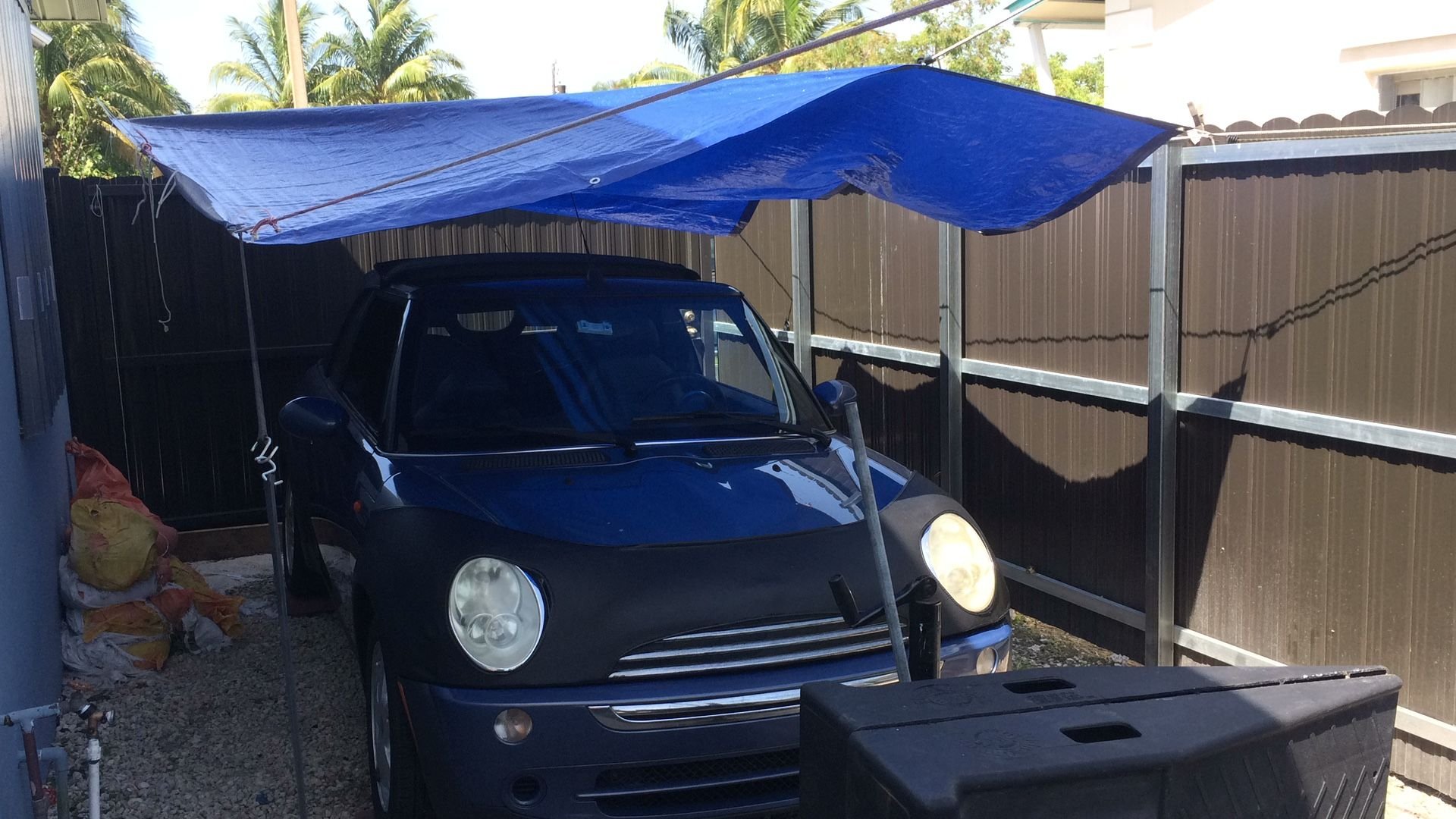

still need to find the wires that control the windows, but thanks to you guys I have a idea, am from Miami Florida and there is thunderstorms every afternoon so that’s another reason ! I can’t let her get wet 😝
still need to find the wires that control the windows, but thanks to you guys I have a idea, am from Miami Florida and there is thunderstorms every afternoon so that’s another reason ! I can’t let her get wet 😝
#19
07-27-2018, 11:04 AM
Platinum Sponsor
Nope, then you will have a MINI swimming pool
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#21
07-27-2018, 01:51 PM
Platinum Sponsor
that will work, and i would wrap it with maybe some plastic just in case of a heavy storm.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#23
07-27-2018, 03:56 PM
#24
07-28-2018, 03:31 PM

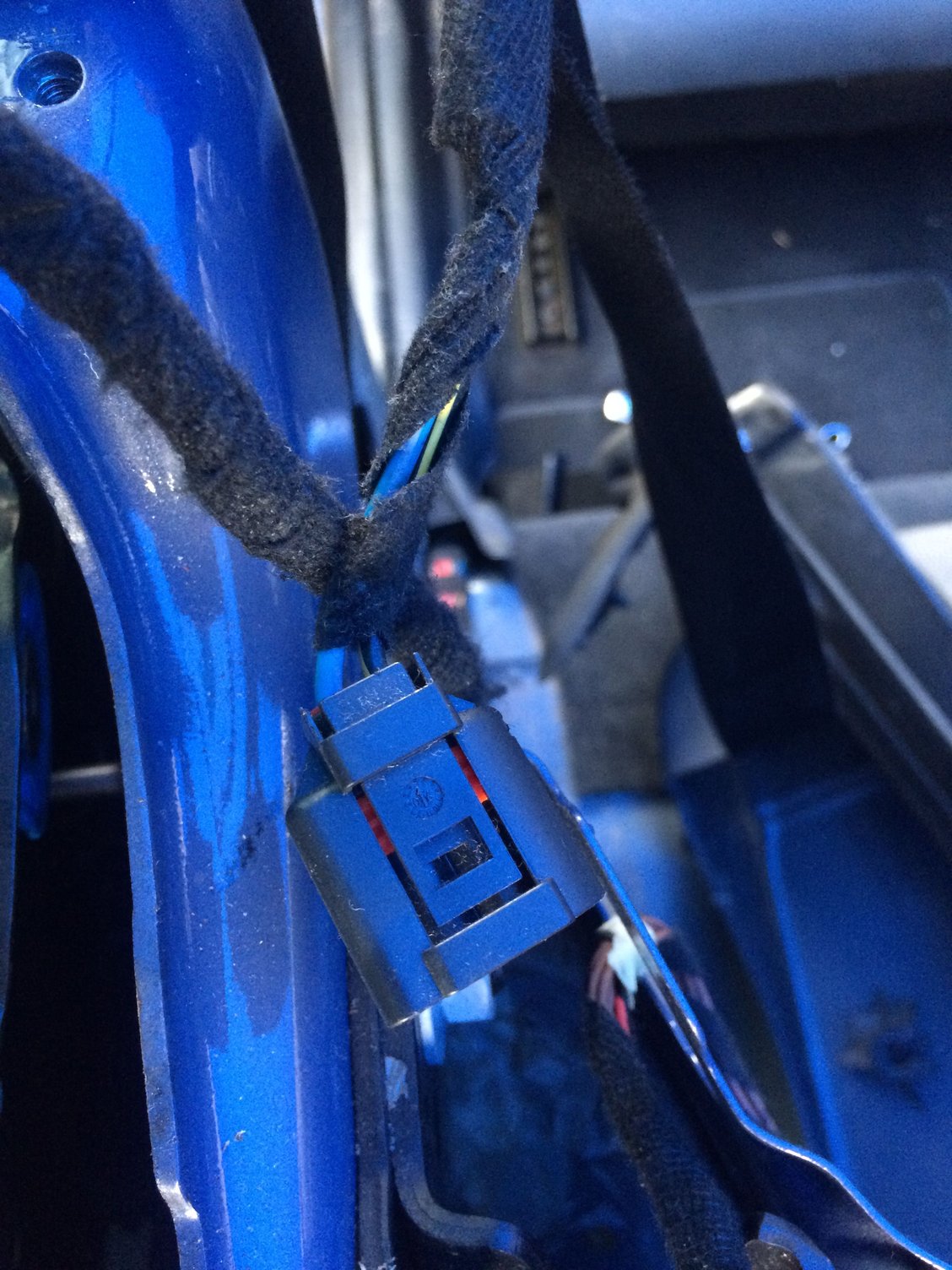

Where that plug goes in?
