Can anyone tell me where to find the part numbers for the factory JCW aero side skirts for a 2011 S hatchback. The Mini parts catalog only shows the part number for the whole kit. And is there a good place to buy them?



There is no place good. They cost about $780 and then you have to have them painted and installed.



Here are the parts and part numbers. 2011 Cooper S Hardtop.



http://www.ecstuning.com/Search/51712156418/







http://www.ecstuning.com/Search/51712156417/



Those are the main sections , here are the little pieces.

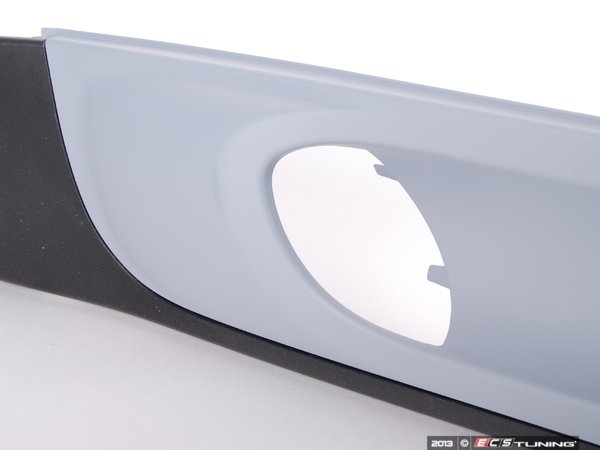

JCW Aero Side Skirt Air Inlet - Left


http://www.ecstuning.com/Search/51710414449/





JCW Aero Side Skirt Air Inlet - Right


http://www.ecstuning.com/Search/51710414452/




JCW Aero Side Skirt Insert Grille - Right


http://www.ecstuning.com/Search/51710413262/





JCW Aero Side Skirt Insert Grille - Left


http://www.ecstuning.com/Search/51710413261/ES127325/




Adapter For JCW Side Skirt - Left


http://www.ecstuning.com/Search/51710413259/



Adapter For JCW Side Skirt - Right

http://www.ecstuning.com/Search/51710413260/



And there are some hardware snaps and plugs. But that will give you the main idea of parts.
If you need or have a hard time finding a part in the MINI catalog let us know.

Thanks



Thanks ESC
Will these parts interface directly with the existing MCS black wheel arches? I really don't want to buy the whole aero kit.



Do these side skirt insert just slide into the air inlet part? Are the side skirt insert (fingers as I've been calling them) available separately?



The air inlet , one for each side of the full JCW side skirt, clip into the rear section. Then the fingers ( insert grille ) snap into each piece on each side. three fingers come with each side. Its like legos , they just snap in.



Can the three "fingers" be ordered separately?



Linked above , but here they are separate.

JCW Aero Side Skirt Insert Grille - Right Part Number 51710413262 ( 3 in one set )


http://www.ecstuning.com/Search/51710413262/





JCW Aero Side Skirt Insert Grille - Left Part number 51710413261 ( 3 in one set )


http://www.ecstuning.com/Search/51710413261/ES127325/




Thanks



Thanks so much. This will be the beginning of an interesting mod.



Just an update we finally landed the Bremmen Parts Aero JCW side skirt inlets. The one side is Back ordered with No ETA, might go NLA. The other side might be going NLA soon also. Anyone that has the JCW Body kit for a Gen 2 MINI will need these if they pop out.

https://www.ecstuning.com/Search/Sit...h/51710414449/



https://www.ecstuning.com/Search/Sit...h/51710414452/



Just an update, we have the side skirts full kits now. On order to come in soon.

https://www.ecstuning.com/b-ecs-part...12156417kt1kt/




We also have the bottom sections in Exclusive gloss black. I have them on my R58 JCW.



https://www.ecstuning.com/Search/Sit...h/51710445883/


https://www.ecstuning.com/Search/Sit...h/51710445884/





We got these in as Bremmen Parts as the Genuine MINI Part is now NLA

Adapter For JCW Side Skirt - Left


http://www.ecstuning.com/Search/51710413259/



Adapter For JCW Side Skirt - Right

http://www.ecstuning.com/Search/51710413260/



We are trying to keep all the JCW parts alive for everyone.
