JCW Underbody Paneling install
#26
I found these:
R55 Clubman Models.
http://www.ecstuning.com/Search/51752755791/ES240753/
http://www.ecstuning.com/Search/51752755792/ES240754/
More information:
http://www.motoringunderground.com/f...d.php?p=407985
Thanks and I hope that helps.
R55 Clubman Models.
http://www.ecstuning.com/Search/51752755791/ES240753/
http://www.ecstuning.com/Search/51752755792/ES240754/
More information:
http://www.motoringunderground.com/f...d.php?p=407985
Thanks and I hope that helps.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#27
#28
Bluetoy-
Great, thanks.
You can contact our customer service and they can help you out, and add things to your order. I can give you the part numbers :
Brackets : just incase you need them for modification.
This is for the left and right hand side panel set:
51752753165 Left rear bracket
51752753166 Right rear bracket
51161943122 x 20 plastic nut
07147117693 x 2 hex bolt with washer ( back braket )
07119904042 x 2 hex bolt ( back braket )
07130702966 x 2 expanding rivet
51712752360 x 2 filter head screw
Customer Service Hours: 8:00 AM to 8:00 PM EST 800.924.5172
Thanks and good luck on the install : post pictures when you get it all done, I would like to see this all complete.
Great, thanks.
You can contact our customer service and they can help you out, and add things to your order. I can give you the part numbers :
Brackets : just incase you need them for modification.
This is for the left and right hand side panel set:
51752753165 Left rear bracket
51752753166 Right rear bracket
51161943122 x 20 plastic nut
07147117693 x 2 hex bolt with washer ( back braket )
07119904042 x 2 hex bolt ( back braket )
07130702966 x 2 expanding rivet
51712752360 x 2 filter head screw
Customer Service Hours: 8:00 AM to 8:00 PM EST 800.924.5172
Thanks and good luck on the install : post pictures when you get it all done, I would like to see this all complete.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
The following users liked this post:
930 Engineering (10-02-2021)
#29
Bluetoy-
Great, thanks.
You can contact our customer service and they can help you out, and add things to your order. I can give you the part numbers :
Brackets : just incase you need them for modification.
This is for the left and right hand side panel set:
51752753165 Left rear bracket
51752753166 Right rear bracket
51161943122 x 20 plastic nut
07147117693 x 2 hex bolt with washer ( back braket )
07119904042 x 2 hex bolt ( back braket )
07130702966 x 2 expanding rivet
51712752360 x 2 filter head screw
Customer Service Hours: 8:00 AM to 8:00 PM EST 800.924.5172
Thanks and good luck on the install : post pictures when you get it all done, I would like to see this all complete.
Great, thanks.
You can contact our customer service and they can help you out, and add things to your order. I can give you the part numbers :
Brackets : just incase you need them for modification.
This is for the left and right hand side panel set:
51752753165 Left rear bracket
51752753166 Right rear bracket
51161943122 x 20 plastic nut
07147117693 x 2 hex bolt with washer ( back braket )
07119904042 x 2 hex bolt ( back braket )
07130702966 x 2 expanding rivet
51712752360 x 2 filter head screw
Customer Service Hours: 8:00 AM to 8:00 PM EST 800.924.5172
Thanks and good luck on the install : post pictures when you get it all done, I would like to see this all complete.
-Steven
#30
Steven - Thanks
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#34
I have seen them in person on the pre-production MINI JCW GP II .
And for newer R56 LCI JCW MINIs it is on:
JCW Aerodynamics kit
Unless there has been some changes. Anyone who has a 2013 JCW without the JCW Aero bodykit could confirm this.
And for newer R56 LCI JCW MINIs it is on:
JCW Aerodynamics kit
Unless there has been some changes. Anyone who has a 2013 JCW without the JCW Aero bodykit could confirm this.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#35
I know in the US the 2013 JCW hardtop comes with the aero kit. I would like to know if the underbody panels are included.
#36
#38
I found these:
R55 Clubman Models.
http://www.ecstuning.com/Search/51752755791/ES240753/
http://www.ecstuning.com/Search/51752755792/ES240754/
More information:
http://www.motoringunderground.com/f...d.php?p=407985
Thanks and I hope that helps.
R55 Clubman Models.
http://www.ecstuning.com/Search/51752755791/ES240753/
http://www.ecstuning.com/Search/51752755792/ES240754/
More information:
http://www.motoringunderground.com/f...d.php?p=407985
Thanks and I hope that helps.
--Matt
#40
#44
ECS is now selling the belly pan that goes on the front as well:
https://www.northamericanmotoring.co...y-pan-kit.html
https://www.northamericanmotoring.co...y-pan-kit.html
#45
#46
BlueToy - Thanks for the underbody shots.
I can tell you using the underbody panels for the R58 might be some work. First the rear section on the panels connects to the rear chassis center brace which is blocked by the additional supports which are on the R57 convertible and R52. Also near the center mid pipe square support would need some trimming.
Back by #5 and in the center by the inside cutout. Looks like there is enough room to slide under the brace to fit but it still might need removed and then re-installed , at least the outer arms.
Other then that it might work. Sounds like a DIY in the future Bluetoy. You do have the screw studs hanging down so it will receive the panel.
Thanks
I can tell you using the underbody panels for the R58 might be some work. First the rear section on the panels connects to the rear chassis center brace which is blocked by the additional supports which are on the R57 convertible and R52. Also near the center mid pipe square support would need some trimming.
Back by #5 and in the center by the inside cutout. Looks like there is enough room to slide under the brace to fit but it still might need removed and then re-installed , at least the outer arms.
Other then that it might work. Sounds like a DIY in the future Bluetoy. You do have the screw studs hanging down so it will receive the panel.
Thanks
Is this how they are supposed to be?
Thanks in advance for your help,
Alan
#47

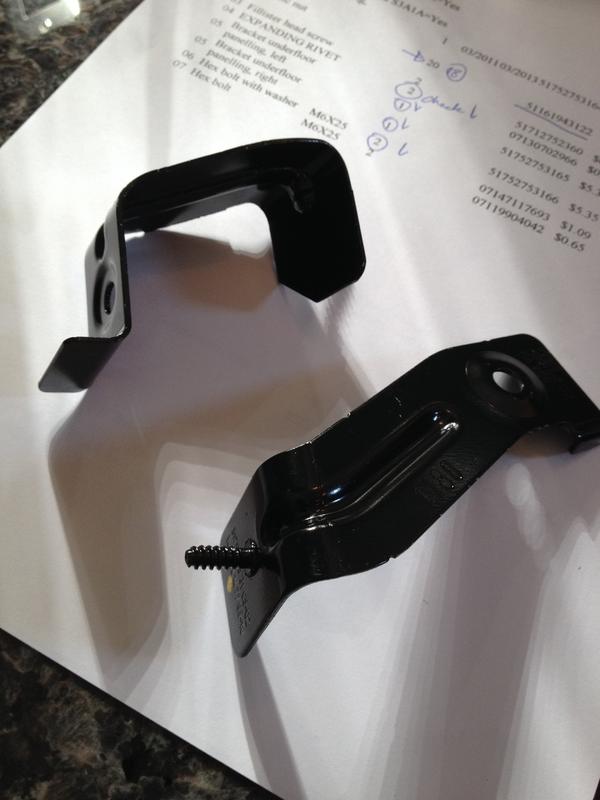

Can you help me out here? I'm about to instal the panels, and as I'm looking at the hardware, I notice that the brackets (# 51752753165 and # 51752753165) are not the same... not just mirror images of each other, but very different shapes. I've attached a photo.
Is this how they are supposed to be?
Thanks in advance for your help,
Alan
Is this how they are supposed to be?
Thanks in advance for your help,
Alan

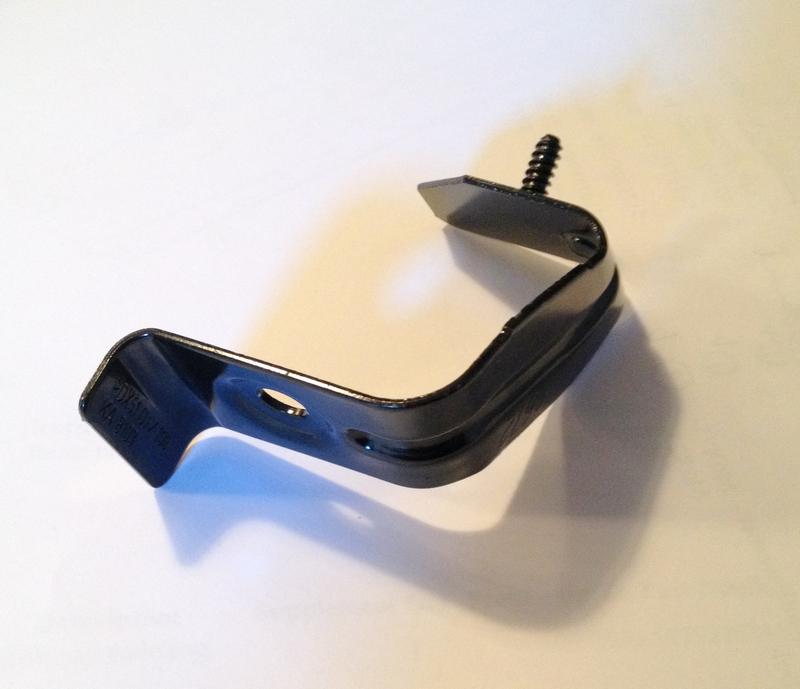

That's what my pics looks like, one bent more then the other.
I try to here, I know Bluetoy was attempting this on the R59 when I gave him the hardware above from the R56 platform to see if it would match up. Think he got it done, but I could not find the thread.
51752753165 is the left hand side , so facing towards the front of your MINI from the rear ( on the outside corner left hand side ) , this attaches to the back of the panel. Screw portion to the bottom on the panel. tab with holes forward.
http://www.ecstuning.com/Search/SiteSearch/51752753165/
&
51752753166 ( which is the right ) so facing towards the front of your MINI from the rear ( on the outside corner right hand side) , this attaches to the back of the panel. Screw portion to the bottom on the panel. tab with holes forward, wit the bend forward.
http://www.ecstuning.com/Search/SiteSearch/51752753166/
Thanks and hope that helps.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#48
Alan,
That's what my pics looks like, one bent more then the other.
I try to here, I know Bluetoy was attempting this on the R59 when I gave him the hardware above from the R56 platform to see if it would match up. Think he got it done, but I could not find the thread.
51752753165 is the left hand side , so facing towards the front of your MINI from the rear ( on the outside corner left hand side ) , this attaches to the back of the panel. Screw portion to the bottom on the panel. tab with holes forward.
http://www.ecstuning.com/Search/SiteSearch/51752753165/
&
51752753166 ( which is the right ) so facing towards the front of your MINI from the rear ( on the outside corner right hand side) , this attaches to the back of the panel. Screw portion to the bottom on the panel. tab with holes forward, wit the bend forward.
http://www.ecstuning.com/Search/SiteSearch/51752753166/
Thanks and hope that helps.
That's what my pics looks like, one bent more then the other.
I try to here, I know Bluetoy was attempting this on the R59 when I gave him the hardware above from the R56 platform to see if it would match up. Think he got it done, but I could not find the thread.
51752753165 is the left hand side , so facing towards the front of your MINI from the rear ( on the outside corner left hand side ) , this attaches to the back of the panel. Screw portion to the bottom on the panel. tab with holes forward.
http://www.ecstuning.com/Search/SiteSearch/51752753165/
&
51752753166 ( which is the right ) so facing towards the front of your MINI from the rear ( on the outside corner right hand side) , this attaches to the back of the panel. Screw portion to the bottom on the panel. tab with holes forward, wit the bend forward.
http://www.ecstuning.com/Search/SiteSearch/51752753166/
Thanks and hope that helps.
I really appreciate your help.
Oh, just one more question. I purchased my panels from my dealer and they supplied 18 plastic nuts (# 51161943122) instead of the 20 that you supply. Are 18 or 20 required with an R59 installation?
By the way, loving my JCW Leather / Carbon shift **** supplied by ECS.
Cheers,
~Alan
#49
Alan,
You are welcome
Calls for ( 20 ) of 51161943122 according to the R58 diagram and above. I would get a couple more, better to have them then be short a couple plastic nuts.
http://www.ecstuning.com/Search/SiteSearch/51161943122/ES2673569/
"By the way, loving my JCW Leather / Carbon shift **** supplied by ECS."
Welcome again. Look good too.
You are welcome
Calls for ( 20 ) of 51161943122 according to the R58 diagram and above. I would get a couple more, better to have them then be short a couple plastic nuts.
http://www.ecstuning.com/Search/SiteSearch/51161943122/ES2673569/
"By the way, loving my JCW Leather / Carbon shift **** supplied by ECS."
Welcome again. Look good too.
Thanks so much ECS! Yes, these are exactly the brackets I have. I'm attaching photos taken from the perspective you present to help others who pursue this mod. Also, thanks for providing the orientation description with these brackets.
I really appreciate your help.
Oh, just one more question. I purchased my panels from my dealer and they supplied 18 plastic nuts (# 51161943122) instead of the 20 that you supply. Are 18 or 20 required with an R59 installation?
By the way, loving my JCW Leather / Carbon shift **** supplied by ECS.
Cheers,
~Alan
I really appreciate your help.
Oh, just one more question. I purchased my panels from my dealer and they supplied 18 plastic nuts (# 51161943122) instead of the 20 that you supply. Are 18 or 20 required with an R59 installation?
By the way, loving my JCW Leather / Carbon shift **** supplied by ECS.
Cheers,
~Alan
