Universal ScanGaugeII XGuage Thread

  #1
Old 04-14-2010, 02:10 PM
sbarton
sbarton is offline
1st Gear
Thread Starter
Join Date: Mar 2010
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
Universal ScanGauge II XGuage Thread

Is there a thread that has all of the ScanGauge settings, tricks, xGauges, and stuff in one place?

Would be nice to be able to go to one thread to find how to do Boost w/o MAP. Wideband AFR, etc.

-Scott


Last edited by sbarton; 04-16-2010 at 10:58 AM.
  #2
Old 04-15-2010, 11:51 AM
sbarton
sbarton is offline
1st Gear
Thread Starter
Join Date: Mar 2010
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
ScanGuageII Initial Settings for R56 (may work for others)

ENGINE SIZE: 1.6L
MORE>SETUP>ENGINE>1.6 LITERS >SET

TANK SIZE: 13Gal
MORE>SETUP>FUEL>TANK SIZE>13 GALLONS >SET

FUEL: GAS (should be default and not need to be changed)
MORE>SETUP>FUEL>TYPE>GAS

COM MODE: CANSF (should default to this and not need to be changed)
MORE>MORE>MODE>CANSF >FORCE

PIDS: ALL (should be default and not need to be changed)
MORE>MORE>MODE>PIDS>ALL >SAVE

FUEL CONSUMPTION CALIBRATION: 10% (yours may vary. use this if you don't want to do the fillup thing)
MORE>FILLUP>10.0% >DONE (increase the gals until it reads 10.0%)

COLOR: RED (closest match to stock gauge lighting)
MORE>DISPLAY>MORE>COLOR>RED

UPDATE RATE:FAST (default is Normal, but CANSF can use Fast)
MORE>MORE>RATE>FAST


Last edited by sbarton; 04-15-2010 at 12:25 PM.
  #3
Old 04-15-2010, 12:05 PM
sbarton
sbarton is offline
1st Gear
Thread Starter
Join Date: Mar 2010
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
XGAUGES for R56 (CANSF) (may work for others)

BOOST (w/o MAP)
TXD: 07DF010B
RXF: 0441850B0000
RXD: 2808
MTH: 00910064FFxx
NAM:BST or PSI
Where FFxx from MTH will fit one of the following offsets:
14.0 -- FF74
14.1 -- FF73
14.2 -- FF72
14.3 -- FF71
14.4 -- FF70
14.5 -- FF6F
14.6 -- FF6E
14.7 -- FF6D
14.8 -- FF6C
14.9 -- FF6B
15.0 -- FF6A
Best way to guess your offset would be to first display MAP on the scangauage, and while the car is in neutral, press the start button but without the clutch pedal depressed. What this will do is initiate the engine electronics without starting the vehicle. Next, take whatever MAP number the Scangauge displays and complete the MTH xGauge.


WideBand Air Fuel Ratio
TXD: 07DF0134
RXF: 04414534
RXD: 2808
MTH: 05B900800000
NAM: AFR

Or you can use the General CANSF:
TXD: 07DF0144
RXF: 04414544
RXD: 2808
MTH: 05B900800000
NAM: AFR


HorsePower
TXD:00
RXF:400080000000
RXD: 0000
MTH: 000A00170000
NAM: HP or HPR


Air Temp *F (ambient)
TXD: 07DF0146
RXF: 04410546
RXD: 2808
MTH: 00090005FFD8
NAM: AIR


Fuel Level (%)
TXD: 07DF012F
RXF: 0441052F
RXD: 2808
MTH: 006400FF0000
NAM: FLV OR FUL


Catalyst Temp *F
TXD: 07DF013C
TXF: 0441053C
TXD: 2810
MTH: 00010005FFD8
NAM: fCA or CAT


Last edited by sbarton; 10-08-2010 at 06:04 AM.
  #4
Old 04-15-2010, 12:31 PM
sbarton
sbarton is offline
1st Gear
Thread Starter
Join Date: Mar 2010
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
Normal Values (or range of Values) for Guages
fWT (Water Temp *F): 220
fIT (Intake Air Temp *F): 5-15* above ambient when moving (higher when not moving. also higher when boosting)


Last edited by sbarton; 04-15-2010 at 12:37 PM.
  #5
Old 04-15-2010, 03:18 PM
aaronvb
aaronvb is offline
2nd Gear
Join Date: Mar 2010
Location: Honolulu, Hawaii
Posts: 135
Likes: 0
Received 0 Likes on 0 Posts
This is awesome! Thanks for the information.

  #6
Old 05-24-2010, 11:04 AM
Elessar
Elessar is offline
2nd Gear
Join Date: Jul 2009
Posts: 71
Likes: 0
Received 0 Likes on 0 Posts
Catalyst Temp *F change

Catalyst Temp *F
TXD: 07DF013C
TXF: 0441053C
TXD: 2810
MTH: 00090005FFD8
NAM: fCA or CAT

I have done some testing on my car and it looks like this produces a very high number. After playing with the MTH code I think it should be 00010005FFD8.

  #7
Old 07-27-2010, 09:23 AM
pillar's Avatar
pillar
pillar is offline
5th Gear
iTrader: (1)
Join Date: Jul 2007
Location: MD
Posts: 748
Likes: 0
Received 0 Likes on 0 Posts
how accurate is the fuel level percentage? If would be nice to have a read out that is linear.

The Cat temperatures... I know a lot of cars have temp readings on their cats but this scan gauge code is just a derivation of other measurable stuff to calculate a temperature range for the cats (similar to boost)? And which cat are we talking about, DP or the 2nd unmonitored one.

Lastly, what purpose does knowing cat temperatures provide? I know they have to be a certain temperature before they become efficient but is there another reason?

  #8
Old 07-27-2010, 04:37 PM
MINI33342
MINI33342 is offline
5th Gear
Join Date: May 2010
Posts: 786
Received 10 Likes on 9 Posts
Any idea if there is info like this for the R53?

  #9
Old 10-08-2010, 04:58 AM
cmcveay
cmcveay is offline
3rd Gear
iTrader: (2)
Join Date: Jul 2009
Location: Annandale, VA
Posts: 265
Likes: 0
Received 0 Likes on 0 Posts
Has anyone had any luck with the fuel level displaying when set up as above? It's the only one I've programmed that isn't working. The display stays blank.

Edit: Not sure what I did but it works for me now. I'm going to see if I can start mapping the % vs. actual amount vs. "carrots" to see what %/amount of fuel is associated with each "carrot" on the OEM guage. Who said life is boring?


Last edited by cmcveay; 10-28-2010 at 09:32 PM.
  #10
Old 10-08-2010, 06:05 AM
sbarton
sbarton is offline
1st Gear
Thread Starter
Join Date: Mar 2010
Posts: 31
Likes: 0
Received 0 Likes on 0 Posts
It works for me in my R56. Did you double check to make sure all the numbers are correct? If one number is off, it won't work (it's a major PITA to make sure you got them all just right).

-Scott

  #11
Old 01-11-2011, 07:47 PM
etalj
etalj is offline
6th Gear
Join Date: Jan 2006
Posts: 1,808
Likes: 0
Received 0 Likes on 0 Posts
Is it possible to actually record the numbers seen by the ScanGauge? I.E plot boost vs RPM ? Can you even connect a ScanGauge to a home computer?

  #12
Old 01-17-2011, 09:49 AM
XXLil MickXX's Avatar
XXLil MickXX
XXLil MickXX is offline
5th Gear
iTrader: (3)
Join Date: Jan 2010
Posts: 730
Likes: 0
Received 1 Like on 1 Post
Any threads on R53 sg2 information? Is it possible to get a PSI or Boost reading instead of MAP? I have mine set for CAI temp, Water Temp, RPM and MAP.

Could anyone explain what these numbers mean or where they should typically be???

What should the water temp be before the car is "ready" to go ?

My map is usually in the 6 to 14 range. When I go fast it will go up to about 28. Good? Bad?

How much above ambient temperature is considered heat soaked? I don't think I can get it there off the track?

Thanks to any constructive replies!!!!

  #13
Old 03-19-2011, 03:34 PM
chakraj's Avatar
chakraj
chakraj is offline
5th Gear
iTrader: (1)
Join Date: Apr 2008
Location: Santa Barbara, Ca
Posts: 719
Likes: 0
Received 0 Likes on 0 Posts
When you first turn the car on for the first five seconds the map will show a number. Maybe -14, that number is the normal pressure at your altitude. You just take that away from your map and that's your boost 28 -14 =24.

  #14
Old 05-15-2011, 09:01 PM
sooper_cooper's Avatar
sooper_cooper
sooper_cooper is offline
5th Gear
iTrader: (3)
Join Date: Jan 2011
Location: Dallas, TX
Posts: 845
Likes: 0
Received 0 Likes on 0 Posts
Great thread for new Scangauge owners. I'm planning to setup mt boost gauge with this info.

  #15
Old 12-23-2011, 08:37 AM
byron h
byron h is offline
3rd Gear
Join Date: Nov 2010
Location: Spartanburg, SC
Posts: 178
Likes: 0
Received 0 Likes on 0 Posts
I am trying to obtain the CANSF codes for oil pressure in psi. My 2011 MC has an oil pressure sensor and I would like to add an oil pressure XGauge on my Scangauge II. I requested the oil pressure codes for a Mini Cooper from Scangauge and was told they don't have it. I have been scanning the internet and the closest I have found is the CANSF codes for oil temperature. My Bentley manual doesn't indicate any oil temperature sensor for the 2011 MC. I would appreciate any help in finding the codes for oil pressure. The following are the CANSF codes I found for oil temerature:

TXD: 07E0221310
RXF:046245130610
RXD:3010
MTH:00090005F060
NAME:EOT

  #16
Old 12-27-2011, 05:37 PM
unibus_driver
unibus_driver is offline
2nd Gear
Join Date: Mar 2011
Location: San Diego CA
Posts: 134
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by byron h View Post
The following are the CANSF codes I found for oil temerature:

TXD: 07E0221310
RXF:046245130610
RXD:3010
MTH:00090005F060
NAME:EOT
Note that the initial interrogation TXD is 10 digits here, while all the other Xgauge codes for the MINI have 8 digits. Don't really know what that means.

  #17
Old 02-14-2012, 07:09 PM
Eddie07S's Avatar
Eddie07S
Eddie07S is offline
6th Gear
iTrader: (1)
Join Date: May 2010
Location: Upstate NY
Posts: 4,311
Received 135 Likes on 126 Posts
Good thread...
Have a problem that a ScanGage that I used on my '07 S doesn't read the same on my 2012 S. On the '07 on MAP it would read absolute pressure; in other words, at idle it would read about 3-5 psia and at boost about 24 to 27.5 (over boost). Now on the 2012 it reads 13.9 to 14.5 psia and then at boost 24 to about 27.5. So it seems that it is now reading the boost without the MAP (as post #3 says you can do).

Does anyone know how to set it so it will read MAP on the 2012 like it did on my '07? Or do I need to go back to ScanGage for some sort of update?

  #18
Old 02-24-2012, 05:38 PM
Eddie07S's Avatar
Eddie07S
Eddie07S is offline
6th Gear
iTrader: (1)
Join Date: May 2010
Location: Upstate NY
Posts: 4,311
Received 135 Likes on 126 Posts
ScanGauge Mount

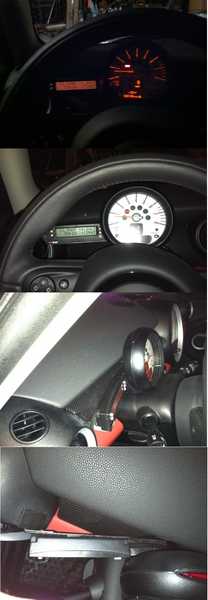

I thought that people might be interested in the mount that I made for my scangauge for my 2012 MCS. It is 3/4" angle aluminum. The right side rests on the steering column and the left side has a piece pop rivited to it so it match the curve of the side vent. It is Velcro'ed in place using the automotive selfstick for plastic. That is really important as that is made for the heat, the other will come un-stuck. I coated the aluminum with black plastic-cote (spelling?) so it blends in.

Attached Thumbnails Universal ScanGaugeII XGuage Thread-scangage_mount.jpg
  #19
Old 04-18-2012, 02:20 PM
RobMuntean's Avatar
RobMuntean
RobMuntean is offline
6th Gear
iTrader: (1)
Join Date: Feb 2012
Location: West Bloomfield, Michigan
Posts: 2,970
Likes: 0
Received 1 Like on 1 Post
Man, I tried to get the boost gauge working on my 11' MCS. But for some reason my MAP shows 13.8 when I start my car. Does anyone know what number I should plug in for the MTH?!?! And how does horsepower calculate? That is a little confusing for me. Thank you!

  #20
Old 04-18-2012, 03:22 PM
Mini///M
Mini///M is offline
5th Gear
iTrader: (2)
Join Date: Aug 2010
Location: NY
Posts: 666
Likes: 0
Received 0 Likes on 0 Posts
I'm working on making a little dash pod on the left for the SGII. I can't stand seeing it without any kind of integration.

  #21
Old 04-27-2012, 05:49 PM
roadsterman's Avatar
roadsterman
roadsterman is offline
1st Gear
Join Date: Apr 2012
Location: So MD
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RobMuntean View Post
Man, I tried to get the boost gauge working on my 11' MCS. But for some reason my MAP shows 13.8 when I start my car. Does anyone know what number I should plug in for the MTH?!?! And how does horsepower calculate? That is a little confusing for me. Thank you!
In response to your first question, check out SBARTON's third post. Standing on this earth at sea level we are under approx. 14.7 psi of pressure. If you turn on your ignition without the engine running, the MAP should measure that 14.x pressure just from the atmosphere. Boost will be whatever is above that number ( 20.7-14.7=6.0 psi boost), vacuum is whatever is below that number.

  #22
Old 04-27-2012, 07:36 PM
Eddie07S's Avatar
Eddie07S
Eddie07S is offline
6th Gear
iTrader: (1)
Join Date: May 2010
Location: Upstate NY
Posts: 4,311
Received 135 Likes on 126 Posts
Originally Posted by roadsterman View Post
In response to your first question, check out SBARTON's third post. Standing on this earth at sea level we are under approx. 14.7 psi of pressure. If you turn on your ignition without the engine running, the MAP should measure that 14.x pressure just from the atmosphere. Boost will be whatever is above that number ( 20.7-14.7=6.0 psi boost), vacuum is whatever is below that number.
The ScanGauge people told me that Mini changed where the pressure is taken from on my 2012 (I assume '11 too) and it - MAP - will only read the atmospheric pressure and boost, not vaccum, once it is up to temperature.

  #23
Old 04-29-2012, 03:54 PM
Eddie07S's Avatar
Eddie07S
Eddie07S is offline
6th Gear
iTrader: (1)
Join Date: May 2010
Location: Upstate NY
Posts: 4,311
Received 135 Likes on 126 Posts
ScanGauge mount

Here are a few more pictures of the mount I made for my ScanGauge. From my previous post - It is 3/4" angle aluminum. The right side rests on the steering column and the left side has a piece pop rivited to it so it match the curve of the side vent. It is Velcro'ed in place using the automotive selfstick version for plastic. That is really important as that is made for the heat, the other will come un-stuck. I coated the aluminum with black plastic-cote (spelling?) so it blends in.






  #24
Old 06-26-2012, 03:10 PM
roadsterman's Avatar
roadsterman
roadsterman is offline
1st Gear
Join Date: Apr 2012
Location: So MD
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Eddie07S View Post
The ScanGauge people told me that Mini changed where the pressure is taken from on my 2012 (I assume '11 too) and it - MAP - will only read the atmospheric pressure and boost, not vaccum, once it is up to temperature.
I didn't think of that. The new engines regulate air at the valves instead of the throttle body. So no more vacuum readings!

  #25
Old 10-28-2012, 01:14 PM
Yakatak
Yakatak is offline
2nd Gear
Join Date: Oct 2009
Posts: 144
Likes: 0
Received 1 Like on 1 Post
When my engine throws codes, I am unable to clear them with the Scangauge, even after the cause of the code is corrected. They get cleared by the dealer when I'm in for service. Shouldn't the Scangauge be able to clear the codes??
