Union Jack Taillights

FIRST NOTE: Please note I cannot respond to this post so if you have questions please PM me. If I am able to help solve it please post your problem and how we fixed it so we share with others.

NOTE: If you have the halogen front lights and have done the work necessary to replace the rear lights with either UJ or pre-facelift taillights please PM me with details so that I can add them here.

Preface: This post is designed to cover all issues with installation / retrofit of the LCI Union Jack (UJ) tail lights in pre-facelift cars. There are two forms: the US part uses red colored LEDs in all locations, with the verticle brake line and the horizontal rear turn signals integrated into one light. Meanwhile, the EU part has amber colored LEDs in the horizontal turn signal and the vertical brake line is separate. Each coding is slightly different since the US brake/turn signal is hard-wired together. And the brake force display coded for US brakes would light up the turn signals amber, which does not suggest emergency to me, so one must reprogram it to work in the European way. It has come to my attention that the US cars no longer use BFD, and it has been turned off. I believe the process for the EU part should work to set the BFD for US parts as well. I will define the process using BimmerCode as I am going to make the assumption anyone willing to use ESYS will be able to work their way through this.

Install: (Cars with the LED exterior package) The physical install is extremely simple. Gently pry the chrome (or black) rings around the lights off the light by finding the points that clip in and applying pressure to pop them out. There are two points around the hatch door which can be used to start the process. Once this is off, you will see a set of 4 or 5 torx screws which hold the light in place. These screws are not and do not needed to be torqued hard. However, I believe mine had a small amount of standard thread locker. You can then pull, or push through the service door in the hatch the light out. Moving to the wiring harness, it is a basic BMW clip which once again is not hard to determine. The new parts, whether they are US or EU, use the same connector as is already installed.

Initial Coding: Once the lights are installed, there will be an immediate error on the car. In order to code these errors out. One must enter BDC_Body. and enter expert mode. Once in expert mode, you will be presented with a number of modules, enter 3061. Once there change the following settings to the correct value where x is L and R. After you make the changes move up to the BDC_Body level (but do not exit it) and hit code to complete the coding.
BL_x_IS_LED - aktiv
BL_x_KURZSCHLUSS - nicht_aktiv
BL_x_WARMEURBERWACHUNG - nicht_aktiv
BL_x_KALTEURWACHUNG - nicht_aktiv
FRA_H_x_IS_LED - aktiv
FRA_H_x_KURZSCHLUSS - nicht_aktiv
FRA_H_x_WARMEURBERWACHUNG - nicht_aktiv
FRA_H_x_KALTEURWACHUNG - nicht_aktiv

For everyone's information, telling the car the light is LED will allow the system to correctly send the signal. Kurzschluss is the short circuit check. and the warmerber/kalteurwachung stops the lights from flickering on startup.

Coding Specific to US parts: When the US lights are installed in the pre-facelift car, the turn signal works separately from the brake light; however, when both are applied at the same time, the light stays on regardless of the turn signal to solve this. Under BDC_Body enter expert mode and enter 3064 and change. After you changed this setting, code it again.
MAPPING_BREMSL_2_x_OUTPUT - off
What is actually happening to the US lights is that the car is outputting brake signal to two locations and the second one outputs through the turn signal (which is the same physical output), so even though the turn signal output overwrites the brake output, that output is still always on during braking.

Coding Specific to EU parts: The BFD must be coded to European style or turned off completely. Enter expert mode in BDC_Body and enter 3068. Change:
ESS_AKTIVIERBARER_AUSGANG - bremslicht_blinkend
Just doing this will cause an error any time you brake hard and the car will return to operating without BFD.Return to the list of numbered modules and enter 3064 and change:
MAPPING_BRAKEFORCED_1_x_OUTPUT - bl_x
The above will remove the error message. This is because the output at bl_x is an appropriate output. However, this output does not output to anywhere on the lights so the vertical brake lights on the UJ taillights will turn off completely during hard braking. Therefore, you must go back to the upper level and enter 3065 and change:
MAPPING_BRAKEFORCED_2_x_OUTPUT - bfd_xThe outputs of bfd_x is the actual outputs that run to the vertical brake lights on the UJ lights. Code the system again.


Last edited by DunkM; 04-02-2019 at 01:34 PM. Reason: Fixed Problem
The following users liked this post:
Sansho (04-10-2019)
  #2
Old 04-27-2018, 10:59 AM
kfmuller
kfmuller is offline
4th Gear
Join Date: Jul 2002
Location: Dallas, TX
Posts: 445
Received 10 Likes on 8 Posts
Got the British lights installed on my car, too, so I'm interested in getting the necessary parameters set up for the Brake Force Display. Currently, got the warning lights coded out. When I attempted to code for flashing BFD, I received a bulb error. So, I went back to the Extended display, which lights up the 2 indicator lights along with the normal brake lights during heaving braking. I'd like to do something that would allow flashing.

  #3
Old 04-28-2018, 08:22 AM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
I have solved the problem tentatively. I will confirm and do a write up tomorrow!

  #4
Old 04-28-2018, 09:46 AM
TVPostSound
TVPostSound is online now
6th Gear
iTrader: (3)
Join Date: Mar 2014
Location: Granada Hills, CA
Posts: 1,484
Received 134 Likes on 122 Posts
MINIs do not have a second set of brake lights as a BMW to activate, hence MINI activates the turn signal bulb to expand the brake lamp area (area enlargement)
In a BMW that second set of brake lamps also flash during ABS braking.

What you are not aware of, is that during an accident (in a MINI) the turn signals flash automatically.
Setting the BFD to flash interferes with that function, hence the error.

The following users liked this post:
bratling (04-29-2018)
  #5
Old 04-29-2018, 05:11 AM
NBCGLX
NBCGLX is offline
2nd Gear
Join Date: Jul 2014
Posts: 119
Received 12 Likes on 11 Posts
Originally Posted by TVPostSound View Post
MINIs do not have a second set of brake lights as a BMW to activate, hence MINI activates the turn signal bulb to expand the brake lamp area (area enlargement)
In a BMW that second set of brake lamps also flash during ABS braking.

What you are not aware of, is that during an accident (in a MINI) the turn signals flash automatically.
Setting the BFD to flash interferes with that function, hence the error.
Do they use the turn signals as BFD in Europe/UK? That wouldn't make sense since the turn signals on that side of the Atlantic are amber.

  #6
Old 04-30-2018, 05:23 AM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by TVPostSound View Post
MINIs do not have a second set of brake lights as a BMW to activate, hence MINI activates the turn signal bulb to expand the brake lamp area (area enlargement)
In a BMW that second set of brake lamps also flash during ABS braking.

What you are not aware of, is that during an accident (in a MINI) the turn signals flash automatically.
Setting the BFD to flash interferes with that function, hence the error.
In US BMWs the second set of brake lights are actually the unactivated rear fog lights. Which is one of the major reasons BMW does not offer rear fogs on their cars in the US.

Also, it is not just that that causes error but also setting the brake force mapping to the taillights, what comes on when you turn your lights on. I believe it is because the setting for bremshlicht_blinkend literally specifies brakes.

  #7
Old 04-30-2018, 06:29 AM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by NBCGLX View Post
Do they use the turn signals as BFD in Europe/UK? That wouldn't make sense since the turn signals on that side of the Atlantic are amber.
No, they change the extended area to flashing and the brake lights flash.

  #8
Old 04-30-2018, 08:01 AM
kfmuller
kfmuller is offline
4th Gear
Join Date: Jul 2002
Location: Dallas, TX
Posts: 445
Received 10 Likes on 8 Posts
Originally Posted by DunkM View Post
No, they change the extended area to flashing and the brake lights flash.
I tried changing mine to flash - I have the European UJ version, and it indeed flashes the turn signals for the Brake Force Display. The problem I have is that it throws up an bulb failure error on my center screen, and I don't know why. I've coded out all the other bulb failure errors based on the LEDs installation. Wish I could figure this one out. Probably something I need to do in expert mode, but I don't know what it is.

As it is now - If the brake force is activated - it lights up both turn signals as solid along with the brake lights since I set it back to extended area.

  #9
Old 04-30-2018, 08:04 AM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by kfmuller View Post
I tried changing mine to flash - I have the European UJ version, and it indeed flashes the turn signals for the Brake Force Display. The problem I have is that it throws up an bulb failure error on my center screen, and I don't know why. I've coded out all the other bulb failure errors based on the LEDs installation. Wish I could figure this one out. Probably something I need to do in expert mode, but I don't know what it is.

As it is now - If the brake force is activated - it lights up both turn signals as solid along with the brake lights since I set it back to extended area.
I have figured it out. I am actually in the middle of writing up the required steps and making sure I cover everything as I am always a bit hesitant to put coding like this out on the internet. I should get it posted tonight. (Wanted to yesterday but was pulled too many different directions.

  #10
Old 04-30-2018, 08:44 AM
charrigan's Avatar
charrigan
charrigan is offline
2nd Gear
Join Date: Feb 2018
Posts: 141
Received 17 Likes on 12 Posts
Originally Posted by DunkM View Post
I have figured it out. I am actually in the middle of writing up the required steps and making sure I cover everything as I am always a bit hesitant to put coding like this out on the internet. I should get it posted tonight. (Wanted to yesterday but was pulled too many different directions.

you rock! out of curiosity did your car have LED or halogen tails?

I saw references to the UJ tails having two separate part numbers. Which did you get?

  #11
Old 04-30-2018, 02:40 PM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Updated the original post.

As a note, I have the british part numbers. ending in 3 and 4, I believe.

  #12
Old 04-30-2018, 03:52 PM
NBCGLX
NBCGLX is offline
2nd Gear
Join Date: Jul 2014
Posts: 119
Received 12 Likes on 11 Posts
To clarify, you retrofitted the UJ lights into a US car that had the old LED lights? And, now that you've coded everything, the lights function as they do in Europe/UK; i.e., the turn signals and brake lights are separate functions? And, you've got the brake force display working properly?

  #13
Old 04-30-2018, 03:54 PM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by NBCGLX
To clarify, you retrofitted the UJ lights into a US car that had the old LED lights? And, now that you've coded everything, the lights function as they do in Europe/UK; i.e., the turn signals and brake lights are separate functions? And, you've got the brake force display working properly?
Yes, to all.

  #14
Old 04-30-2018, 04:03 PM
NBCGLX
NBCGLX is offline
2nd Gear
Join Date: Jul 2014
Posts: 119
Received 12 Likes on 11 Posts
Did you make the coding changes with E-sys, or Bimmercode?

  #15
Old 04-30-2018, 04:04 PM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
E-sys, but I am guessing expert mode in bimmercode can do this as well.

The following users liked this post:
NBCGLX (04-30-2018)
  #16
Old 04-30-2018, 04:29 PM
Forcerecontrojan
Forcerecontrojan is offline
2nd Gear
iTrader: (1)
Join Date: Dec 2017
Posts: 55
Received 12 Likes on 7 Posts
Where is the best place to get the new taillights?

TIA

  #17
Old 05-01-2018, 01:23 PM
TVPostSound
TVPostSound is online now
6th Gear
iTrader: (3)
Join Date: Mar 2014
Location: Granada Hills, CA
Posts: 1,484
Received 134 Likes on 122 Posts
Originally Posted by DunkM View Post
Hi everyone,

Edit. SOLVED
Alright,

P.S.S. My car currently does not turn on the hazards when hard braking and coming to a stop, will look into coding that this week.
That would entail coding BFD 2.

Now did you code the 3rd brake light for blinken on BFD 1?

I know this is Gen3
As a reference, I CAN confirm my previous Gen2 blinks hazards after a collision!!!
Even without bags deflating.

  #18
Old 05-01-2018, 01:42 PM
TVPostSound
TVPostSound is online now
6th Gear
iTrader: (3)
Join Date: Mar 2014
Location: Granada Hills, CA
Posts: 1,484
Received 134 Likes on 122 Posts
One more thing, have you done a full on panic stop from over 45 mph?
Using ABS to come to a full stop.
To see if the hazards activate?

I remember something about WB_GB_ENABLE is set to aktiv.
3060 or somewhere there.
Programming my Navy Daughters US BMW when she was stationed in Naples.

  #19
Old 05-01-2018, 02:20 PM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by TVPostSound
One more thing, have you done a full on panic stop from over 45 mph?
Using ABS to come to a full stop.
To see if the hazards activate?

I remember something about WB_GB_ENABLE is set to aktiv.
3060 or somewhere there.
Programming my Navy Daughters US BMW when she was stationed in Naples.
I have tested and it does not. That is what I will look for when I get a chance to code again, possibly tonight.

  #20
Old 05-01-2018, 02:23 PM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by TVPostSound
That would entail coding BFD 2.

Now did you code the 3rd brake light for blinken on BFD 1?

I know this is Gen3
As a reference, I CAN confirm my previous Gen2 blinks hazards after a collision!!!
Even without bags deflating.
It is already turned on under BFD 1 because bfd represents a different output from braking, it has to be programmed in already or your 3rd brake light would not come on at all.

Changing the code to bremschlict_blinkend already applies to the middle light.

  #21
Old 05-01-2018, 07:38 PM
eastport_mini's Avatar
eastport_mini
eastport_mini is offline
2nd Gear
Join Date: Jan 2009
Location: Maryland
Posts: 65
Received 3 Likes on 3 Posts
Originally Posted by DunkM View Post
Hi everyone,

Edit. SOLVED
Alright,

For my big finale, the coding for EU market UJ taillights is actually surprisingly simple.

The first thing I had to realize is that there are two sets of mapping data. In other words, our cars are smart enough to output into two places with one input.

This led me to realize that the brake lights (vertical part of taillights) are coded as bfd_l and bfd_r.

Therefore, in order to code BFD for the US cars, and this should work to change BFD on pre LCI cars too.

One must enter BDC_Body and edit the FDL file.

Then you must enter 3068, and change
ESS_AKTIVIERBARER_AUSGANG from flaechenvergroesserung (expanded area) to bremslicht_blinkend (brake light flashing)

Then 3064 and change
MAPPING_BRAKEFORCED_1_L_DISABLE_OUTPUT from fra_h_l (back blinker) to bl_l (brake light?)
MAPPING_BRAKEFORCED_1_R_DISABLE_OUTPUT from fra_h_r to bl_r,
Note:this output does not make light occur anywhere on the LCI lights, may be different on the other lights.

The above will remove the error message that occurs when you just change expanded area to brake light flashing. However, as said above, it is not safe because the brake lights on the UJ taillights turn off completely.

Therefore, you must go into 3065 and change,

MAPPING_BRAKEFORCED_2_L_OUTPUT from off to bfd_l (I can only assume brake force display)
MAPPING_BRAKEFORCED_2_R_OUTPUT from off to bfd_r

That pretty much covers what I did. I also confirmed that the output pwm functions matched between MAPPING_BRAKEFORCED_2_L_OUTPUT and MAPPING_BREMSL_2_L_OUTPUT, as those are the regular brake output mapping data.

Finally, the additional thing I did was change
ESS_BLINKFREQ_1 and ESS_BLINKFREQ_2 from 3 hz to 5 hz, this changes the flashing frequency. I did this at the suggest of the BMW coding forums, because the increased frequency pretty much can only suggest warning. as it would be impossible to pump the brakes that fast.




Disclaimer: my car was already built with LED taillights. Therefore, if you plan on upgrading to the LED taillights from halogen, you may need change additional data.

Disclaimer 2: I'm not responsible if you somehow code something different from me and are rear ended or anything else. We are dealing with very important car functions, and it is possible to code out and turn off your brake lights completely, in fact I did at one point.


P.S. The issue that American part number people are having is probably related to the mapping output for brakelights, as the system is applying the brake signal to both.
P.S.S. My car currently does not turn on the hazards when hard braking and coming to a stop, will look into coding that this week.

I installed my US Version Taillights and coded using Bimmercode.

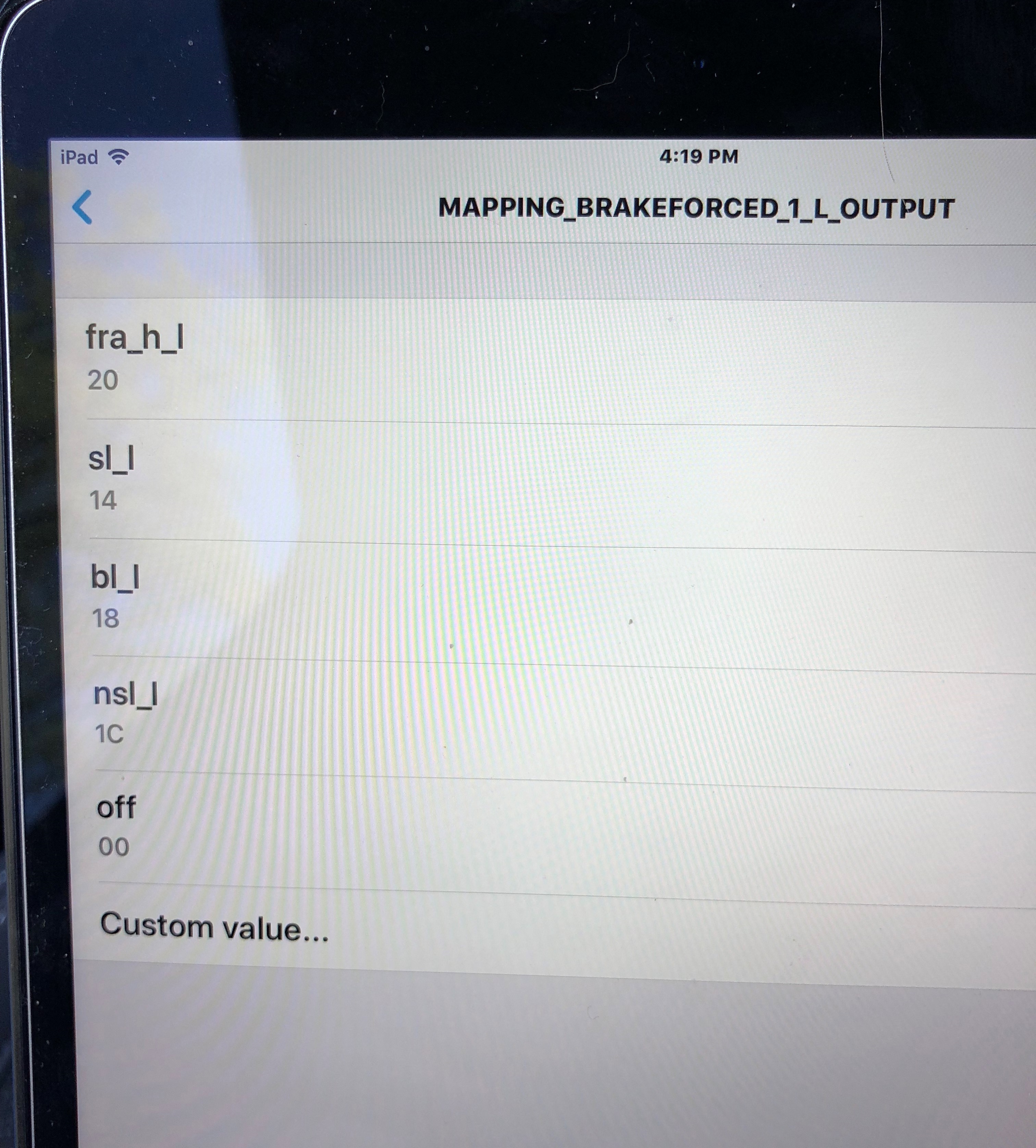

I attached 2 images from coding and found that changes you stated were in a different file. I have a 2017 MCS. I just want to confirm the location of the changes that need to be made.

Attached Thumbnails Union Jack Taillights-mini-taillights-1.jpg   Union Jack Taillights-mini-taillights-2.jpg
The following users liked this post:
NinerfanWI (05-02-2018)
  #22
Old 05-01-2018, 09:13 PM
TVPostSound
TVPostSound is online now
6th Gear
iTrader: (3)
Join Date: Mar 2014
Location: Granada Hills, CA
Posts: 1,484
Received 134 Likes on 122 Posts
ESS_AKTIVIERBARER_AUSGANG from flaechenvergroesserung (expanded area) to bremslicht_blinkend (brake light flashing)

Then 3064 and change
MAPPING_BRAKEFORCED_1_L_OUTPUT from fra_h_l (back blinker) to bl_l (brake light?)
MAPPING_BRAKEFORCED_1_R_OUTPUT from fra_h_r to bl_r
Using only this coding above.
In theory for the NON UJ taillights, this reroutes the blinkend to the turn signals.
It disables the brake lights from flashing and makes the turn indicators flash.
Thus removing the error.


Last edited by TVPostSound; 05-02-2018 at 08:04 AM.
  #23
Old 05-01-2018, 10:44 PM
eastport_mini's Avatar
eastport_mini
eastport_mini is offline
2nd Gear
Join Date: Jan 2009
Location: Maryland
Posts: 65
Received 3 Likes on 3 Posts
I was just out working on this.
I have the running lights working correctly.
The Brake Lights are Inner ( -l ) portion of the lights.
Is that correct?
The Turn Signals flash the ( -l ) section correctly.
But the Brake Lights over Light the Turn signals when the brakes are applied.
The Turn Signal is still flashing but the brake light is brighter.
Shouldn't the brake light function be disabled when a turn signal is operating?
Should the Brake lights be the same as the running lights but only brighter ?

Attached Thumbnails Union Jack Taillights-mini-taillights-4.jpg   Union Jack Taillights-mini-taillights-3.jpg

Last edited by eastport_mini; 05-02-2018 at 06:30 AM. Reason: Added Photos
  #24
Old 05-02-2018, 07:49 AM
TVPostSound
TVPostSound is online now
6th Gear
iTrader: (3)
Join Date: Mar 2014
Location: Granada Hills, CA
Posts: 1,484
Received 134 Likes on 122 Posts
I understood the vertical was brake light the horizontal was turn signal.
Brake lights don't go off during signal.

  #25
Old 05-02-2018, 07:59 AM
DunkM's Avatar
DunkM
DunkM is offline
3rd Gear
Thread Starter
Join Date: Nov 2015
Location: Atlanta, GA
Posts: 264
Received 11 Likes on 11 Posts
Originally Posted by eastport_mini View Post
I installed my US Version Taillights and coded using Bimmercode.
I attached 2 images from coding and found that changes you stated were in a different file. I have a 2017 MCS. I just want to confirm the location of the changes that need to be made.
Hey,

I apologize, it looks like you caught a miscopy in my typing.
so
"Then 3064 and change
MAPPING_BRAKEFORCED_1_L_DISABLE_OUTPUT from fra_h_l (back blinker) to bl_l (brake light?)
MAPPING_BRAKEFORCED_1_R_DISABLE_OUTPUT from fra_h_r"

Should read

"MAPPING_BRAKEFORCED_1_L_OUTPUT from fra_h_l (back blinker) to bl_l (brake light?)
MAPPING_BRAKEFORCED_1_R_OUTPUT from fra_h_r to bl_r, "

I have also edited my original post as well.


Last edited by DunkM; 05-02-2018 at 08:00 AM. Reason: clarity

Thread Tools
Search this Thread
Quick Reply: Union Jack Taillights


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
