Is it possible to skip a tooth on one or both of the cam gears? The transmission slammed into park going about 25 miles an hour. The gear selector was in drive the whole time. Car shut off and would not start ever since. I read there are no timing marks to line up so how do you set up cam timing if you had to rebuild cylinder head and valve train?



Got buy the cam alignment tools. But first, what engine we talking about ?



I have 2008 s R56. I do not plan on taking apart mmy cylinder head, I just wanted to know how to check the cam timing. I think it may have skipped a tooth or two. I am working on multiple issues including engine and transmission. Just trying to get the car to start. I inspected intake valves and noticed heavy build up. I am cleaning manualy because I do not want to get any shells in cylinders. Even dealerships have messed this up. The write up for this said that the two outer ports are closed when inner ports are open, however I'm seeing ports for cylinder 1 and 2 closed with 3 partially closed and 4 open. I can see if they are closed by solvent pooling up inside. What's up with that? When should each port be open/closed? Also still want to check timing. How can I see if ccams are lined up correctly?



Only way to check timing is with the alignment tool. The engine only fires one cylinder at a time so each valve sequence is separate.



Sound like the valve cover is off. Rotate it over until the cam lobes are pointing directly away from the valve spring. Then clean that port. Do one at a time. Don't skip around. You'll just get messed up. Like tigger and I had mentioned. Gotta use the cam tools.



Thanks for your reply. Is it possible the chain could have skipped a tooth? I don't want to buy the alignment tool if I can help it. Regarding the valves, that is what I thought, they each open and close at different times following firing order of 1-3-4-2. So I don't know what texasmontego in carbon build up thread is talking about when he says the outside ports are closed the two inside ports are open.



Possible but doubtful. What usually slips is the lower gear that's on the crank. It is not keyed or ridged. The only thing holding it in place is compression from the retaining bolt (ie friction).



I have to say no because I have heard countless member's have the timing chain skip a tooth and are still able to run their engines which misfires because the timing is off. If you skip enough teeth on the cam sprocket your valves can hit the pistons.



Skipped a tooth? More like slipped a chain/fell apart. This is an N14 we are talking about.

Pull the VC and inspect for damage.

Just get a updated timing chain and gear set, cam tools - and start over..



I think the timing chain is to small for the amount of power these little N14's are capable of especially with a Stage 1 tie of higher. It's safe to say that most timing chain failed on the stock tune, these N14 engines have a lot of torque.



🚗



What diameter is the locking flywheel pin? I should be able to find 90°BTDC and then check alignment of cams, right? I've been through many of the cam timing threads, still trying to find out where or how everything is supposed to line up. I've read a little about marks on cam sprockets, chain links, and how I should see index writing on cams between #2 and #3. It's not very clear how does this thing line up?



I made a thread where I did it with out the tools. I made pin for the bottom. Your gonna play hell with the exhaust cam cause when it's at 90 degrees the end cylinder is opening the exhaust valves. The springs are gonna try to rotate the cam.



I got my flywheel off and the cam tool sitting on the bench next to the engine too. I'm at work, I work til 11. If nobody posts the diameter for ya, I will when I get home.

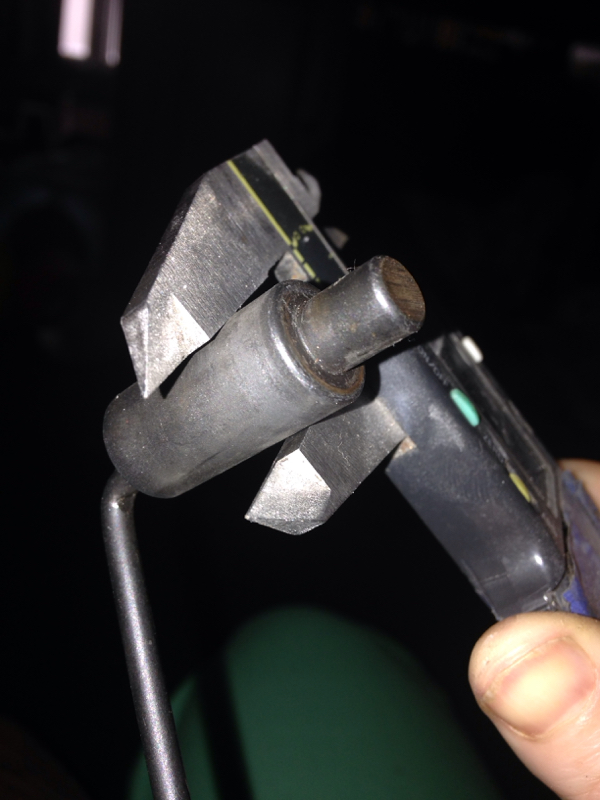

Small .312

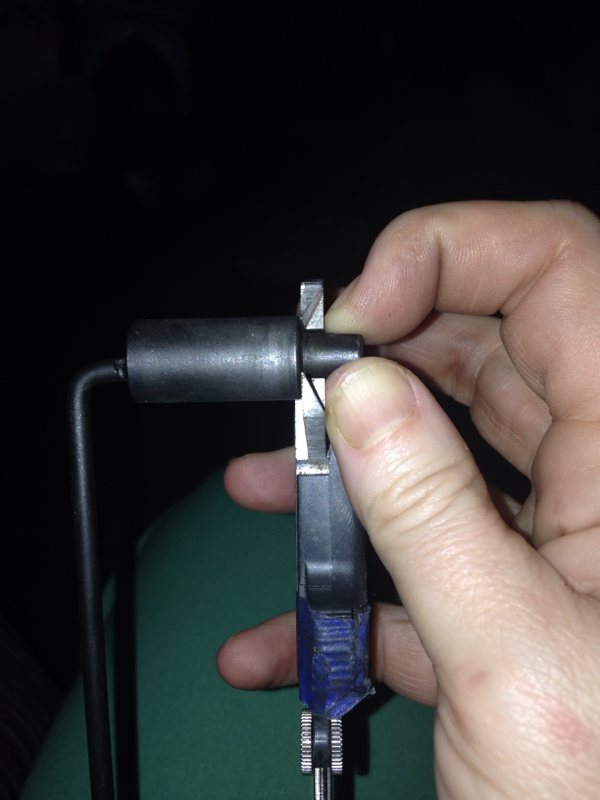

Big end .5490



Sprintcars both your posts were made within the same minute of each other, to make threads smaller with fewer pages taking up less space may I suggest posting both or all pictures in a single post. Nice picture BTW, are you using your phone to take pictures?

Just a suggestion.



Not making a thread. It's a response to a post its photos of the gentlemen asking about the diameters of the tools I shown him. So is the... Nevermind. I can't see what you any way



I'm heading over to my friends house to see if we can make a pin. Just to clarify I have cams and crank in correct position, if I place the pin in hole to lock crank and I see the writing on the cams facing straight up then I should be okay? Right?



Correct, I just did this last night checking piston to valve clearance.
Might have to massage that tool you make just a bit so it fits nice. It should just slide in and out with slight resistance.
What did you have lose or do ?



Nevermind. Here.
Install the tool
Check the cams
Letters facing up.
Also, there's a square drive on the intake and the exhaust on the drivers side of the cams. There should be a flat on both sides of the cams pointing straight up and down. If they are straight up and down. Nothing's wrong. If one is slightly angled, yup, it moved



This may sound like a dumb question but just to clarify. When you say it won't start do you mean it turns over and won't start? Or do you mean it won't turn over at all. I'm asking because of your initial statement that it slammed into park while the gear selector was in drive and the car was traveling 25 mph. That says to me the selector cable is broken, came loose etc... or something failed internally on the transmission. If it's not functioning correctly or out of rig the position sensor would be off and the engine would not turn over when you try and start it.

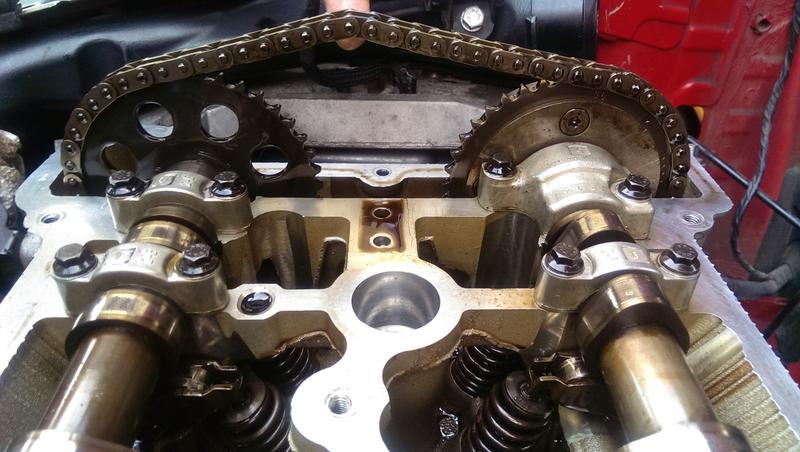

If chain too lose, will it prevent car from starting? At first glance I thought my tensioner was good. Now I'm not so sure. My guide is is good shape. No cracks or sign of damage. As I rotated cams (from crank bolt) I noticed the chain dip down a bit, so I removed the top guide rail to get a better look. I rotated cams again (no guide rail) and saw the chain sag quite a bit between the cam sprockets and as I continued to turn the chain would tighten back up. So as cams rotated the chain would slacken, tighten, slacken, tighten...
The tensioner, chain, and guides were replaced about 20k miles ago when brand new cylinder head out in.



is the tensioner still installed ? I just assembled mine to check piston to valve clearance and did not have that.
Something's wrong. That should not have that much slack. Just start from scratch



The first attempt it started but barely ran for 2 seconds. Sounded horrible, like bucket of bolts. Now it cranks (starter turns engine) but won't start. Not even a hint of trying to start. So far I have found the following:
1) severe carbon build up - now mostly clean, I did this manually no walnut blast
2) Compression test post carbon clean revealed very low almost no compression in all cylinders. Didn't test before clean, no tester at that time. Dry test 1=15, 2<15, 3<15, 4=28. Numbers doubled wet but still waaaay too low. Test done with intake manifold off and all related electrical plugs not connected including valve cover connections and intake vanos connection. Valve cover was on but not tightened down.
3)not seeing any spark from any coil or any plug tried it against the heat shield and the flange coming off cylinder head. Hard to believe all plugs went out at same time.
4)While turning cams timing chain slackens a lot then tightens up. Bad tensioner? Not that old???
5)OBD scantool revealed only P0962. Pressure Control Solenoid "A" Control Circuit Low. I think the wiring harness needs to be replaced but the number 6 solenoid in valve body might be bad.
6) Suspect hpfp. White residue all over back of hpfp where fuel lines attach. Also didn't see or smell any fuel in cylinders after cranking a while.
