After my last track session last month, I guess I was finally cornering hard enough to rip chunks of rubber off my right front tire. I figured I need camber plates so I can put a good amount of negative camber up front for better grip and hopefully more even treadwear.

This is on section of my tire. There is a section worse than this.


I only put these tires on in February. They now have about 5000 miles on them and 2 trackdays. They are Continental ExtremeContact Sport 02 and I am very happy with them, so I was disappointed to see what my fun day at the track did to them.

As I had been wanting camber plates since my suspension refresh 2 years ago, I was waffling between saving money with KMAC camber plates or just spending the money for Vorshlag. I've never heard anything bad about Vorshlag products so I decided to go for it. While I was shopping WMW's website, I noticed a set of roll center adjusters to correct my suspension geometry from being lowered on coilovers, so I decided to try those out too.

When the package arrived and I looked at the camber plates, I knew I made the right decision. This are VERY nice and feel very well built.

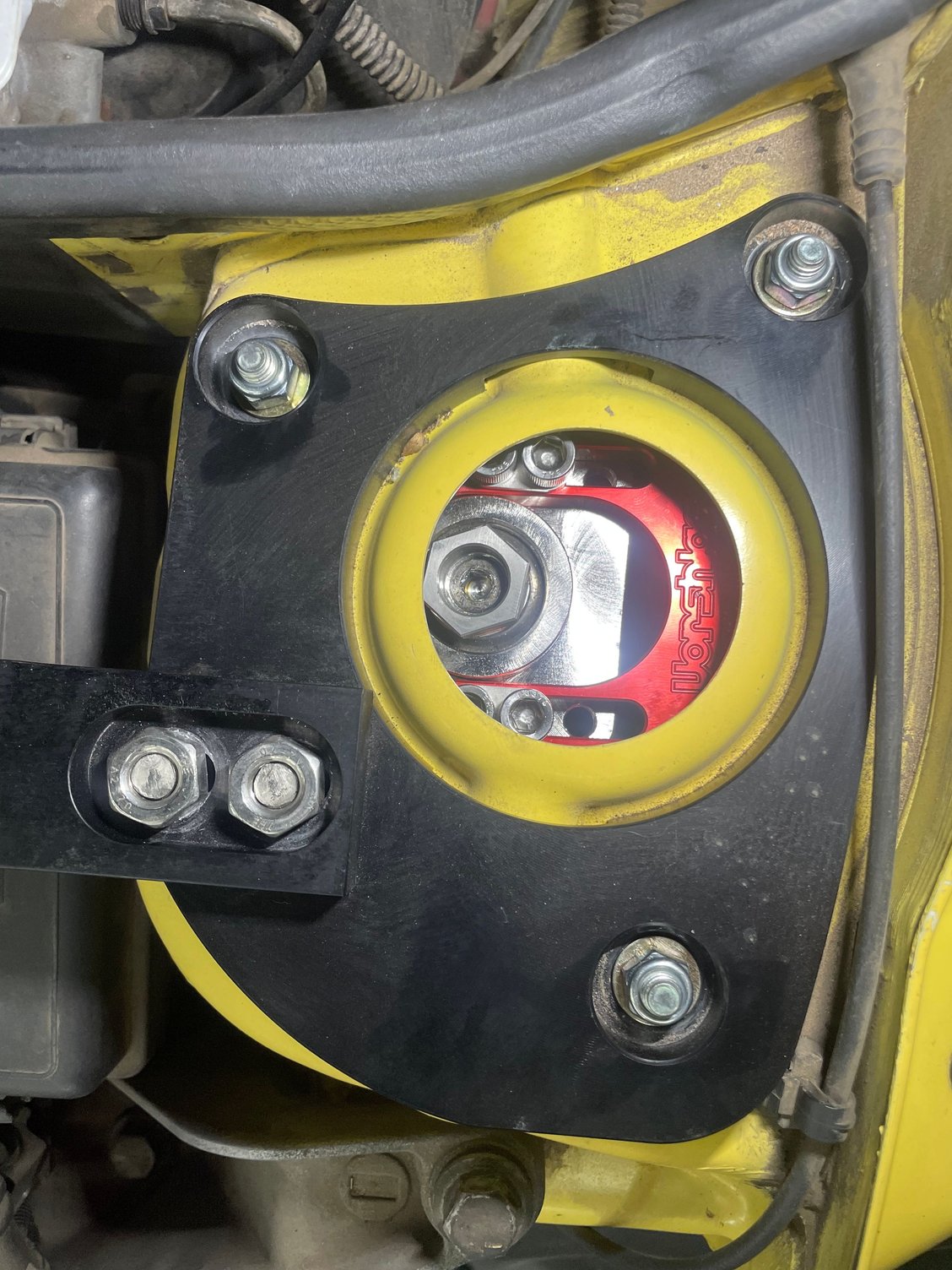

I didn't stop to take a picture of it mounted on the coilover before I hung it in the car. Right away, it is clear to see "some modifications will be necessary".



And set for maximum negative camber:


So I decided to just cut away the space I needed in the strut mount for me to be able to make adjustments without having to remove the coilover from the car. I started by marking the metal I need to remove and got out my die grinder with a ferrous metal cutting burr.

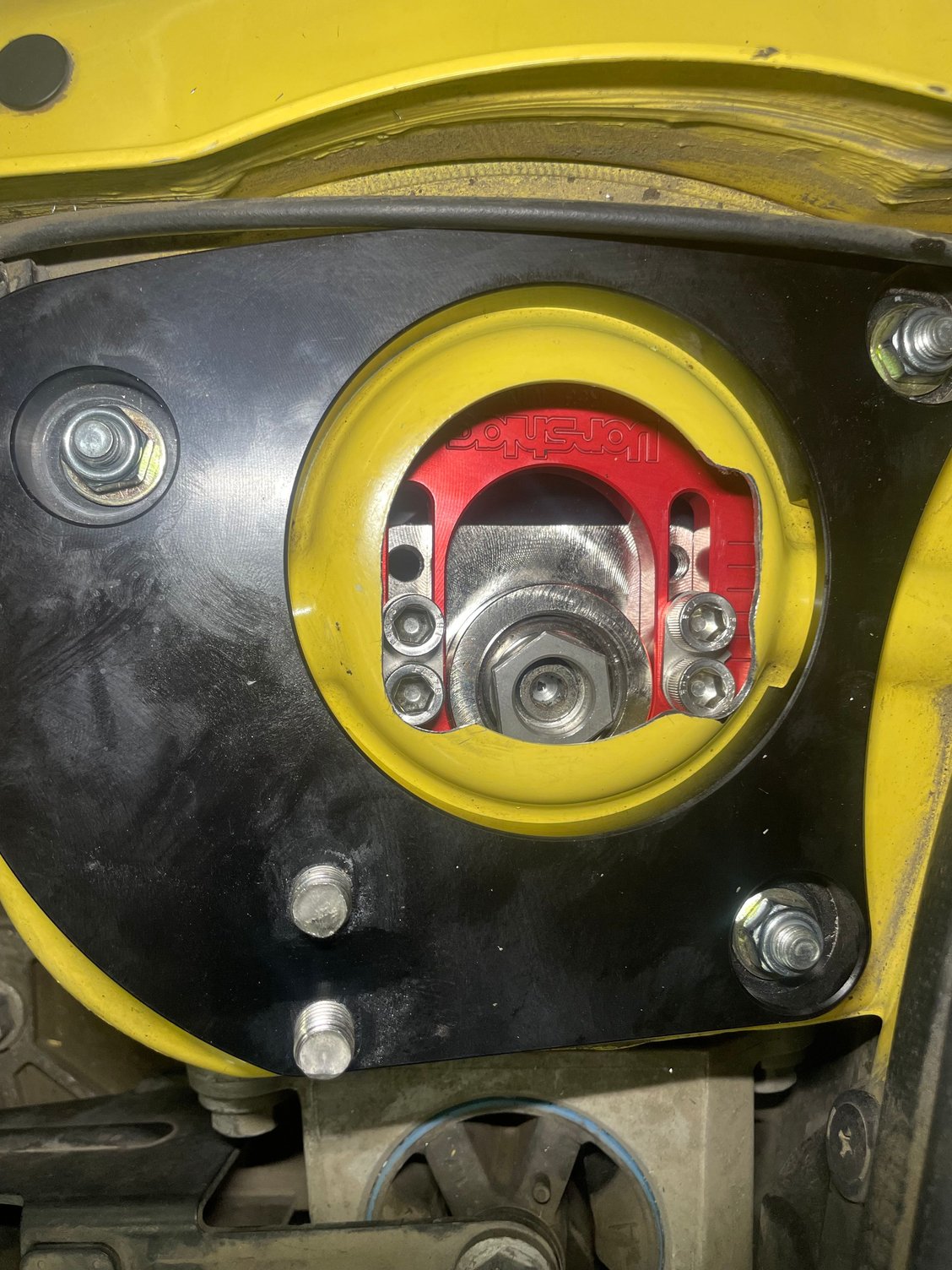

Now I have clearance to reach all the bolts without disassembling anything.

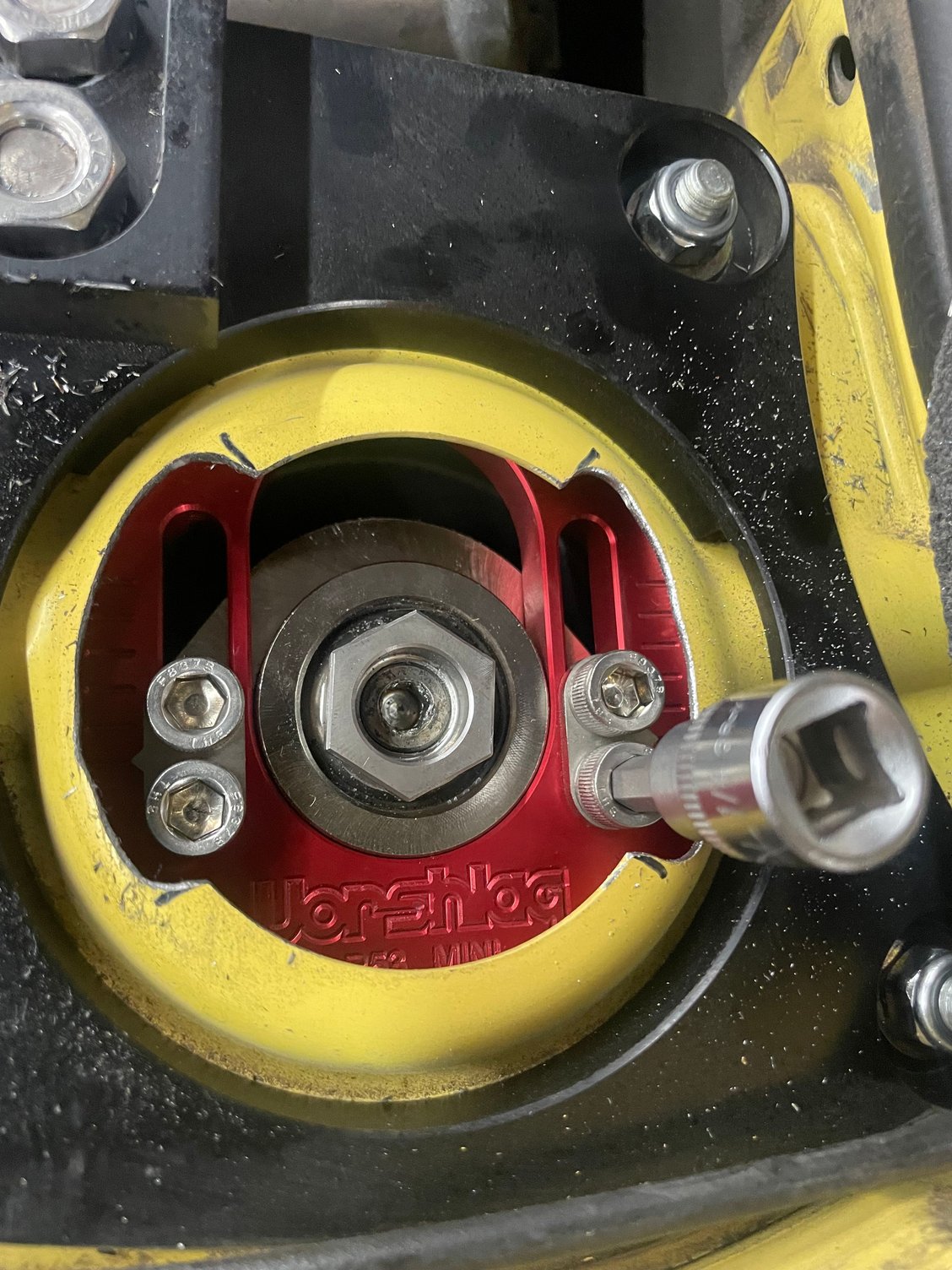

That's a 1/4" hex bit socket you will need for these camber plates. I don't have many standard size tools but I'm glad I have this set of hex sockets. A 6mm hex is too small and would likely damage the bolt.

Then I did the other side. I didn't need to trim as much over here.

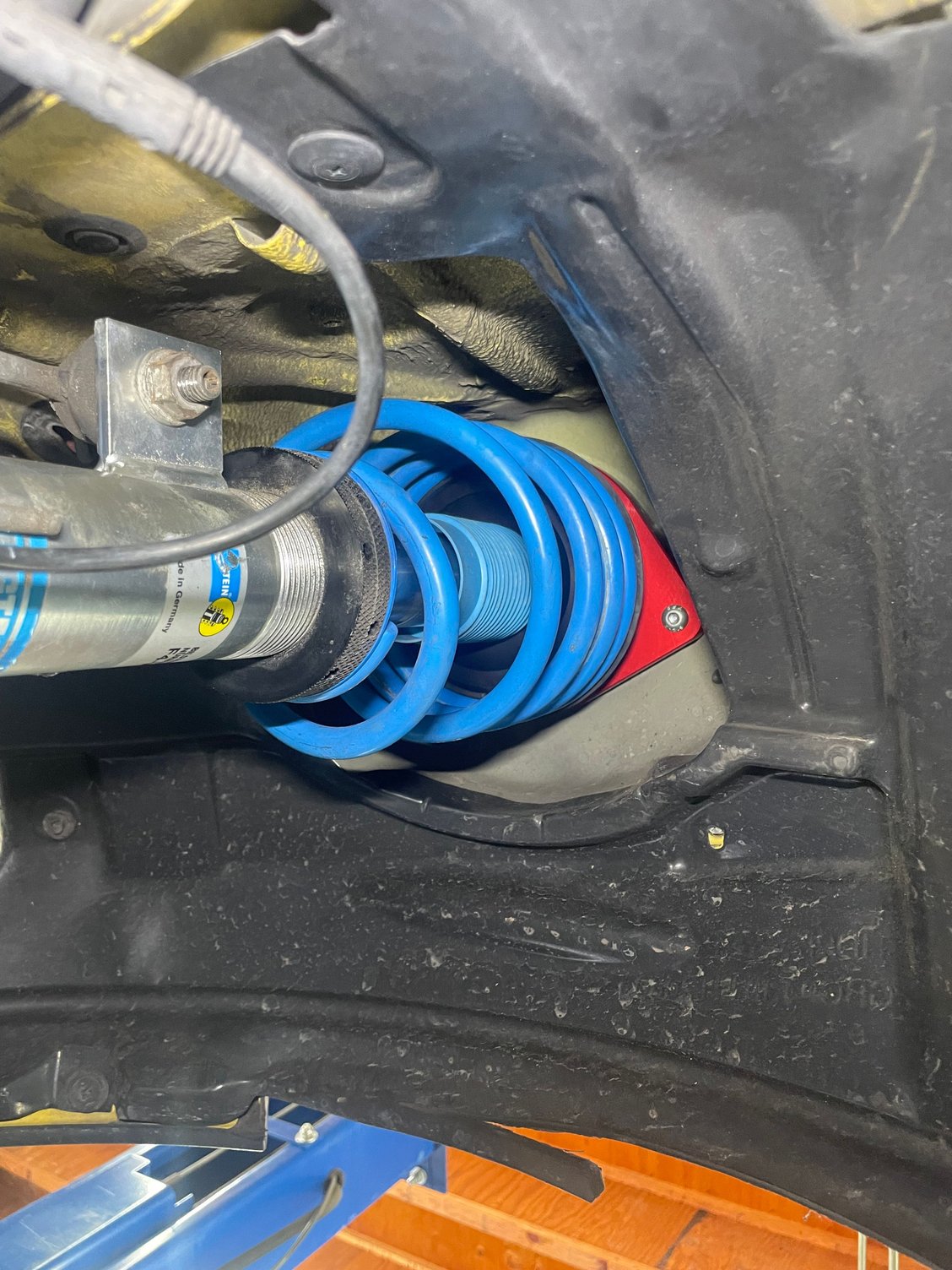

I was wondering if I would have enough clearance with these springs to max out the negative adjustment. I took this picture from below but I can't remember what the setting was on top. Oops, sorry.


Now it's time for the roll center adjuster kit. It's basically a spacer kit that goes between what BMW/Mini call the "swivel bearing" (or more commonly known as the wheel knuckle) and the lower ball joint. If your car is low enough, the angle of the lower control arm will go up from the subframe to the wheel knuckle when it should be flat. That upward angle is not good for suspension geometry and roll center adjusters are the correction. This kit is by PowerFlex and includes an additional spacer if your car is low enough to need it.


The kit comes with longer bolts to account for the spacer. The additional spacer I mentioned is the black piece above the purple main spacer. The black spacer is about 5mm thick. I have at least 1/2" clearance from the ball joint to the wheel so it is plenty.

Now to the alignment rack. I intended to play with my suspension a little to see how much adjustment I had but with having to modify my strut towers, I was already in the shop longer than I wanted to be, so I just wanted to put a street alignment on my car and leave. There is a special tool for adjusting rear toe that I bought to make that toe adjustment back there a little easier and more precise. I forgot that I had installed R56 trailing arms 2 years ago and cannot remember if I installed it complete or did I use the R53 mount to the body. This is pertinent because when I went to make my LR toe adjustment, I was not able to get it where I wanted it to be. I put as much adjustment as I could and left it for me to deal with later. I think I may have to remove the trailing arm mount and lengthen the slot in it to give me more adjustment. I did not see if the RR had the same issue to determine if both sides have an issue or just the driver side. At least I know how I'll deal with it when I'm ready. It shouldn't be too bad. Just another job with my die grinder and burr.

I had set the front camber plates all the way out (or as positive as they will go) before I went on the alignment rack. I figured I would be closer to a street camber setting like that. I'm glad I did that. I had read somewhere about being about to make camber adjustments with the car on the ground. I tried that on the alignment rack and it didn't seem like I could slide it. If I needed to make a camber adjustment, I would have jacked the front end up and then loosen the bolts to slide the plate. I know for sure that is and easy way to do it and every alignment rack I've used has a jack on it for that reason.

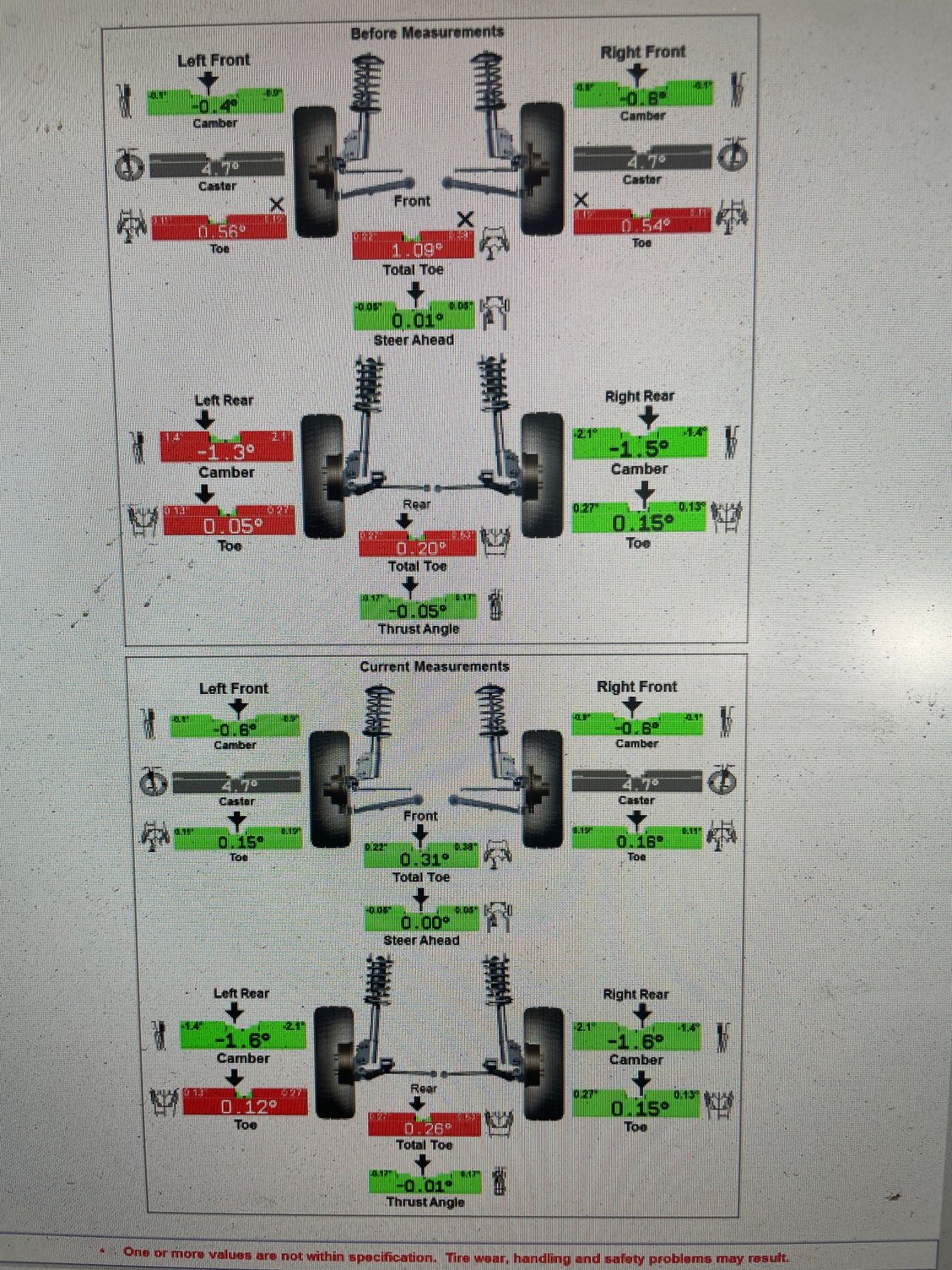

So this is the how my car is aligned right now. It's the bottom part of the picture where everything is green except the LR toe.


I forgot to mention with the camber plates, there is that unpainted steel plate with holes for the strut mount bolts to pass through. That raised the front of my car about almost 1/2". Although I don't like how that looks, I am glad for it because these coilovers were nearly adjusted as high as I could get them and they were on the low end of what I like for tire/fender clearance so now I know I can go to about stock ride height if I wanted to. I'm going to drive it like this for a few days or so and then I'll adjust the height to a level I prefer.

Whenever I do decide to play with the adjustments on the alignment rack, I'll report back here on my findings. My next track day is the weekend after Thanksgiving, so I need to get that sorted before then. I want to put -3.0 degrees camber on the front for that session. I hope I have spring clearance for that.
