F54 :: Clubman Talk (2015+) MINI Cooper Clubman and Clubman S Discussion

Functional Hood Scoop Development

  #1
Old 06-03-2018, 04:41 PM
CPWillys
CPWillys is offline
1st Gear
Thread Starter
Join Date: May 2018
Location: Minnesota
Posts: 17
Received 23 Likes on 12 Posts
Functional Hood Scoop Development

Happy Sunday Everyone,

I am a new user, I found my '17 All 4 S about two months ago and I have been tinkering with small things. It has been really helpful to read through some common issues and see what everyone is up to here on the forum. I am nearing a critical stage in my project so I am sharing my progress with potential updates over the next few weeks. I have always disliked nonfunctional features on cars and the hood scoop on the Mini is a cool feature but it needs to be more.

My goal for this project to is to actively feed the air box utilizing the hood scoop opening, I am fortunate to have access to scanning and production services at work that allow me to develop replacement parts like this hood scoop. With a few weeks of work the design is nearly complete, I have been through a few designs but I feel this latest iteration is headed in the right direction. My next step is to smooth the fitment gaps and finishing the mounting connections to the existing hood points. In tandem I will be designing the duct that moves the air into the box.

Let me know what your thoughts are on this, some outside critical feedback is definitely welcome, unless you are pointing out the bugs on the front.... I need a car wash badly.



Fitment test #5
Fitment Test #5
Fitment Test #5
Ducts leading to Intake

The following 3 users liked this post by CPWillys:
bratling (07-20-2018), drhow (06-07-2018), SoCalF56 (04-08-2019)
  #2
Old 06-03-2018, 04:59 PM
vetsvette's Avatar
vetsvette
vetsvette is offline
Moderator
iTrader: (5)
Join Date: Oct 2013
Location: South Central Virginia
Posts: 3,759
Received 353 Likes on 280 Posts

  #3
Old 06-03-2018, 05:05 PM
Whine not Walnuts
Whine not Walnuts is offline
OVERDRIVE
Join Date: Mar 2013
Location: Fuquay Varina, NC
Posts: 5,527
Received 603 Likes on 541 Posts
Looks good!

  #4
Old 06-03-2018, 05:46 PM
2017All4's Avatar
2017All4
2017All4 is offline
Moderator
Join Date: Aug 2016
Location: California Native still livin' in LaLa Land
Posts: 1,547
Received 161 Likes on 145 Posts
VERY IMPRESSIVE WORK!!

Lots of commentary on the hood scoop issue for 3rd gen cars. Many feel the BMW OEM intake used on MINIs works pretty well, though some want more and different sound than what the stock system produces. Many others feel that having a scoop that doesn't scoop is just silly.

We are looking forward to seeing how you handle the ducting. Also interested if you have any plans to prevent water from getting into the intake system.

Thanks for putting us in the loop. And welcome to the All4 Clubman Club -- a most exclusive group of highly discerning motorers.

  #5
Old 06-04-2018, 10:19 AM
bratling's Avatar
bratling
bratling is offline
6th Gear
iTrader: (1)
Join Date: May 2009
Location: North of Boston, MA
Posts: 1,487
Received 73 Likes on 65 Posts
Subscribed! Very cool, looking forward to your project updates.

I'm in the group of people who dislike having a hood scoop that does not scoop. In my old 2009 Clubman I used the AEM intake which made the scoop functional. I don't know that it did much for performance but I felt good about that scoop afterwards :-)

I never had any trouble with water getting to the air box. It was uphill and a 2 foot long path so not much other than mist would get up there. In the case of the F-series cars, I imagine the two right angles the air will have to turn to get to the main intake will cause any water to fall out of he air.

  #6
Old 06-04-2018, 11:29 AM
thirdraildesignlab's Avatar
thirdraildesignlab
thirdraildesignlab is offline
6th Gear
iTrader: (5)
Join Date: Apr 2006
Location: San Francisco
Posts: 1,842
Received 4 Likes on 2 Posts
Having a third party CAI complicates matters... though understandably not the scope of your project. Very cool!

  #7
Old 06-04-2018, 12:26 PM
AnOldBiker
AnOldBiker is offline
4th Gear - An Official NAM Greeter
Join Date: Sep 2017
Posts: 980
Received 139 Likes on 135 Posts
Like the project

and Welcome to the group

  #8
Old 06-04-2018, 02:06 PM
BluGnat's Avatar
BluGnat
BluGnat is offline
1st Gear
Join Date: May 2018
Location: Near Denver, Colorado
Posts: 39
Received 8 Likes on 7 Posts
This is cool. A bunch of us were discussing this over the weekend (the disturbing fact it's not functional). Looking forward to seeing how it goes!

  #9
Old 06-04-2018, 02:12 PM
Minnie.the.Moocher's Avatar
Minnie.the.Moocher
Minnie.the.Moocher is online now
6th Gear
Join Date: Jun 2014
Location: earth PNW
Posts: 4,596
Received 357 Likes on 315 Posts
Be interesting to see if being functional equates to more efficient or higher engine performance.

  #10
Old 06-04-2018, 05:34 PM
peterpan101's Avatar
peterpan101
peterpan101 is offline
3rd Gear
Join Date: Dec 2007
Location: Bolingbrook, IL
Posts: 214
Received 7 Likes on 7 Posts
definitely a fan of this, like you and others hate it not being functional

  #11
Old 06-04-2018, 07:58 PM
CPWillys
CPWillys is offline
1st Gear
Thread Starter
Join Date: May 2018
Location: Minnesota
Posts: 17
Received 23 Likes on 12 Posts
Thanks for all the feedback! Glad to hear I am not the only one OCD on the Hood Scoop.

I don't think rain will be an issue with the shape of the duct and airbox, some testing will support this. On the performance side I am attempting to monitor the intake air temps with the iCarly App but I am not having much luck with the parameters function. My goal is to track it before and after too see if there are any gains to be had.

Some progress was made tonight, I was able to scan the duct and prepare the model for engineering the new replacement duct. Photos below show portions of that process, Enjoy!

Factory Duct
Air Box inlet
Scanning setup
Point Cloud with Texture

The following users liked this post:
bratling (06-12-2018)
  #12
Old 06-04-2018, 08:47 PM
pjsjr13's Avatar
pjsjr13
pjsjr13 is offline
4th Gear
Join Date: Jun 2014
Location: NJ
Posts: 389
Received 14 Likes on 12 Posts
Very interesting

  #13
Old 06-05-2018, 06:02 AM
gearhead60's Avatar
gearhead60
gearhead60 is offline
3rd Gear
Join Date: Oct 2016
Location: Manassas, VA where the Civil War resides.....
Posts: 287
Received 30 Likes on 25 Posts
While this is certainly of interest to us in the non-functional hood scoop hate group, it should be pointed out that the position of the hood scoop may ultimately affect the effectiveness of the opened hood scoop. Keep in mind that location could actually be in a dead spot in the air flow across the hood, rendering the opening of the scoop useless. I've read in the past about others attempting the same modification on other cars with no measurable positive effect and in some cases worse results than stock. Many times the design is purely cosmetic, due to past styling traditions or cues from past designs. Ways to test this are numerous and won't get into that now. Good Luck and I hope I am proven to be wrong in this application.

  #14
Old 06-05-2018, 06:19 AM
bratling's Avatar
bratling
bratling is offline
6th Gear
iTrader: (1)
Join Date: May 2009
Location: North of Boston, MA
Posts: 1,487
Received 73 Likes on 65 Posts
Originally Posted by CPWillys View Post
On the performance side I am attempting to monitor the intake air temps with the iCarly App but I am not having much luck with the parameters function. My goal is to track it before and after too see if there are any gains to be had.
Try using OBD Fusion or DashCommander. If on Android, Torque or DashCommander. Unlike Carly, those three exist only to do data visualization and logging.

  #15
Old 06-12-2018, 04:56 AM
xntrickly
xntrickly is offline
2nd Gear
Join Date: Jul 2011
Location: Wichita Falls, TX
Posts: 104
Received 0 Likes on 0 Posts
Originally Posted by pjsjr13 View Post
Very interesting
Similarly interested and please add me to a list of interested purchasers when you are ready for sales !!

Cheers.

  #16
Old 06-26-2018, 05:12 AM
CPWillys
CPWillys is offline
1st Gear
Thread Starter
Join Date: May 2018
Location: Minnesota
Posts: 17
Received 23 Likes on 12 Posts
Removed Double Post


Last edited by CPWillys; 06-29-2018 at 09:13 AM. Reason: Double Post
  #17
Old 06-27-2018, 08:55 AM
CPWillys
CPWillys is offline
1st Gear
Thread Starter
Join Date: May 2018
Location: Minnesota
Posts: 17
Received 23 Likes on 12 Posts
Originally Posted by xntrickly View Post
Similarly interested and please add me to a list of interested purchasers when you are ready for sales !!

Cheers.
Originally Posted by gearhead60 View Post
While this is certainly of interest to us in the non-functional hood scoop hate group, it should be pointed out that the position of the hood scoop may ultimately affect the effectiveness of the opened hood scoop. Keep in mind that location could actually be in a dead spot in the air flow across the hood, rendering the opening of the scoop useless. I've read in the past about others attempting the same modification on other cars with no measurable positive effect and in some cases worse results than stock. Many times the design is purely cosmetic, due to past styling traditions or cues from past designs. Ways to test this are numerous and won't get into that now. Good Luck and I hope I am proven to be wrong in this application.
I have been thinking through the right sensors I will need to validate the testing we do, I would like to measure the pressure changes (if any) and the intake temp time to normalize in various driving conditions with a before and after. I highly doubt there will be any ram air effect at the speeds that this car will ever see.

Originally Posted by bratling View Post
Try using OBD Fusion or DashCommander. If on Android, Torque or DashCommander. Unlike Carly, those three exist only to do data visualization and logging.
Thanks for the heads up, I will look into this!

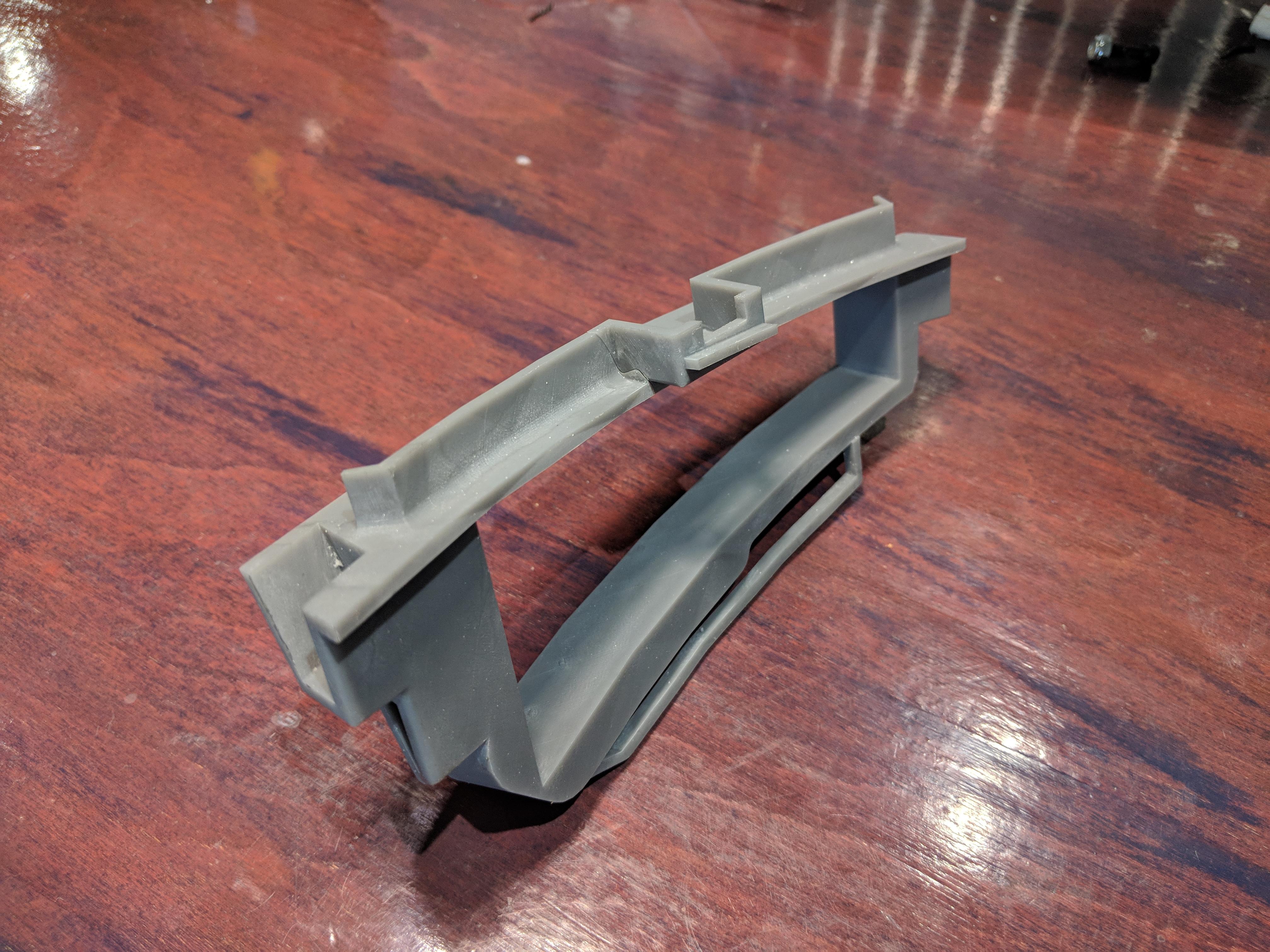

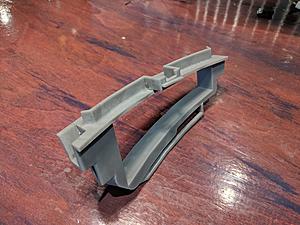

I have the connector for the Air box nearly perfect, only a few more changes are needed. The screen shot is an overlay of the 3D designed Green Duct over the existing 3D scan data. I am working on smoothing the air flow path by I expect to have a duct ready for testing next week.

Cheers!

Attached Thumbnails Functional Hood Scoop Development-3d-scan-and-rough-model.png   Functional Hood Scoop Development-mvimg_20180626_06512bb.jpg
The following 2 users liked this post by CPWillys:
bratling (07-20-2018), gearhead60 (06-29-2018)
  #18
Old 06-28-2018, 05:37 PM
ZiaMan24
ZiaMan24 is offline
2nd Gear
Join Date: Apr 2018
Location: Southern California
Posts: 58
Received 4 Likes on 4 Posts
Very excited to see what becomes of this project!

  #19
Old 07-20-2018, 01:16 PM
bratling's Avatar
bratling
bratling is offline
6th Gear
iTrader: (1)
Join Date: May 2009
Location: North of Boston, MA
Posts: 1,487
Received 73 Likes on 65 Posts
Been a few weeks. Had any time to work on this? (I know how projects can go…)

  #20
Old 08-11-2018, 10:13 AM
CPWillys
CPWillys is offline
1st Gear
Thread Starter
Join Date: May 2018
Location: Minnesota
Posts: 17
Received 23 Likes on 12 Posts
Originally Posted by bratling View Post
Been a few weeks. Had any time to work on this? (I know how projects can go…)
Everything has happened in that last couple weeks, the sands of time hit again! After getting married and taking on some new projects I am able to think again!

Since the last update I have created 2 additional versions with the 3rd version that will be ready for testing this afternoon.



v 0.1 of the Transition duct No mounting locations



v 0.2 Transition Duct Mounting Tabs, updated shape



Hood Scoop outlets to Transition Ducting

The following 2 users liked this post by CPWillys:
bratling (08-11-2018), drhow (01-03-2019)
  #21
Old 08-11-2018, 10:42 AM
Zix's Avatar
Zix
Zix is offline
1st Gear
Join Date: Apr 2018
Posts: 26
Received 2 Likes on 2 Posts
Will this work on a F56 as well? 😁

  #22
Old 08-11-2018, 04:32 PM
bratling's Avatar
bratling
bratling is offline
6th Gear
iTrader: (1)
Join Date: May 2009
Location: North of Boston, MA
Posts: 1,487
Received 73 Likes on 65 Posts
CPWillys, great update there, looks like it’s coming along well!

but even more importantly: Congrats on getting married! May you have a lifetime of happiness!

  #23
Old 08-11-2018, 10:09 PM
one2three_us
one2three_us is online now
2nd Gear
Join Date: Dec 2016
Posts: 111
Likes: 0
Received 8 Likes on 8 Posts
Thumbs up

it will be great if it works with F56. BTW, congrats

  #24
Old 08-13-2018, 10:23 AM
Clutch Wotan
Clutch Wotan is offline
3rd Gear
Join Date: Sep 2014
Location: Germany Hamburg
Posts: 294
Received 15 Likes on 15 Posts
can you copy that for me ?



  #25
Old 08-13-2018, 01:28 PM
JohnnyQuest
JohnnyQuest is offline
2nd Gear
Join Date: Jan 2016
Posts: 121
Received 7 Likes on 6 Posts
I'm very impressed with your work. However, that looks very vulnerable to aspirating water. During a torrential downpour (as we've been getting every other day for two months), driving through a big puddle, or getting blasted by someone driving through a big puddle in an oncoming lane, could instantly dump a gallon of water in there and your engine would be toast (soggy toast). I could see a snow plow throwing tons of snow directly into there too.
