  #101
Old 05-11-2015, 05:55 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Think its the inner section, where the pin goes , the head size looks the same on most and the insert pin is a different size. Measure both if you have them. Then I can figure it out.

its like 0.2mm to 0.5mm squared and then 0.75mm squared, and 1mm squared sizes. Some pins are even bigger then that. I guess measure the male pin also width.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #102
Old 09-03-2015, 09:31 PM
kyoo's Avatar
kyoo
kyoo is offline
6th Gear
iTrader: (2)
Join Date: Oct 2012
Posts: 2,631
Likes: 0
Received 1 Like on 1 Post
i see on the ECS website the wiring is no longer available, but wondering if I have what I need to install this to my 2013 base cooper that didn't come with autodimming

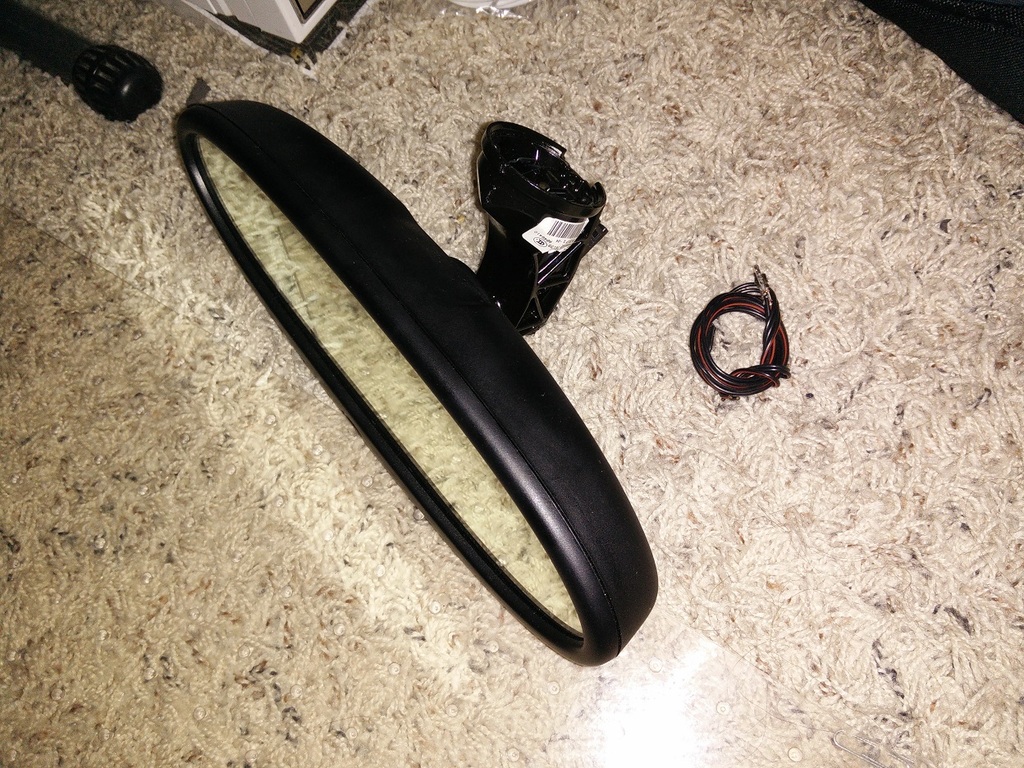

Name:  IMG_20150903_232234_zpsp5oc4w2h.jpg
Views: 1089
Size:  393.1 KB

Name:  IMG_20150903_232243_zpsufpwukae.jpg
Views: 1056
Size:  151.8 KB

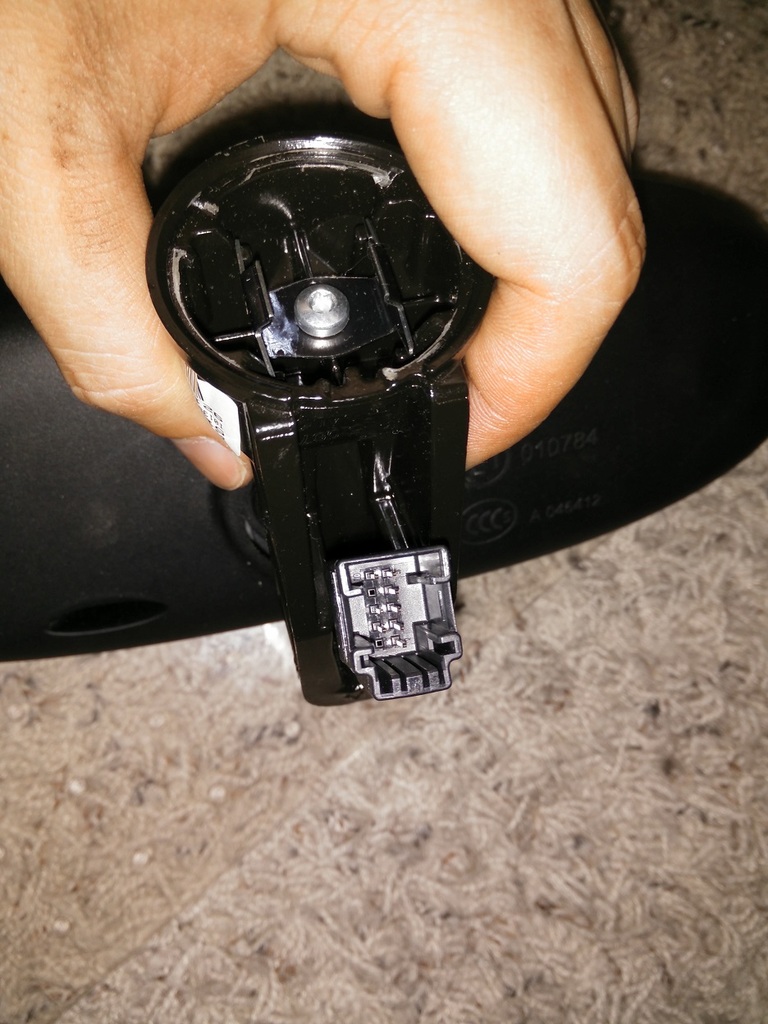

Name:  IMG_20150903_232252_zpsiroeu4fh.jpg
Views: 1068
Size:  208.4 KB

Name:  IMG_20150903_232305_zpsyagkotmz.jpg
Views: 1083
Size:  289.1 KB

  #103
Old 09-04-2015, 07:56 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
We were waiting for someone who bought that wire kit so I can source the parts through the BMW / MINI hardware section and make a kit so people can continue to do this mod.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #104
Old 09-06-2015, 12:01 AM
TargetDrone
TargetDrone is offline
Neutral
Join Date: Jan 2013
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ECSTuning View Post
We were waiting for someone who bought that wire kit so I can source the parts through the BMW / MINI hardware section and make a kit so people can continue to do this mod.
Hi, I'm just stepping into this thread to say I'll be in line for this kit too as soon as it's available from ECS! I just bought the mirror last week from you but need the wiring. I've been looking around online for several days but no one at all seems to have it anywhere.

Thanks again.

  #105
Old 09-08-2015, 01:23 PM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Hopefully one of the people who bought the cable will chime in with the specs.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #106
Old 09-19-2015, 03:47 PM
kyoo's Avatar
kyoo
kyoo is offline
6th Gear
iTrader: (2)
Join Date: Oct 2012
Posts: 2,631
Likes: 0
Received 1 Like on 1 Post
so...

undid my factory manual dim rear view mirror, which had the plug, and plugged in the autodimming and tested it with a flashlight lol, didn't autodim. was hoping it'd be that simple.

what do i need to use the wires and and all that stuff for...?


Last edited by kyoo; 09-19-2015 at 03:56 PM.
  #107
Old 09-22-2015, 02:55 PM
bratling's Avatar
bratling
bratling is offline
6th Gear
iTrader: (1)
Join Date: May 2009
Location: North of Boston, MA
Posts: 1,487
Received 73 Likes on 65 Posts
Originally Posted by kyoo View Post
so...

undid my factory manual dim rear view mirror, which had the plug, and plugged in the autodimming and tested it with a flashlight lol, didn't autodim. was hoping it'd be that simple.

what do i need to use the wires and and all that stuff for...?
You'll need to add power.

I have attached a scan of the autodim mirror retrofit instructions from MINI. It has a few part numbers here and there, not sure if it's enough for @ECSTuning to identify the needed parts.

autodim mirror retrofit instructions (306kb PDF)

Attached Files
  #108
Old 09-23-2015, 05:11 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
That helps bratling , i needed the plug end size and the range for the box end with the length of the wire , I found this which covers female box end ply with clip that takes a range from 0.2-0.5mm2 pin. The range from the diagram looks like 0.35mm2 to 0.50mm2 , so the box head is within range.

The wires already have the box end plug clipped on. So 4 of these wires ( 61130005197 ), 2 of each wire doubling the length when connected end to end.

https://www.ecstuning.com/Search/SiteSearch/61130005197/ES2674650/ x 4







Then to wrap the wires.

Here is the cloth webbed tape in 25m , plenty to do it and tape up other harnesses.

https://www.ecstuning.com/Search/SiteSearch/61136902588kt1/





Thanks and worth a shot.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172

Last edited by ECSTuning; 11-29-2016 at 07:12 AM.
  #109
Old 10-08-2015, 12:08 PM
Agent11br's Avatar
Agent11br
Agent11br is offline
Neutral
Join Date: Oct 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ECSTuning View Post
That helps bratling , i needed the plug end size and the range for the box end with the length of the wire , I found this which covers female box end ply with clip that takes a range from 0.2-0.5mm2 pin. The range from the diagram looks like 0.35mm2 to 0.50mm2 , so the box head is within range.

The wires already have the box end plug clipped on. So 4 of the these wires , 2 of each wire doubling the length when connected end to end.
What is the lead length on these? Want to be sure they'll make it the entire run from the box to the mirror.

Just took delivery of a '12 S w/o autodimming or homelink, first DIY mod to break her in

  #110
Old 10-14-2015, 06:20 AM
kyoo's Avatar
kyoo
kyoo is offline
6th Gear
iTrader: (2)
Join Date: Oct 2012
Posts: 2,631
Likes: 0
Received 1 Like on 1 Post
got mine for sale still as I have given up on this project!


https://www.northamericanmotoring.co...ew-mirror.html

  #111
Old 10-15-2015, 07:11 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Originally Posted by Agent11br View Post
What is the lead length on these? Want to be sure they'll make it the entire run from the box to the mirror.

Just took delivery of a '12 S w/o autodimming or homelink, first DIY mod to break her in

Pretty long, about 2 foot , but I don't have the length of the originals. With some simple gauge wire form a electronic store you could connect the ends , then measure and cut a piece to splice in the middle , guessing about 4 foot total from end to end but I would get more just to be sure.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #112
Old 10-19-2015, 09:02 AM
Agent11br's Avatar
Agent11br
Agent11br is offline
Neutral
Join Date: Oct 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ECSTuning View Post
Pretty long, about 2 foot , but I don't have the length of the originals. With some simple gauge wire form a electronic store you could connect the ends , then measure and cut a piece to splice in the middle , guessing about 4 foot total from end to end but I would get more just to be sure.
Thanks!

Side note: how can you tell which mirror is right for your key fob frequency???

  #113
Old 11-10-2015, 08:21 AM
Agent11br's Avatar
Agent11br
Agent11br is offline
Neutral
Join Date: Oct 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Update: I have successfully completed this retrofit!

Notes:
- I bought a used homelink autodimming mirror off ebay, great condition.
- My key fobs worked afterwards when testing
- I bought the wire leads ECS recommended (you need four total). I had to solder wire extensions in between to get the proper length. I also used the OEM cloth tape to create a harness and colored electrical tape to identify wires.
- Running the wire down there is tedious but I have done it many times for hardwiring radar detectors. Trim tool is helpful.
- Removing and reinstalling the mirror takes some muscle, that sucker is on there!
- I followed the OEM retrofit PDF for the pin outs. The mirror connection wasn't bad. The fuse block is a huge PITA. You have to remove most of the lower door well plastic molding to access the lower connector.
- All pin outs require you to pop up flaps or remove the connector from it's socket so to be speak to insert the pins. A jeweler's screwdriver set is very handy.

I tested by first making sure the fobs worked before I put all panels back on etc. I then waiting until the evening, and pulled our Acadia behind the car with the high beams on. The photocell sensor faces reward, if you hold your finger over it, you can see it "un-dim" and then expose it to the headlights, it dims itself.

Overall, I'm very pleased and so is my wife who drives the car. She goes into work early and the headlights in her eyes on her 30 minute commute were obnoxious. She didn't care about the homelink but I wanted it to get back the spare garage door opener.

  #114
Old 11-10-2015, 08:39 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Thanks for the update , glad the parts I mentioned above worked.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #115
Old 11-11-2015, 12:13 PM
cvittas's Avatar
cvittas
cvittas is offline
2nd Gear
Join Date: Jan 2011
Posts: 51
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Agent11br View Post
Update: I have successfully completed this retrofit!

Notes:
- I bought a used homelink autodimming mirror off ebay, great condition.
- My key fobs worked afterwards when testing
- I bought the wire leads ECS recommended (you need four total). I had to solder wire extensions in between to get the proper length. I also used the OEM cloth tape to create a harness and colored electrical tape to identify wires.
- Running the wire down there is tedious but I have done it many times for hardwiring radar detectors. Trim tool is helpful.
- Removing and reinstalling the mirror takes some muscle, that sucker is on there!
- I followed the OEM retrofit PDF for the pin outs. The mirror connection wasn't bad. The fuse block is a huge PITA. You have to remove most of the lower door well plastic molding to access the lower connector.
- All pin outs require you to pop up flaps or remove the connector from it's socket so to be speak to insert the pins. A jeweler's screwdriver set is very handy.

I tested by first making sure the fobs worked before I put all panels back on etc. I then waiting until the evening, and pulled our Acadia behind the car with the high beams on. The photocell sensor faces reward, if you hold your finger over it, you can see it "un-dim" and then expose it to the headlights, it dims itself.

Overall, I'm very pleased and so is my wife who drives the car. She goes into work early and the headlights in her eyes on her 30 minute commute were obnoxious. She didn't care about the homelink but I wanted it to get back the spare garage door opener.
How much is the total length?

  #116
Old 11-11-2015, 12:15 PM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Sounds like there was plenty of wire in the part.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #117
Old 11-11-2015, 07:54 PM
Agent11br's Avatar
Agent11br
Agent11br is offline
Neutral
Join Date: Oct 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by cvittas View Post
How much is the total length?
I don't know for sure, but am guessing ~3-4 feet. I went a tad longer than needed but it came in handy at the fuse block as you need to be installing the pins in two separate harnesses.

  #118
Old 11-11-2015, 07:56 PM
Agent11br's Avatar
Agent11br
Agent11br is offline
Neutral
Join Date: Oct 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by ECSTuning View Post
Thanks for the update , glad the parts I mentioned above worked.
Really appreciate the info, links, PDF, etc. Wound not have been possible without all that info from you and other members.

ECS Pinouts worked perfectly as expected

  #119
Old 11-12-2015, 05:07 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Originally Posted by Agent11br View Post
Really appreciate the info, links, PDF, etc. Wound not have been possible without all that info from you and other members.

ECS Pinouts worked perfectly as expected

You are welcome

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #120
Old 11-14-2015, 03:31 PM
TargetDrone
TargetDrone is offline
Neutral
Join Date: Jan 2013
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Agent11br View Post
Update: I have successfully completed this retrofit!
This is great! I'm hoping to get mine done soon as well. I have a mirror that will hopefully work and was just waiting on the wiring. In fact, I just got 4 sets of wires (that ECSTuning linked above) in the mail today but looking at them, they will definitely need the extension in the middle as you added. The wires out of the package are about 20 inches long each. What kind of wire did you splice in?

  #121
Old 11-16-2015, 01:43 PM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Thanks for the order. I would use the same gauges wire if your splice to add line. Measure it with a wire gauge. Then you can get additional wire at any electrical store.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #122
Old 11-16-2015, 01:50 PM
Agent11br's Avatar
Agent11br
Agent11br is offline
Neutral
Join Date: Oct 2015
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TargetDrone
The wires out of the package are about 20 inches long each. What kind of wire did you splice in?
Originally Posted by ECSTuning View Post
Thanks for the order. I would use the same gauges wire if your splice to add line. Measure it with a wire gauge. Then you can get additional wire at any electrical store.
I believe the leads are 20 gauge, I used some 18 gauge I had a spool of. Soldered all connections with heat shrink tubing.

  #123
Old 11-16-2015, 01:52 PM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Great, there we go.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172
  #124
Old 11-23-2015, 09:35 AM
TargetDrone
TargetDrone is offline
Neutral
Join Date: Jan 2013
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Good info. Thanks, guys!

  #125
Old 11-24-2015, 05:56 AM
ECSTuning's Avatar
ECSTuning
ECSTuning is online now
Platinum Sponsor
Join Date: Jan 2013
Location: Wadsworth,OH
Posts: 27,710
Received 556 Likes on 536 Posts
Welcome.

__________________

Have MINI questions? Need MINI answers? Live Chat us! 8:30am to 12:00am Midnight EST
[email protected] | [email protected] | INSTAGRAM | FACEBOOK
Customer Service Hours: 8:00 AM to 8:00 PM EST|Sales Team Hours: 8:00 AM to 11:00 PM | Saturday 10AM to 7PM EST 800.924.5172

Thread Tools
Search this Thread
Quick Reply: Retrofitting the factory self dimming rearview mirror + Homelink


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
