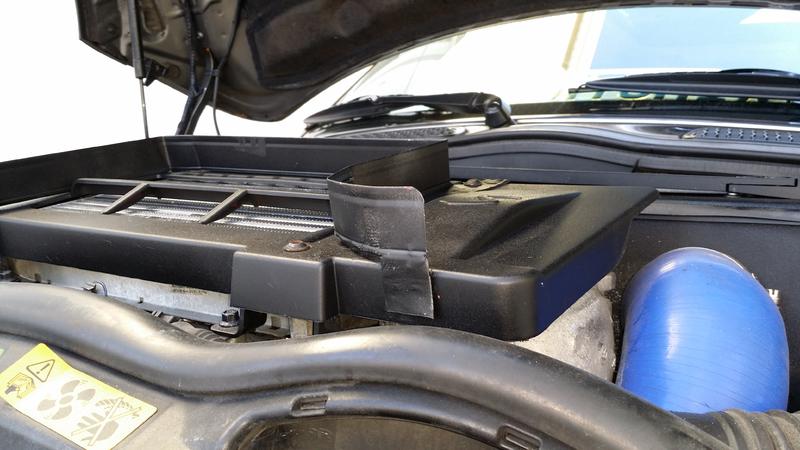

After seeing the outrageous prices of bolt on air diverters, I decided to see if I could make one. Sure enough I did. 2.5' of aluminum J bead/ sheet rock edger, tin snips and black paint.



I have no sheet metal experience. But I'm sure someone can manufacturer this for less than $20.00 out of stainless steel.



I'll take one in red please.



This is what i used. Because the edges are rolled so it gives it more strength.



I like the design, its more of a supplement to the stock diverter



it forces all the air that comes in through the scoop, through the IC



It appears you are missing the part of the diverter that is on the underside of the hood....so it seals to the hood.......
Can you post a pic of the underside of your hood?!



it forces all the air that comes in through the scoop, through the IC



That's looks awesome! Where did you get the aluminum?



home depot is used as trim/edging for sheet rock.

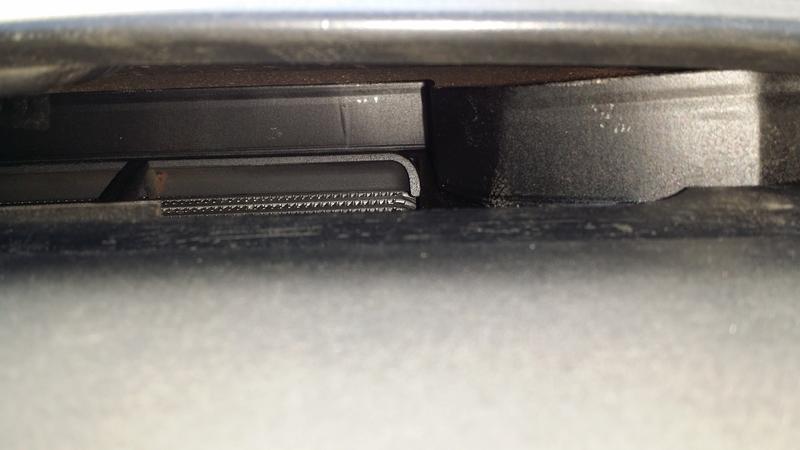

I used the stock foam blocking that comes on the hood. There's a 1/16 gap all around. So the foam sits on the ledge to seal the gap.



aluminum would be cheaper than stainless if it is just a cut and form piece with no welding.

Also easier to work with (IMO)

Decent adaptation mod for the budget conscious!

As for foam / better foam, try McMaster-Carr
It is where I order 99% of my hardware as they have about everything, excellent quality, and awesome prices on most things.
(it is a huge industrial supply company)

only problem you will have is being inundated with options and not knowing which to choose. haha. not a bad problem to have, but a problem none the less :P

http://www.mcmaster.com/#bulb-seals/=rqxe04

There is a link to the "weatherstripping" / Bulb seals section.

Everyone who is a DIY'er should give the site a browse. The more you dig, the more you will be amazed as to the options.

Also a great place to source those "red clips" if you every break one on your vacuum



Oh, and FYI, I use metal supermarkets for my metal when I do fab work.

Metal to make one of these in 6061 aluminum would run about $15 (for a one-off).

Order enough metal to make 100 of them and that drops to
~$5 / piece

Then it would take ~ 20-30 minutes per piece to make once you have a jig set up
-> ~$10 labor
add in 40% profit / overhead costs (electricity, property taxes, equip maintenance)
and you could ostensibly make these for ~ $21 before shipping and hardware and foam.
