New R53 A2A Intercooler from DoS - North American Motoring


Drivetrain (Cooper S) MINI Cooper S (R53) intakes, exhausts, pulleys, headers, throttle bodies, and any other modifications to the Cooper S drivetrain.

New R53 A2A Intercooler from DoS

Reply



Thread Tools Search this Thread
  #1
Old 09-03-2010, 04:41 PM
Mini'mon's Avatar
Mini'mon Mini'mon is offline
Former Vendor
Thread Starter
iTrader: (16)

Join Date: May 2003
Location: San Francisco, CA
Posts: 893
Thanks: 0
Thanked 0 Times in 0 Posts
New R53 A2A Intercooler from DoS

Hi All,

With the our latest R56 Intercooler development now completed, we've turned our efforts back toward the R53.

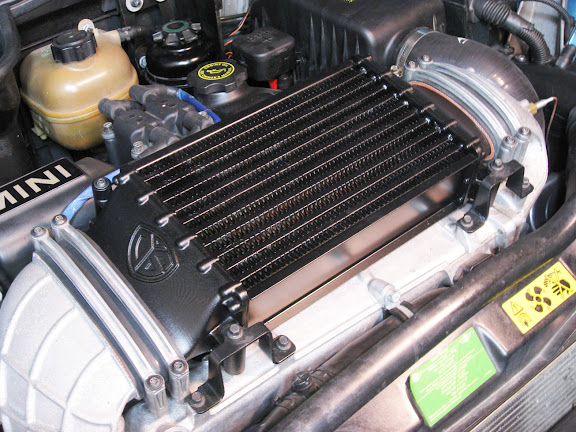

What you see in the picture above is the product of realizing that:

1) Water-to-Air intercoolers (W2A-IC's) don't have super-stellar recovery time after heat soak (parked for an hour after a hard run) on street driven R53's. W2A-IC's are great for track driven R53's, but you need to allow a slightly longer time for recovery when on the street.

2) The R56 is a much better candidate for a W2A-IC on the street and at the track. (We used our R53 research as our baseline and the R56's recovery numbers kicked its butt at the track and on the street -- Sad but true.)

3) We always knew that the R53's intercooler is in a crappy location, but we needed a way to cool the charge air effectively while creating a completely reversible, easier-to-do mod.

4) The GP intercooler works great, but we've always thought that there was a way to use a smaller volume to do the same amount (or more) of charge cooling.

5) Removing your intercooler to do minor maintenance (like changing your plugs) is (more than) annoying at times.


With these factors in mind we put aside all our R53 W2A-IC fun and embarked on the path of Air-to-Air intercooling (A2A-IC). This took-up the better part of this summer, but it was well worth it.

We ended up building an A2A-IC that gave us the performance that we were looking-for with quick recovery on the street and track.


How did we do it?

A) We did a TON of materials and suppliers research and found that copper has a thermal conductivity of 231 Btu/hr/ft. Aluminum has a thermal conductivity of only 136 Btu/hr/ft. This means that copper can conduct heat 59% more efficiently than aluminum.

B) We fabricated several core designs using copper fins, copper turbulators, and brass tubes with a very high copper content (85%). The space available for the IC limited us slightly, but we created a core that outflowed and has less pressure drop than the stock A2A intercooler and the GP intercooler.

C)We did a major study of the stock A2A intercooler and GP intercooler to see why they both worked fairly well given their constraints. Matt Richter ("Dr. O" of MC2 fame) always likes to point out how the intercooler tubes are crimped in a way so that the air is ramped to minimize disturbance. However, I noticed there are 2 major areas of disturbance at the corners of the endtanks where the air does not flow smoothly (to ease manufacturing).

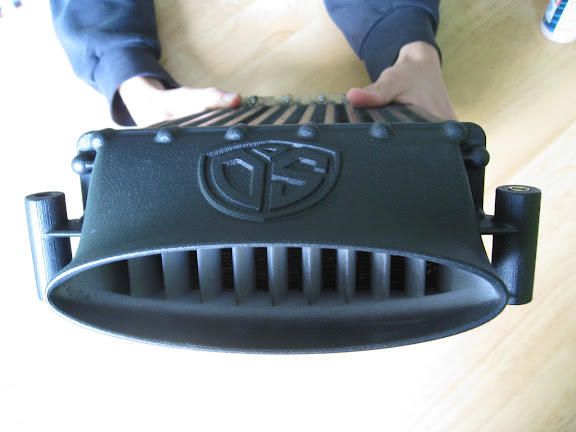

With the factors above in mind, DoS designed special endtanks that have airfoils at the entrance and exit to each tube to promote laminar airflow. We also made the end tanks out of a high performance, high-temp resistant, engineering plastic to create contoured airflow surfaces and minimize heat soak whererever possible.


In 100 degrees F conditions, initial datalogging is showing 5-10 degrees F above ambient at cruise and 20-30 degrees F above ambient under full load/boost. (Better than what we expected). As an added bonus, our copper A2A-IC recovers from parked heat soak & after heavy load/high boost conditions 60-to-75% faster than DoS's Gen III R53 W2A-IC kit and 35-to-45% faster than a stock A2A-IC.



Projected retail pricing is ~=$900.00-to-$1000.00

I'll keep you posted on the details. These are projected to start shipping in October.

-Clint

Last edited by Mini'mon; 09-03-2010 at 04:49 PM.
Reply With Quote
  #2
Old 09-03-2010, 04:48 PM
FlzRider FlzRider is offline
3rd Gear
iTrader: (5)

Join Date: Sep 2007
Location: Miami, FL
Posts: 204
Thanks: 0
Thanked 0 Times in 0 Posts
Engineering plastic? More info please.....
Reply With Quote
  #3
Old 09-03-2010, 05:18 PM
Mini'mon's Avatar
Mini'mon Mini'mon is offline
Former Vendor
Thread Starter
iTrader: (16)

Join Date: May 2003
Location: San Francisco, CA
Posts: 893
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by FlzRider View Post
Engineering plastic? More info please.....
It's similar to glass-filled nylon.

-Clint
Reply With Quote
  #4
Old 09-03-2010, 05:23 PM
scolburn79 scolburn79 is offline
4th Gear

Join Date: Dec 2006
Location: Brisbane, Australia
Posts: 413
Thanks: 0
Thanked 0 Times in 0 Posts
Don't mean to sound neg, but considering 90% of the A2A IC out there range in price upto $600. You don't think you might be pricing yourself out of it at all?
Reply With Quote
  #5
Old 09-03-2010, 05:34 PM
JIMINNI's Avatar
JIMINNI JIMINNI is offline
Banned

Join Date: Nov 2006
Location: Fresno Ca.
Posts: 4,862
Thanks: 0
Thanked 0 Times in 0 Posts
Wow! Very nice. Like to see more testing. How are the current diverters going to work with it?
Reply With Quote
  #6
Old 09-03-2010, 05:37 PM
davisflyer's Avatar
davisflyer davisflyer is offline
6th Gear

Join Date: Aug 2005
Location: Knoxville, TN
Posts: 2,080
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by scolburn79 View Post
Don't mean to sound neg, but considering 90% of the A2A IC out there range in price upto $600. You don't think you might be pricing yourself out of it at all?
Not if it works better.....
Reply With Quote
  #7
Old 09-03-2010, 05:41 PM
Mini'mon's Avatar
Mini'mon Mini'mon is offline
Former Vendor
Thread Starter
iTrader: (16)

Join Date: May 2003
Location: San Francisco, CA
Posts: 893
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by JIMINNI View Post
Wow! Very nice. Like to see more testing. How are the current diverters going to work with it?
No diverter sits on top of the IC.

You only need to change the foam seal (on the plastic duct panel that mounts to the hood) to a new configuration that we've spec'd.

There will be some slight cosmetic changes on the production units that will have proper mating surfaces for the new foam seal configuration, but all else remains unchanged.

-Clint
Reply With Quote
  #8
Old 09-03-2010, 05:41 PM
scolburn79 scolburn79 is offline
4th Gear

Join Date: Dec 2006
Location: Brisbane, Australia
Posts: 413
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by davisflyer View Post
Not if it works better.....
I understand that, but 9 out of 10 people will be driven by the hip pocket. I hope I am wrong and it takes off though
Reply With Quote
  #9
Old 09-03-2010, 05:43 PM
soccerbummer1104's Avatar
soccerbummer1104 soccerbummer1104 is offline
5th Gear

Join Date: Aug 2008
Location: Inman, SC
Posts: 1,088
Thanks: 0
Thanked 0 Times in 0 Posts
scolburn, it has a high content of copper, which is muuuch more expensive than aluminum. its not more expensive just because they think highly of themselves or anything, but it will mean that it probably will not sell in large numbers. But the people who want/need it will buy it.
Reply With Quote
  #10
Old 09-03-2010, 05:51 PM
scolburn79 scolburn79 is offline
4th Gear

Join Date: Dec 2006
Location: Brisbane, Australia
Posts: 413
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by soccerbummer1104 View Post
scolburn, it has a high content of copper, which is muuuch more expensive than aluminum. its not more expensive just because they think highly of themselves or anything, but it will mean that it probably will not sell in large numbers. But the people who want/need it will buy it.
I'm an Electrician, you don't need to tell me about the price of copper Hell, i've got more than enough scrap copper in the back of my car at the moment to be able to make 10 of them!!! If only I could melt it down and send it to him!!! But I will take it and get some $$$$ for it. Also, I didn't once say they think highly of themselves or anything like that. I just said that with that price they might be pricing themselves out of it. But I will say that if it works as good as they say it does then people will pay the extra for it. Lets just hope, with some more data, that this blows everything out of the water
Reply With Quote
  #11
Old 09-03-2010, 06:02 PM
Mini'mon's Avatar
Mini'mon Mini'mon is offline
Former Vendor
Thread Starter
iTrader: (16)

Join Date: May 2003
Location: San Francisco, CA
Posts: 893
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by scolburn79 View Post
I'm an Electrician, you don't need to tell me about the price of copper Hell, i've got more than enough scrap copper in the back of my car at the moment to be able to make 10 of them!!! If only I could melt it down and send it to him!!! But I will take it and get some $$$$ for it. Also, I didn't once say they think highly of themselves or anything like that. I just said that with that price they might be pricing themselves out of it. But I will say that if it works as good as they say it does then people will pay the extra for it. Lets just hope, with some more data, that this blows everything out of the water
We'll make a believer out of you. Just give us some time.
Reply With Quote
  #12
Old 09-03-2010, 06:04 PM
scolburn79 scolburn79 is offline
4th Gear

Join Date: Dec 2006
Location: Brisbane, Australia
Posts: 413
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Mini'mon View Post
We'll make a believer out of you. Just give us some time.
Cool, can't wait to see!!! Send one down under and I'll give it some testing. Just starting to come into summer here and it is going to be a hot one!!!
Reply With Quote
  #13
Old 09-03-2010, 06:15 PM
ViperGTS's Avatar
ViperGTS ViperGTS is offline
4th Gear

Join Date: Jul 2010
Location: Illinois
Posts: 324
Thanks: 0
Thanked 0 Times in 0 Posts
Reply With Quote
  #14
Old 09-04-2010, 12:49 AM
soccerbummer1104's Avatar
soccerbummer1104 soccerbummer1104 is offline
5th Gear

Join Date: Aug 2008
Location: Inman, SC
Posts: 1,088
Thanks: 0
Thanked 0 Times in 0 Posts
im sure he will be glad to send one your way upon receiving payment haha.
Reply With Quote
  #15
Old 09-04-2010, 02:20 PM
newbs49 newbs49 is offline
Banned
iTrader: (1)

Join Date: Aug 2002
Location: North Tonawanda NY
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
DOS

Is the IC coated in any heat dispersant? Also has there been more testing against the GP intercooler. I have a GP that I track and wonder if the $1000.00 is worth the gain.

Thanks and nicework!!!!!!!!!!!!!!!!!!!!!
Reply With Quote
  #16
Old 09-04-2010, 04:07 PM
jonnieoh's Avatar
jonnieoh jonnieoh is offline
6th Gear
iTrader: (1)

Join Date: Dec 2004
Location: Syracuse NY
Posts: 1,638
Thanks: 0
Thanked 0 Times in 0 Posts
Looks like a nice product.
Reply With Quote
  #17
Old 09-04-2010, 08:54 PM
Achilless's Avatar
Achilless Achilless is offline
4th Gear
iTrader: (1)

Join Date: Oct 2009
Location: Utica, New York
Posts: 447
Thanks: 0
Thanked 0 Times in 0 Posts
Reply With Quote
  #18
Old 09-05-2010, 07:29 AM
kapps's Avatar
kapps kapps is offline
6th Gear

Join Date: Jul 2004
Location: Orlando, FL
Posts: 2,664
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Mini'mon View Post
It's similar to glass-filled nylon.

-Clint
PPSF or Ultem?
Reply With Quote
  #19
Old 09-05-2010, 09:38 AM
LosOsos"S" LosOsos"S" is offline
1st Gear

Join Date: Oct 2008
Location: near San Luis Obispo
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Nice product!
Can you please share a picture of the end of the core minus the end tanks?
Also a picture of the core side of the end tanks, so we can better see the diverters?
Thanks!
Reply With Quote
  #20
Old 09-05-2010, 09:57 AM
DICKS GARAGE R53 DICKS GARAGE R53 is offline
Banned

Join Date: Feb 2010
Location: North Denver Colorado
Posts: 2,836
Thanks: 0
Thanked 1 Time in 1 Post


Personaly I would like to see the same design cues you used (copper fins, brass tubes, and the airfoils) on a flow through design like M7's DFIC, That would be one that I would spend a grand on.

Nothing against your I/C, just dont care much for the 90 degree turn method of airflow.
Reply With Quote
  #21
Old 09-05-2010, 10:01 AM
Minian Minian is offline
5th Gear

Join Date: Sep 2002
Posts: 883
Thanks: 0
Thanked 0 Times in 0 Posts
Very Nice,
Is there any weight gain.loss using this config? I know it won't be much.
I also like your Coupe' sign, it is photo shopped right?
Reply With Quote
  #22
Old 09-05-2010, 02:37 PM
Mini'mon's Avatar
Mini'mon Mini'mon is offline
Former Vendor
Thread Starter
iTrader: (16)

Join Date: May 2003
Location: San Francisco, CA
Posts: 893
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by newbs49 View Post
DOS

Is the IC coated in any heat dispersant? Also has there been more testing against the GP intercooler. I have a GP that I track and wonder if the $1000.00 is worth the gain.

Thanks and nicework!!!!!!!!!!!!!!!!!!!!!
Duly noted. The GP vs. DoS numbers are an important selling point and we're cracking on making that data more easy to digest for prospective buyers.

We will have a heat dispersant coating option available to customers that want it.

Quote:
Originally Posted by DICKS GARAGE R53 View Post


Personaly I would like to see the same design cues you used (copper fins, brass tubes, and the airfoils) on a flow through design like M7's DFIC, That would be one that I would spend a grand on.

Nothing against your I/C, just dont care much for the 90 degree turn method of airflow.
This is a great question that comes up for us a lot at MINI festivals and events and from customer Q&A.

Direct Flow Intercoolers are interesting, and we looked to see if this type of design could be of benefit. However, you always need to take into account 2 factors:

1) The second half of any intercooler core does only 1/4 of the the work. Air gets warmer as it gets deeper into the core. The front half of the core does a great job, but the back half of the core suffers due to progressively increasing air temps.

2) Even though the airflow is 'direct', because this is a very thick core, there's a great amount of drag on the cooling air passing through. The drag on the incoming air actually increases the deeper that you go into the core.

When an exit scoop is involved, the first factor can likely be somewhat minimized, but that involves some substantial cutting to bonnet sheet metal.

True, MINI's GP unit and DoS are both asking the air to take a tumble as it enters the intercooler (but turbulence is not always the enemy when you're trying to cool surfaces). Additionally, the fact that the core is 1/3-to-1/4 the thickness of a comparable direct flow intercooler, has greater frontal surface area, and more charge air channels means better performance.

Quote:
Originally Posted by Minian View Post
Very Nice,
Is there any weight gain.loss using this config? . . .
Our R53 A2A-IC unit is 15 lbs lighter than a DoS R53 W2A-IC that's filled with coolant. The weight difference between the DoS A2A-IC + mounting hardware and the GP unit + mounting hardware + diverter is negligible.

OK, going to head out and enjoy some Labor Day Weekend fun.
Enjoy your day!
-Clint
Reply With Quote
  #23
Old 09-05-2010, 03:31 PM
Act_04 Act_04 is offline
4th Gear

Join Date: Dec 2008
Posts: 525
Thanks: 0
Thanked 0 Times in 0 Posts
Reply With Quote
  #24
Old 09-05-2010, 09:19 PM
newbs49 newbs49 is offline
Banned
iTrader: (1)

Join Date: Aug 2002
Location: North Tonawanda NY
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for the reply Clint.
Waiting for more data against the GP cooler!!!!!!
Reply With Quote
  #25
Old 09-06-2010, 09:51 AM
DICKS GARAGE R53 DICKS GARAGE R53 is offline
Banned

Join Date: Feb 2010
Location: North Denver Colorado
Posts: 2,836
Thanks: 0
Thanked 1 Time in 1 Post
So why not a small grille mounted front mount?
Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
High Capacity Ebay Intercoolers...anyone seen these? IQRaceworks Drivetrain (Cooper S) 19 03-17-2017 01:38 PM
FS:: Garage sale - Stock R53 parts wkp1219 MINI Parts for Sale 27 11-13-2015 08:52 AM
Mini Mania: Great Deals on MINI Cooper Turbo and Intercooler Upgrades! Mini Mania Vendor Announcements 0 08-11-2015 10:01 AM
[B]Why rounded header bars are the key to efficient intercooling:[/B] Ambient Thermal Management Drivetrain (Cooper S) 0 08-07-2015 01:27 PM
:: ECS Tuning :: New Items from ECS Tuning ECSTuning Vendor Announcements 0 08-07-2015 09:02 AM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump


All times are GMT -7. The time now is 07:47 AM.


North American Motoring is an independently operated web site supporting MINI owners and enthusiastsworldwide. As such it has no official relationship with MINI USA, BMW AG, or BMW of North America.All original artwork and design is Copyright © 2002-2004 North American Motoring. We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
