My windshield washer quit working ('04 MCS). Inspection under the hood reveals the hoses are all broken and shredded. The damage is so severe I cannot tell how the hoses should be connected. The service manual is no help. Can anyone take a picture of theirs? Back of the engine compartment passenger side.

Thanks, in advance.

J. Tucker

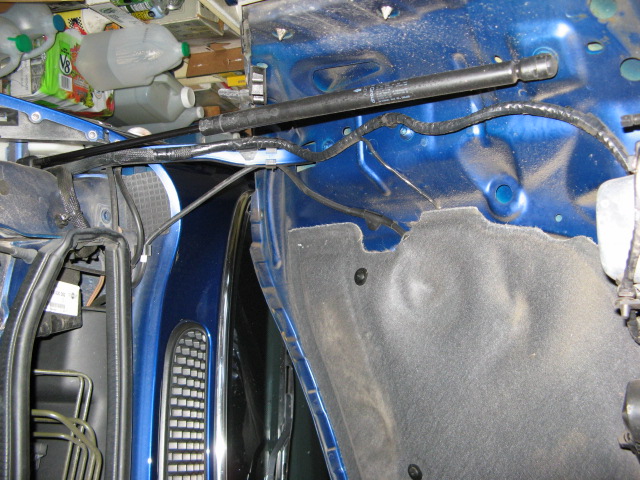

This what you're looking for? (Tilt head right to view properly)



A zoom of the area where the hos come out of teh engine compartment and splits ou to the front an te back. if you can provide that it would be great.

Thanks,
