JCW areo kit installation

In the process of installing the JCW areo kit on my 2014 R58 S. Down to the front bumper remaining; but getting stuck on the "air guide" installation which appears to go adjacent to the left and right brake air ducting behind the front bumper between the front bumper mount and the radiator. Picture in the installation guide is not very helpful. Does someone have a picture of the position of the these pieces? See parts "K" and "L" on the attached pdf.

Attached Files

jcw retrofit kit.pdf (1.70 MB, 288 views)

Aug 14, 2016 | 04:16 PM

spiney

6th Gear

Joined: Mar 2003

Posts: 1,341

Likes: 10

From: Nr. Boston, MA

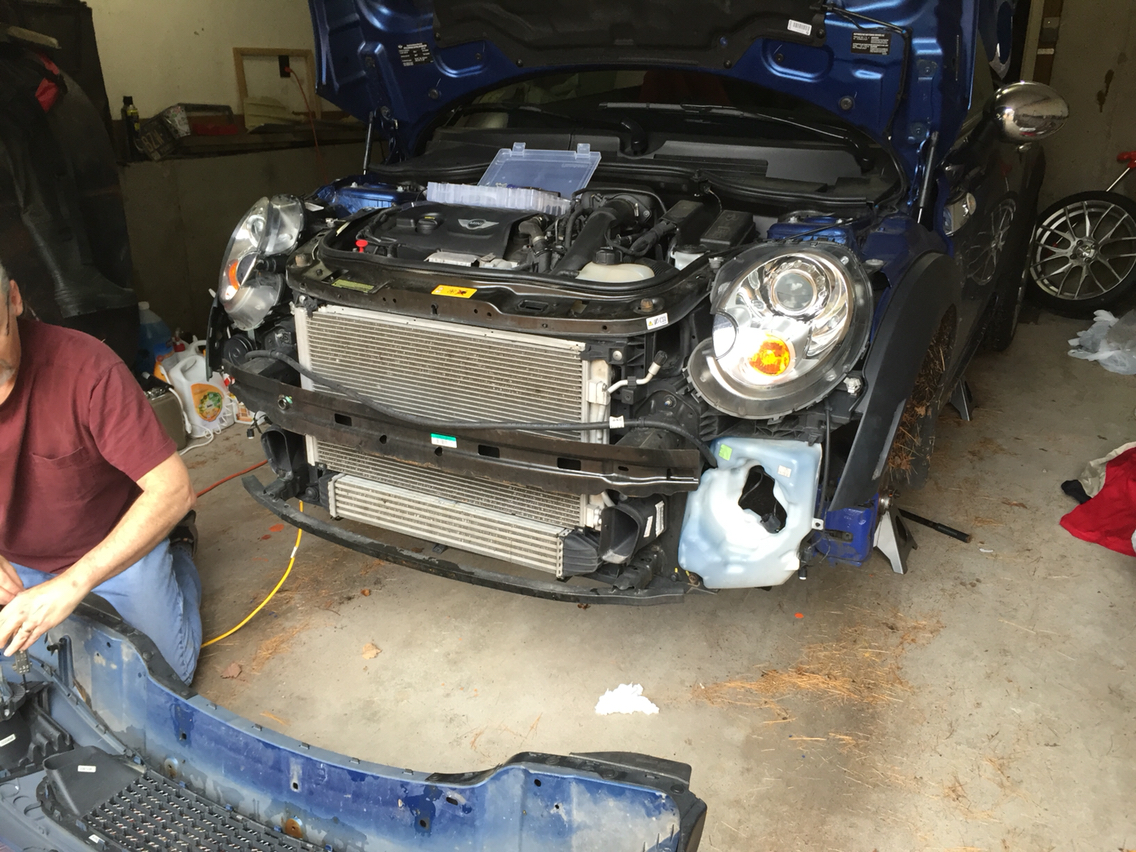

Maybe this helps?

Attached Thumbnails

Aug 15, 2016 | 11:16 AM

ECSTuning

Platinum Sponsor

Joined: Jan 2013

Posts: 36,704

Likes: 2,534

From: Wadsworth, Ohio

They are upwards and right to the insides of the duct housing. The jagged side points towards the bumper.

__________________

Aug 15, 2016 | 07:03 PM

dube53

6th Gear

Joined: Aug 2014

Posts: 1,134

Likes: 40

From: Port Townsend, WA

Quote:

Originally Posted by Jande023

This must be a very expensive mod with prep, paint and installation.

I am schedule for a new rear bumper cap replacement in 2 weeks and it will cost $800.00.
