I recently picked up a 2006 cooper s convertible that needed a trans for cheap I have it put back together wondering if anybody has a diagram for the 8 way coolant system giant spider of a hose please and thanks

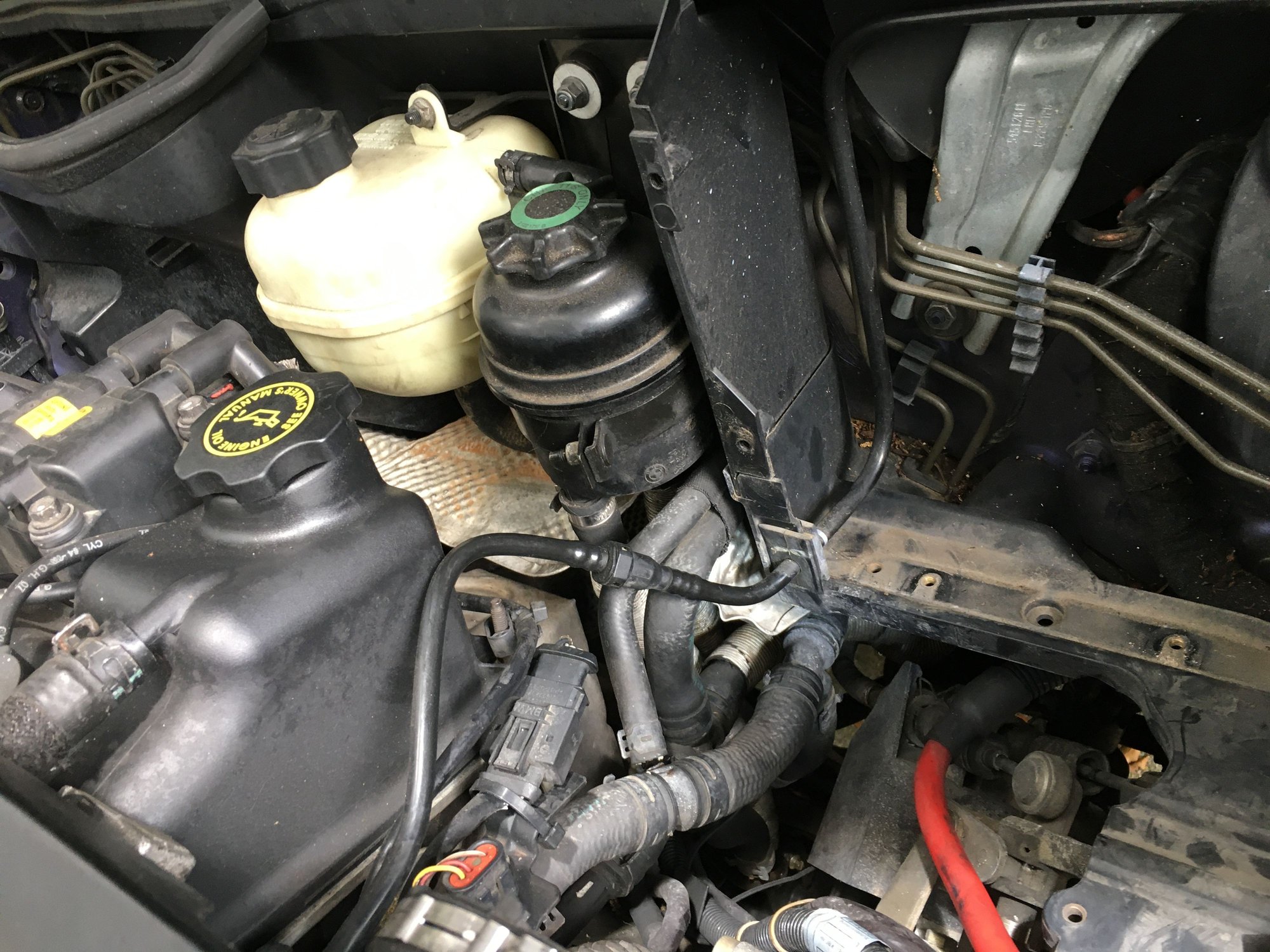

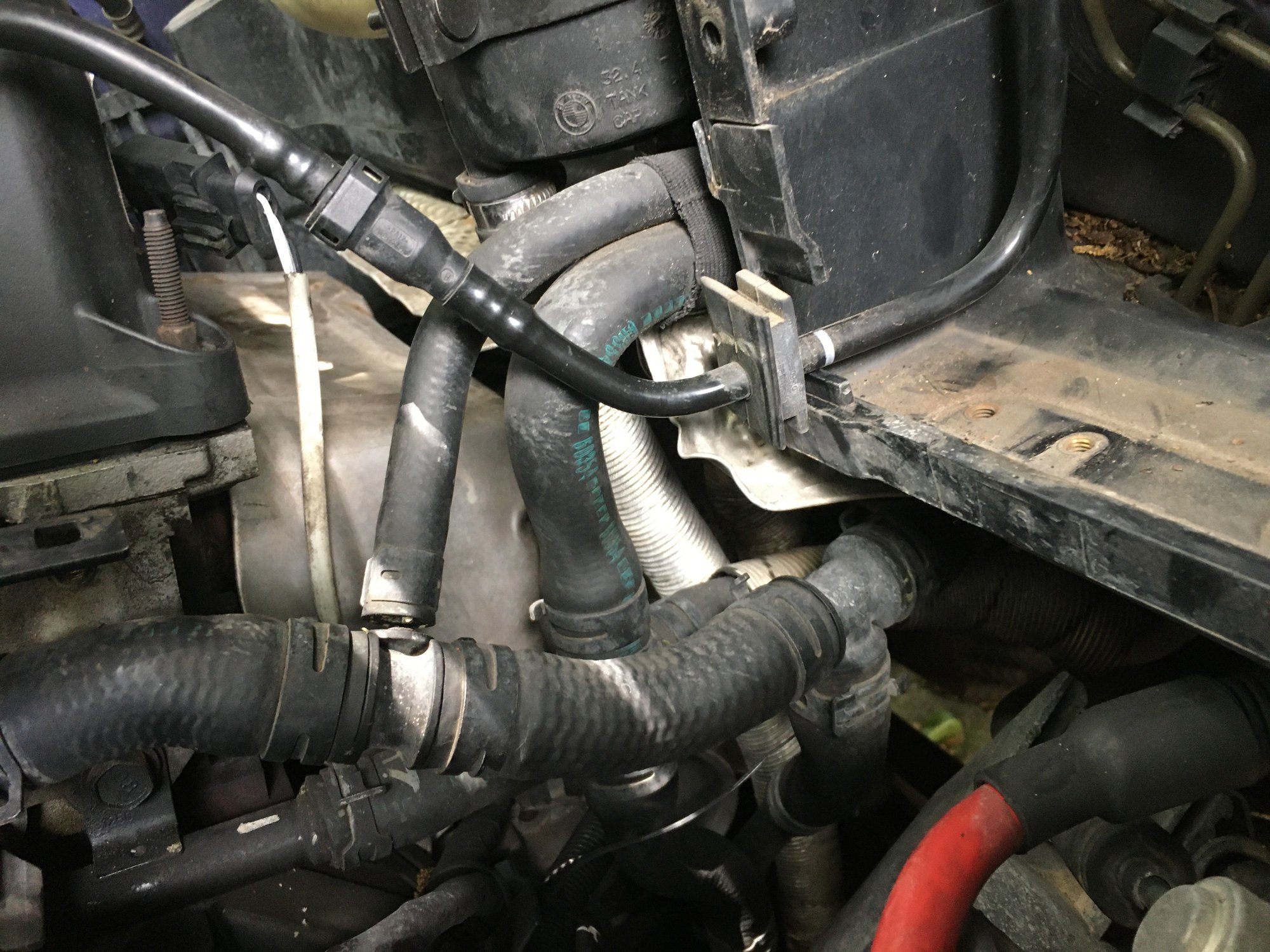

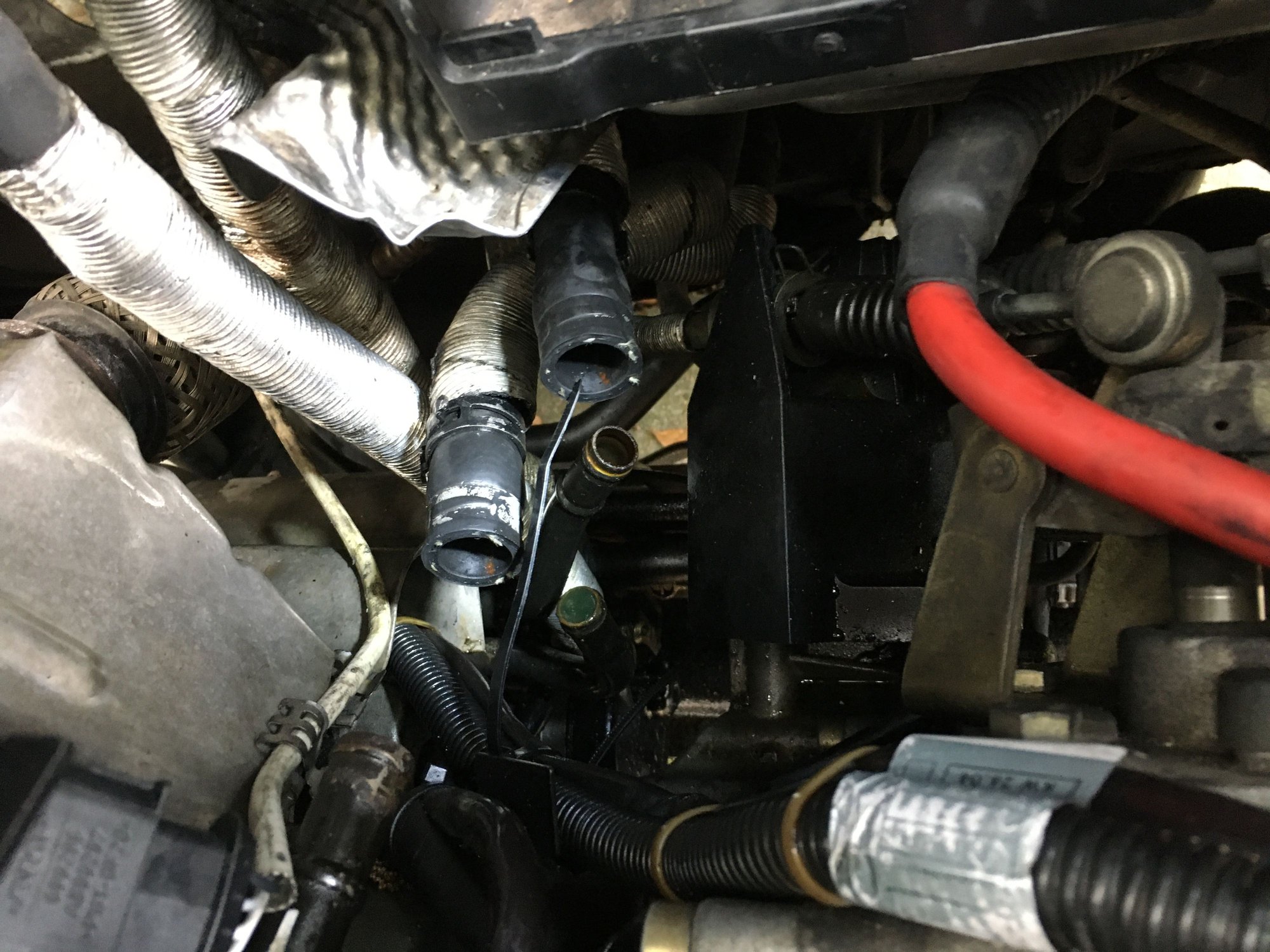

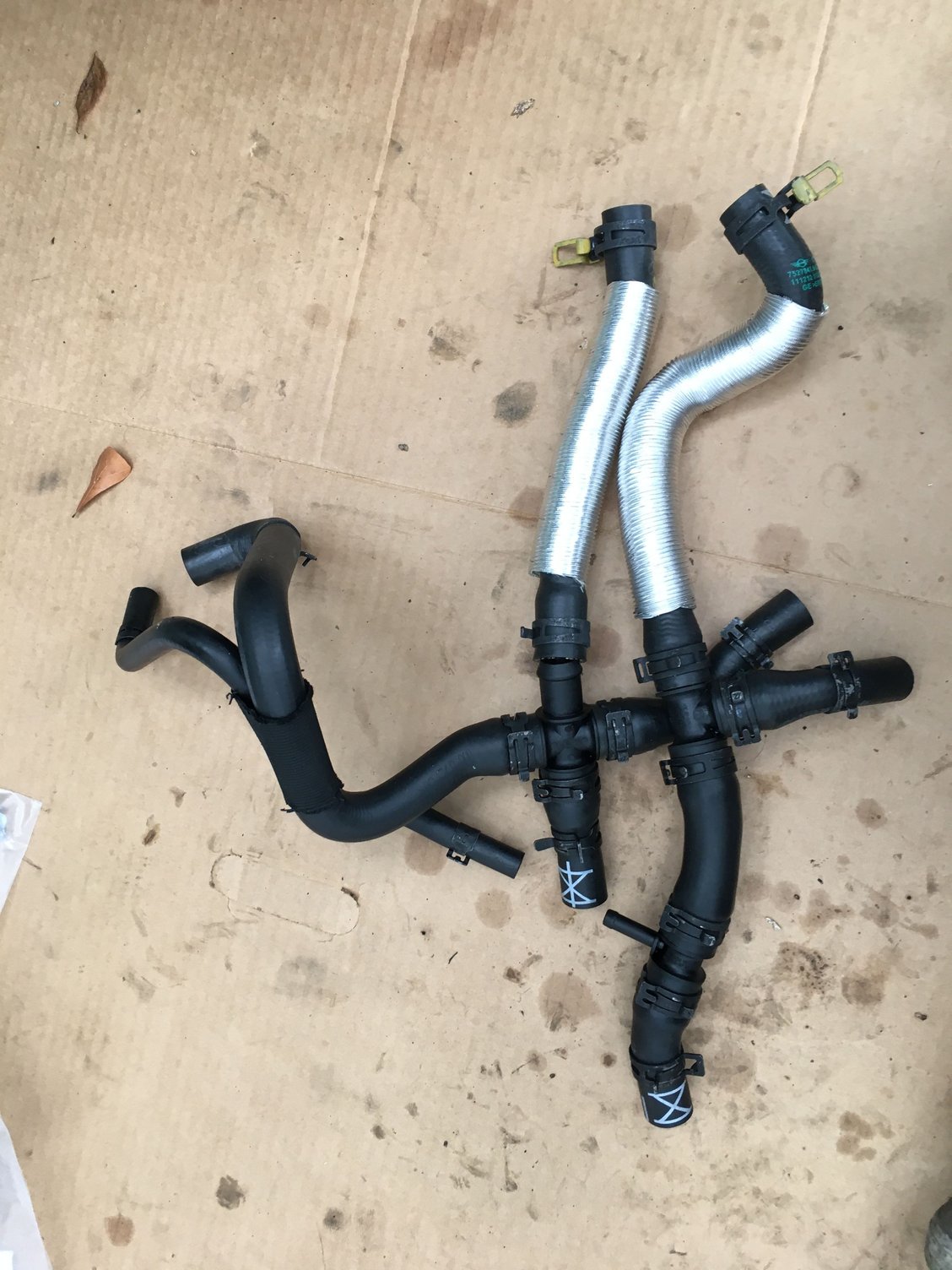

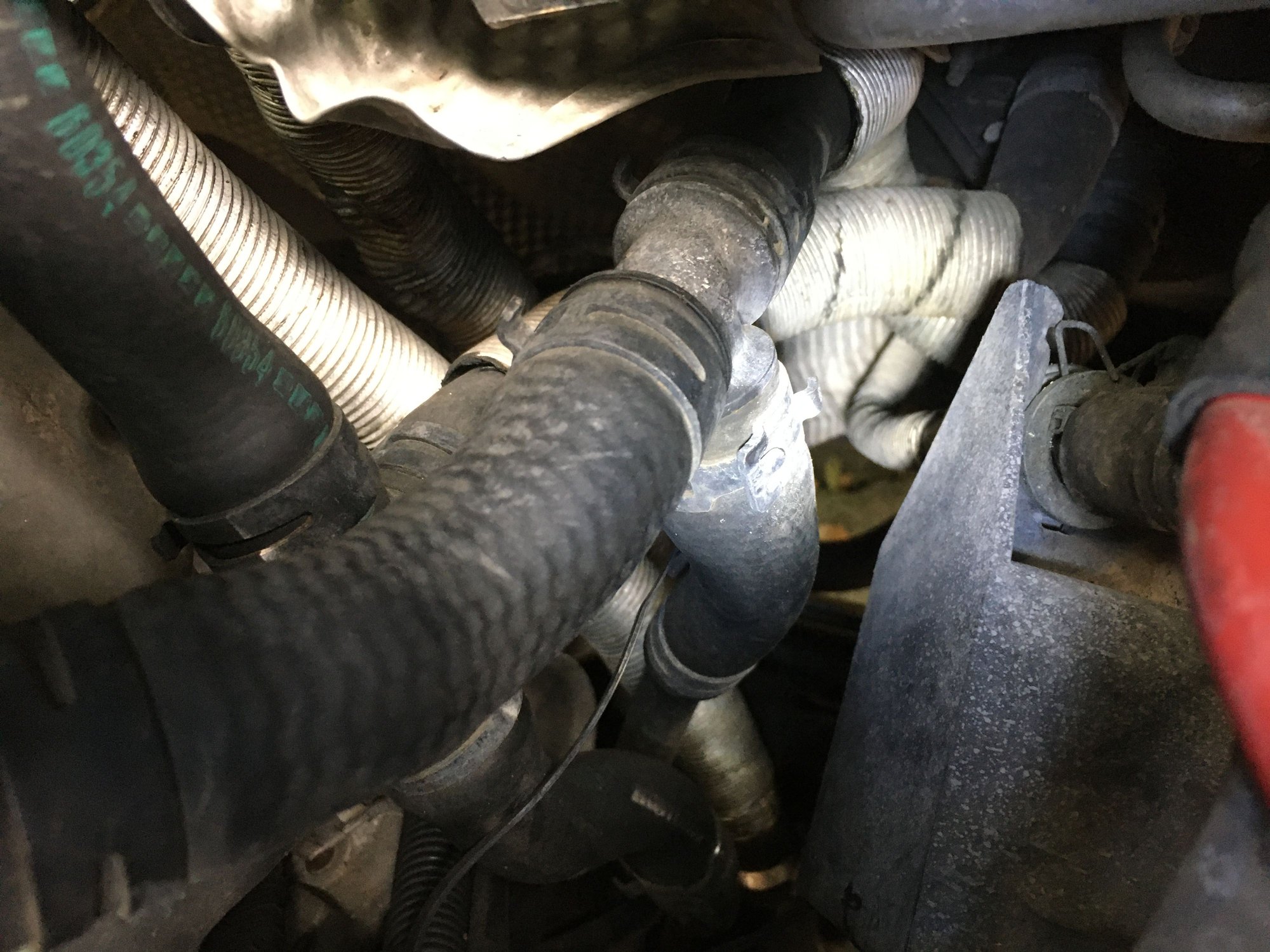

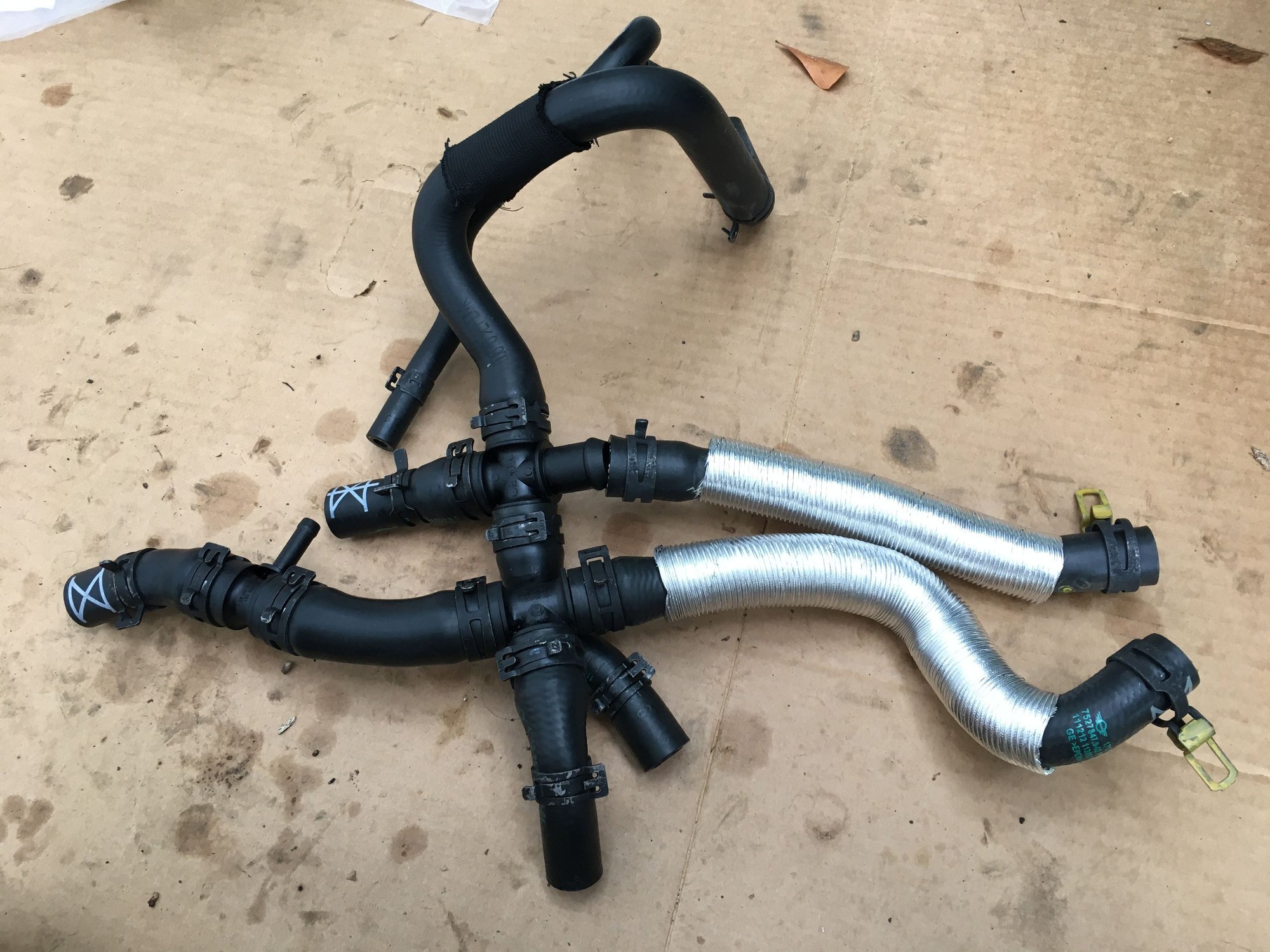

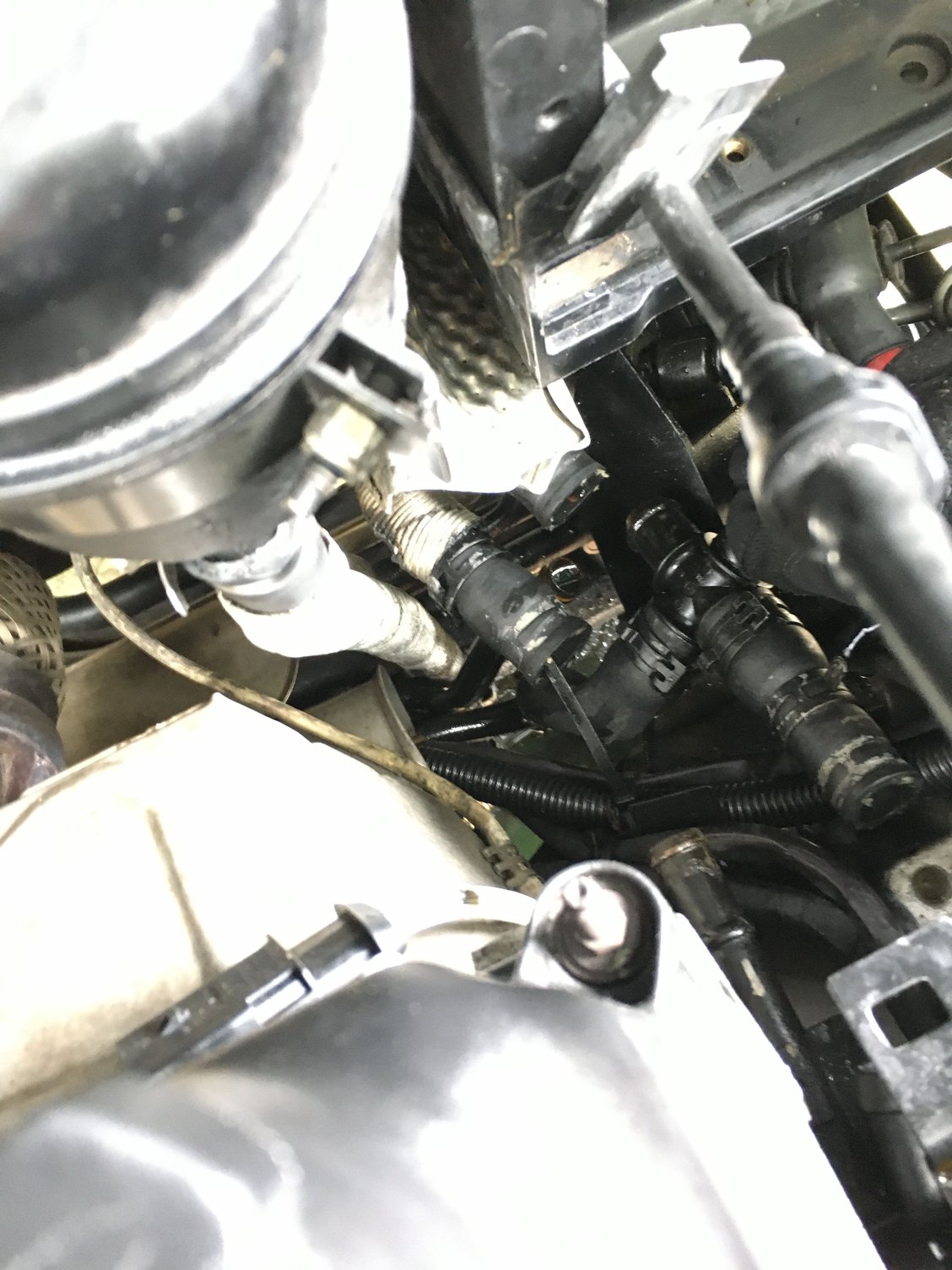

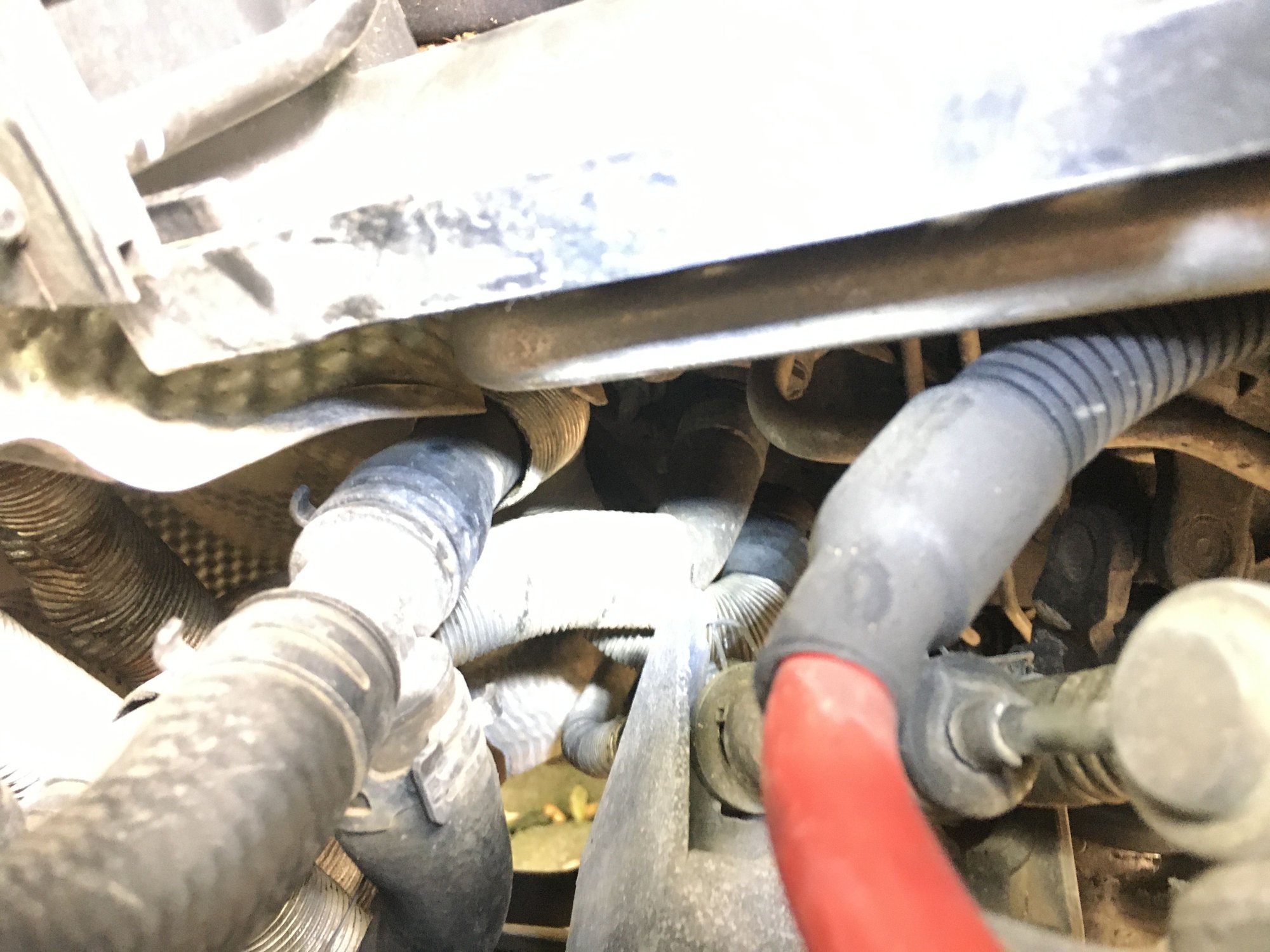

I did it. New one from dealer. It’s not bad. One to thermostat housing - 2 more to heater core - the longest to the back. 2 to the beer can heat exchanger.

that is 5. One to the expansion tank - that is 6. Trying to think of the other 2.

update - 2 to expansion tank - 1 is feed, 2 is return.

even just looking at it, it makes sense.

where are you located?





i hope you find a better source and dont need to rely on those photos
