Replacing backup / reverse light

I have an 03 Cooper S

Feel kinda ridiculous for asking this, but couldn't find it anywhere on the forum, and my owners manual says that if you have an S you need to take it into the dealer

My backup/reverse light is out and I want to try replacing the bulb. How do I get at the thing? Thanks!
Reply With Quote
  #2
Old 10-16-2008, 12:23 PM
BlimeyCabrio BlimeyCabrio is offline
6th Gear

Join Date: Sep 2006
Location: Holly Springs, NC
Posts: 8,755
Feedback Score: 5 reviews
Gallery
Hmmm... 03... is that with the light in the bumper?

If so... when the car is COLD (so you don't get burned on the exhaust) lay down and look up under the car. The light housing just snaps into the bumper - squeeze "ears" on either side on the back of the bumper and it releases and pushes out through the hole. Then unplug bulb and replace.
__________________
I'm Paul, The car is Blimey--- BlimeyCabrio's Blog--- 2006 MCSCa w/a few mods and Union Jacks

Thirteen-time Dragon Veteran with Switchback Sixth Sense, hasn't looked like that in a while...
Reply With Quote
  #3
Old 10-16-2008, 03:43 PM
norm03s's Avatar
norm03s norm03s is offline
6th Gear

Join Date: Apr 2003
Location: Ellicott City, Maryland USA
Posts: 1,795
Feedback Score: 1 reviews
Gallery
I'm betting it is the back up light switch.
__________________
Have you ever noticed that anybody driving slower than you is an idiot, and anyone going faster than you is a maniac?
George Carlin
You can follow me if you want but it might hurt.
Reply With Quote
  #4
Old 10-16-2008, 05:04 PM
trichards8 trichards8 is offline
Neutral

Join Date: Oct 2008
Posts: 6
Feedback Score: 0 reviews
Gallery
Looks like you are right. Replaced the bulb, checked the fuse, and still a no go.........now on to figure out how to replace the switch
Reply With Quote
  #5
Old 03-23-2009, 08:54 AM
FL_blue_MINI's Avatar
FL_blue_MINI FL_blue_MINI is offline
4th Gear

Join Date: Oct 2006
Location: Ft Lauderale
Posts: 574
Feedback Score: 1 reviews
Send a message via AIM to FL_blue_MINI Send a message via MSN to FL_blue_MINI
Gallery
Ok, well im going to bring up a dead topic because I am having a similar problem.

My reverse light went out, and when I went to change it, NADDA! I got out my multimeter and tested it, I'm getting 12v (car was off) at the plug and the socket but the light wont come on!

Some one please help me!
__________________
2006 MC 11/06-->4/08 (RIP)
2004 MCS 12/08--> Current
OUT: OEM White Tails; 15%; 20%; Lit Door Handles
IN: Ian CullsAuto-Up; Valentine V1
UNDER: MiniMadness Control arm Bushings; MSD Coil; MSD Wires; CarboTech 1521 Pads; TSW Rotors;
Reply With Quote
  #6
Old 03-23-2009, 09:25 AM
rkw rkw is offline
6th Gear

Join Date: May 2005
Location: San Francisco
Posts: 6,725
Feedback Score: 0 reviews
Gallery
Were you testing both +/- at the socket (if you tested using a ground somewhere else, check the socket's ground). If you are getting 12V at the bulb holder, the only thing I could think of is that the center spring metal contact has compressed and isn''t contacting the bulb. Do you feel it pushing back when you install the bulb? Or else there may be corrosion on the contact -- rub it with a pencil eraser.
Reply With Quote
  #7
Old 03-23-2009, 09:39 AM
FL_blue_MINI's Avatar
FL_blue_MINI FL_blue_MINI is offline
4th Gear

Join Date: Oct 2006
Location: Ft Lauderale
Posts: 574
Feedback Score: 1 reviews
Send a message via AIM to FL_blue_MINI Send a message via MSN to FL_blue_MINI
Gallery
I tested both the + and - at the socket and the plug that goes to the socket. I even tried it with a different ground (exhaust). I looked at the socket and the contacts are scratching the bulb where they contact it, they aren't even corroded, they look almost brand new.

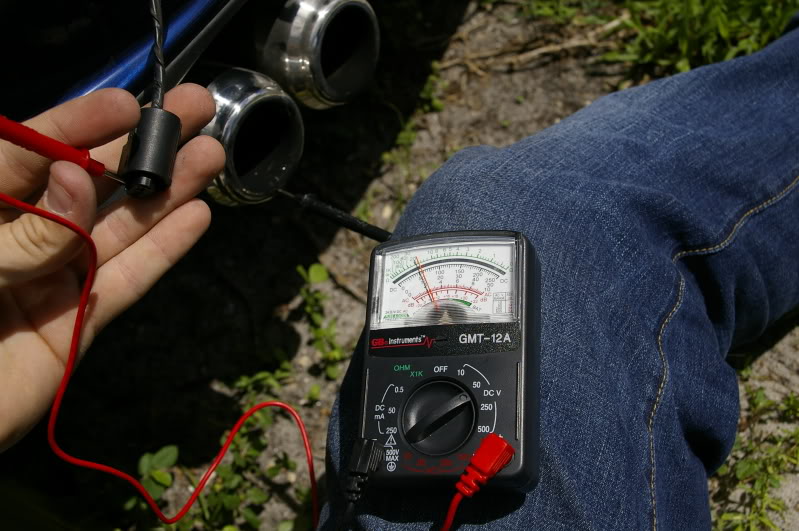

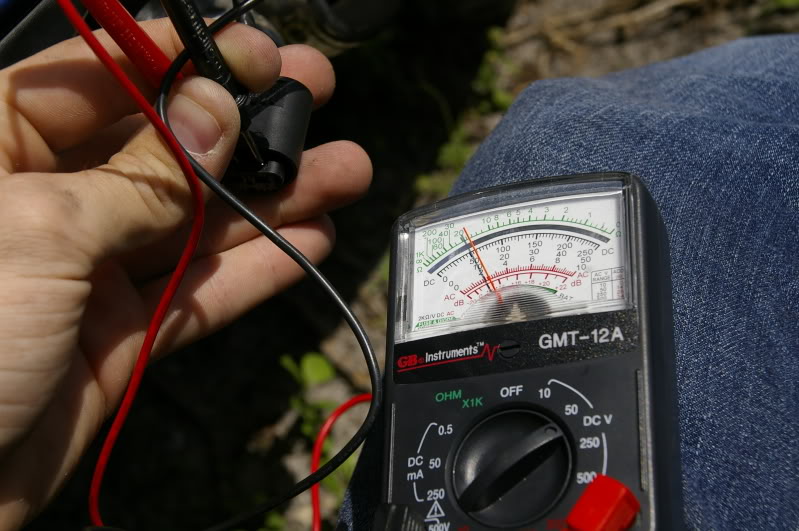

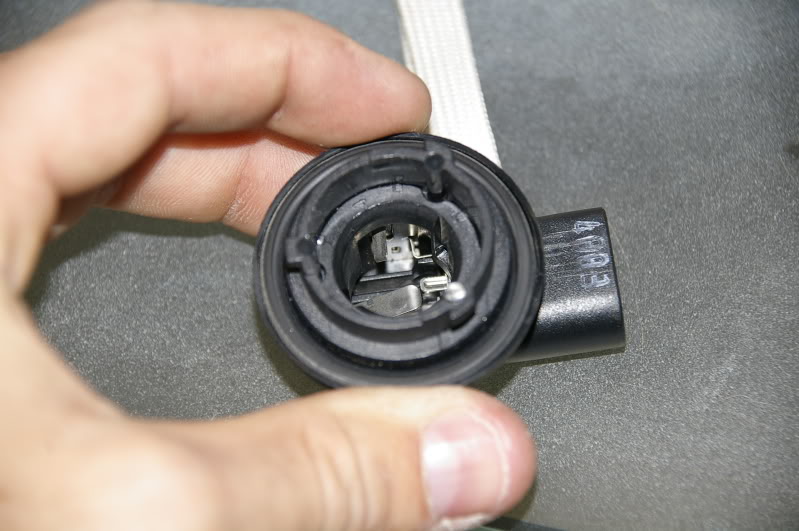

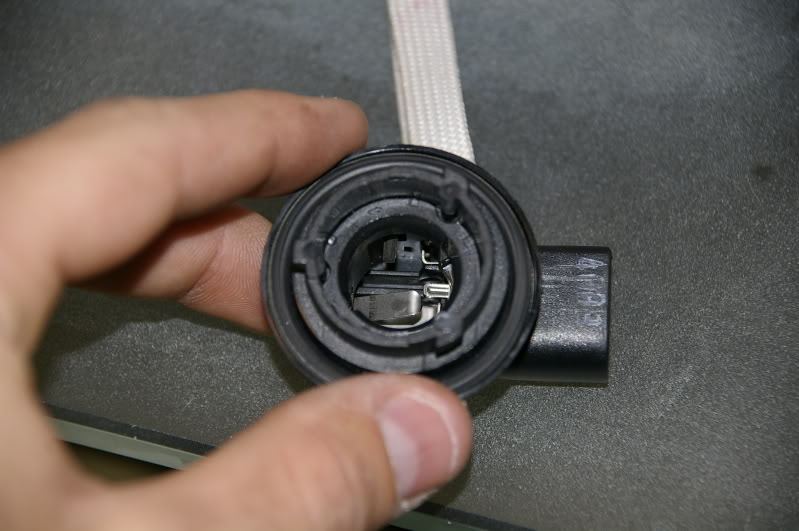

Here are some pictures:

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

My dad is trying to help me with this also. Neither one of us are engineer status when it comes to electronics, but we do know our way around fairly well.
Any other ideas?
__________________
2006 MC 11/06-->4/08 (RIP)
2004 MCS 12/08--> Current
OUT: OEM White Tails; 15%; 20%; Lit Door Handles
IN: Ian CullsAuto-Up; Valentine V1
UNDER: MiniMadness Control arm Bushings; MSD Coil; MSD Wires; CarboTech 1521 Pads; TSW Rotors;
Reply With Quote
  #8
Old 03-23-2009, 09:41 AM
FL_blue_MINI's Avatar
FL_blue_MINI FL_blue_MINI is offline
4th Gear

Join Date: Oct 2006
Location: Ft Lauderale
Posts: 574
Feedback Score: 1 reviews
Send a message via AIM to FL_blue_MINI Send a message via MSN to FL_blue_MINI
Gallery
I also tried connecting the + and - with a straight wire, knowing it would blow the fuse, and nothing! not even a spark!
__________________
2006 MC 11/06-->4/08 (RIP)
2004 MCS 12/08--> Current
OUT: OEM White Tails; 15%; 20%; Lit Door Handles
IN: Ian CullsAuto-Up; Valentine V1
UNDER: MiniMadness Control arm Bushings; MSD Coil; MSD Wires; CarboTech 1521 Pads; TSW Rotors;
Reply With Quote
  #9
Old 03-23-2009, 10:20 AM
jabell2r's Avatar
jabell2r jabell2r is offline
Coordinator :: M2C2

Join Date: Jan 2006
Location: Charlotte, NC
Posts: 650
Feedback Score: 0 reviews
Gallery
Put a bulb in the socket. then run an extra piece of wire from + plug to + socket. Take a second piece of wire run from - socket to a good ground. If the light comes on then I would guess there is a ground switch somewhere not making contact. I have never looked for it on a MINI but on my old Omni it was at the shifter.
__________________
Reply With Quote
  #10
Old 03-23-2009, 10:34 AM
jabell2r's Avatar
jabell2r jabell2r is offline
Coordinator :: M2C2

Join Date: Jan 2006
Location: Charlotte, NC
Posts: 650
Feedback Score: 0 reviews
Gallery
Further Search shows your back-up light switch should be located on the transmission bell housing next to the mount. You will have to remove the airbox if this is the problem.
__________________
Reply With Quote
  #11
Old 03-23-2009, 10:39 AM
FL_blue_MINI's Avatar
FL_blue_MINI FL_blue_MINI is offline
4th Gear

Join Date: Oct 2006
Location: Ft Lauderale
Posts: 574
Feedback Score: 1 reviews
Send a message via AIM to FL_blue_MINI Send a message via MSN to FL_blue_MINI
Gallery
Well guys..... I got it solved! It was the switch. $17 for parts at my dealer.
It took 5 minutes to replace and just about anyone could do it!

The part number is: 23117527716
Have that handy, as my parts person was looking in the complete wrong section for the part, its in the TRANSMISSION section. NOT the ELECTRICAL.

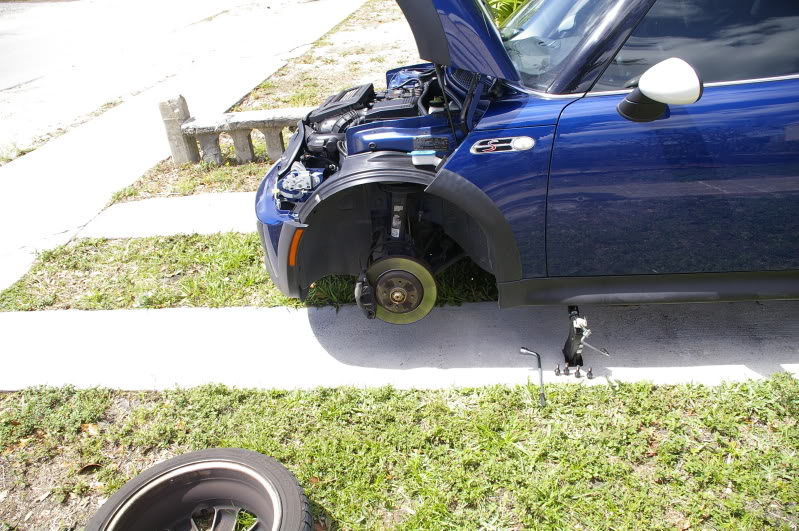

All I did was remove the driver side front tire, like so:
Click the image to open in full size.

Then I found the switch, when you look under there you see:
Click the image to open in full size.

You are looking for the little one all by itself!
Click the image to open in full size.

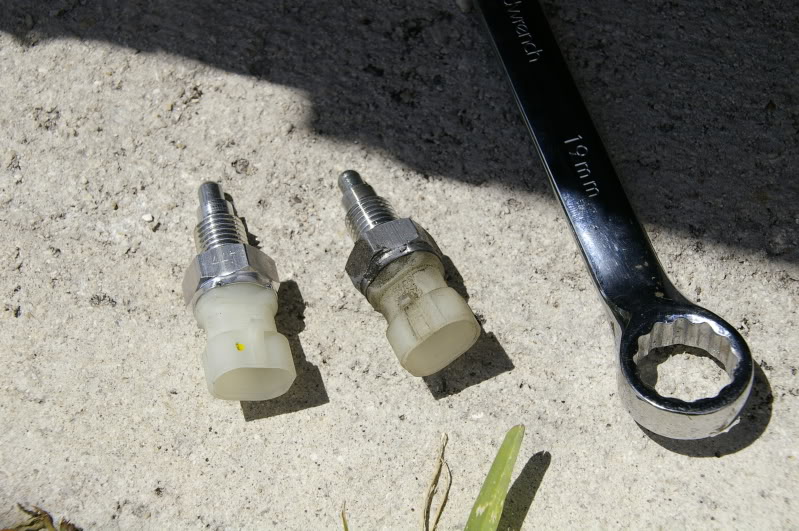

And this is the old switch next to the new one: it takes a 19mm wrench to get off, its not very tight at all.
Click the image to open in full size.

And vua la (yeah i know thats not spelled right) it all works great now!

Total cost: $17 for switch $2.99 for a pack of bulbs (not needed) and about 4 hours to figure out what the hell was going on! It only took 5 minutes once I knew.
__________________
2006 MC 11/06-->4/08 (RIP)
2004 MCS 12/08--> Current
OUT: OEM White Tails; 15%; 20%; Lit Door Handles
IN: Ian CullsAuto-Up; Valentine V1
UNDER: MiniMadness Control arm Bushings; MSD Coil; MSD Wires; CarboTech 1521 Pads; TSW Rotors;
Reply With Quote
  #12
Old 03-23-2009, 10:57 AM
MINI-charged MINI-charged is offline
2nd Gear

Join Date: Jun 2008
Location: Pottstown, PA
Posts: 120
Feedback Score: 0 reviews
Gallery
Awesome info/pictures. Now hopefully I never have to use this knowledge!
__________________
'06 HB/W MCS, Helix 15% pulley, Helix CAI, RMW tuned, Craven Speed STD's
Reply With Quote
  #13
Old 03-23-2009, 10:59 AM
FL_blue_MINI's Avatar
FL_blue_MINI FL_blue_MINI is offline
4th Gear

Join Date: Oct 2006
Location: Ft Lauderale
Posts: 574
Feedback Score: 1 reviews
Send a message via AIM to FL_blue_MINI Send a message via MSN to FL_blue_MINI
Gallery
Yeah, it wasn't bad at all! It was just so confusing. I ended up having the thought that i might be replacing the entire system. So I started at the switch. and it worked!
__________________
2006 MC 11/06-->4/08 (RIP)
2004 MCS 12/08--> Current
OUT: OEM White Tails; 15%; 20%; Lit Door Handles
IN: Ian CullsAuto-Up; Valentine V1
UNDER: MiniMadness Control arm Bushings; MSD Coil; MSD Wires; CarboTech 1521 Pads; TSW Rotors;
Reply With Quote
  #14
Old 03-23-2009, 12:28 PM
bigsoup52's Avatar
bigsoup52 bigsoup52 is offline
6th Gear

Join Date: Jan 2009
Location: Madison, WI
Posts: 2,774
Feedback Score: 0 reviews
Gallery
FL blue MINI,

Great job of trouble-shooting and documentation. One more example of what a great place NAM-land is!
__________________
BLACK PEARL: 2012 MCS Countryman/R60, AB/B, Auto, H/K Stereo, Satellite Radio, Bluetooth & USB/IPOD, Cold Weather

Gone, but not forgotten: Capt'n JAC: 2006 MC/R50, BRG/S, Manual, Nav, Premium, Mud Flaps - "Hold On Loosely"
Reply With Quote
  #15
Old 03-28-2009, 08:39 PM
ofioliti's Avatar
ofioliti ofioliti is offline
6th Gear

Join Date: Sep 2003
Location: Always curious ...
Posts: 2,272
Feedback Score: 0 reviews
Gallery
Thanks to this thread and this other thread, I got my reverse light fixed as well.

It had been out for a while now. I first checked the bulb itself and it turned out to be OK. Purchased the new switch at the dealer (MINI of St. Louis) and replaced the switch. Reverse light works now!

Here are a few more pics to help out:

With front driver's side wheel off:
Click the image to open in full size.

A bit closer, with switch visible now:
Click the image to open in full size.

You will need to remove the black socket with wiring from the switch. To do that, you need to lift a tab and twist it off. As stated above, you will need a wrench to remove the switch itself. Once loosened, unscrew by hand.

Click the image to open in full size.

Click the image to open in full size.

Recommended torque for switch to transmission is 18.5 ft-lbs as per Bentley manual.

__________________
http://i94.photobucket.com/albums/l116/ofioliti/NAM%20sig/Presentation1.jpg
'04 MCS "Blue Meanie" / WMW 15% pulley / one-ball exhaust / DDM intake / H-Sport 19 mm anti-sway bar / JCW plugs / Kingsborne wires / magnetic drain plugs / Speedy wheels / Hawk pads + ATI rotors / Craven ST defenders / Whalen shift **** / Scan Gauge II / Gominigo 3rd brake light / Powerflex LCA bushings / WMW street tune / TSW jack points / Ian Cull v. 7 auto-up switch
Reply With Quote
  #16
Old 11-18-2009, 04:09 AM
anitan1's Avatar
anitan1 anitan1 is offline
3rd Gear

Join Date: Nov 2009
Location: Warsaw, IN
Posts: 249
Feedback Score: 1 reviews
Gallery
Wow! What an amazingly helpful post. I ordered the part for my 2002 Cooper S (6 Speed) last night:
http://www.allminiparts.com/products...117527716.html
http://www.allminiparts.com/products...117527716.html
Reply With Quote
  #17
Old 12-01-2009, 03:00 AM
anitan1's Avatar
anitan1 anitan1 is offline
3rd Gear

Join Date: Nov 2009
Location: Warsaw, IN
Posts: 249
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by FL_blue_MINI View Post
It only took 5 minutes once I knew.
Well, the part came yesterday and I did the job this morning before work... It really is a five minute job! In fact it took me longer to get the wheel off than it did to replace the part.

Thanks 'FL_Blue_MINI' and 'ofioliti'!!!! Your instructions and pictures made this an easy DIY job.
__________________

Mine - 2009 JCW
Hers - 2011 Cooper S
My Daily Driver - 2002 Cooper S
Reply With Quote
  #18
Old 12-06-2009, 07:04 AM
burley's Avatar
burley burley is offline
5th Gear

Join Date: Jul 2007
Location: Dubuque, IA
Posts: 1,052
Feedback Score: 3 reviews
Gallery
Wow... I paid about $150 at MINI. Dohhh!
__________________

'06 Electric Blue/W R53 } '04 Indie Blue/W R53 } '03 Indie Blue/IB Justa R50 (retired)
JCW Exhaust // Alta CAI // M7 Strut Re-Inforcement Plates ---> more mods on the way...
Reply With Quote
  #19
Old 12-06-2009, 07:38 AM
ofioliti's Avatar
ofioliti ofioliti is offline
6th Gear

Join Date: Sep 2003
Location: Always curious ...
Posts: 2,272
Feedback Score: 0 reviews
Gallery
Quote:
Originally Posted by burley View Post
Wow... I paid about $150 at MINI. Dohhh!
Yeah, when I replaced the switch I told my wife "hon, I just saved us another hundred bucks!" She didn't believe me.
__________________
http://i94.photobucket.com/albums/l116/ofioliti/NAM%20sig/Presentation1.jpg
'04 MCS "Blue Meanie" / WMW 15% pulley / one-ball exhaust / DDM intake / H-Sport 19 mm anti-sway bar / JCW plugs / Kingsborne wires / magnetic drain plugs / Speedy wheels / Hawk pads + ATI rotors / Craven ST defenders / Whalen shift **** / Scan Gauge II / Gominigo 3rd brake light / Powerflex LCA bushings / WMW street tune / TSW jack points / Ian Cull v. 7 auto-up switch
Reply With Quote
  #20
Old 01-25-2010, 05:16 PM
ntaylor007 ntaylor007 is offline
Neutral

Join Date: Jan 2010
Posts: 4
Feedback Score: 0 reviews
Gallery
2005 MCS Switch

They altered the backup light setup in 2005, did they get rid of this switch also? My wifes car is having backup light issues (no back up lights) and more importantly, the PDC system is not working at all. Thinking back, this was noticed right after the clutch was replaced, so maybe the dealer repair guys jacked the switch during the replace. Now it is out of warranty, so I need to DIY. Thanks for the help.
Reply With Quote
  #21
Old 01-25-2010, 06:49 PM
ofioliti's Avatar
ofioliti ofioliti is offline
6th Gear

Join Date: Sep 2003
Location: Always curious ...
Posts: 2,272
Feedback Score: 0 reviews
Gallery
It look like its still there. Go to www.realoem.com and put in your car info, build date, etc. and go to transmission part. This is what it shows for a sept '04 built 2005. It is part no. 7 in the fig.

Click the image to open in full size.
__________________
http://i94.photobucket.com/albums/l116/ofioliti/NAM%20sig/Presentation1.jpg
'04 MCS "Blue Meanie" / WMW 15% pulley / one-ball exhaust / DDM intake / H-Sport 19 mm anti-sway bar / JCW plugs / Kingsborne wires / magnetic drain plugs / Speedy wheels / Hawk pads + ATI rotors / Craven ST defenders / Whalen shift **** / Scan Gauge II / Gominigo 3rd brake light / Powerflex LCA bushings / WMW street tune / TSW jack points / Ian Cull v. 7 auto-up switch
Reply With Quote
  #22
Old 01-26-2010, 05:01 PM
ntaylor007 ntaylor007 is offline
Neutral

Join Date: Jan 2010
Posts: 4
Feedback Score: 0 reviews
Gallery
Fixed!

Thanks, gentlemen. It is still a part on the 05 Cooper S, and was the culprit for the non working backup lights and the PDC not working. Very simple fix, $19 at the closest mini dealer.

On a side note, it does look like the dealer beat up this part at the last service, when the clutch was replaced. It was bent into an angle where the plastic protrudes. Im not very happy with them right now.

I will light this thread as a solution when the PDC isnt working, and the fuse (41) remains intact. Thanks again!
Reply With Quote
  #23
Old 03-17-2012, 02:34 PM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 740
Feedback Score: 1 reviews
Gallery
For those who have done this - is the back-up light switch a male connector?

I'm hoping to solder in a connector to the old CVT wiring harness for the 6-speed swap I just had done. I know which wires to use, etc., I just need the connector that plugs into the backup light switch. I'm wondering if the #9 part, which is a female connector, is what I need:

Click the image to open in full size.

#9 includes all of these, so it does seem like it's not part of the back-up switch:

PLUG CONNECTION FEMALE - 12527511315
Gasket - 12527511334
Socket housing - 12527511347
Locking mechanism - 12527511349

I can't get a good look at it unless I remove the battery box. Hoping I can get answer here before going that route to save a little time...
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 144000 miles

www.geoffknorr.com
Reply With Quote
  #24
Old 07-30-2012, 09:45 AM
maxw maxw is offline
Neutral

Join Date: Nov 2010
Posts: 2
Feedback Score: 0 reviews
Gallery
Thanks for the details here - this post helped fixed the same problem for me. If I can add anything that may be helpful - I didn't have a 19mm wrench but had a 3/4 and that worked fine. Dealer charged $22.28 plus tax for the switch.
Reply With Quote
  #25
Old 08-18-2012, 11:09 AM
philnjean philnjean is offline
1st Gear

Join Date: Jun 2011
Location: Dublin, Ohio
Posts: 21
Feedback Score: 0 reviews
Gallery
Garage
Little over $25 and about 10 min to get it done. Great
Reply With Quote
