newministuff speaker splice harness colors?
Hello. I ordered a speaker splice harness from newministuff. I have an R53 with the Boost stereo (with CD).
The only problem is that the colors of the wires don't correspond to the colors I should expect from the factory harness.
From searching the forums I found this info for the factory harness colors:
Left Front Speaker (+/-) yellow/red - yellow/brown, +/-
Right Front Speaker (+/-) brown/black - blue/brown, +/-
Left Rear Speaker (+/-) yellow/black - yellow/gray, +/-
Right Rear Speaker (+/-) blue/purple - blue/gray, +/-

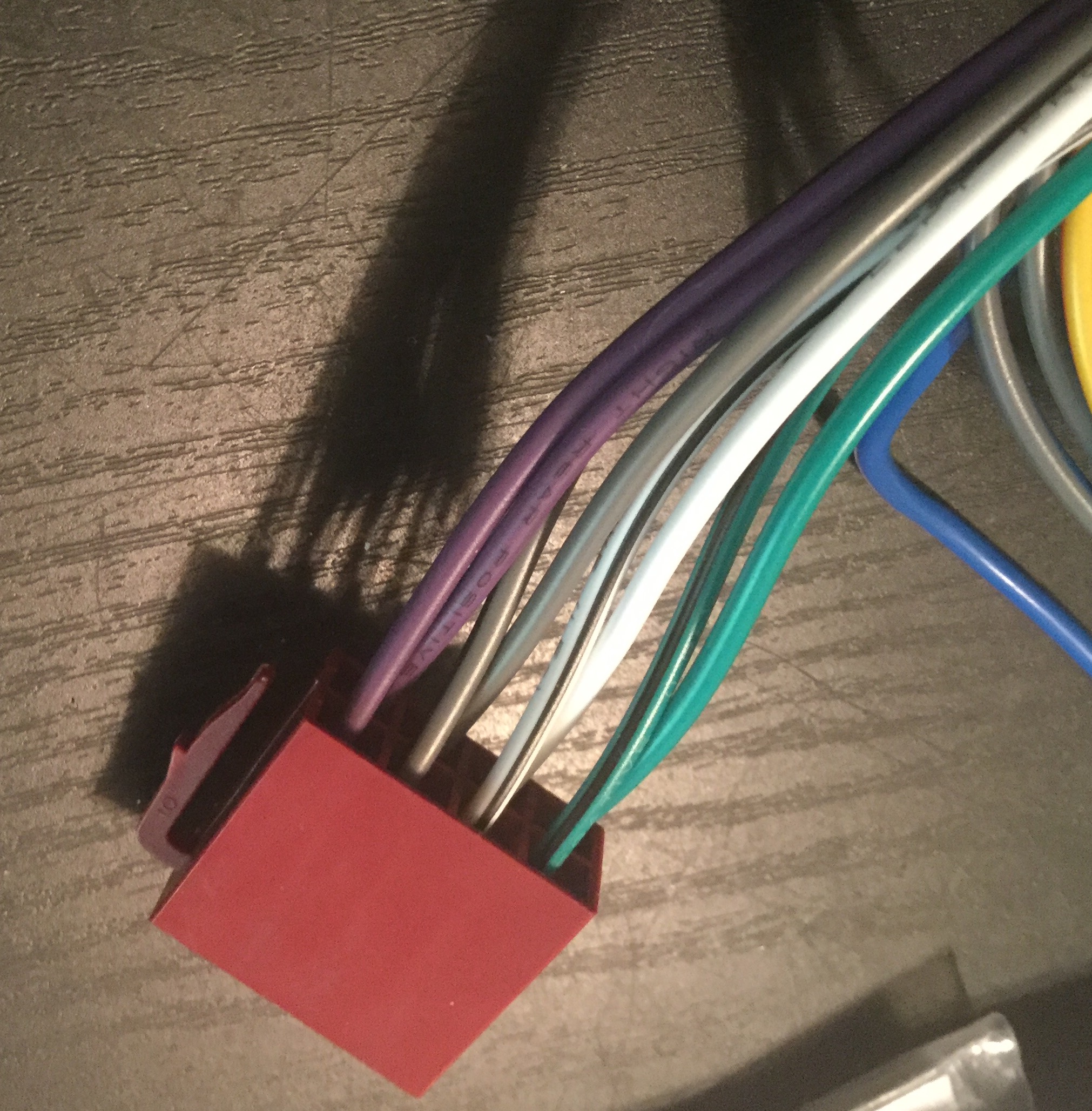

The attached photo shows the colors on the harness I'm working with. Does anyone know what wire is what?
The only problem is that the colors of the wires don't correspond to the colors I should expect from the factory harness.
From searching the forums I found this info for the factory harness colors:
Left Front Speaker (+/-) yellow/red - yellow/brown, +/-
Right Front Speaker (+/-) brown/black - blue/brown, +/-
Left Rear Speaker (+/-) yellow/black - yellow/gray, +/-
Right Rear Speaker (+/-) blue/purple - blue/gray, +/-
The attached photo shows the colors on the harness I'm working with. Does anyone know what wire is what?
