FS:: N14 Engine, New Timing & Head Gasket + Many Extra Parts
N14 Engine, New Timing & Head Gasket + Many Extra Parts
Category: Drivetrain
Price: $1400
Private or Vendor Listing: Private Listing
Part fits (you may select multiples): R55, R56, R57
Location (Region): Midwestern
Item Condition: Used

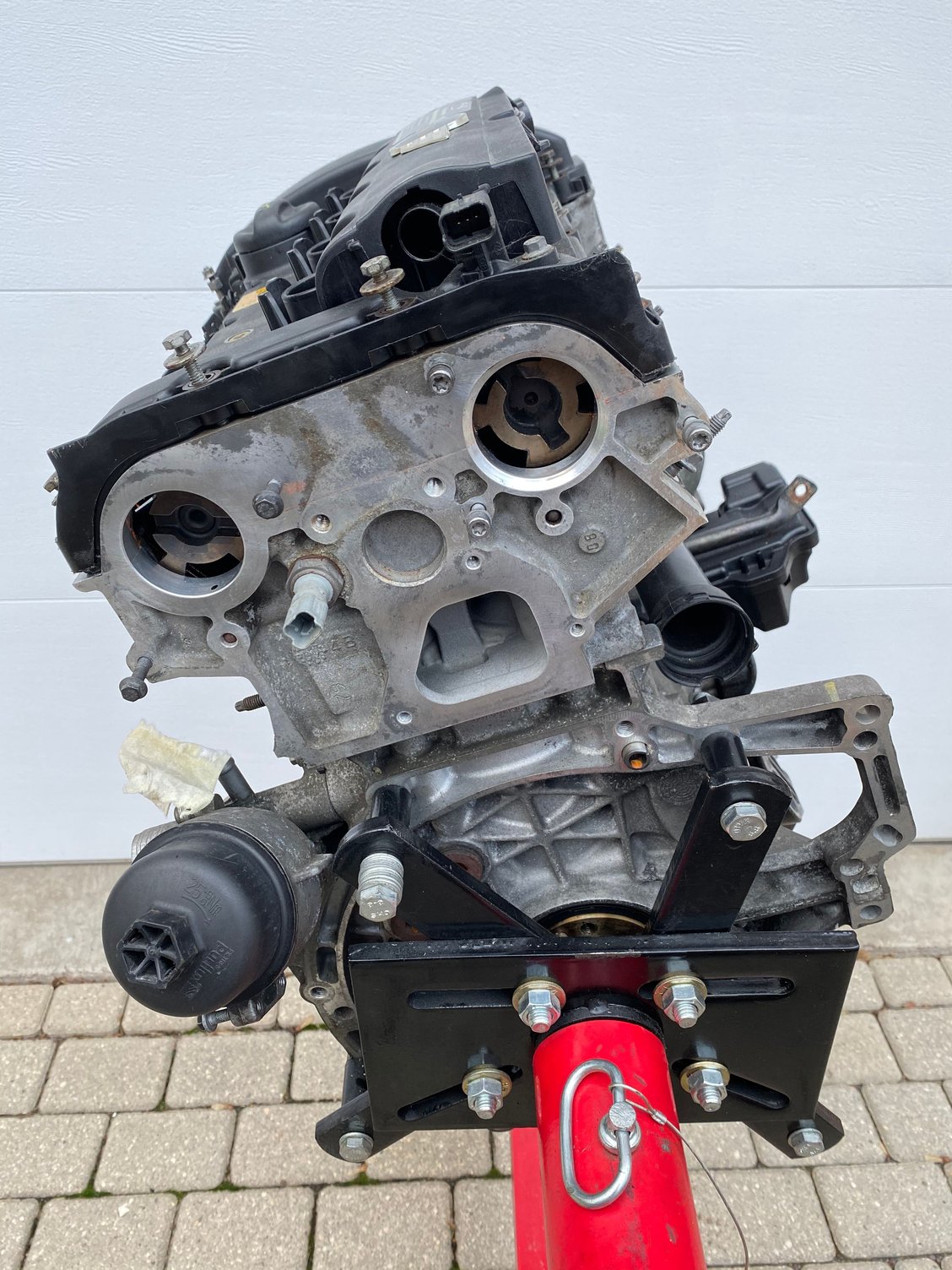

MINI Cooper S N14 Engine
Long block, plus tons of extras.
Removed from a 2008 MINI Cooper S Hardtop with 92,987 miles.
Timing system failed on this engine and the engine was removed and inspected. The exhaust valves on cylinder #1 very lightly touched the piston (only chipped some carbon off top of piston). Valves were removed and inspected and no damage or bent valves were found.
Head was rebuilt with new exhaust valves on cylinder #1, just to make certain. Head gasket surface was machined, intake walnut blasted to remove carbon, valves lightly lapped, new valve stems seals installed and head was reinstalled with a new head gasket and head bolts.
New Febi timing kit installed with new timing chain, guides (3) and tensioner.
New oil pan gasket installed.
New front main seal installed.
I had this engine ready to go into a MINI in need of an engine, but determined I’ll never get around to that project.
Includes:
• Valve cover
• Direct injectors and fuel rail
• High Pressure Fuel Pump (HPFP)
• Two water pumps (one currently installed)
• Two thermostats
• Vacuum pump
• Water pump pulley
• Serpentine belt tensioner
• 4 ignition coils
• 4 spark plugs (installed)
• Variable valve (VANOS) solenoid
• Aux, electric water pump
• Turbo oil pipes. (supply and drain)
• Automatic transmission flywheel
• Two crank position trigger wheels
• New MANN oil filter
• Two coolant pipes (one installed)
• 2x Oil pressure sensors (one installed)
• Knock sensor (installed)
• Crank position sensor (installed)
• Cam position sensor (installed)
• Oil filter housing (installed)
• Oil cooler (installed)

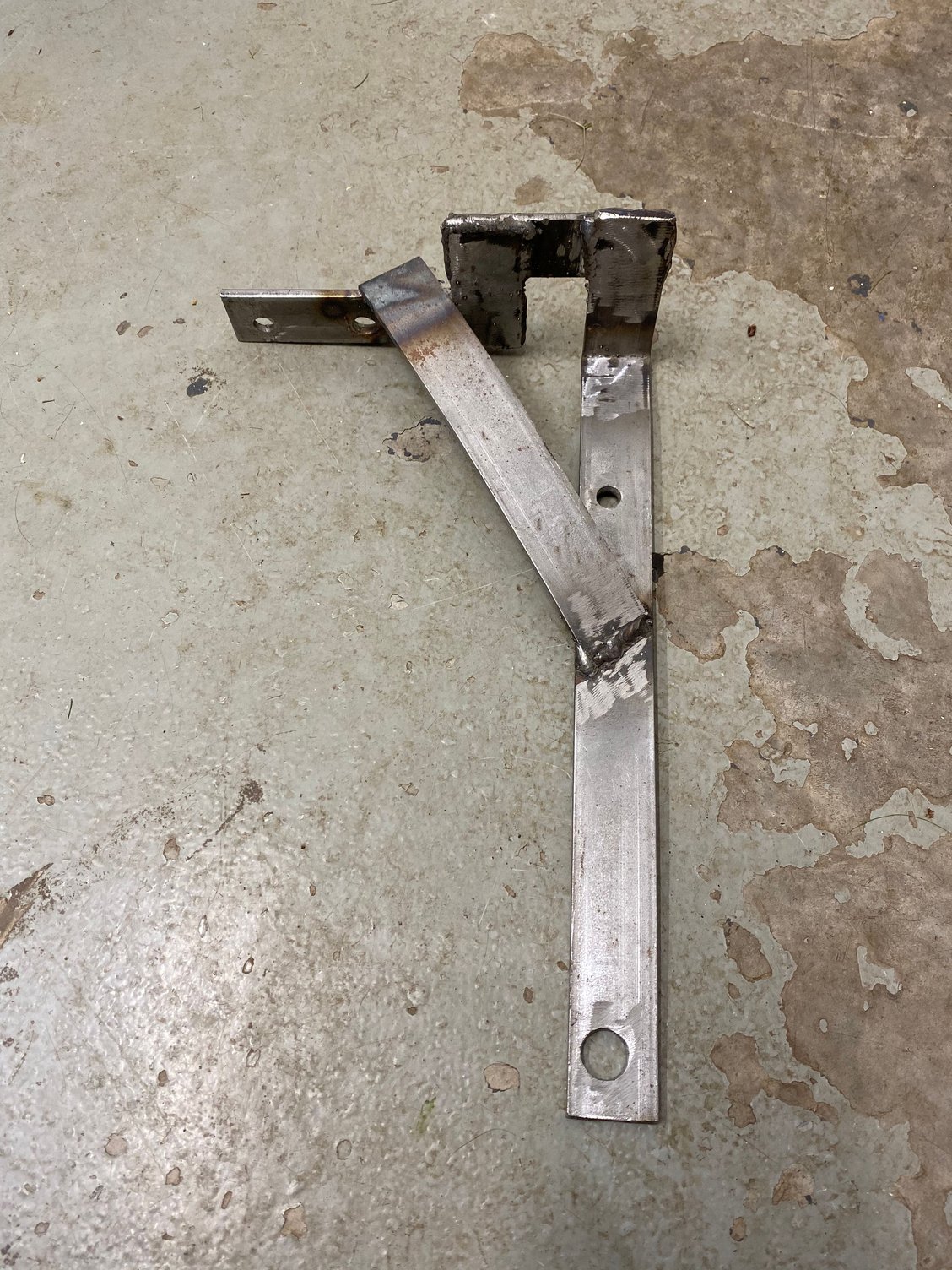

• Homemade tool to work on timing end of engine while installed in the car.
• Engine wiring harness
•A whole bunch of extra hardware as pictured
