I have an 09 JCW Hatch and I'm replacing the turbo. I got the ECS Tuning kits for all the necessary parts and there's a small heat shield that I'm not sure where it goes. I don't think there was one on there when I took it apart. The part number is 11657634747. It's item #20 in this diagram:

http://www.realoem.com/bmw/null/showparts?id=MF93-USA-01-2009-R56-Mini-CoopS_JCW&diagId=11_3944

I can't tell from that diagram where it goes. Can anyone send a pic?

Thanks



It goes over the top oil feed line. This part was added after manufacture.

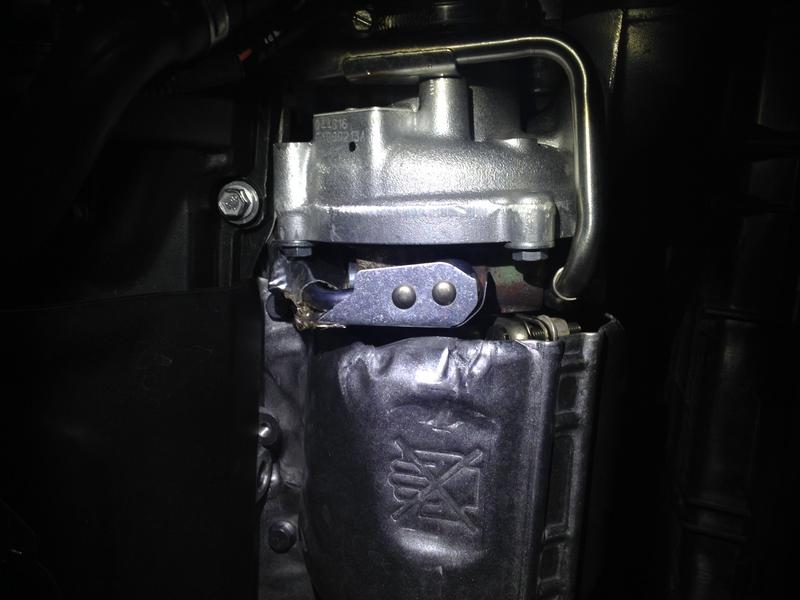

Best picture I have at the moment



Thanks cerenkov. That helps



Part of the kit, Yes goes over that back line.

11657634747

11657534454KT

http://www.ecstuning.com/Search/SiteSearch/11657534454KT/

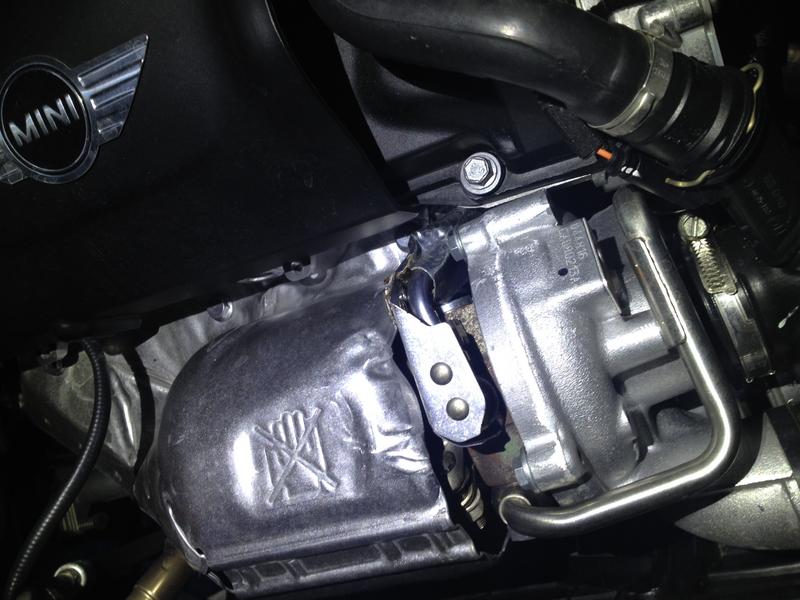

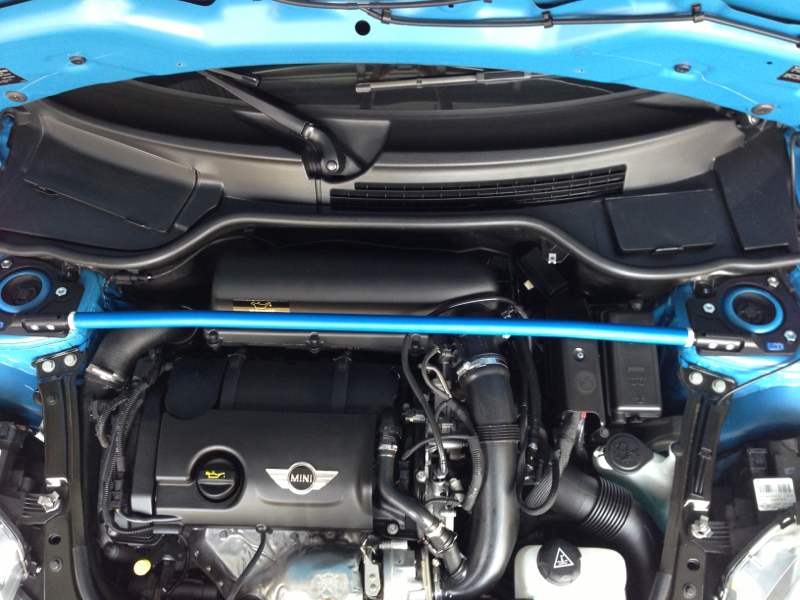

Installed:
