Maintenance :: Cooper Serpentine Belt Replacement

Here's a guide for replacing the serpentine belt in your R 50 or R 52 Cooper. I found lots of guides for the "S" model but none for our Coopers, so here goes:

First, you need the special tool. Apparently a 3/8" drive socket wrench will do in a pinch, but I only had the Crafstman ratcheting type, and it would not fit between the tensioner and the frame (UPDATE: I went and got the "breaker bar" style of 3/8" drive wrench. Still kind of fat, but I was able to take it apart, slide the 3/8" square thing in the square hole and reassemble it- it was held together with a bolt. It does fit, but I was not able to get any leverage on it to move the tensioner arm. So I'm going to say you'd probably have to get the special tool to do the job). Here's some pictures of the tool courtesy of promini.com, where I got mine for $49.95 plus shipping. Shop around; at least one MINI parts supplier that shall remain nameless is selling it for $359.95 on a "Special Order" basis:
Click the image to open in full size.
Closeup of business end of tool
Click the image to open in full size.
Full view of tool

First, jack your car up and put a suitable jack stand under the frame:
Click the image to open in full size.

You'll have to remove eight clips and three Philips head screws to get the inner fender liner off. Here's the location of some of them:
Click the image to open in full size.

For the plastic clips, you may need to hold them in place with a flat screwdriver so the entire thing doesn't turn:
Click the image to open in full size.

Here's the fender liner, screws and plastic clips out. If you break a clip or two it's a good reason to go to the MINI dealer, get your part and look around a bit. One How-To on the "S" model recommended taking out only some of the clips and bending the fender liner back; I found it just as easy to remove the whole thing:
Click the image to open in full size.

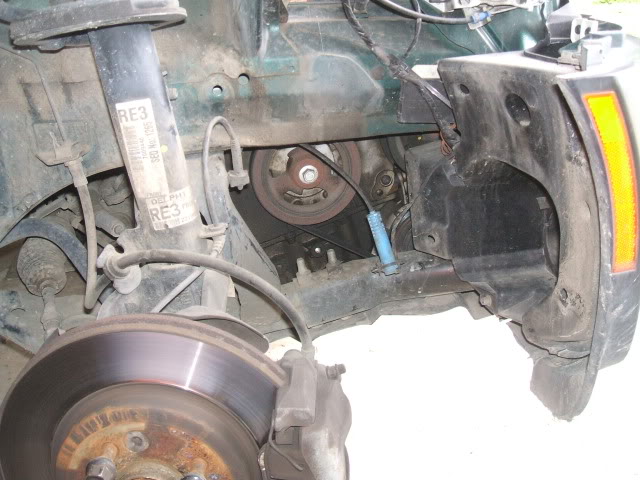

Here's what you see when you pull the fender liner out. Be aware that your brake sensor wire tends to catch the liner on it's way out:
Click the image to open in full size.

There's a black cylinder (it's the fuel tank vent valve!) that I felt would be a good idea (the Bentley manual recommends it!) to remove to allow better access for the tensioner tool. I pulled the vacuum hoses off (see arrows) and then slightly bent the metal clip thing in the middle of the second photo to allow the vacuum cylinder thing to pull off of the holder:
Click the image to open in full size.
Click the image to open in full size.

Here's the tool in place ready to release the tension. Arrows point to where the clip goes into the tensioner and the hole it slides into. You can see that there is quite a bit of movement involved, but the tool gives you plenty of leverage and the tensioner is easy to move:
Click the image to open in full size.

Here is the clip in place, holding the tensioner out of the way. You can see the tool is still on, about to be removed:
Click the image to open in full size.

Here's how loose the belt gets when you remove tension. The belt goes around the outside of the three pulleys you see, around the front engine pulley and "under" the tensioner wheel:
Click the image to open in full size.

The belt is easy to remove when the tension is released. You can see from these two pictures that mine had considerable wear and damage. I suspect that the cut across the ribs were from the belt being pulled on with a screwdriver but it could be just wear, too. You can see that the backside of the belt is being worn unevenly from the tensioner wheel. That will be a job for another day; a worn tensioner won't leave me stranded like a broken belt will:
Click the image to open in full size.
Click the image to open in full size.

The locally owned parts store actually had the right size in stock. I brought mine in and they were able to match it to the correct size "Road Max"- now that I know the size I will get a Gates next time. Listings I have found on line show two sizes but it's not real clear which one is correct. One of the two listed belts is shorter by an inch and I suspect that's for European models without A/C; the correct belt for North American cars that have A/C as standard equipment is 41.5 inches:
Click the image to open in full size.
Click the image to open in full size.

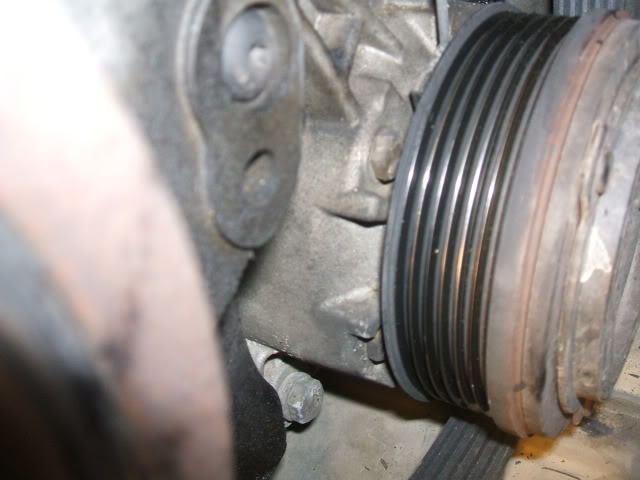

The new belt was stiffer and I had a little trouble getting it around the bottom (AC?) pulley correctly. The top picture shows the ribs one "off" and the second picture shows the ribs on correctly:
Click the image to open in full size.
Click the image to open in full size.

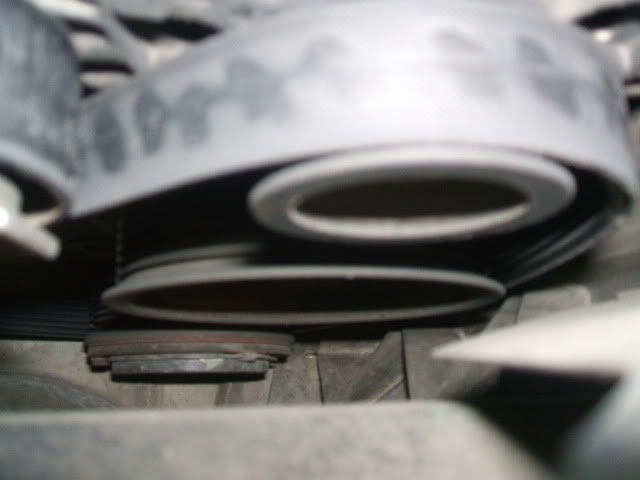

Here's the new belt on correctly- loose like the old belt indicating that it is the right size:
Click the image to open in full size.

Here's a couple showing the movement of the tensioner tool as the tensioner was put back into position- as you can see it's 3 or 4 inches of movement:
Click the image to open in full size.
Tension off
Click the image to open in full size.
Tension on

Re-assembly of the car is the reverse- don't forget to put the vacuum hoses on the black cylinder thing and remember to slide it back on the holder. Re-install your fender liner, and remember to tighten your lug nuts down properly.

My car was much quieter with the new belt. As you can see, the tool will store in the boot opening along with your old belt if it wasn't shredded. This would be an easy side of the road fix, so you can be the hero the next time somebody shreds or tosses a belt on a long club drive:
Click the image to open in full size.

Val

Last edited by valvashon; 06-11-2011 at 08:31 AM. Reason: Added update.
Reply With Quote
  #2
Old 11-30-2010, 10:02 AM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Great write-up. Did this a week or two ago.

So glad you took a picture of the replacement belt packaging. Interestingly, BOTH the Goodyear belts listed as replacements for my R50 at my local parts store were the wrong size. In fact, the listing is even incorrect on Goodyear's site.

Thanks to that picture I knew the right size would be 6PK1039. Ended up getting a 6PK1040 which is just slightly larger and still works great.
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #3
Old 01-14-2011, 08:00 AM
air540g air540g is offline
1st Gear

Join Date: Jul 2010
Posts: 14
Feedback Score: 0 reviews
Gallery
i think 6pk1033 is the right size. i find from etk.
Reply With Quote
  #4
Old 01-14-2011, 08:18 AM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by air540g View Post
i think 6pk1033 is the right size. i find from etk.
Thanks for posting this. Do you have a link for the reference?

I'm about to replace the tensioner and might throw a new belt on while I'm at it. I'm getting three squeaks after putting it into Reverse or Drive upon cold start in the morning, but that's the only time I get squeaks. It's either the belt or tensioner. Tensioner has 113k miles on it, so I figured it wouldn't hurt to replace anyway.
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #5
Old 01-14-2011, 08:21 AM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
6pk1033 is the right size:

http://www.realoem.com/bmw/showparts...90&hg=11&fg=18

I don't think the belt size was there when I changed mine a few months ago. Maybe a recent addition...or maybe I overlooked it!
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com

Last edited by gknorr; 06-11-2011 at 09:14 AM.
Reply With Quote
  #6
Old 01-24-2011, 02:26 PM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Cooper S will be different from the base Cooper. Check out this thread:

http://www.northamericanmotoring.com...tine-belt.html
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #7
Old 06-11-2011, 05:45 AM
cooperdave cooperdave is offline
Neutral

Join Date: Sep 2010
Posts: 4
Feedback Score: 0 reviews
Gallery
Smile

Major thanks for posting this...A TREMENDOUS HELP !!
Reply With Quote
  #8
Old 04-03-2012, 04:03 AM
lizandrooo lizandrooo is offline
3rd Gear

Join Date: Dec 2009
Posts: 155
Feedback Score: 0 reviews
Gallery
I took apart the front end of my mini for observations, note taking and planning for future repairs. This write up helped a ton!

Quick question, when you loosen the belt and add tension to the belt with the tool, its just a set standard by the tension device on the car right ? like only 2 modes ? or does the belt tension tool let you apply the amount of tension ? From what I understood from this write up was that it was 'loose and tension' modes. Thanks for the write up!!!
Reply With Quote
  #9
Old 04-03-2012, 07:52 AM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by lizandrooo View Post
I took apart the front end of my mini for observations, note taking and planning for future repairs. This write up helped a ton!

Quick question, when you loosen the belt and add tension to the belt with the tool, its just a set standard by the tension device on the car right ? like only 2 modes ? or does the belt tension tool let you apply the amount of tension ? From what I understood from this write up was that it was 'loose and tension' modes. Thanks for the write up!!!
The belt tensioner always wants to tighten down the belt - so in that sense, it only has one "mode" - tighten. The tool just allows you to easily pry up the tensioner and insert a pin that holds the tensioner up while you remove the belt and put the new one in. Hopefully that makes sense!
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #10
Old 04-03-2012, 08:04 AM
Blackbomber's Avatar
Blackbomber Blackbomber is offline
5th Gear

Join Date: Dec 2010
Location: Central CT
Posts: 984
Feedback Score: 2 reviews
Gallery
Great writeup, and photos. I've done this a few times, and can say that the liner doesn't have to come out. I think that's a great move for someone who doesn't work on cars often, as you can see SO much better with it out. But I've just rolled mine on ramps and had at it. I actually made my tensioner tool, and use an allen wrench to lock out the tensioner. But I was in a hurry the first time I did it, and my generic 3/8" square drive serpentine tool wasn't "clocked" right to fully untension the belt. So I used my trolley jack and a strip of plywood to remove tension from the bottom so I could lock it out. The little belly pan needs to come off this way so you can slip the wood strip up there, but that's super easy. I'm not condoning this hack method, but if it saves your butt on the side of the road sometime, it might be good to know.
__________________
Reply With Quote
  #11
Old 04-03-2012, 08:17 AM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by Blackbomber View Post
Great writeup, and photos. I've done this a few times, and can say that the liner doesn't have to come out. I think that's a great move for someone who doesn't work on cars often, as you can see SO much better with it out. But I've just rolled mine on ramps and had at it. I actually made my tensioner tool, and use an allen wrench to lock out the tensioner. But I was in a hurry the first time I did it, and my generic 3/8" square drive serpentine tool wasn't "clocked" right to fully untension the belt. So I used my trolley jack and a strip of plywood to remove tension from the bottom so I could lock it out. The little belly pan needs to come off this way so you can slip the wood strip up there, but that's super easy. I'm not condoning this hack method, but if it saves your butt on the side of the road sometime, it might be good to know.
Funny you should mention the trolley jack method. First time I did this, I got a loaner serpentine belt tool probably just like the one you had - it didn't untension the belt enough. So I used the very method you described - jacked up the tensioner from below and inserted the pin.
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #12
Old 04-03-2012, 07:25 PM
valvashon's Avatar
valvashon valvashon is offline
4th Gear

Join Date: Jun 2009
Location: West Seattle
Posts: 435
Feedback Score: 0 reviews
Gallery
Blackbomber is correct- the inner fender liner does not have to come out to do this, but that's how I wrote it up after seeing one of the writeups on how to change out an "S" belt; the Bentley manual may have removing the liner in their instructions as well. This weekend I did some work on my wife's '03 and changed the belt while the car was up on ramps and did not remove the fender liner. I had the front of the car in "service mode" so there was a bit more room to work than usual but if you are experienced with how to change the belt or on the side of a busy highway you could easily change it from the top/bottom. Taking off the bottom splash guard if you could would be a big help.

Lizandrooo- gknorr is correct in the assessment about the belt movement. Take a second look at my pictures and you will see how much movement the tensioner tool has. Sort of mis-named, the tensioner tool takes away the belt tension caused by the tensioner.

Update- according to my independent parts place (hooray for Roxbury Auto Supply!) the Road Max belt is made by Gates so I will keep using them. The price is nice there and they are always in stock, although I don't plan to need another one anytime soon.

Also- there is a generic tensioner tool thing at Harbor Freight Tools but a quick look did not reveal how it could be used with a MINI. Has anybody else seen this?

Val
Reply With Quote
  #13
Old 04-03-2012, 07:45 PM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by valvashon View Post
Update- according to my independent parts place (hooray for Roxbury Auto Supply!) the Road Max belt is made by Gates so I will keep using them. The price is nice there and they are always in stock, although I don't plan to need another one anytime soon.

Also- there is a generic tensioner tool thing at Harbor Freight Tools but a quick look did not reveal how it could be used with a MINI. Has anybody else seen this?

Val
Only word of caution would the Road Max pictured is slightly too big. I learned the hard way - had a 6pk1040 Gatorback on for a while but heard occassional slipping when the belt was under heavy load. I switched it out for a 6pk1034 Gatorback and haven't had any slipping since. I do recommend trying to get the 6pk1033 size if at all possible. It's a hard size to find - none of the local parts stores had it - only sizes close to it.

The generic tensioner tool from Harbor Freight is the same one that blackbomber and I tried to use and doesn't allow you to move the tensioner enough to insert the the pin, so it's a no-go. You could use a 3/8" breaker bar if the head is thin enough to put in the tensioner though...
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #14
Old 04-07-2012, 04:03 PM
valvashon's Avatar
valvashon valvashon is offline
4th Gear

Join Date: Jun 2009
Location: West Seattle
Posts: 435
Feedback Score: 0 reviews
Gallery
Here's a cut and paste from my original post for anybody who missed it:

First, you need the special tool. Apparently a 3/8" drive socket wrench will do in a pinch, but I only had the Crafstman ratcheting type, and it would not fit between the tensioner and the frame (UPDATE: I went and got the "breaker bar" style of 3/8" drive wrench. Still kind of fat, but I was able to take it apart, slide the 3/8" square thing in the square hole and reassemble it- it was held together with a bolt. It does fit, but I was not able to get any leverage on it to move the tensioner arm. So I'm going to say you'd probably have to get the special tool to do the job). Here's some pictures of the tool courtesy of promini.com, where I got mine for $49.95 plus shipping. Shop around; at least one MINI parts supplier that shall remain nameless is selling it for $359.95 on a "Special Order" basis.

So my conclusion is that you can't use a 3/8" breaker bar because you can't get any leverage. I'd like to hear from anybody who has moved the tensioner this way.

Val
Reply With Quote
  #15
Old 04-07-2012, 06:27 PM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by valvashon View Post
Here's a cut and paste from my original post for anybody who missed it:

First, you need the special tool. Apparently a 3/8" drive socket wrench will do in a pinch, but I only had the Crafstman ratcheting type, and it would not fit between the tensioner and the frame (UPDATE: I went and got the "breaker bar" style of 3/8" drive wrench. Still kind of fat, but I was able to take it apart, slide the 3/8" square thing in the square hole and reassemble it- it was held together with a bolt. It does fit, but I was not able to get any leverage on it to move the tensioner arm. So I'm going to say you'd probably have to get the special tool to do the job). Here's some pictures of the tool courtesy of promini.com, where I got mine for $49.95 plus shipping. Shop around; at least one MINI parts supplier that shall remain nameless is selling it for $359.95 on a "Special Order" basis.

So my conclusion is that you can't use a 3/8" breaker bar because you can't get any leverage. I'd like to hear from anybody who has moved the tensioner this way.

Val
There's a post somewhere on NAM where Way from Way Motor Works mentions he just uses a 3/8" for the job. I think it would have to be a ratcheting one though, so you could get the angle right for enough leverage. The ratchet end would also have to be pretty thin to fit in that gap between the tensioner and the body of the car.

I'm with you - the special tool is probably the easiest way to lift the tensioner (and a sure way to prevent multiple trips to the tool store!). The next time I have to do this, I'll likely be buying it. eBay has quite a few listed, all for about $50 too.
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #16
Old 04-19-2012, 11:33 AM
RiesigMini RiesigMini is offline
1st Gear

Join Date: Jul 2011
Location: Inland Empire, CA
Posts: 11
Feedback Score: 0 reviews
Gallery
I can't seem to find this fabled belt at any of my local auto stores, I was able to find one from Gates that's 41 1/4".

Do any of you think this would pose a problem as to a correct fitting?
__________________
'05 Liquid Yellow R50
Megan Racing OERS Series Catback Exhaust
aFe Magnum Force CAI
SprintBooster
Reply With Quote
  #17
Old 04-19-2012, 12:06 PM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
Quote:
Originally Posted by RiesigMini View Post
I can't seem to find this fabled belt at any of my local auto stores, I was able to find one from Gates that's 41 1/4".

Do any of you think this would pose a problem as to a correct fitting?
That's going to be too long and you'll likely get some belt slippage. Length should be 1033mm (that comes from the 6PK1033) or 40.67 inches. Most places don't carry that exact size, but as close to it as you can get is what you want. I'm using a Goodyear Gatorback that is 1034mm right now with no issues. I did get some slippage with a 1040mm.

If you can wait for shipping, Partsgeek.com has the OEM Contitech belt for about $20 shipped. If I was switching mine today, that's what I would use.
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
  #18
Old 05-09-2012, 08:02 AM
valvashon's Avatar
valvashon valvashon is offline
4th Gear

Join Date: Jun 2009
Location: West Seattle
Posts: 435
Feedback Score: 0 reviews
Gallery
I've put the 1039 belt on both of the MINIs in the family and haven't had any slipping problems. I went with that because I couldn't find a good measurement or online site with the original belt, so I just brought it in and had it measured. If the correct one has the length of 1033 I will go with that next time.

Val
Reply With Quote
  #19
Old 05-09-2012, 08:17 AM
gknorr gknorr is offline
5th Gear

Join Date: Jun 2010
Location: Towson, MD
Posts: 719
Feedback Score: 1 reviews
Gallery
The 1040mm one I had on only slipped a little when first putting the old CVT automatic into "drive" on cold mornings.

My guess is with a manual, this would never happen - as you've experienced.

Also, realoem.com and penskeparts.com are great references for finding parts and specs. That's where I was finally able to verify 6PK1033 is the OEM size.
__________________

2003 MC BRG w/'06 Getrag 6-speed (formerly CVT) - 143000 miles

www.geoffknorr.com
Reply With Quote
Old 05-09-2012, 08:17 AM



Reply

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump


MINI CooperMINI Cooper PrivacyMINI Cooper Terms of UseMINI Cooper Guidelines MINI Cooper Advertising The North American MINI Cooper Community
  MINI Cooper news, forums, FAQs, and reviews for enthusiasts and owners of the North American MINI Cooper
All times are GMT -7. The time now is 03:43 AM.
 Copyright © 2002-2008 North American Motoring. All Rights Reserved.     Powered by vBulletin and vBulletin Plugins by Drive Thru Online, Inc.

All times are GMT -7. The time now is 03:43 AM.



Powered by vBulletin and vBulletin Plugins by Drive Thru Online, Inc.
North American Motoring is an independently operated web site supporting MINI owners and enthusiastsworldwide. As such it has no official relationship with MINI USA, BMW AG, or BMW of North America.All original artwork and design is Copyright © 2002-2004 North American Motoring.
Admin Account Passwords

Search Engine Friendly URLs by vBSEO 3.5.2
