Hi, great write up, really useful, thank you.
Apologies for reviving an old (but still valid) thread, but the photos in the original do not display for me at all. If I click on the broken link it tries to open the photo in a pop up form but it never appears.
An example of the url of one of the photos:
https://www.northamericanmotoring.co...t_kit_pack.jpg
If I stick that directly in my browser it thinks about it for a few seconds and then just takes me to the forum main page.
Any idea how we can view the photos?
Edit:
I found the photos in OaklandMini's photo gallery here:
https://www.northamericanmotoring.com/g/album/3782015/2
Apologies for reviving an old (but still valid) thread, but the photos in the original do not display for me at all. If I click on the broken link it tries to open the photo in a pop up form but it never appears.
An example of the url of one of the photos:
https://www.northamericanmotoring.co...t_kit_pack.jpg
If I stick that directly in my browser it thinks about it for a few seconds and then just takes me to the forum main page.
Any idea how we can view the photos?
Edit:
I found the photos in OaklandMini's photo gallery here:
https://www.northamericanmotoring.com/g/album/3782015/2
Last edited by kevinherring; 10-15-2016 at 05:21 AM. Reason: new info
#77
3rd Gear
iTrader: (1)
Join Date: Nov 2009
Location: Warsaw, IN
Posts: 260
Likes: 0
Received 0 Likes
on
0 Posts
Kevin,
Message me your email address and I'll send you a pdf of my instructions and pics from this post....
Thanks,
Nate
Message me your email address and I'll send you a pdf of my instructions and pics from this post....
Thanks,
Nate
Hi, great write up, really useful, thank you.
Apologies for reviving an old (but still valid) thread, but the photos in the original do not display for me at all. If I click on the broken link it tries to open the photo in a pop up form but it never appears.
An example of the url of one of the photos:
https://www.northamericanmotoring.co...t_kit_pack.jpg
If I stick that directly in my browser it thinks about it for a few seconds and then just takes me to the forum main page.
Any idea how we can view the photos?
Edit:
I found the photos in OaklandMini's photo gallery here:
https://www.northamericanmotoring.com/g/album/3782015/2
Apologies for reviving an old (but still valid) thread, but the photos in the original do not display for me at all. If I click on the broken link it tries to open the photo in a pop up form but it never appears.
An example of the url of one of the photos:
https://www.northamericanmotoring.co...t_kit_pack.jpg
If I stick that directly in my browser it thinks about it for a few seconds and then just takes me to the forum main page.
Any idea how we can view the photos?
Edit:
I found the photos in OaklandMini's photo gallery here:
https://www.northamericanmotoring.com/g/album/3782015/2
#78
Hi, great write up, really useful, thank you.
Apologies for reviving an old (but still valid) thread, but the photos in the original do not display for me at all. If I click on the broken link it tries to open the photo in a pop up form but it never appears.
An example of the url of one of the photos:
https://www.northamericanmotoring.co...t_kit_pack.jpg
If I stick that directly in my browser it thinks about it for a few seconds and then just takes me to the forum main page.
Any idea how we can view the photos?
Edit:
I found the photos in OaklandMini's photo gallery here:
https://www.northamericanmotoring.com/g/album/3782015/2
Apologies for reviving an old (but still valid) thread, but the photos in the original do not display for me at all. If I click on the broken link it tries to open the photo in a pop up form but it never appears.
An example of the url of one of the photos:
https://www.northamericanmotoring.co...t_kit_pack.jpg
If I stick that directly in my browser it thinks about it for a few seconds and then just takes me to the forum main page.
Any idea how we can view the photos?
Edit:
I found the photos in OaklandMini's photo gallery here:
https://www.northamericanmotoring.com/g/album/3782015/2
#79
Mid install here (got round to it at last!). Thanks to Nate for the instructions on the difficult location to install the switches. For anyone else reading this, I suggest you buy a "Titanium Step Cone Drill Bit Hole Cutter 4-32mm" to drill the hole - it will make your life much easier.
I have two questions for the wiring. My wiring lengths seem to be a bit different to the photos here, but:
1. The instructions say that 10 amps is required PER SEAT, yet people seem to be combining both so a single 10 amp fuse via the add-a-circuit. Should I use 2 separate add-a-circuits?
2. Which route did people choose for the red wire to the fuse box? Under the carpet in the foot-well or round the back of the pedals? I can't see any mention of the route taken.
Thanks
Kevin
I have two questions for the wiring. My wiring lengths seem to be a bit different to the photos here, but:
1. The instructions say that 10 amps is required PER SEAT, yet people seem to be combining both so a single 10 amp fuse via the add-a-circuit. Should I use 2 separate add-a-circuits?
2. Which route did people choose for the red wire to the fuse box? Under the carpet in the foot-well or round the back of the pedals? I can't see any mention of the route taken.
Thanks
Kevin
#80
Retro fit genuine heated seats with aftermarket wiring
I've installed a few trim upgrades on my UK spec mini that have included leather seats. These seats have heated elements in them, but I don't have heated seats programmed into my mini. So what I wanted to find out was whether I can use the existing wiring within the heated seats, and mate it with an aftermarket switch and relay to activate them? I was also considering adapting my control panel to use the genuine switches if that was even possible??
Any ideas?
Thanks in advance,
Chris
Any ideas?
Thanks in advance,
Chris
#81
3rd Gear
iTrader: (1)
Join Date: Nov 2009
Location: Warsaw, IN
Posts: 260
Likes: 0
Received 0 Likes
on
0 Posts
I've installed a few trim upgrades on my UK spec mini that have included leather seats. These seats have heated elements in them, but I don't have heated seats programmed into my mini. So what I wanted to find out was whether I can use the existing wiring within the heated seats, and mate it with an aftermarket switch and relay to activate them? I was also considering adapting my control panel to use the genuine switches if that was even possible??
Any ideas?
Thanks in advance,
Chris
Any ideas?
Thanks in advance,
Chris
#82
The following users liked this post:
OaklandMini (01-07-2018)
#83
Just spent about 45 mins updating each link for you.
Stupid NAM changed the gallery and didn't auto-update links.
Should be all set now.
I no longer have my '08 Mini, but doing this install was fun. Hope this helps anyone considering this mod.
Stupid NAM changed the gallery and didn't auto-update links.
Should be all set now.
I no longer have my '08 Mini, but doing this install was fun. Hope this helps anyone considering this mod.
#84
3rd Gear
iTrader: (1)
Join Date: Nov 2009
Location: Warsaw, IN
Posts: 260
Likes: 0
Received 0 Likes
on
0 Posts
I still have my '09 JCW (on which I did this install). The car and I moved to Scottsdale, Arizona this past year, so I don't use these heated seats as much. But, they still work (and look) great!
#85
Well I jumped head first into this install, this article helped out allot thank you!!! I did it on a R53, the process was mostly the same, Minus my upper potion was glued to the foam, that made it a little bit more difficult. The install took me about 8 hours and I did almost say screw it half way through the install, but I pressed on and glad I did. Once again NMM helped me out THANK YOU.
The following 2 users liked this post by ssean72:
ECSTuning (04-03-2018),
OaklandMini (04-03-2018)
#86
Wow, that's awesome looks OEM in the R53 also.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#87
Well I jumped head first into this install, this article helped out allot thank you!!! I did it on a R53, the process was mostly the same, Minus my upper potion was glued to the foam, that made it a little bit more difficult. The install took me about 8 hours and I did almost say screw it half way through the install, but I pressed on and glad I did. Once again NMM helped me out THANK YOU.
I too almost scrapped the entire thing mid-way, but it's one of those mods that once done, totally changes the car for the better.
#88
Someone needs to do the rear heated seats in a R60/R61 or try the fronts in an F56.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#90
Don't have an F56 here yet, but we do have an R60 from one of the employee's cars. We carry the seat heaters now, so maybe in the future
https://www.ecstuning.com/Search/SiteSearch/IBHS1/
My R52 and R58 I have seat heaters factory. Maybe I can see about my R52 rear seats, that would be cool for cold nights with the top down and 4 people.
https://www.ecstuning.com/Search/SiteSearch/IBHS1/
My R52 and R58 I have seat heaters factory. Maybe I can see about my R52 rear seats, that would be cool for cold nights with the top down and 4 people.
__________________
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
MINI Guru/ MINI Owner Since 2004 | NEW Lifetime Part Replacement | Local Pickup
Milltek | Genuine MINI | Forge Motorsport | NM Engineering | ECS Performance | M7 Speed
Customer Service Hours: 8am-8pm EST|Sales Team Hours: 8am-11pm | SAT 10am-7pm 800.924.5172
#91
Don't have an F56 here yet, but we do have an R60 from one of the employee's cars. We carry the seat heaters now, so maybe in the future
My R52 and R58 I have seat heaters factory. Maybe I can see about my R52 rear seats, that would be cool for cold nights with the top down and 4 people.
My R52 and R58 I have seat heaters factory. Maybe I can see about my R52 rear seats, that would be cool for cold nights with the top down and 4 people.
I don't even own a Mini anymore, but keep this thread going and have updated all the photo links recently (after they were deleted) to assist others. Feels great to hear when people do this monster mod based on this thread and I do this to assist people and not to generate sales for someone else. You should create your own thread if you'd like to push your own sales.
#92
I know this is a very old thread, but I just completed the job of putting seat heaters in my '07 Cooper S and want to say a huge THANK YOU to both OaklandMini and anitin1 for their postings. OaklandMini's posts were extremely well written and documented with pictures, and anitin1 was very helpful via a couple of direct communications to obtain his procedure.. Both seats will now be much more comfortable during winter driving here in Pennsylvania. I bought the 1 owner car with 31K miles on it out of FL, last spring, so of course it's original owner had no need for seat heaters. We do!

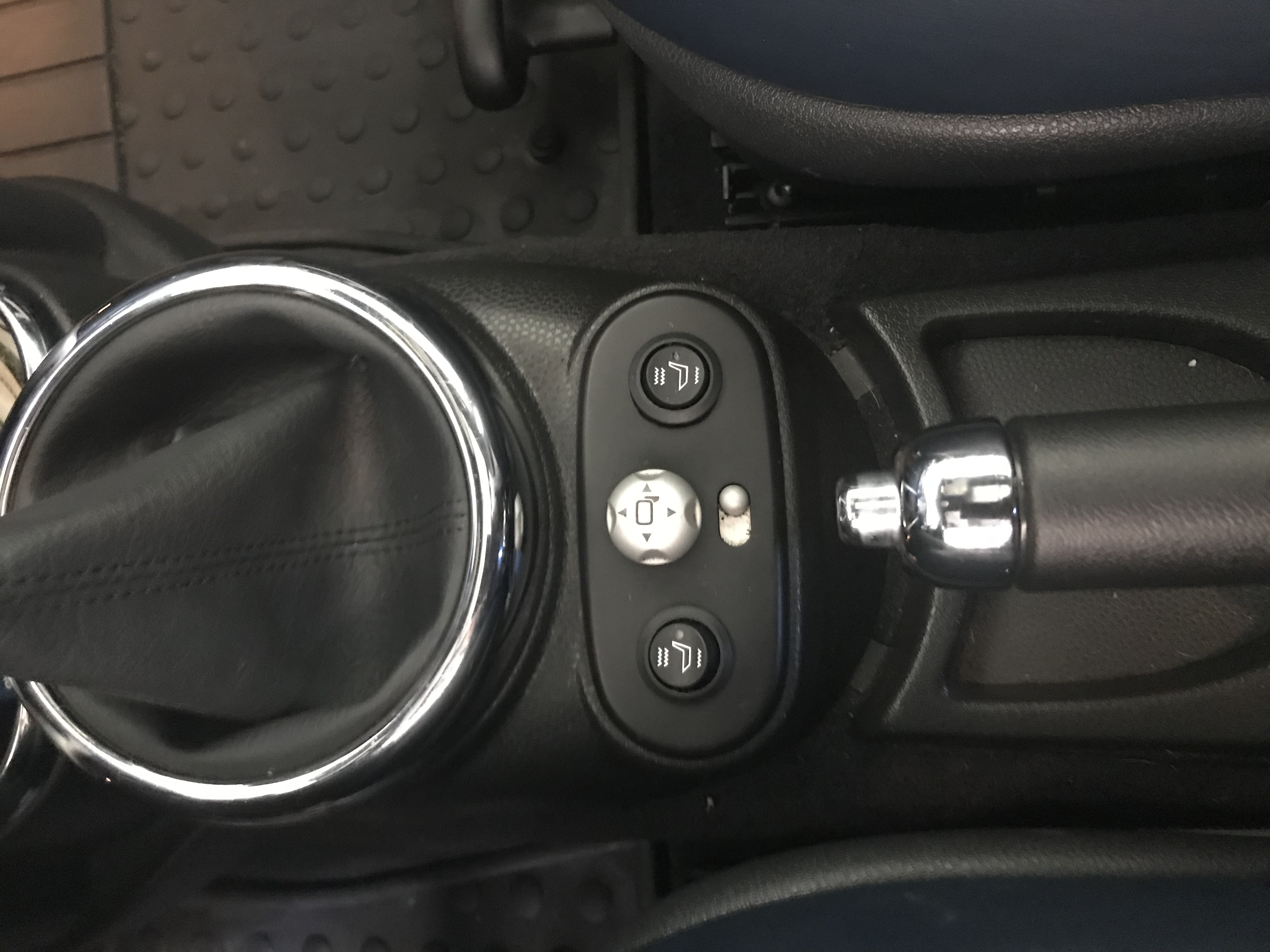

I installed the switches in the same place as anitin1 - in front of the parking brake lever. They look great and are readily accessible there. For anyone who might be doing this in the future, maybe I can help by giving the exact location of the holes I drilled. They were exactly 21.5mm on either side of the centerline of the console surrounding the shifter, and down 34.5mm from the ridge at the top of the shifter surround. I drilled a 1/8" pilot hole at those spots, then used a 20mm Forstner bit to make a very clean hole. If it makes a difference, and I don't think it does, my car has the automatic transmission shifter. There is a lot of room between where the holes were drilled and the shifter 'box'.
