R56 Rear fog light does not work completley
I finally got my parts and installed the rear fog lights.
I activated NEBEL_SCHLUSSLEUCHTE in IHKS and added $5AA to the VO in CAS and FRM modules, but only the left lights turns on.
I switched the right fog light to the left side see if it was the right light or socket, but it worked fine when connected to the left side cable.

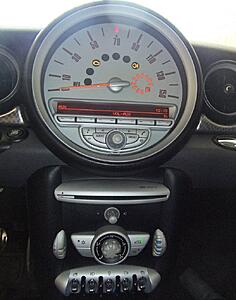

Not sure if it is normal or not, but in the control panel a yellow light turns on instead of green, when the rear fog lights are turned on.
Is it possible I have a bad wire on the right side or do I need to add someting else in NCSExpert?
I have a 2008 R56 Mini Cooper S.
I activated NEBEL_SCHLUSSLEUCHTE in IHKS and added $5AA to the VO in CAS and FRM modules, but only the left lights turns on.
I switched the right fog light to the left side see if it was the right light or socket, but it worked fine when connected to the left side cable.
Not sure if it is normal or not, but in the control panel a yellow light turns on instead of green, when the rear fog lights are turned on.
Is it possible I have a bad wire on the right side or do I need to add someting else in NCSExpert?
I have a 2008 R56 Mini Cooper S.
Last edited by Papote; 12-16-2012 at 09:13 AM. Reason: Grammar
#2
#3
#4
I got it working!!
I was given a tip: "SG_Code the FRM & IHKS modules using Expert profile"
So I went into NCSExpert and emptied out the FSW_PSW.MAN file. Went into the FRM and IHKS modules and changed the job to "SG_CODIEREN_OHNE_FG_AEI" and Executed.
Even my alarm retrofit (Don't have the hardware yet, but had gotten the heartbeat tach light to work) flashes the lights if I open the door from the inside thru the handle after having activated the "alarm".
Not sure what that job does, but seemed to get the job done.
I was given a tip: "SG_Code the FRM & IHKS modules using Expert profile"
So I went into NCSExpert and emptied out the FSW_PSW.MAN file. Went into the FRM and IHKS modules and changed the job to "SG_CODIEREN_OHNE_FG_AEI" and Executed.
Even my alarm retrofit (Don't have the hardware yet, but had gotten the heartbeat tach light to work) flashes the lights if I open the door from the inside thru the handle after having activated the "alarm".
Not sure what that job does, but seemed to get the job done.
#6
Hi coders,
I had the same problem as Papote. I could only get the left fog light to work on my 2013 MCS There are TWO attributes that have to be changed to aktiv in IHKS:
NEBEL_SCHLUSSLEUCHTE (if set by itself, activates the left rear fog light.)
NSL_FUNKTION_SZM
You will still want to change the VO code. (Again $5AA, that seems to be standard across all of BMW.) Changing the VO code will insure your fog lights still work the next time the dealer updates your car's software.
I had the same problem as Papote. I could only get the left fog light to work on my 2013 MCS There are TWO attributes that have to be changed to aktiv in IHKS:
NEBEL_SCHLUSSLEUCHTE (if set by itself, activates the left rear fog light.)
NSL_FUNKTION_SZM
You will still want to change the VO code. (Again $5AA, that seems to be standard across all of BMW.) Changing the VO code will insure your fog lights still work the next time the dealer updates your car's software.
Last edited by guason_jin; 07-30-2014 at 10:33 PM. Reason: type
#7
Sorry, there are some edits in FRM as well:
MIND_ANZ_ZYKL_TIPP_BLK_1 wert_02
NSL_EINSEITIG_VERBAUT_C34 beide_aktiv
KALTUE_NSL_L_M2_51 aktiv
WARMUE_NSL_L_M2_51 aktiv
CC_MELDUNG_NSL_L_3R wert_01
KALTUE_NSL_R_M1_10 aktiv
WARMUE_NSL_R_M1_10 aktiv
CC_MELDUNG_NSL_R_3R wert_01
Basically, I'm comparing the trace files from before and after the VO code was updated and the FRM and IHKS modules were processed with a blank MAN file.
MIND_ANZ_ZYKL_TIPP_BLK_1 wert_02
NSL_EINSEITIG_VERBAUT_C34 beide_aktiv
KALTUE_NSL_L_M2_51 aktiv
WARMUE_NSL_L_M2_51 aktiv
CC_MELDUNG_NSL_L_3R wert_01
KALTUE_NSL_R_M1_10 aktiv
WARMUE_NSL_R_M1_10 aktiv
CC_MELDUNG_NSL_R_3R wert_01
Basically, I'm comparing the trace files from before and after the VO code was updated and the FRM and IHKS modules were processed with a blank MAN file.
