  #151
Old 09-27-2013, 08:54 AM
Manny_cooper Manny_cooper is offline
2nd Gear

Join Date: Aug 2012
Posts: 134
Feedback Score: 2 reviews
Gallery
Y'all are so frikin bright! Lol....still waiting for my injectors. I will leave feedback once I get and install them.
Reply With Quote
  #152
Old 09-28-2013, 08:34 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Quote:
Originally Posted by Manny_cooper View Post
Y'all are so frikin bright! Lol....still waiting for my injectors. I will leave feedback once I get and install them.
Once you get them, let us know the part # listed on the side. It should be 0280158096. As of right now, that is the best JCW 380 alternative for our cars. Stay tuned, as I've got a good line on several sets and will sell them to anyone interested at cost.
Reply With Quote
  #153
Old 09-30-2013, 05:34 AM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
Quote:
Originally Posted by TheBigChill View Post
Once you get them, let us know the part # listed on the side. It should be 0280158096. As of right now, that is the best JCW 380 alternative for our cars. Stay tuned, as I've got a good line on several sets and will sell them to anyone interested at cost.
Incidentally, the new production method we're implementing for the old style EV1-EV3 injectors will allow production of the DEKA 1D short injector as well. Unfortunately, production will likely be over a year from now as we get in mfg equipment and parts converted over. Once we get to that point, any aftermarket company will be able to place a custom order for any flow/spray pattern that can be produced.
__________________
2012 JCW Clubman
Reply With Quote
  #154
Old 09-30-2013, 07:37 AM
Raven Mocker's Avatar
Raven Mocker Raven Mocker is offline
3rd Gear

Join Date: Oct 2010
Location: PacificNorthWest
Posts: 278
Feedback Score: 0 reviews
Gallery
Garage
Quote:
Originally Posted by ignitionmodule View Post
Incidentally, the new production method we're implementing for the old style EV1-EV3 injectors will allow production of the DEKA 1D short injector as well. Unfortunately, production will likely be over a year from now as we get in mfg equipment and parts converted over. Once we get to that point, any aftermarket company will be able to place a custom order for any flow/spray pattern that can be produced.
So then in about a year we should have better product thats going to give us proper, if not high quality spray, and be more tune friendly for our R53's?

__________________
R.I.P. 2005 MCS BRG w/black top.
Reply With Quote
  #155
Old 09-30-2013, 08:33 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
^ Those things already exist. You just have to be willing to step outside your comfort range, and try something that isn't sold by a MINI vendor with a made-up name and scratched off part numbers.


Regarding body size comparisons between our Siemens Deka units and "standard" body EV14's: The base and JCW R53 injectors are 68mm total and about 54mm between O-rings. EV14 standard length is 65mm overall, and 49mm between O-rings. Our Siemens Deka units are larger in every respect when compared to standard sized EV14 unit.

Click the image to open in full size.
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot
Reply With Quote
  #156
Old 09-30-2013, 08:52 AM
Manny_cooper Manny_cooper is offline
2nd Gear

Join Date: Aug 2012
Posts: 134
Feedback Score: 2 reviews
Gallery

Whoever wants to chime in and experiment, go ahead. Just sharing with all of you.
Reply With Quote
  #157
Old 09-30-2013, 09:28 AM
vietnameeh vietnameeh is offline
4th Gear

Join Date: May 2012
Posts: 378
Feedback Score: 0 reviews
Gallery
Or you can put your injectors in and chime in
Reply With Quote
  #158
Old 09-30-2013, 09:52 AM
Manny_cooper Manny_cooper is offline
2nd Gear

Join Date: Aug 2012
Posts: 134
Feedback Score: 2 reviews
Gallery
I will, they will get here wednesday and the plug converters on thursday. Gotta wait my friend. I'm surprised not many have taken the initiative lol. Anyways I will take pics and post them here once installed.

Quote:
Originally Posted by vietnameeh View Post
Or you can put your injectors in and chime in
Reply With Quote
  #159
Old 09-30-2013, 10:10 AM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
Mostly true but most people are reluctant to do this.

There's a British company out there making adapters and o-ring spacers for injector applications, but our marketing department takes a pretty hard line about "OE appearance" which is why we don't put things in the box that work but don't look the same. They have to "look" like the OE part as well.

My point from above is we will be able to produce the Deka D1 short outline in about a year, but it will be based (internally) on our G injector design. From just a consumer repair standpoint, this is a good project because we currently buy the injector from Delphi. For the performance market, a vendor would have to request a specific flow and spray pattern and we be able to produce to order, likely in a different color just to keep parts separate.

To your point about using taller injectors, I completely agree provided there's clearance under the hood and proper spacers are fabricated. Personally I'd rather see the entire rail on spacers rather than injector cup spacers. That just adds another possible leak path.


Quote:
Originally Posted by TheBigChill View Post
^ Those things already exist. You just have to be willing to step outside your comfort range, and try something that isn't sold by a MINI vendor with a made-up name and scratched off part numbers.


Regarding body size comparisons between our Siemens Deka units and "standard" body EV14's: The base and JCW R53 injectors are 68mm total and about 54mm between O-rings. EV14 standard length is 65mm overall, and 49mm between O-rings. Our Siemens Deka units are larger in every respect when compared to standard sized EV14 unit.

Click the image to open in full size.
__________________
2012 JCW Clubman
Reply With Quote
  #160
Old 09-30-2013, 10:14 AM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
Technically yes. I plan on matching the OE flows and spray patterns, but the tuner version would have to be special ordered by a perfomance company.

Quote:
Originally Posted by Raven Mocker View Post
So then in about a year we should have better product thats going to give us proper, if not high quality spray, and be more tune friendly for our R53's?

__________________
2012 JCW Clubman
Reply With Quote
  #161
Old 09-30-2013, 10:39 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Agreed; having the rail on spacers is preferred for taller injectors, reducing the likelihood of leaks compared to using cups on the tips. Also, when you use cups, you change the area which the injector will actually effectively spray by backing the injector tip out of the manifold. Usually negligible, but worth noting.

Maybe I misread somewhere, but my point is that Bosch EV14's in standard length are actually shorter overall than our current OEM injectors. They mount perfectly fine, and only need special attention when using USCAR to Jetronic adapters (intercooler interferes with adapter).

I suppose that my point is this: I believe our fuel rail and manifold can accept any Bosch EV6 and EV14 injector in standard size, and not require cups, spacers, or "anti-spacers". I believe anything in "long" form will require rail spacers, and anything in "short" form will require different hardware to secure the fuel rail.

Again, forgive the rambling if I get off-topic. I just want to continually add info to this thread, as I plan on writing an R53 injector manifesto :0)
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot
Reply With Quote
  #162
Old 09-30-2013, 02:29 PM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
Quote:
Originally Posted by dhabutcher View Post
Got my JCW injectors out at lunch, Both set boxed up ready to ship
I haven't done much research on injectors until last night I found some intresting options. I was a Tech at a GM dealer for 4 years I should had been looking then

USPS. 9114901159818153169242
These are in the lab. Should get them back in a few days with data.

The flow curve, btw, is constructed but you have to know the dynamic flow in order to do it.
__________________
2012 JCW Clubman
Reply With Quote
  #163
Old 10-01-2013, 01:44 PM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
Gen 1 Cooper and JCW injector flow data

Just the flow at the moment. Our tech left off the spray pattern.

I'll have to get the admin to post the Excel file if anyone wants it over the pdf. Probably wait until the spray pattern data to consolidate into 1 file.

All values are grams/min heptane.
Attached Files
File Type: pdf mini_inj_flow.PDF (59.5 KB, 25 views)
__________________
2012 JCW Clubman
Reply With Quote
  #164
Old 10-01-2013, 07:58 PM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Quote:
Originally Posted by ignitionmodule View Post
Just the flow at the moment. Our tech left off the spray pattern.

I'll have to get the admin to post the Excel file if anyone wants it over the pdf. Probably wait until the spray pattern data to consolidate into 1 file.

All values are grams/min heptane.

Right on. Thanks for doing that, it's much appreciated.

For those who rather avoid the math, results as follows, converted to cc/min.

JCW 380cc @ 3 bar: 371cc
JCW 380cc @ 3.5 bar: 399cc

Base R53 330cc @ 3 bar: 347cc
Base R53 330cc @ 3.5 bar: 373cc


At this point, two things are clear. 1) As suspected, like essentially all other injectors out there, ours also got their names based on their static flow rates at 3bar, not 3.5. This is industry standard, and helps us shop for alternatives with more certainty. 2) The common term "330cc" used to describe base R53 injectors is quite a bit off. The test performed here also matches WitchHunter's actual flow data, which states that our base R53 injectors actually flow 348cc @ 3 bar, not 330. They were right.

I stand by my recommendation that Genesis 380cc, and Bosch Part# 0280158096, are the best alternatives to pricey JCW 380cc units. This is based on their impedance, flow rating, body size, spray pattern, and modern build and operating characteristics. I can provide a list of cars that the above Bosch part is found in, should anyone be interested. I will be running these in my car next week.

Thanks again, Ignition. We know for a fact that the factory spray pattern is twin beam, but whether it's 15 or 20 degree is yet to be seen.
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot
Reply With Quote
  #165
Old 10-02-2013, 05:08 AM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
I'll probably have spray by the end of the day, cone angle, separation angle and orientation.

When we commonize parts here for the aftermarket, we can get away with a narrower rather than a wider cone. Widening the cone without changing the fuel map (or intake runner geometry for that matter) usually results in wall wetting, which is bad.

On flow variation, you should expect no more than +/- 5%. Injectors with a lot of mileage might be outside that range.

Also, now that you have the dynamic flow, you can build the real flow curve. I will try to get to that this morning to see if there's a response difference beteen these two injectors.

Quote:
Originally Posted by TheBigChill View Post
Right on. Thanks for doing that, it's much appreciated.

For those who rather avoid the math, results as follows, converted to cc/min.

JCW 380cc @ 3 bar: 371cc
JCW 380cc @ 3.5 bar: 399cc

Base R53 330cc @ 3 bar: 347cc
Base R53 330cc @ 3.5 bar: 373cc


At this point, two things are clear. 1) As suspected, like essentially all other injectors out there, ours also got their names based on their static flow rates at 3bar, not 3.5. This is industry standard, and helps us shop for alternatives with more certainty. 2) The common term "330cc" used to describe base R53 injectors is quite a bit off. The test performed here also matches WitchHunter's actual flow data, which states that our base R53 injectors actually flow 348cc @ 3 bar, not 330. They were right.

I stand by my recommendation that Genesis 380cc, and Bosch Part# 0280158096, are the best alternatives to pricey JCW 380cc units. This is based on their impedance, flow rating, body size, spray pattern, and modern build and operating characteristics. I can provide a list of cars that the above Bosch part is found in, should anyone be interested. I will be running these in my car next week.

Thanks again, Ignition. We know for a fact that the factory spray pattern is twin beam, but whether it's 15 or 20 degree is yet to be seen.
__________________
2012 JCW Clubman
Reply With Quote
  #166
Old 10-02-2013, 05:53 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Absolutley.

If you deviate too far from the original cone and separation angle, you can start having idle and tuning issues due to fuel being sprayed on the manifold port's central bridge or "exterior" walls. Though this is mainly an issue when poor atomization is also present with the extreme change in cone/separation angle. There are some vehicles out there who use multi-port heads, but from the factory run injectors which use a very wide, single cone w/ great atomization. These spray a bit of fuel on the central bridge, but with the large majority of fuel being well atomized and distributed well over the intake valves, tuning, idle, and AFR stability is not an issue.

I'm still very interested to see the spray pattern analysis of our OEM injectors.
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot
Reply With Quote
  #167
Old 10-02-2013, 03:50 PM
Manny_cooper Manny_cooper is offline
2nd Gear

Join Date: Aug 2012
Posts: 134
Feedback Score: 2 reviews
Gallery
Fuel Injectors 0280158096

Hey guys,

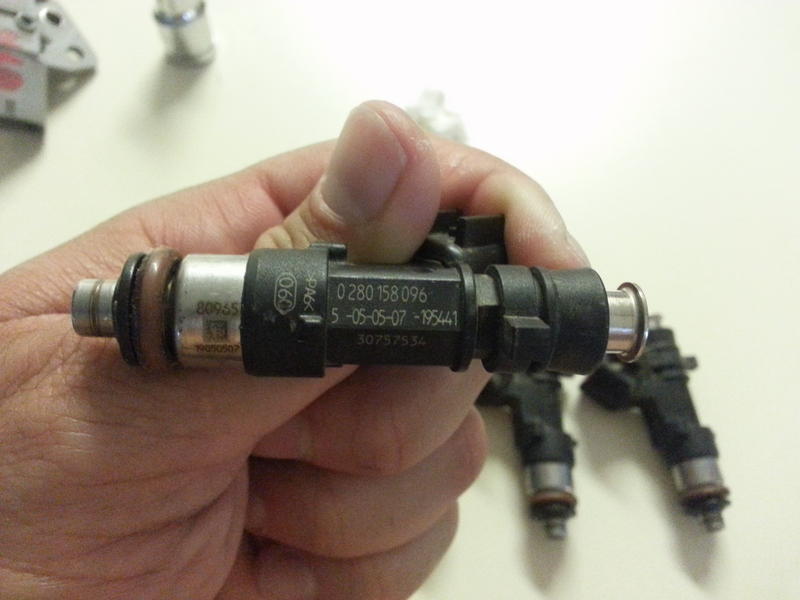

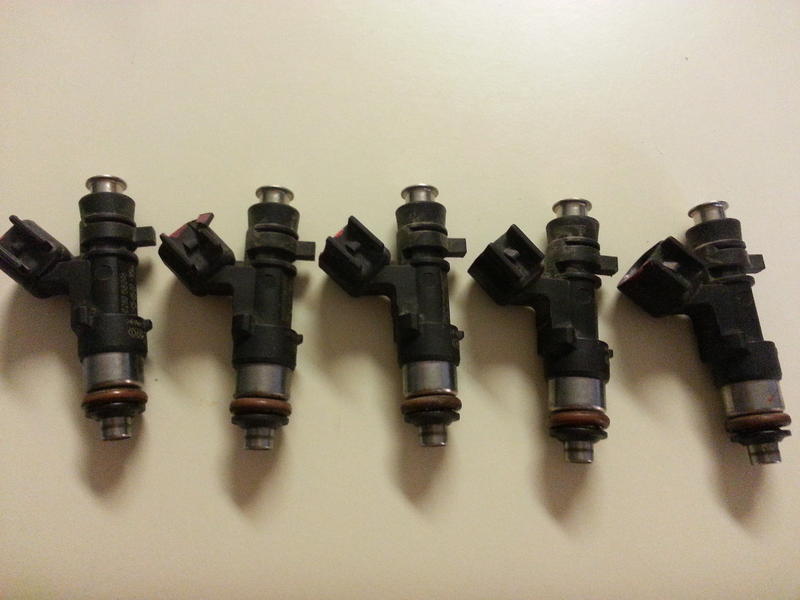

Got the fuel injectors today. Thought I might post some pics so you can have a better look at them. Anyways, I will have an extra one laying around if you decide to run some tests. I'm getting them cleaned at a local recommended shop. Hopefully by this weekend I can say if they work or not. I'm still waiting for the connector adapters.

Manny
Attached Thumbnails
Standard motor 380CC injectors-20131002_174008.jpg   Standard motor 380CC injectors-20131002_173834.jpg
Reply With Quote
  #168
Old 10-02-2013, 07:58 PM
vietnameeh vietnameeh is offline
4th Gear

Join Date: May 2012
Posts: 378
Feedback Score: 0 reviews
Gallery
i dont know much but i wanted to say i notice the tops dont have o rings?
__________________
03 MCS
Dark Silver: Koni yellow, Swift Spec R, 23mm RSB, Noltec plates, Donald arms. Alta Intake, Alta Exhaust, Alta 15%, Alta Crank 2%, Genesis 380cc injectors, JCW-210 ECU TUNE
Soon: Header
Future: OBX LSD
Reply With Quote
  #169
Old 10-03-2013, 05:25 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Those are the correct injectors

Yes, the tops need O-rings. They're so cheap, don't reuse your stock ones unless they're in great shape. Also, seeing as though you'll likely be using the adapters that I recommended, you're going to have slight clearance issues with the intercooler mounting after the injectors are installed. Talk to Vietnameeh about what he did to give a bit more room; I believe a couple small washers do the trick just fine. To avoid the interference, you can use a different type of harness adapter. Instead of a one-piece, they sell two piece units with a small section of wire in between the two connectors.

Like these:
Click the image to open in full size.
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot

Last edited by TheBigChill; 10-03-2013 at 05:37 AM.
Reply With Quote
  #170
Old 10-03-2013, 06:20 AM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
Spray pattern

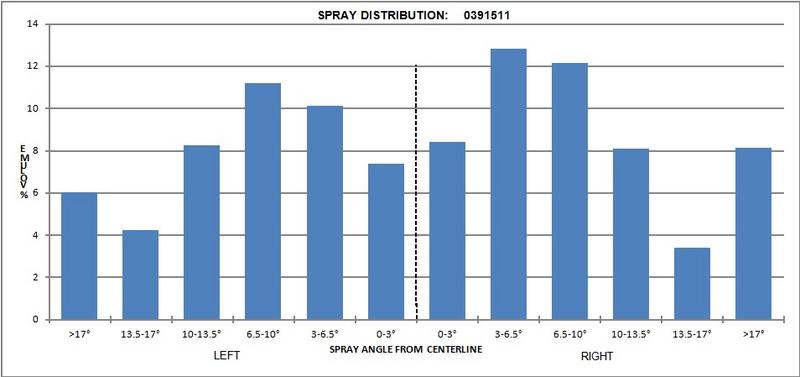

Injector sprays done. Lab says the JCW may actually be a cone rather than twin spray.
Click the image to open in full size.
Click the image to open in full size.
Attached Thumbnails
Standard motor 380CC injectors-0391511-spray.jpg   Standard motor 380CC injectors-1521390-spray.jpg
__________________
2012 JCW Clubman
Reply With Quote
  #171
Old 10-03-2013, 08:50 AM
Manny_cooper Manny_cooper is offline
2nd Gear

Join Date: Aug 2012
Posts: 134
Feedback Score: 2 reviews
Gallery
Quote:
Originally Posted by TheBigChill View Post
Those are the correct injectors

Yes, the tops need O-rings. They're so cheap, don't reuse your stock ones unless they're in great shape. Also, seeing as though you'll likely be using the adapters that I recommended, you're going to have slight clearance issues with the intercooler mounting after the injectors are installed. Talk to Vietnameeh about what he did to give a bit more room; I believe a couple small washers do the trick just fine. To avoid the interference, you can use a different type of harness adapter. Instead of a one-piece, they sell two piece units with a small section of wire in between the two connectors.

Like these:
Click the image to open in full size.


Ohh yeah I have the O-rings, I took em out to verify they were not dryrotten or bad, seem to be good. I'll have to use some washers because I got the one-piece adapters, no biggie. Thanks!
Reply With Quote
  #172
Old 10-03-2013, 08:52 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Very interesting. Not quite sure what to make of the graphs, honestly. When we say "15 or 20 degree spray pattern", we're talking about the angle which exists between the two interior limits of the spray beams. Viewing the Mynes video below, the 15 or 20 degree angle looks to be accurate, by rough eyeball.

For reference: Click the image to open in full size.


Mynes Tuning did bench flow testing that clearly displayed twin beams spray. This video is on YouTube, and tested Siemens 330cc, Siemens 380cc, Bosch 550cc, and Bosch 440cc:
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot

Last edited by TheBigChill; 10-03-2013 at 08:59 AM.
Reply With Quote
  #173
Old 10-03-2013, 10:34 AM
ignitionmodule ignitionmodule is offline
4th Gear

Join Date: Jan 2011
Posts: 478
Feedback Score: 0 reviews
Gallery
That's about what we saw. Our gas building, where we keep the explodey stuff, has a fairly accurate, though older analog system consisting of progressively larger annular rings that sit under the injector and collect the heptane. The graph is a representation of where all the fluid landed.

The tech's data showed a 19 degree separation (so 20 degrees) and what we would probably call a pair of 10-12 degree cones. The JCW injectors had a "bushier" spray. Probably just the larger flow and possibly high mileage injectors.

FWIW, the more modern spray pattern analysis machines are similar to ours, they just have a larger number of collection pockets laid out in a grid. The injector is mounted a fixed distance above and results in a 2-D picture of where everything lands.

Quote:
Originally Posted by TheBigChill View Post
Very interesting. Not quite sure what to make of the graphs, honestly. When we say "15 or 20 degree spray pattern", we're talking about the angle which exists between the two interior limits of the spray beams. Viewing the Mynes video below, the 15 or 20 degree angle looks to be accurate, by rough eyeball.
__________________
2012 JCW Clubman
Reply With Quote
  #174
Old 10-03-2013, 10:42 AM
TheBigChill TheBigChill is offline
4th Gear

Join Date: Oct 2012
Posts: 366
Feedback Score: 0 reviews
Gallery
Fantastic info. Thanks for clarifying the angle of deviation.
__________________
'05 Chili Red MCS. Slick-top, LSD, Xenon: Helix 15% - Bosch 380cc - Alta Intake- OBX Header - Magnaflow Catback - M7 Brace - Bilstein PSS9 - Hotchkis Camber Plates & Sways- BBS RGR - Direzza - Power Slot
Reply With Quote
  #175
Old 10-03-2013, 11:16 AM
vietnameeh vietnameeh is offline
4th Gear

Join Date: May 2012
Posts: 378
Feedback Score: 0 reviews
Gallery
i wish i had used the 2 piece adapters but no biggie lollooks like it would provide really good clearance
__________________
03 MCS
Dark Silver: Koni yellow, Swift Spec R, 23mm RSB, Noltec plates, Donald arms. Alta Intake, Alta Exhaust, Alta 15%, Alta Crank 2%, Genesis 380cc injectors, JCW-210 ECU TUNE
Soon: Header
Future: OBX LSD
Reply With Quote
Old 10-03-2013, 11:16 AM



Reply

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off

Forum Jump


MINI CooperMINI Cooper PrivacyMINI Cooper Terms of UseMINI Cooper Guidelines MINI Cooper Advertising The North American MINI Cooper Community
  MINI Cooper news, forums, FAQs, and reviews for enthusiasts and owners of the North American MINI Cooper
All times are GMT -7. The time now is 09:17 PM.
 Copyright © 2002-2008 North American Motoring. All Rights Reserved.     Powered by vBulletin and vBulletin Plugins by Drive Thru Online, Inc.

All times are GMT -7. The time now is 09:17 PM.



Powered by vBulletin and vBulletin Plugins by Drive Thru Online, Inc.
North American Motoring is an independently operated web site supporting MINI owners and enthusiastsworldwide. As such it has no official relationship with MINI USA, BMW AG, or BMW of North America.All original artwork and design is Copyright © 2002-2004 North American Motoring.
Admin Account Passwords
