Drivetrain Post your 2nd gen dynos!
#1
Post your 2nd gen dynos!
Suggested format
Dyno details:
Weather/Atmospheric conditions:
<graph>
Max HP:
Max Tq:
Modifications:
This thread is not a discussion thread, but rather a user driven reference. Discussion posts will be removed without notice, please start a new thread for such posts.
Dyno details:
Weather/Atmospheric conditions:
<graph>
Max HP:
Max Tq:
Modifications:
This thread is not a discussion thread, but rather a user driven reference. Discussion posts will be removed without notice, please start a new thread for such posts.
#2
3rd Gear
iTrader: (1)
Join Date: Jun 2008
Location: So Cal
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
current-
Weather/Atmospheric conditions:
83° F / 23% Humidity / 1142’ Elevation
91 octane
Power:
Max HP - 232.4 HP
Max Tq - 244.3 lb. ft.
Modifications:
Helix FMIC
M7 Charge tube
Riss Racing DP
Alta 3" DP-back
Alta Billet Turbo
Alta Stg 4 tune

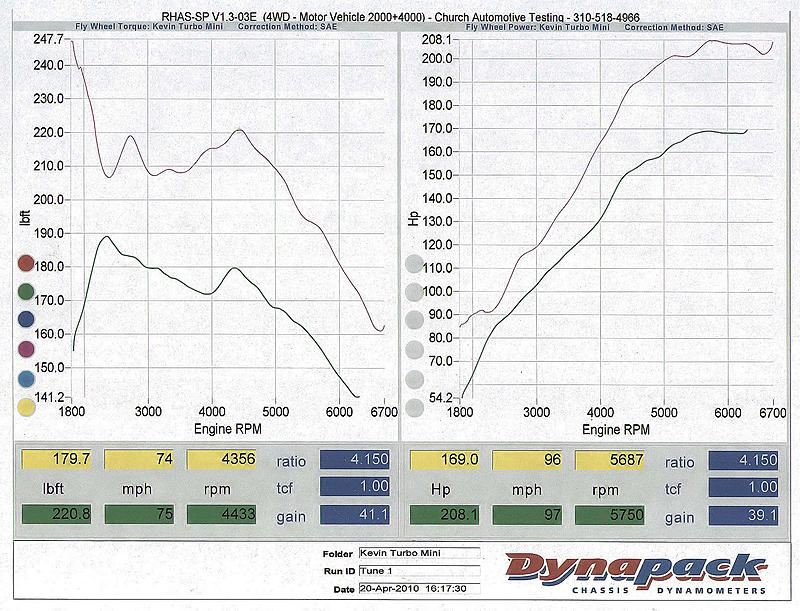

old-
Weather/Atmospheric conditions:
72° F / 59% Humidity / 90’ Elevation
91 octane
Power:
Max HP - 208.1 HP
Max Tq - 220.8 lb. ft.
Modifications:
Helix FMIC
M7 Charge tube
Riss Racing DP and Cat-back
RMW tune
Weather/Atmospheric conditions:
83° F / 23% Humidity / 1142’ Elevation
91 octane
Power:
Max HP - 232.4 HP
Max Tq - 244.3 lb. ft.
Modifications:
Helix FMIC
M7 Charge tube
Riss Racing DP
Alta 3" DP-back
Alta Billet Turbo
Alta Stg 4 tune
old-
Weather/Atmospheric conditions:
72° F / 59% Humidity / 90’ Elevation
91 octane
Power:
Max HP - 208.1 HP
Max Tq - 220.8 lb. ft.
Modifications:
Helix FMIC
M7 Charge tube
Riss Racing DP and Cat-back
RMW tune
Last edited by MINIutia; 01-03-2013 at 12:03 PM. Reason: New test after Billet turbo & tune
#3
Dyno Details:
Helix's 'heartbreaker' dyno. Is said to read at least 5-10% low. (Mustang Dyno)
Weather/Atmospheric Conditions:
Wish I took better note of this, but I think I was too excited that I was getting my RMW tune to remember. But according to weather.com's history report:
81 degrees F
42% humidity
Modifications:
RMW Tune
Riss Racing Catted Downpipe
Helix's 'heartbreaker' dyno. Is said to read at least 5-10% low. (Mustang Dyno)
Weather/Atmospheric Conditions:
Wish I took better note of this, but I think I was too excited that I was getting my RMW tune to remember. But according to weather.com's history report:
81 degrees F
42% humidity
Modifications:
RMW Tune
Riss Racing Catted Downpipe
Last edited by Sabes; 05-09-2010 at 09:11 AM.
#4
#5
Dyno Details:
Radical Racing, Atco NJ. (DynoJet)
Weather/Atmospheric Conditions:
78 degrees F
54% humidity
Modifications:
RMW Tune
Alta Intercooler and Boost tubes (hot and cold)
M7 Super AGS intake
stock exhaust
Results:
stock: 165hp 189tq
Tune: 200hp 217tq
Radical Racing, Atco NJ. (DynoJet)
Weather/Atmospheric Conditions:
78 degrees F
54% humidity
Modifications:
RMW Tune
Alta Intercooler and Boost tubes (hot and cold)
M7 Super AGS intake
stock exhaust
Results:
stock: 165hp 189tq
Tune: 200hp 217tq
Last edited by killerfox; 05-27-2010 at 10:09 AM.
#6
#7
2nd Gear
iTrader: (1)
Join Date: Jul 2009
Location: Gaithersburg, MD
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
Dyno details: DynoDynamics (also apparently reads low)
Weather/Atmospheric conditions: 95F and approx 50% humidity
Max HP: 213.7 (at wheel)
Max Tq: 238 (at wheel)
Modifications: Alta intake and tubing, Alta FMIC, JCW exhaust, RMW tune.
In Jan's words, "This R56 is strong. It wants to be tuned. You got great numbers in tough conditions (the heat)"
Stock plots are the pink ones, ~173WHP ~199WTQ ~40F.
Weather/Atmospheric conditions: 95F and approx 50% humidity
Max HP: 213.7 (at wheel)
Max Tq: 238 (at wheel)
Modifications: Alta intake and tubing, Alta FMIC, JCW exhaust, RMW tune.
In Jan's words, "This R56 is strong. It wants to be tuned. You got great numbers in tough conditions (the heat)"
Stock plots are the pink ones, ~173WHP ~199WTQ ~40F.
#9
I dont have the sheet handy but yesterday I got the RMW tune. I have an Alta CAI and an Alta JCW turbo back. Starting HP was 177 and I finished at 214.9. Torque started at 209 and finished at 244. So doin the math thats a 37hp and 35 tq increase. Jan said the dyno was reading low and the peak didnt read correctly so the actual numbers are slightly higher.
#10
#13
Dyno of PAW R56 Mini MCS with small Hybrid K04 non-Billet turbo + heat soaked intercooler. Been testing this setup for almost 8 month. But a PAW big K04 Billet hybrid turbo version will be Dyno next week for review. 245.97Hp & 249.38 ftlb at the wheels STD on a Dynojet.
Car has intake, exhaust, PAW oil cooler, intercooler & K04 Upgrade. Vehicule gains 77.36 Hp / 65 ftlb at the wheels on 93octane fuel!
Car has intake, exhaust, PAW oil cooler, intercooler & K04 Upgrade. Vehicule gains 77.36 Hp / 65 ftlb at the wheels on 93octane fuel!
Last edited by m54b25; 12-02-2010 at 07:01 PM.
#14
2008 Mini Cooper S R56 - Flashed tuned on Dynojet
2008 Mini Cooper S R56 - Flashed tuned on Dynojet 220.82 Hp / 232.94 ftlb SAE at the wheels.
Showing Dynojet dyno power in SAE & STD correction factor.
Car has intake, exhaust & intercooler. Vehicule gains 50 Hp / 65 ftlb at the wheels on 93octane fuel!
Showing Dynojet dyno power in SAE & STD correction factor.
Car has intake, exhaust & intercooler. Vehicule gains 50 Hp / 65 ftlb at the wheels on 93octane fuel!
Last edited by m54b25; 12-01-2010 at 06:29 AM.
#15
Dyno of PAW R56 Mini MCS with small Hybrid K04 non-Billet turbo + heat soaked intercooler. Been testing this setup for almost 8 month. But a PAW big K04 Billet hybrid turbo version will be Dyno next week for review. 245.97Hp & 249.38 ftlb at the wheels STD on a Dynojet.
Car has intake, exhaust, PAW oil cooler, intercooler & K04 Upgrade. Vehicule gains 77.36 Hp / 65 ftlb at the wheels on 93octane fuel!
Car has intake, exhaust, PAW oil cooler, intercooler & K04 Upgrade. Vehicule gains 77.36 Hp / 65 ftlb at the wheels on 93octane fuel!
#16
K03/04 full turbo kit
Test Conditions
Temperature: 75°
Dew point: 38°
Pressure: 29.83 in.
Humidity: 59%
Philadelphia, Pa
Mustang Dyno (Helix's Heartbreaker)
Peak WHP: 248
Peak WTQ: 222
Modifications: all power/power delivery revalent mods: Alta 3in twin cat Turboback, Helix Step Intercooler, NM boost tubes and CAI, Hybrid K03/04 Turbo, WMW DV Upgrade, Alta AccessPORT ECU Tuner.
i highlighted the areas under the curve to show the difference between Stock map Stage 4 setup and mild 18-9 psi map tune. the setup is capable of 25psi but with regular MAP sensor i couldn't run that pressure, while not recorded a Hail Mary run at 23psi yielded a 278whp and 257wtq but there were some misfires in the run so i decided not to keep that run recorded since it was not a reliable map yet.
Temperature: 75°
Dew point: 38°
Pressure: 29.83 in.
Humidity: 59%
Philadelphia, Pa
Mustang Dyno (Helix's Heartbreaker)
Peak WHP: 248
Peak WTQ: 222
Modifications: all power/power delivery revalent mods: Alta 3in twin cat Turboback, Helix Step Intercooler, NM boost tubes and CAI, Hybrid K03/04 Turbo, WMW DV Upgrade, Alta AccessPORT ECU Tuner.
i highlighted the areas under the curve to show the difference between Stock map Stage 4 setup and mild 18-9 psi map tune. the setup is capable of 25psi but with regular MAP sensor i couldn't run that pressure, while not recorded a Hail Mary run at 23psi yielded a 278whp and 257wtq but there were some misfires in the run so i decided not to keep that run recorded since it was not a reliable map yet.
Last edited by dunphyj; 12-18-2010 at 01:15 PM.
#18
Dyno details:
Mustang Dyno
Weather/Atmospheric conditions:
Roughly 60° / 10' over sea level
Max HP: 190
Max Tq: 224
Modifications:
2010 MCS
JCW Tunung Kit, Alta AP using ABF STG 2 map pro tuned by Cobb SoCal
Notes:
The base line is the JCW Tuning kit with it's software installed.
The ABF map has a raised rev limit of 7100, Peak boost is 19.5 PSI, and written to support a FMIC, intake,and catless turbo back.
Mustang Dyno
Weather/Atmospheric conditions:
Roughly 60° / 10' over sea level
Max HP: 190
Max Tq: 224
Modifications:
2010 MCS
JCW Tunung Kit, Alta AP using ABF STG 2 map pro tuned by Cobb SoCal
Notes:
The base line is the JCW Tuning kit with it's software installed.
The ABF map has a raised rev limit of 7100, Peak boost is 19.5 PSI, and written to support a FMIC, intake,and catless turbo back.
Last edited by Mike@Tech Division; 03-24-2011 at 09:48 AM. Reason: typo
#19
Dyno R56 with 100rwhp gain within the powerband
Dyno R56 with 100rwhp gain within the powerband.
http://www.northamericanmotoring.com...hp-240ftlb.pdf
http://www.northamericanmotoring.com...hp-240ftlb.pdf
#20
Dyno R56 with 100rwhp gain within the powerband.
http://www.northamericanmotoring.com...hp-240ftlb.pdf
http://www.northamericanmotoring.com...hp-240ftlb.pdf
#22
#23
Dyno R56 with 100rwhp gain within the powerband.
www.northamericanmotoring.com/forums/attachments/cooper-s-drivetrain/55850d1317498968-2012-r60-countryman-s-turbo-n18b16-dyno-and-tune-r56-cooper-s-n14b16-261whp-240ftlb.pdf
www.northamericanmotoring.com/forums/attachments/cooper-s-drivetrain/55850d1317498968-2012-r60-countryman-s-turbo-n18b16-dyno-and-tune-r56-cooper-s-n14b16-261whp-240ftlb.pdf
I am going to guess its not stock turbo, I say that because it makes more HP than TQ which K series turbos DO NOT do.
Please more information on this.
