Drivetrain Post your 2nd gen dynos!
#51
downpipe. Meaning a stock MCS with an FMIC and catback made: Dyno RMW Tune 211WHP/256WTQ
Which was done on a smaller turbo then the JCW. I was looking at some of jans tuned jcws and there is one locally that made 310WTQ and i believe 250WHP.
As long as you are happy, no hate, just noticing the difference in the AP vs Dyno tuning.
Which was done on a smaller turbo then the JCW. I was looking at some of jans tuned jcws and there is one locally that made 310WTQ and i believe 250WHP.
As long as you are happy, no hate, just noticing the difference in the AP vs Dyno tuning.
#52
downpipe. Meaning a stock MCS with an FMIC and catback made: Dyno RMW Tune 211WHP/256WTQ
Which was done on a smaller turbo then the JCW. I was looking at some of jans tuned jcws and there is one locally that made 310WTQ and i believe 250WHP.
As long as you are happy, no hate, just noticing the difference in the AP vs Dyno tuning.
Which was done on a smaller turbo then the JCW. I was looking at some of jans tuned jcws and there is one locally that made 310WTQ and i believe 250WHP.
As long as you are happy, no hate, just noticing the difference in the AP vs Dyno tuning.
#54
Dyno details: Mustang Dyno
Weather/Atmospheric conditions: Roughly 35C (Can't remember humidity)
Max HP: 223
Max Tq: 362 Nm
Modifications: Stock turbo, 3" catless downpipe, 2.5" centre exhaust, 2.5" magnaflow muffler, short intake, Oil catch can, Rear PCV delete, 6L FMIC, Stage 3 software from E-tuners
Weather/Atmospheric conditions: Roughly 35C (Can't remember humidity)
Max HP: 223
Max Tq: 362 Nm
Modifications: Stock turbo, 3" catless downpipe, 2.5" centre exhaust, 2.5" magnaflow muffler, short intake, Oil catch can, Rear PCV delete, 6L FMIC, Stage 3 software from E-tuners
#57
#60
Dyno Run Time
For you guys who have done runs/tuning on the Dyna Pack....
How many seconds are your runs set for?
If your run is set to go from 1500/2000RPM up to ~6500RPM, do you use 10 seconds? 15 seconds?
Alta mention they have a 4 second settle time, but don't say how long the actual run is.
I have dyno'd a couple times on the Dyna Pack, but need to know what everybody else is using for run time so I can compare apples to apples.
Thanks.
How many seconds are your runs set for?
If your run is set to go from 1500/2000RPM up to ~6500RPM, do you use 10 seconds? 15 seconds?
Alta mention they have a 4 second settle time, but don't say how long the actual run is.
I have dyno'd a couple times on the Dyna Pack, but need to know what everybody else is using for run time so I can compare apples to apples.
Thanks.
#62
Year: 2007
Version: Hot Chili S
Car: Mini Cooper
Tranny: Std
Mods:
Turboback: Downpipe 3'', 2.5'' line, 2.5'' exhaust magnaflow
K&N Filter
JCW Turbo upgrade
183.7 WHPS /222 Max Torque
Searching on the net of how to calculate wheel horse power to crank horse power I founded this..
http://www.mk5cortinaestate.co.uk/calculator4.php
So... maybe my car is now 210-216 hps(now) VS 175-178 hps(stock)
Next mod... INTERCOOLER (oem piece of ****) and a Ecu Tune..
Version: Hot Chili S
Car: Mini Cooper
Tranny: Std
Mods:
Turboback: Downpipe 3'', 2.5'' line, 2.5'' exhaust magnaflow
K&N Filter
JCW Turbo upgrade
183.7 WHPS /222 Max Torque
Searching on the net of how to calculate wheel horse power to crank horse power I founded this..
http://www.mk5cortinaestate.co.uk/calculator4.php
So... maybe my car is now 210-216 hps(now) VS 175-178 hps(stock)
Next mod... INTERCOOLER (oem piece of ****) and a Ecu Tune..
#63
2013 MINI Cooper JCW Coupe: R58
Alta CAI
Alta FMIC
RaceChip Ultimate
dyno...
https://www.northamericanmotoring.co.../ppuser/128018
Note: air/fuel sensor blew out exhaust during one of the pulls so ignore strange air/fuel graph.
Alta CAI
Alta FMIC
RaceChip Ultimate
dyno...
https://www.northamericanmotoring.co.../ppuser/128018
Note: air/fuel sensor blew out exhaust during one of the pulls so ignore strange air/fuel graph.
Last edited by martincohn; 06-02-2013 at 04:02 PM.
#64
Year: 2007
Version: Hot Chili S
Car: Mini Cooper
Tranny: Std
Mods:
Turboback: Downpipe 3'', 2.5'' line, 2.5'' exhaust magnaflow
K&N Filter
JCW Turbo upgrade
img]http://sphotos-b.ak.fbcdn.net/hphotos-ak-ash4/399454_348120761973829_1733908420_n.jpg[/img]
183.7 WHPS /222 Max Torque
Searching on the net of how to calculate wheel horse power to crank horse power I founded this..
http://www.mk5cortinaestate.co.uk/calculator4.php
So... maybe my car is now 210-216 hps(now) VS 175-178 hps(stock)
Next mod... INTERCOOLER (oem piece of ****) and a Ecu Tune..
Version: Hot Chili S
Car: Mini Cooper
Tranny: Std
Mods:
Turboback: Downpipe 3'', 2.5'' line, 2.5'' exhaust magnaflow
K&N Filter
JCW Turbo upgrade
img]http://sphotos-b.ak.fbcdn.net/hphotos-ak-ash4/399454_348120761973829_1733908420_n.jpg[/img]
183.7 WHPS /222 Max Torque
Searching on the net of how to calculate wheel horse power to crank horse power I founded this..
http://www.mk5cortinaestate.co.uk/calculator4.php
So... maybe my car is now 210-216 hps(now) VS 175-178 hps(stock)
Next mod... INTERCOOLER (oem piece of ****) and a Ecu Tune..
The JCW turbo didn't need a retune?
#65
#66
#67
#68
Run of my R56.
Land & Sea Dyno-mite dyno
84 degrees, 30% humidity, and 1200 ft elevation
NM Intake, catless downpipe, Forge Intercooler, Akrapovic Exhaust, Battle Tuning Stage 3. Going to contact BT and have them adjust the tune because it was too lean down low and too rich up top.
Bonus Video:
Land & Sea Dyno-mite dyno
84 degrees, 30% humidity, and 1200 ft elevation
NM Intake, catless downpipe, Forge Intercooler, Akrapovic Exhaust, Battle Tuning Stage 3. Going to contact BT and have them adjust the tune because it was too lean down low and too rich up top.
Bonus Video:
#69
Im at 241wtq on the stock clutch. Been fine so far. Ill see how it is when I run the meth map this week. Getting meth kit installed tomorrow then switching maps to the more aggressive tune. This is when the clutch should start struggling with all the torque.
#70
Mini R56 Cooper S 413.7 hp
Hi guys,
Here to show my result's on a 1.5 years project .
413.7hp ( 367 whp )
513 torque
( rest of the info can be seen on the video at the end )
Mini cooper s from 2007 ( N14 ) with the following mods:
Custom made forged crankshaft
High pressure oil pump
Forged Con rods
Forged Piston's
Reinforced Head gasket
Ported and worked engine head
Oversize intake and exhaust Valves
Double valve spring's
Custom made Cams
Garrett GTX Turbo ( worked )
Custom made manifold
Higher pressure fuel pump
Lightened Flywheel
Stage 5 Clutch
LSD
Reinforced Transmission
Evolve FMIC
Evolve downpipe ( worked )
Minigarage Challenge exhaust ( 80mm )
AEM CAI
Samco/Forge Silicones all around
Oil Catch Can
Resonator and noise making machine delete
Stronger Engine bolts
Powerflex black series all around
Worked throttle body
Standard injection system
Standard ECU ( worked )
Custom made insulation for turbo and air scoop
All work done by Amiauto Pro in Portugal, best shop around
And probably i am forgetting a lot of stuff but in resume this is it...
a few videos
https://www.youtube.com/watch?v=mCSRjg3fJ1g
Some other videos available on my youtube channel and more will be added on the near future of the car on the road and track, please subscribe to my channel to get all the latest.
https://www.youtube.com/channel/UC5L...7wJKcPA/videos
Cheers
Here to show my result's on a 1.5 years project .
413.7hp ( 367 whp )
513 torque
( rest of the info can be seen on the video at the end )
Mini cooper s from 2007 ( N14 ) with the following mods:
Custom made forged crankshaft
High pressure oil pump
Forged Con rods
Forged Piston's
Reinforced Head gasket
Ported and worked engine head
Oversize intake and exhaust Valves
Double valve spring's
Custom made Cams
Garrett GTX Turbo ( worked )
Custom made manifold
Higher pressure fuel pump
Lightened Flywheel
Stage 5 Clutch
LSD
Reinforced Transmission
Evolve FMIC
Evolve downpipe ( worked )
Minigarage Challenge exhaust ( 80mm )
AEM CAI
Samco/Forge Silicones all around
Oil Catch Can
Resonator and noise making machine delete
Stronger Engine bolts
Powerflex black series all around
Worked throttle body
Standard injection system
Standard ECU ( worked )
Custom made insulation for turbo and air scoop
All work done by Amiauto Pro in Portugal, best shop around
And probably i am forgetting a lot of stuff but in resume this is it...
a few videos
https://www.youtube.com/watch?v=mCSRjg3fJ1g
Some other videos available on my youtube channel and more will be added on the near future of the car on the road and track, please subscribe to my channel to get all the latest.
https://www.youtube.com/channel/UC5L...7wJKcPA/videos
Cheers
#71
Hi guys, Here to show my result's on a 1.5 years project . 413.7hp ( 367 whp ) 513 torque ( rest of the info can be seen on the video at the end ) Mini cooper s from 2007 ( N14 ) with the following mods: Custom made forged crankshaft High pressure oil pump Forged Con rods Forged Piston's Reinforced Head gasket Ported and worked engine head Oversize intake and exhaust Valves Double valve spring's Custom made Cams Garrett GTX Turbo ( worked ) Custom made manifold Higher pressure fuel pump Lightened Flywheel Stage 5 Clutch LSD Reinforced Transmission Evolve FMIC Evolve downpipe ( worked ) Minigarage Challenge exhaust ( 80mm ) AEM CAI Samco/Forge Silicones all around Oil Catch Can Resonator and noise making machine delete Stronger Engine bolts Powerflex black series all around Worked throttle body Standard injection system Standard ECU ( worked ) Custom made insulation for turbo and air scoop All work done by Amiauto Pro in Portugal, best shop around And probably i am forgetting a lot of stuff but in resume this is it... a few videos https://www.youtube.com/watch?v=mCSRjg3fJ1g Some other videos available on my youtube channel and more will be added on the near future of the car on the road and track, please subscribe to my channel to get all the latest. https://www.youtube.com/channel/UC5L...7wJKcPA/videos Cheers
#73

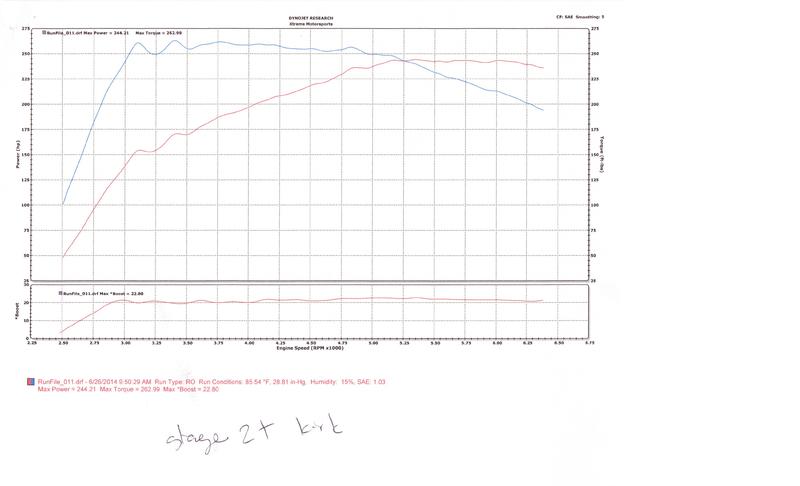

Dyno details: DynoJet
Weather/Atmospheric conditions:
100 degree Arizona day inside a swamp cooled shop (90 inside and humid)
Max WHP: 244.2
Max WTq: 262.99
Modifications:
2013 GP2 JCW
Milltek catless DP
second cat deleted/stock JCW exhaust
Forge FMIC
NGK 1422 plug
Drop in K&N
Manic Stage 2+
100 octane fuel
Weather/Atmospheric conditions:
100 degree Arizona day inside a swamp cooled shop (90 inside and humid)
Max WHP: 244.2
Max WTq: 262.99
Modifications:
2013 GP2 JCW
Milltek catless DP
second cat deleted/stock JCW exhaust
Forge FMIC
NGK 1422 plug
Drop in K&N
Manic Stage 2+
100 octane fuel
#74
#75
Question on your "stock" run. Does that still include all your bolt-ons? Or is that 100% stock set up?
Last edited by Grizld700; 08-11-2014 at 07:04 AM.
