Here is another thing to add to the GRS IC. I heard rumor that Graham at GRS was in the process if testing a new up-rated version of his current model intercooler. So, being the "I have to know what's up" kinda guy I am, I sent Graham an email.
Very nice fellow, very helpful and informative! He actually called me from across the pond to respond to my questions personally! After speaking with him for awhile about his intercooler, he offered to send me some prototype images from the current version he has in testing.

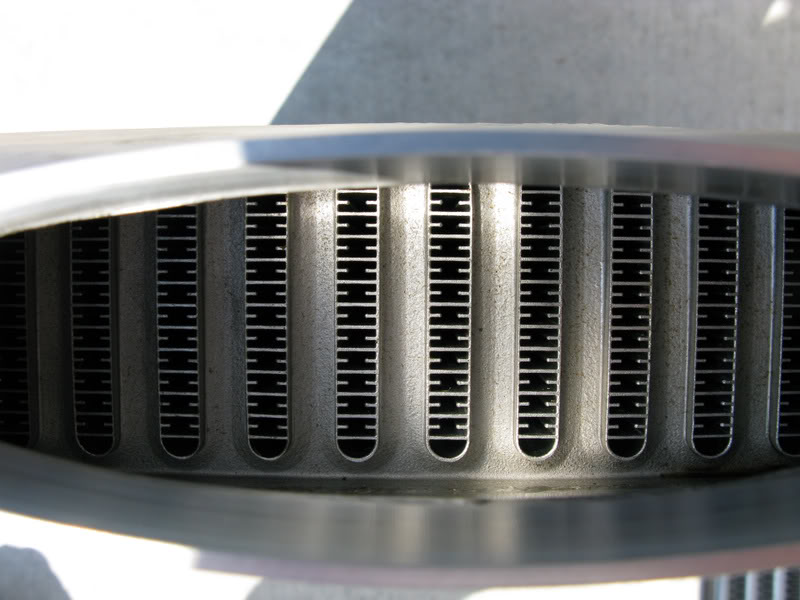

As you can see in the attached images, he is working to increase the efficiency of his IC by smoothing out the internal air path. I believe this change will allow for a much smoother transition into the intercooler. I'm pretty excited about this change myself just looking at it.
Like I said this is a prototype design he currently has in testing. He has offered to do this same modification on my friends IC if we send it back to him. I believe my friend is going to take Graham up on that offer. When we get it back well run some tests of our own on it and see how much its improved. We actually have two GRS intercoolers in our club, so we will be able to do some before and after comparatives.
Here are the images:
CORE BEFORE CHANGE:
CORE AFTER CHANGE:
__________________
RMW Head - RMW Shorty Header - RMW Cam - RMW Quiet Catback - 440 injectors - Alta 17% - Alta 22mm Rear Sway - M7 V2 DFIC & Hood Scoop - M7 Coilovers - M7 AE Strut Bar - Voltage CAI - BRISK Racing Plugs - GP LSD - Eibach Control Arms - Custom Graphics - Orciari Cowl Scoops
just curious how much weight that adds to the intercooler because once it's hot it takes longer to cool down
are we trading tit for tat?
we will soon find out
I like it that people are still innovating!
As far as weight goes I can't imagine it will be much but some yes. the "diffusers" or half round will only be added to the intake side not both. The heat would be retained on the hot side at least. Probably minimal... we shall see
I'm with you! I love seeing people love what they do enough to continually improve designs !
__________________
RMW Head - RMW Shorty Header - RMW Cam - RMW Quiet Catback - 440 injectors - Alta 17% - Alta 22mm Rear Sway - M7 V2 DFIC & Hood Scoop - M7 Coilovers - M7 AE Strut Bar - Voltage CAI - BRISK Racing Plugs - GP LSD - Eibach Control Arms - Custom Graphics - Orciari Cowl Scoops
while it's a step in the right direction, there are still bad transitions there. The half round should lie on top of the leading edge of the extruded tube so that the airflow is smooth.
I believe that might not be the exact core we use. He is trying testing this configuration to see if flow is increased.
I agree with the good doctors assessment that the transitions could be smoother. BUT, this is not the final version, just a prototype. I'm not sure what the final version will look like.

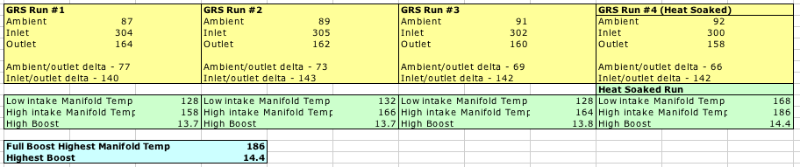

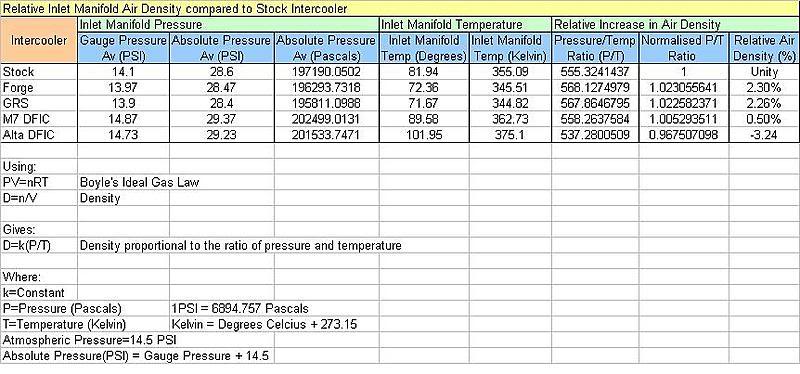

Interesting thing about pressure drop, like the good Dr.O posted earlier that the GP IC has a 6.5% pressure drop. The GRS has a .5% pressure drop (from the Webb testing)
__________________
RMW Head - RMW Shorty Header - RMW Cam - RMW Quiet Catback - 440 injectors - Alta 17% - Alta 22mm Rear Sway - M7 V2 DFIC & Hood Scoop - M7 Coilovers - M7 AE Strut Bar - Voltage CAI - BRISK Racing Plugs - GP LSD - Eibach Control Arms - Custom Graphics - Orciari Cowl Scoops
Could be wrong but that picture with the modified bits is a core for a different car Ill ask him but 99.99% sure its from the Porsche intercooler he did not to long ago Same core he is using for the front mount intercooler
As for the extra weight, those tubes are actually hollow and not very thick so should add very little in terms of heat soak
And Yes Graham is a very nice chap (in a none homo-erotic way )
I believe that might not be the exact core we use. He is trying testing this configuration to see if flow is increased.
I agree with the good doctors assessment that the transitions could be smoother. BUT, this is not the final version, just a prototype. I'm not sure what the final version will look like.
Interesting thing about pressure drop, like the good Dr.O posted earlier that the GP IC has a 6.5% pressure drop. The GRS has a .5% pressure drop (from the Webb testing)
.5% I thought it was .5PSI? (could be wrong though)
While every bit you can get out of the intercooler is great, you are fighting a much bigger battle. The temp-averaging of the T-MAP, the ECU's reaction to the T-MAP, the heat latency of the outlet horn and manifold once hot etc. are all combining to kill the cars power. It really needs to be looked at as a system, the intercooler alone is a minor piece of the puzzle. I can tell you from looking at the data, mine and Intense's, that the intercooler alone is only one piece of the puzzle.
While every bit you can get out of the intercooler is great, you are fighting a much bigger battle. The temp-averaging of the T-MAP, the ECU's reaction to the T-MAP, the heat latency of the outlet horn and manifold once hot etc. are all combining to kill the cars power. It really needs to be looked at as a system, the intercooler alone is a minor piece of the puzzle. I can tell you from looking at the data, mine and Intense's, that the intercooler alone is only one piece of the puzzle.
While every bit you can get out of the intercooler is great, you are fighting a much bigger battle. The temp-averaging of the T-MAP, the ECU's reaction to the T-MAP, the heat latency of the outlet horn and manifold once hot etc. are all combining to kill the cars power. It really needs to be looked at as a system, the intercooler alone is a minor piece of the puzzle. I can tell you from looking at the data, mine and Intense's, that the intercooler alone is only one piece of the puzzle.
Could be wrong but that picture with the modified bits is a core for a different car Ill ask him but 99.99% sure its from the Porsche intercooler he did not to long ago Same core he is using for the front mount intercooler
As for the extra weight, those tubes are actually hollow and not very thick so should add very little in terms of heat soak
And Yes Graham is a very nice chap (in a none homo-erotic way )
Yes you are correct Damo, may apologies people. The modification pictured was done on a intercooler made for a porsche 968.
__________________
RMW Head - RMW Shorty Header - RMW Cam - RMW Quiet Catback - 440 injectors - Alta 17% - Alta 22mm Rear Sway - M7 V2 DFIC & Hood Scoop - M7 Coilovers - M7 AE Strut Bar - Voltage CAI - BRISK Racing Plugs - GP LSD - Eibach Control Arms - Custom Graphics - Orciari Cowl Scoops
As far as weight goes I can't imagine it will be much but some yes. the "diffusers" or half round will only be added to the intake side not both. The heat would be retained on the hot side at least. Probably minimal... we shall see
I'm with you! I love seeing people love what they do enough to continually improve designs !
Both the weight and heat soak should be minimal and negligible, so much so its proabably difficult to measure. I think its a nice detail. The best design thou is still the stocker on this detail.
Really, most of this stuff is just "secret" to those who won't read anything other than interet forums. (Don't get me wrong, I like internet forums, it's just that they aren't very good sources of "best of breed" information on any subject. For a good start, one should always go to some experts for the basics. Sadly, I have yet to find an internet forum that fits the bill.)The time response (a ghastly 10 sec or so) of the temp sensor in the T-MAP can be found from the data sheets from the manufacturer or from manufacturers of other like sensors (BTW, the pressure part has a time response of about 20 ms! 500x faster! Just think about what that does to the speed-density engine managment algorithms!) This means that most pressure changes (fast or not) are resolved but quick temp changes are not.
The fact that it's a whole system that has to be studied is really obvious if one takes any time at all to think about it. Best power and drivability is made from well matched component selection, including the tune. This is true for pretty much everything in the world that has more than one part.
Meanwhile the chicken, that I started baking on the IC, is almost done.....
Air flow, thermal efficency, loss of boost, heat management & more have been discussed on this site with who knows how many posts. Partsman & Dr Phil have come up with solutions for the DFIC. They have also gathered the data that, IMO, support these solutions.
As Dr O says, "drivability is made from well matched components". BMW did a pretty good job with the "S", as it is, out of the box. I would not buy 1 if they didn't do some homework. Even people walk better when wearing a left & right shoe, not so while wearing 2 left shoes.
A big player, that is not thought of as much as should be, is air quality. How much water is in it? What non contributing gasses are present? What altitude are you? Ambient temp? If you're on the LA free way at rush hour, on a hot heavy day, do you think 5 gallons of C16 in in the tank help you, with an OE or aftermarket IC ( I'm sure it will somewhat )? Are any of these questions relivant? Maybe not for an IC but they will sway the result.

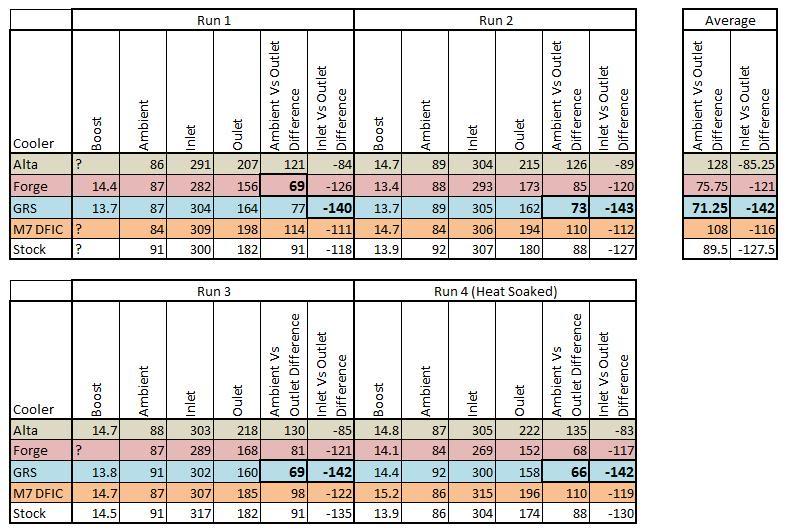

Intense, you guys have done a great job with collecting useable data for all to read. All these ICs, you tested, have merit, some more than others. 2 of the 5 tested ( 1 of which I also tested ) did not do as well as the other 3 for my taste, however on long haul highway driving it matched or did better than the best of the 3 top mounts. On the other hand the OE is best suited for the DD under most conditions including high performance mods. The Forge offers a few more options for me & the temps are reliable. The GRS would offer the same, I don't own 1, never tested 1 ( infact I have never seen 1 in person ), I know someone who does ( a few states away ). I was suprised to see an extruded core.
The local Subaru service manager was a good friend ( he moved to NC last fall ) - after using many, I mean many , in the 10s, of FMICs for his 550whp STI ( + a 200 shot ), he convinced me to get the Forge. We're not kids at 58 & 63, we expect result....... Testing must have repeatable results over a long period of time. In the end, Longboard has the best & no mater how we try to come up with numbers, Longboard wins. It's a complete project, not finished ( they never are ), reengineered to make big HP.
Back to the chicken. 0 to 100 at WOT - the inlet temp can reach 350f on a hot day ( 94 for this test 2+ years back ). I'm afraid of what the EGT looked like. Last Sunday morning, 58f, 72% @ 6:10am ) to 100 @ WOT Inlet temp 274f w/Forge, not enough to bake the chicken......
16 % pulley used since 2005 before testing.
